Stuff I did to Jade (97 Tour) after learning on Deerslayer. Planned in advance with a relay panel installed under the seat and a PC-8 fuse panel behind the right cover. Has 21 relays now IIRC. Only 11 fit in the panel; the others are behind the right cover, behind the fwd tank gussets, and in the bucket. Also added extra wires run under the tank to support future mods w/o having to pull the tank.
In no particular order, just as I remember them. Pardon the dust & clutter in some pics. Also some mods have been revised again, further down - like the lights are all LED now to reduce alternator load:
• Russell Daylong seats, custom embroidered, built with Russell-upholstered Mustang pass. backrest (so passenger sits upright, not on tailbone).
http://www.horseapple.com/scratch/Jade%20Russell.JPG• Kuryakyn Hwy pegs.
http://www.horseapple.com/scratch/JADE%20bakers%20and%20highway%20peg.jpg• BBT Fwd controls.
https://www.youtube.com/watch?v=ltgVugCRfFg• Ammpro Shifter anchor mod.
http://www.valkyrieforum.com/bbs/index.php/topic,81509.msg819570.html#msg819570• High-power 130/90w headlight mod (relays).
http://www.horseapple.com/Valkyrie/Tech_Tips/Headlight_Upgrade/headlight_upgrade.html• Fwd spots which are actually H4 headlights with my custom circuit control.
http://www.valkyrieforum.com/bbs/index.php/topic,93054.msg924843.html#msg924843• Belly tank with my gravity feed custom install, electric controls and fuel sharing - my "Oiler" petcock.
http://www.valkyrieforum.com/bbs/index.php/topic,84264.0.html• Desmog.
http://www.valkyrieriders.com/shoptalk/desmog.htm• Large (1/4" orifice) Dan-Marc AFC fuel solenoid valve - wired with latch relay, hidden pushbutton for fuel security - hijacks, theft and tipovers. Also more detail at belly tank link above
http://www.horseapple.com/Valkyrie/Tech_Tips/Fuel_Shutoff/fuel_shutoff.html• Pingel petcock JB-welded a lever extension handle.
http://www.horseapple.com/scratch/Jade-Pingel.jpg• Powder coated wheels.
http://www.horseapple.com/scratch/Jade%20powder%20frnt%20wheel.jpg• Double-row rear wheel bearing mod.
http://www.valkyrieriders.com/shoptalk/5204_bearing_mod.pdf• Hitchdoc towing hitch with Swivel and Tekonsha trailer brake control.
http://www.horseapple.com/scratch/Swivel%20hitch2.jpg• My Highlighter sissybar plate LED panel - custom made as a Spartan Helmet outline, Run-Brake-Turn with eyes that wink blue.
http://www.horseapple.com/scratch/JADE%20back.jpg• Run-Brake-Turn red LED rear marker lights using my relay circuit.

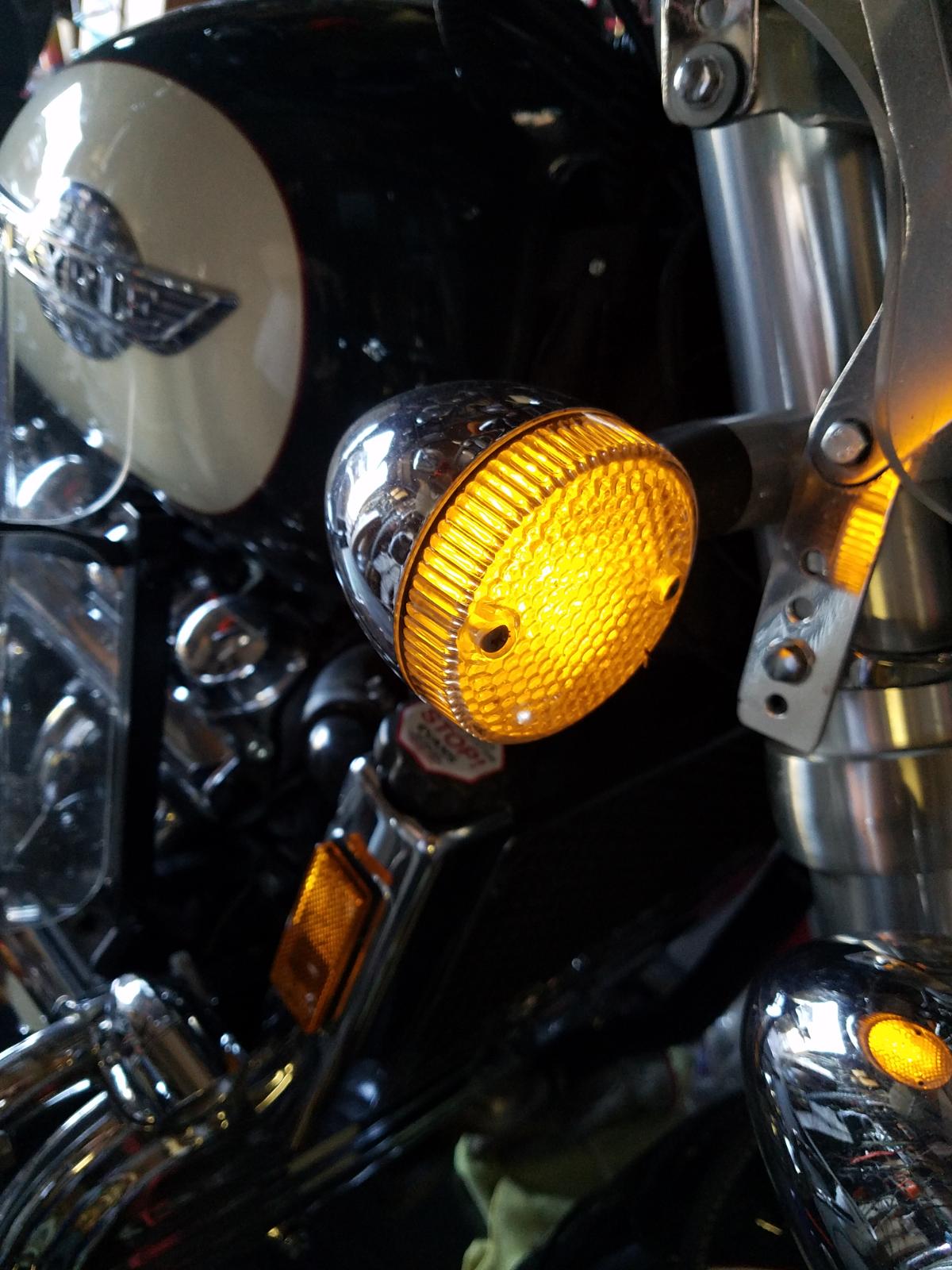

http://www.valkyrieforum.com/bbs/index.php/topic,104928.msg1049631.html#msg1049631• Front markers orange LED arrays with indicator LED mod.
http://www.horseapple.com/scratch/JADE%20fwd%20marker.jpg• All light lenses smoke or clear.
• Radiantz rear LED tailight.
http://www.horseapple.com/scratch/JADE%20back.jpg• 2 additional fwd-facing LED lights for add'l visibility.
http://www.horseapple.com/scratch/JADE%20fwd%20small%20LED.jpg• Instrument LED lighting with dimmer control.
http://www.valkyrieforum.com/bbs/index.php/topic,105417.msg1056135.html#msg1056135• 300w amp, 300w preamp & mixer with Lanzar Crossover with Bluetooth and Subwoofer support, speakers on handlebar.
http://www.horseapple.com/scratch/Jade%20Lanzar%20Crossover.jpg• Brakeaway throttle lock.
http://www.horseapple.com/scratch/JADE%20brakeaway.jpg• Rostra electronic cruise control.

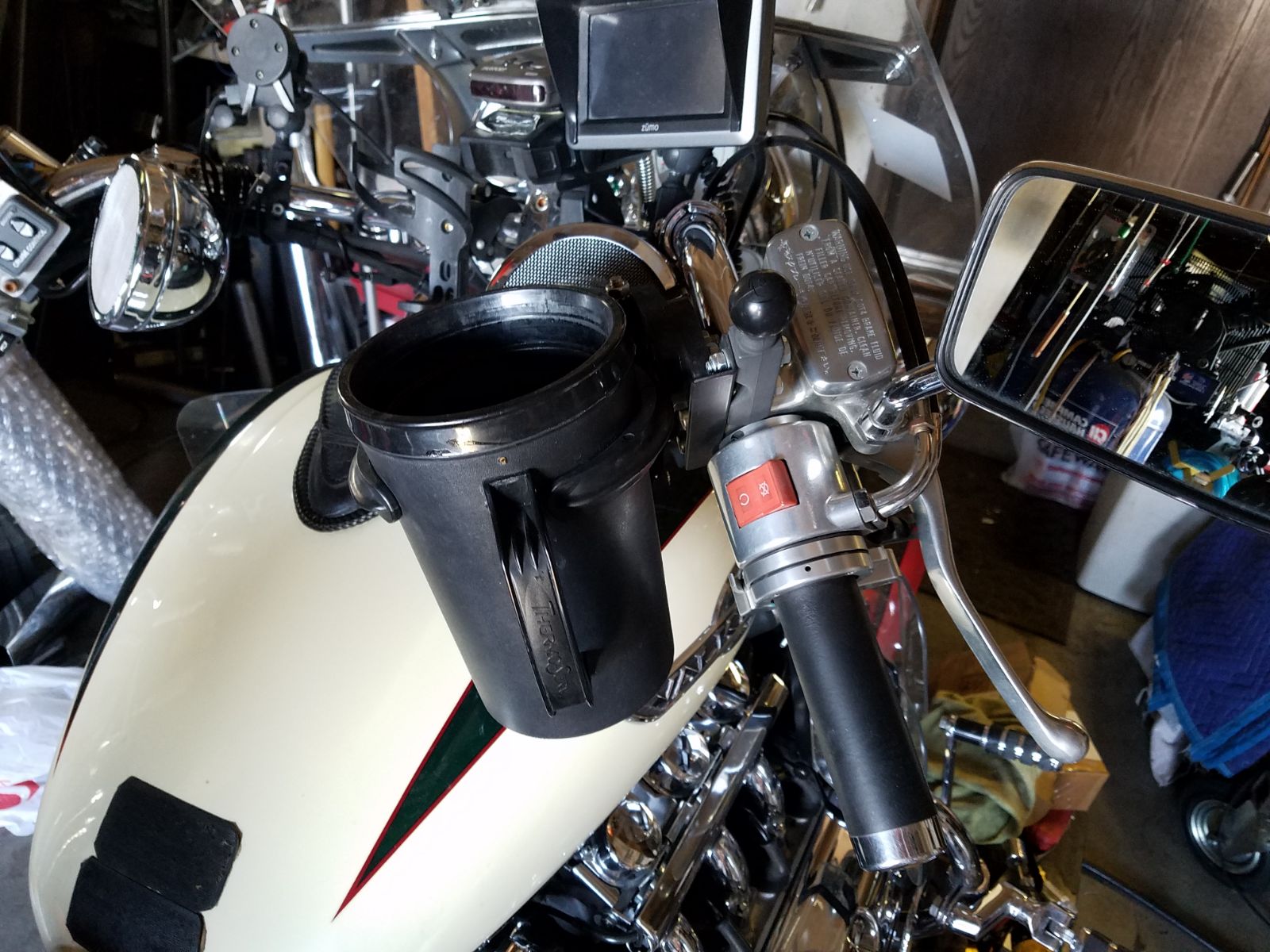

http://www.valkyrieforum.com/bbs/index.php/topic,86066.0.html• Butler drink holder.
http://www.horseapple.com/scratch/JADE%20Butler.jpg• HD Pullback risers (I think they are 9").

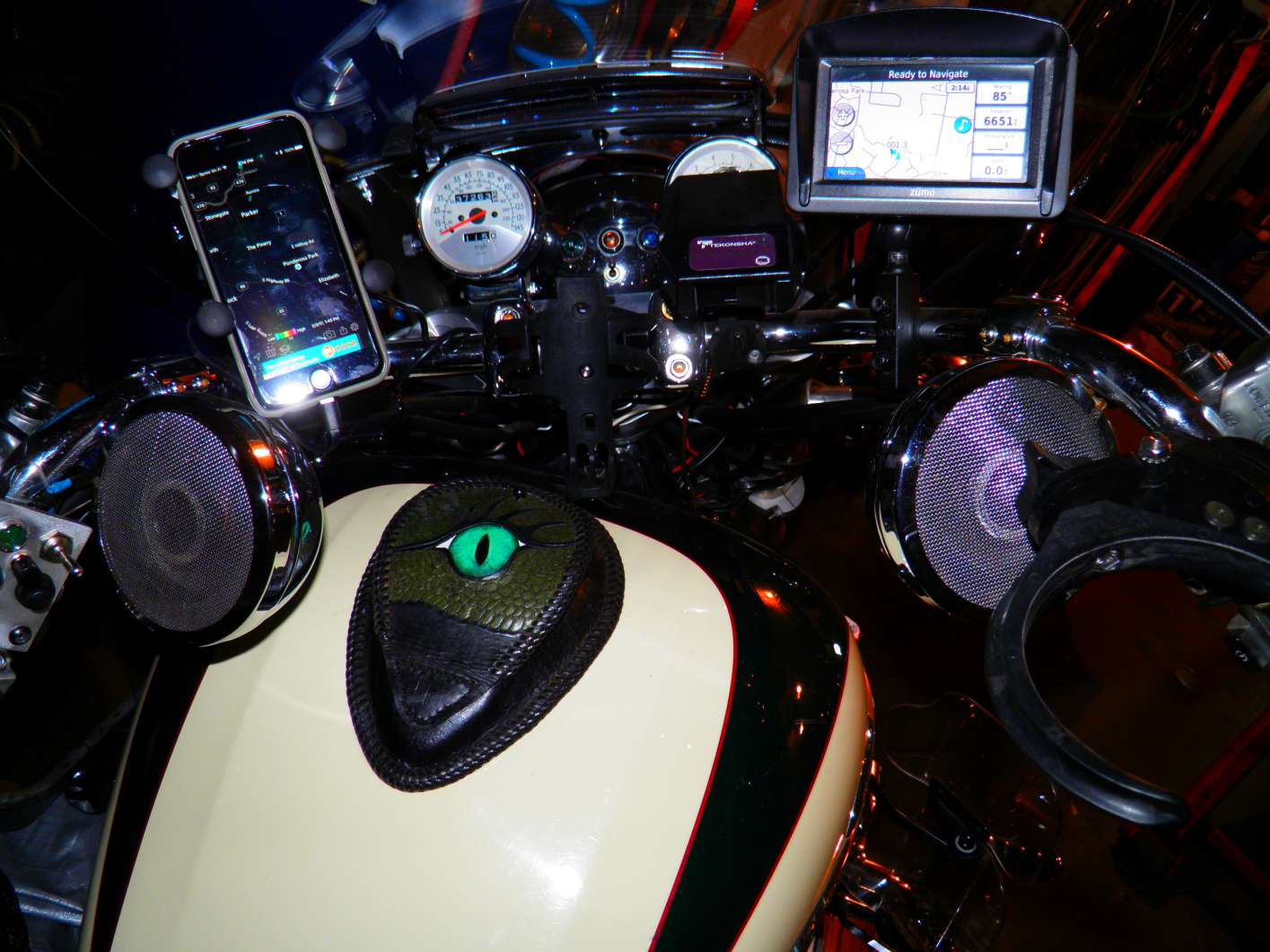

http://www.horseapple.com/scratch/Jade%20risers2.jpg• Leather gas cap Dragon Eye from Clint (cool look).
http://www.horseapple.com/scratch/Jade%20cockpit2.jpg• Another drinkholder - works with paper cups.

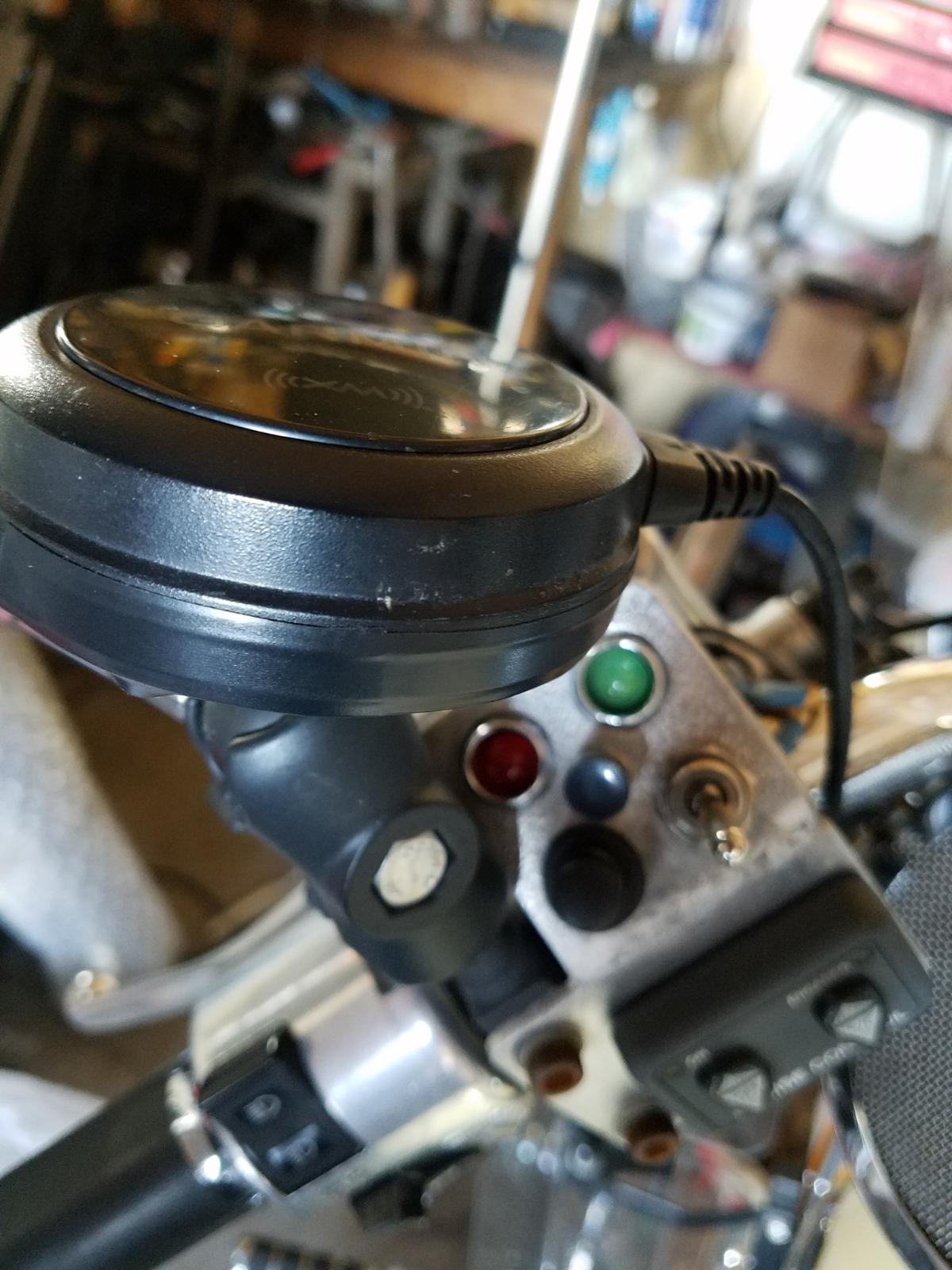

http://www.horseapple.com/scratch/JADE%20drinkholder.jpg• Garmin Zumo 665 with XM/Sirius antenna (supports MP3 play, satellite radio, weather and traffic maps)
http://www.horseapple.com/scratch/JADE%20ZUMO%20650.jpg http://www.horseapple.com/scratch/JADE%20XM%20antenna.jpg• "X" phoneholder with USB power port.
http://www.horseapple.com/scratch/JADE%20X%20phone%20mnt.jpg• Escort Passport to monitor charger voltage and the cops monitoring me.
http://www.horseapple.com/scratch/JADE%20Escort.jpg• Clearview shield with vent.
http://www.horseapple.com/scratch/JADE%20front%20shield.jpg• Baker Wings.
http://www.horseapple.com/scratch/JADE%20bakers%20and%20highway%20peg.jpg• My custom pipes with glasspacks, silencers and Organ Pipes.
http://www.horseapple.com/Valkyrie/Valk_Products/M2W_Exhaust__System/m2w_exhaust__system.html• My permanent mounted lightweight lift adapter.
http://www.valkyrieforum.com/bbs/index.php/topic,105040.0.html• Luggage rack.
http://www.horseapple.com/scratch/JADE%20back.jpg• Wolo air horn.
http://www.horseapple.com/scratch/Jade%20Wolo%20side.jpg• Power plug to connect heated clothing - also great to connect charger w/o pulling seat.
http://www.horseapple.com/scratch/Jade%20Wolo%20side.jpg• Evans permanent waterless coolant.
https://www.youtube.com/watch?v=t7PykrgzWPQ• Double Darkside - Austone in back, Batlax BT45 130/90-17 rear tire in front.
• Progressive 444-4057B shocks - have 140/200 springs.
http://www.horseapple.com/scratch/JADE%20progressive%20444.jpg• BigFoot sidestand extender mod because it's leaning too much with the Austone Taxi Tire.
http://www.valkyrieforum.com/bbs/index.php/topic,100297.0.htmlEDIT:• After the 2019 Labor Day Darby Memorial Ride to Montrose, added an IS tank. Of course modded with the brazed-in bung to support the belly tank. Cool, it's already the right color for Jade. Now I have just under TEN gallons. Range to the fumes when not towing, about 350 miles.

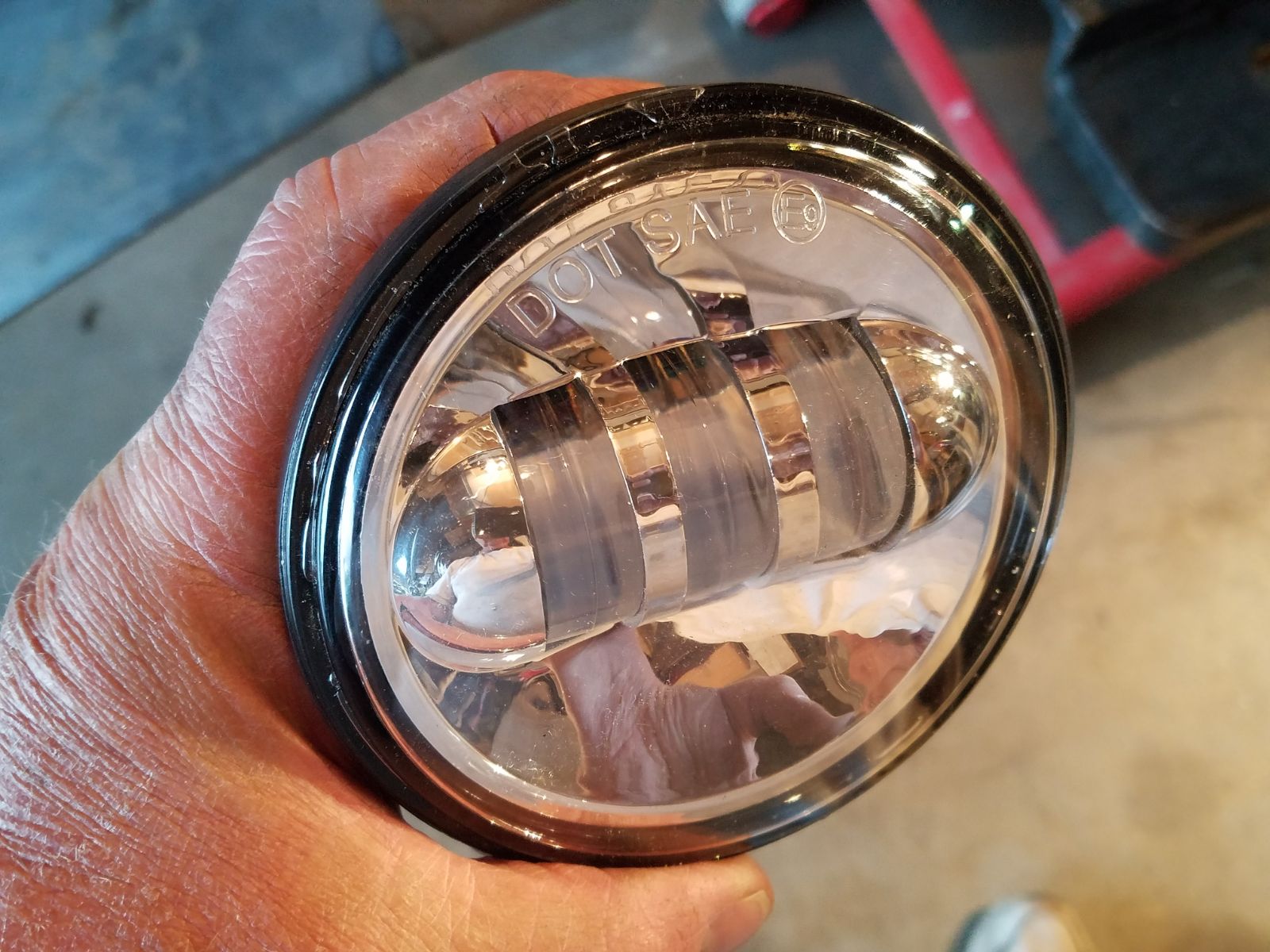

• Changed the main headlight to an Eagle Lights Infinity Beam "dragon's eye" (not their name) And both upper H4 spots to H4 LED's, installed the universal 3 1/2" LED spots in some shells I had on hand with a couple custom brackets I made. Removed the small LED spots on the crash bars. Now all 5 lights use less power in sum than the one 130/90 halogen headlight on high beam I removed. Plenty of forward visibility for safety, a little less light downrange yet enough for deer safety, and much less load on the alternator which I had to replace after the Roanoke inzane trip 2018:
https://www.horseapple.com/scratch/Eagle%20Lights%20Infinity%20Beam.jpg https://www.horseapple.com/scratch/LED%20SPOT%20FRNT.jpghttps://www.horseapple.com/scratch/Jade%20fwd%20LEDs.jpg• Kenwood 400w 4-channel KAC-M1804 replaced the failed Uniqcycle amp. Hardwired the Samsung X cellphone mount to the Lanzar Crossover since the Bluetooth connection kept dropping. The phone now has a 1Tb micro-SD card inside with (currently) my 9535 mp3 collection so I can listen to all my tunes using whatever player ap (now Musicolet) is current on the phone.

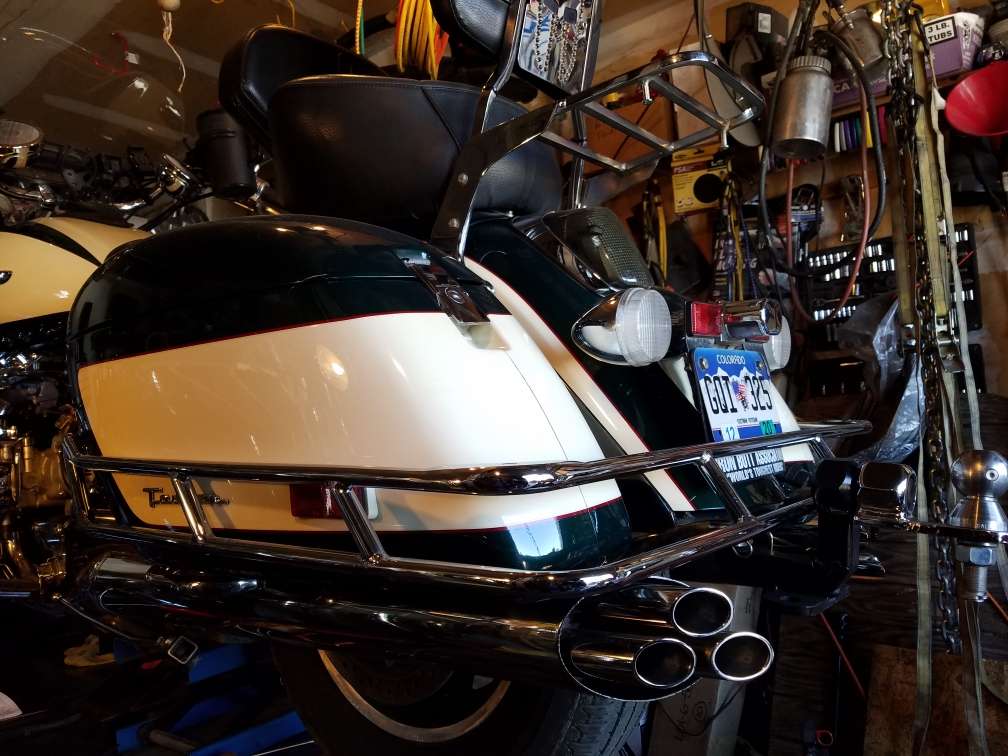

• Bag rails I bought at the Roanoke Inzane. Not made to fit exactly my 97 Tourer with Hitchdoc but with some cutting and welding I made it fit.
https://www.horseapple.com/scratch/Jade%20bag%20rails%20on%20lift.jpg• VTXtreme 4° triple trees. Just finished - 4/16/20.
https://www.horseapple.com/scratch/Jade%20triple%20trees%20on%20table.jpg• Progressive fork springs. Just finished 4/16/20. Ride is more harsh but I think that's from the fork oil - I suspect draining out 1.5oz or so, and reducing the weight to say 7 wt will fix that. Added all new All Balls seals and other internal parts, with Bel-Ray 10 wt fork oil.
• Polished the forks and spots / marker lights mount hardware to match the VTXtreme triple trees.
https://www.horseapple.com/scratch/Jade%20polished%20front.jpgThat's all I can recall right now. I've documented many of these installs on this board - use the advance search fn with my board name and keywords to find them. Also on my web site at
http://www.horseapple.com/Valkyrie/Tech_Tips/tech_tips.html All of the electric mods use relays and are fused; every relay and fuse is labelled; looms are used to run the wires as much as practical.
Hard to say which of these are the best for me. Of course preventing hydrolock (Dan-Marc & Pingel) is important. The Russell seat for long distance comfort, the highway pegs with fwd controls, cruise control, pullback bars, and heated clothing for comfort long or short; GPS and the phone mount - both provide navigation and weather radar; both powered/recharged by the bike. Belly tank for range especially when pulling trailers. Wouldn't be w/o my tunes; have 3 sources - 2000 mp3's in the Zumo (9535 in the phone), Satellite radio from the same, Pandora and other sources from the phone via the Bluetooth. When we have club rides, are spinning Markarita's on the motel parking lot, have a big mix of music to go with the beverages chips and salsa. I wired the amps so they can run with ignition off, and plug in a charger.
