larue
|
 |
« on: February 09, 2020, 05:20:00 PM » |
|
Hi guys, anyone knows of a quality led flasher for the legacy Valk that’s plug n play to solve hyper flashing syndrome. I put some rear led lights and they’ve made front and rear turns flash in a fast sequence. Tried couple eBay cheapo items but didn’t cure the problem.Thank you all in advance
|
|
|
|
|
Logged
|
|
|
|
|
|
|
larue
|
|
« Reply #2 on: February 09, 2020, 06:28:46 PM » |
|
Hey ken the oem flasher is 3 wires , this one only 2 wires,!! Apparently it worked for you. Is it plug n play?. Thank you
|
|
|
|
|
Logged
|
|
|
|
|
98valk
|
|
« Reply #3 on: February 09, 2020, 06:37:19 PM » |
|
do a search, been addressed on what to do/buy.
|
|
|
|
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
CoreyP
|
|
« Reply #4 on: February 09, 2020, 08:43:15 PM » |
|
The PO put a LED flasher on the license plate, works fine. From what I have seen it's plug and play but I have no idea where it came from. So this post is useless but I do like having the flasher brake light on my license plate.
|
|
|
|
|
Logged
|
|
|
|
John Schmidt
Member
Posts: 15205
a/k/a Stuffy. '99 I/S Valk Roadsmith Trike
De Pere, WI (Green Bay)
|
|
« Reply #5 on: February 10, 2020, 06:47:26 PM » |
|
Larue, you can get a diode kit from Kuryakyn for just a few $$, installs in the headlight bucket in just a few minutes. Goes in the turn signal circuit for the lamp that's in the headlight bucket. Cut a couple wires, solder the kit in per directions and ground on side...per directions. No more fast flashing.
|
|
|
|
|
Logged
|
|
|
|
|
RonW
|
|
« Reply #6 on: February 11, 2020, 12:06:18 AM » |
|

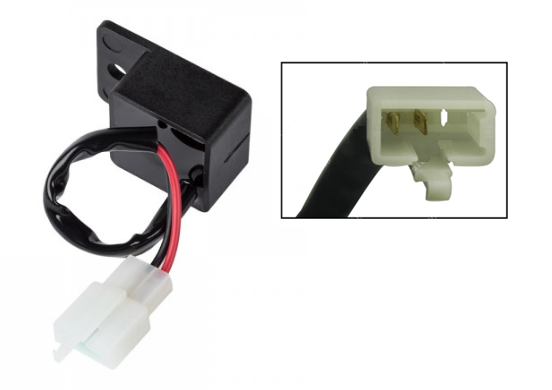

Electronic flashers don't need a ground wire. That's why only the 2 wires although many led flashers include a ground wire for whatever reasons. Also, different brand electronic flashers don't reduce the hyperflashing equally, and the reduced rate varies if you were to add leds to your rear signals, 4 leds instead of 2 leds. I've tried the superbright flasher that Oil Burner linked to and it works but it does not reduce the blinking 100% back to the stock rate, but the slightly faster blinking is better in my opinon. It has a mini pin-connector (inset photo), otherwise you'd have to crimp on ¼-inch female blade connectors to the harness wires ..... in respect to plug-n-play.  |
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
Jims99
|
|
« Reply #7 on: February 11, 2020, 05:01:00 AM » |
|
This is the one I used on my interstate. Not sure if you would need the diode added to indicated light for standard and tourers. Not plug and play, but easy to change out. Dewhel 1 pc CF-13 CF13 EP34 3 Pin... https://www.amazon.com/dp/B0786CX8LP?ref=ppx_pop_mob_ap_share |
|
|
|
|
Logged
|
The light at the end of the tunnel, is a train.
99 tourer
00 interstate
97 standard
91 wing
78 trail 70
|
|
|
Steel cowboy
Member
Posts: 1284
Moving ahead so life won’t pass me by.
Spring Hill, Fl.
|
|
« Reply #8 on: February 11, 2020, 06:02:39 AM » |
|
|
|
|
|
|
Logged
|
2001 black interstate
2003 Jupiter Orange wing
|
|
|
|
Jims99
|
|
« Reply #9 on: February 11, 2020, 08:57:33 AM » |
|
The only plug and play I found was show chrome. Didn’t have very good reviews so I wired in my own. Very easy.
|
|
|
|
|
Logged
|
The light at the end of the tunnel, is a train.
99 tourer
00 interstate
97 standard
91 wing
78 trail 70
|
|
|
MarkT
Member
Posts: 5196
VRCC #437 "Form follows Function"
Colorado Front Range - elevation 2.005 km
|
|
« Reply #10 on: February 11, 2020, 10:23:07 AM » |
|
Larue, you can get a diode kit from Kuryakyn for just a few $$, installs in the headlight bucket in just a few minutes. Goes in the turn signal circuit for the lamp that's in the headlight bucket. Cut a couple wires, solder the kit in per directions and ground on side...per directions. No more fast flashing.
John, the purpose of the diode-in-flasher-indicator-mod is to stop 4-way flashers after installing LED turns in front. Does not affect impedence or flash rate using the OEM analog flasher. The reason that would happen is because the OEM circuit uses the opposite turn light as ground for the indicator. No problem with incandescent bulkbs but with LED's the one being used for ground will light up - LED's require much less current to light than tungsten does. I wired my own for the same mod, but I installed 2 LED's in the flasher indicator bezel so each side's circuit has it's own ground. Eliminated the 4-way problem while it increased the brightness of the indicator and changed it to red. Can't ignore it now. |
|
|
|
« Last Edit: February 11, 2020, 10:24:51 AM by MarkT »
|
Logged
|
|
|
|
|
larue
|
|
« Reply #11 on: February 11, 2020, 02:20:33 PM » |
|
Thank you all for your replies, I ordered what oil burner suggested , will chime in after installation
|
|
|
|
|
Logged
|
|
|
|
Jersey
Member
Posts: 545
VRCC #37540
Southern Maryland
|
|
« Reply #12 on: February 12, 2020, 01:56:47 PM » |
|
Hi guys, anyone knows of a quality led flasher for the legacy Valk that’s plug n play to solve hyper flashing syndrome. I put some rear led lights and they’ve made front and rear turns flash in a fast sequence. Tried couple eBay cheapo items but didn’t cure the problem.Thank you all in advance
The SignalBoss works with any type of lights, incandescent or LED, even intermixed and works correctly. Also, you'll get auto canceling turn signals, Hazards, and Escort flashers. jerseymcproducts.com |
|
|
|
|
Logged
|
Jersey
|
|
|
|
SCain
|
|
« Reply #13 on: February 14, 2020, 07:20:36 AM » |
|
The Show Chrome 13-306 LED Flasher is a plug and play, put one on my interstate when I changed to LED turn signals.
|
|
|
|
|
Logged
|
Steve  |
|
|
|
larue
|
|
« Reply #14 on: February 14, 2020, 11:23:18 AM » |
|
Thanks everyone one again for all your suggestion, Oil Burner suggestion was spot on, the flasher arrived to day plug n play, no more hyper flashing . It works perfect and the issue is solved. Many thanks  |
|
|
|
|
Logged
|
|
|
|
|
Ken aka Oil Burner
|
|
« Reply #15 on: February 14, 2020, 06:32:19 PM » |
|
No problem. Sorry I didn't reply earlier to your question. Just saw this again tonight.
|
|
|
|
|
