Rio Wil
|
 |
« on: July 27, 2013, 08:11:46 PM » |
|

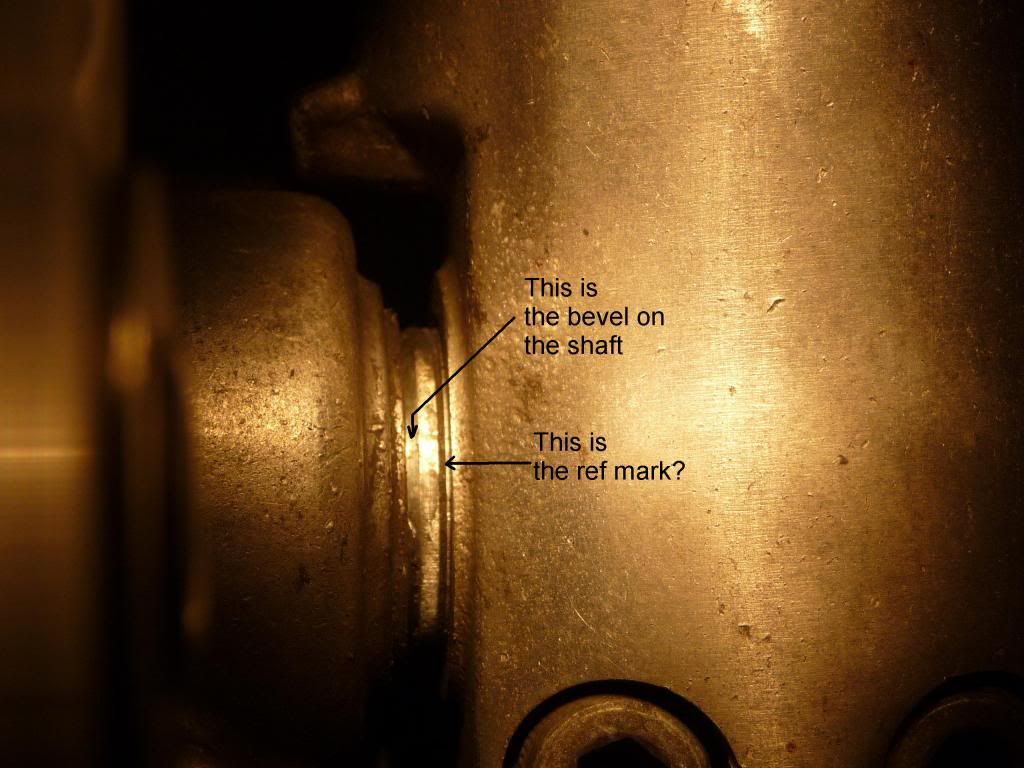

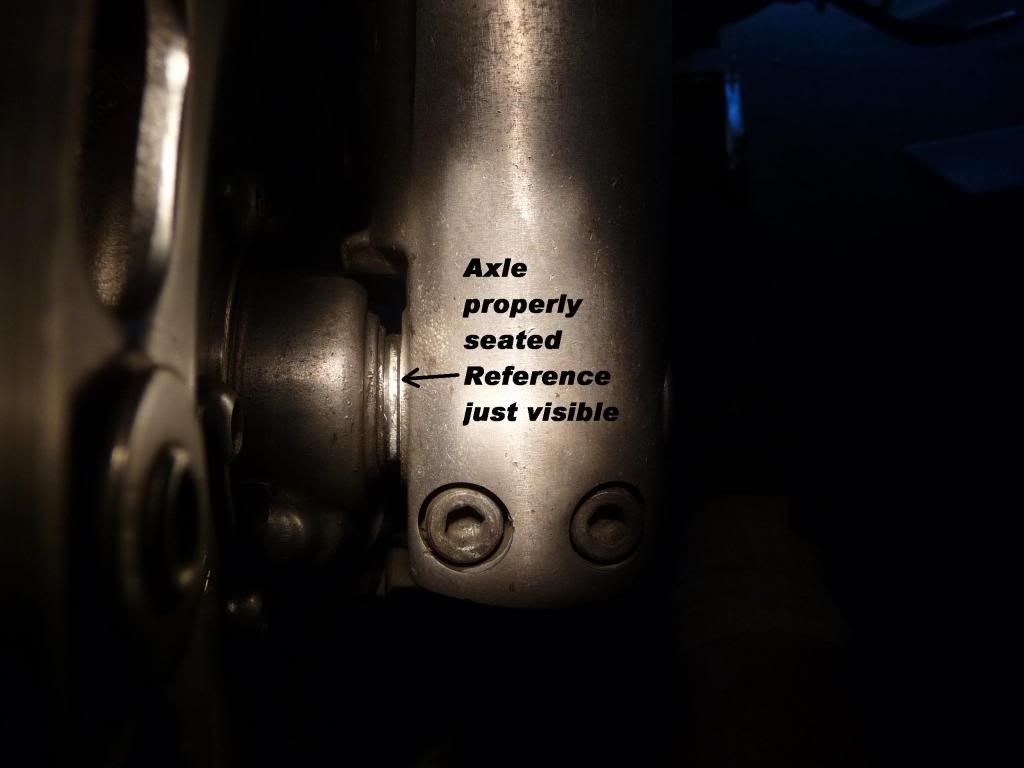

I had my front axle out on my 2001 I/S and was just eyeballing the machining. I noticed the obvious decrease in diameter between the left pinch bolt area and the rest of the shaft. Closer inspection revealed a slight taper on the larger diameter down to the smaller diameter and a slight undercut on the smaller diameter right at the step down. Continuing to look, I noticed a very small groove cut in the larger diameter about .050 from the taper. Closer inspection showed the groove was not a machining mark, but appeared to be a deliberately machined cut in the shaft.......hmmmmmm In stalled the axle and lined up the left side of the axle flush with the surface of thefork.....looked for the little machined cut on the axle and lo and behold, it was just visible on the inside of the fork......dang! is it a reference mark to remove any guesswork as to the proper positioning of the f ork/axle relationship and gives optimum alignment for the left brake caliper to prevent rotor/caliper interference.   |
|
|
|
|
Logged
|
|
|
|
|
9Ball
|
|
« Reply #1 on: July 28, 2013, 12:53:39 AM » |
|
My guess is yes....you are on to something. Good job!!
|
|
|
|
|
Logged
|
VRCC #6897, Joined May, 2000
1999 Standard
2007 Rocket 3
2005 VTX 1300S
|
|
|
|
The emperor has no clothes
|
|
« Reply #2 on: July 28, 2013, 03:16:10 AM » |
|
Very observant, I wouldn't have noticed that in a million years!
|
|
|
|
|
Logged
|
|
|
|
wiggydotcom
Member
Posts: 3387
Do Your Best and Miss the Rest!
Yorkville, Illinois
|
|
« Reply #3 on: July 28, 2013, 05:38:23 AM » |
|
Very observant, I wouldn't have noticed that in a million years!
Ditto.. Veeeery interesting. |
|
|
|
|
Logged
|
VRCC #10177 VRCCDS #239  |
|
|
|
Chrisj CMA
|
|
« Reply #4 on: July 28, 2013, 08:05:10 AM » |
|
That is very interesting for sure....I looked and I think I can just make out that mark on the inside edge of the fork.......Ill look better next time the front wheel comes off. I certainly never noticed that before. I wonder if it was a new addition, mine is a first year, we shall see.
|
|
|
|
|
Logged
|
|
|
|
|
Bone
|
|
« Reply #5 on: July 28, 2013, 10:15:18 AM » |
|
My 98 Tourer has one.
Weak flashlight and cell phone picture doesn't get posted.
|
|
|
|
|
Logged
|
|
|
|
|
Rio Wil
|
|
« Reply #6 on: July 28, 2013, 04:17:32 PM » |
|
|
|
|
|
|
Logged
|
|
|
|
MarcusS
Member
Posts: 311
New To Me August 2013
North Houston
|
|
« Reply #7 on: July 28, 2013, 05:22:42 PM » |
|
I noticed you are missing the 8mm bolt caps like everyone else. Anyone purchased and replaced the 4 caps that are suppose to dress up the axle bolts?
CAP (8MM)
91455-MB0-010
|
|
|
|
|
Logged
|
Life goes on whether you are in it for the ride or not.
|
|
|
hubcapsc
Member
Posts: 16783
upstate
South Carolina
|
|
« Reply #8 on: July 28, 2013, 05:41:51 PM » |
|
|
|
|
|
|
Logged
|
|
|
|
|
Farther
|
|
« Reply #9 on: July 28, 2013, 06:19:23 PM » |
|
There are a few of them in the dirt floor of my barn you are welcome to, if you can find them.  |
|
|
|
|
Logged
|
Thanks,
~Farther
|
|
|
Thrud
Member
Posts: 103
2000 Valkyrie Interstate
Olathe, KS
|
|
« Reply #10 on: July 29, 2013, 06:29:31 AM » |
|
I checked my Honda shop manual and found no mention of any reference mark on the front axle. Perhaps your previous owner made this mark? I don't believe there's any requirement for aligning any high or low spots on the axle/fork mating surfaces.
|
|
|
|
|
Logged
|
|
|
|
Thrud
Member
Posts: 103
2000 Valkyrie Interstate
Olathe, KS
|
|
« Reply #11 on: July 29, 2013, 06:37:46 AM » |
|
Also, properly installed and functioning brakes will have the pads "floating" between the rotors and the caliper pistons. Check your brakes and replace the pads when the pad wear indicators are at/near their service limits. You may want to remove the calipers and check for correct piston movement (no binding). And, insure the calipers move in either direction along the caliper pin bolts. I recently overhauled my rear brake because the pistons were stuck (piston surfaces corroded). During the course I discovered that the pin bolts lacked any silicone grease.
|
|
|
|
|
Logged
|
|
|
|
|
Rio Wil
|
|
« Reply #12 on: July 29, 2013, 09:22:25 AM » |
|
Also, properly installed and functioning brakes will have the pads "floating" between the rotors and the caliper pistons. Check your brakes and replace the pads when the pad wear indicators are at/near their service limits. You may want to remove the calipers and check for correct piston movement (no binding). And, insure the calipers move in either direction along the caliper pin bolts. I recently overhauled my rear brake because the pistons were stuck (piston surfaces corroded). During the course I discovered that the pin bolts lacked any silicone grease.
The topic of this thread is the possible discovery of a undocumented maintenance aid to assist in aligning the axle on the left fork tube properly....so question is, does your axle have one of these minute grooves? |
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16783
upstate
South Carolina
|
|
« Reply #13 on: July 29, 2013, 10:04:37 AM » |
|
The topic of this thread is the possible discovery of a undocumented maintenance aid to assist in aligning the axle on the left fork tube properly....so question is, does your axle have one of these minute grooves?
I got curious and looked at the ones on ebay... the only one I saw that did not have the groove was this marked-as-a-97-front axle...  -Mike |
|
|
|
|
Logged
|
|
|
|
|
Rio Wil
|
|
« Reply #14 on: July 29, 2013, 10:46:22 AM » |
|
Hmmmm, that is interesting. Isn't the '97 axle different cause of the smaller bearing size also......
I looked on ebay also and could clearly see one shaft with the machined groove.....I couldn't tell about the ones from Pinwall because of the orientation of the shaft.....
|
|
|
|
|
Logged
|
|
|
|
|
Chrisj CMA
|
|
« Reply #15 on: July 29, 2013, 10:52:05 AM » |
|
Hmmmm, that is interesting. Isn't the '97 axle different cause of the smaller bearing size also......
I looked on ebay also and could clearly see one shaft with the machined groove.....I couldn't tell about the ones from Pinwall because of the orientation of the shaft.....
No difference in the axle between years. The bearing OUTER diameter is a bit smaller. Inner diameter (where the axle goes) is all the same |
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16783
upstate
South Carolina
|
|
« Reply #16 on: July 29, 2013, 11:11:04 AM » |
|
Hmmmm, that is interesting. Isn't the '97 axle different cause of the smaller bearing size also......
I looked on ebay also and could clearly see one shaft with the machined groove.....I couldn't tell about the ones from Pinwall because of the orientation of the shaft.....
If you grind around on the pinwall ads, there's multiple pictures... kind of klunky, but you can see that they have the groove... -Mike |
|
|
|
|
Logged
|
|
|
|
|
Rio Wil
|
|
« Reply #17 on: July 29, 2013, 02:28:52 PM » |
|
I just replaced my front tire and upon re-inserting the axle, it was kind of nice to just look for the "reference groove" to peek out from the fork tube......tighten the left pinch bolts down and walla!!
|
|
|
|
|
Logged
|
|
|
|
|
matt
|
|
« Reply #18 on: August 16, 2013, 01:51:51 PM » |
|
just finished fron wheel install had a mark on axle an yup just bring mark thru fork tighten up lower bike bounce tighten right side pinch bolts(yes did tighten axle bolt first) jack back up and no rubbing. I think you are deff on to something. TTTHHHAAANNNKKK YYYOOOUUUUU!!!!!!!!!
|
|
|
|
|
Logged
|
|
|
|
KSDragonRider
Member
Posts: 777
The beatings will continue until morale improves
Salina, KS
|
|
« Reply #19 on: August 16, 2013, 02:14:49 PM » |
|
I noticed you are missing the 8mm bolt caps like everyone else. Anyone purchased and replaced the 4 caps that are suppose to dress up the axle bolts?
CAP (8MM)
91455-MB0-010
i bought some last time i did a front tire. |
|
|
|
|
Logged
|
Dalen & Shay -> Salina, KS
VRCC Member #33950
1999 Red & Black Valkyrie Interstate
|
|
|
|
RP#62
|
|
« Reply #20 on: August 17, 2013, 08:38:07 AM » |
|
Hmm, not on my '97. I'll have to go check the '98. -RP  |
|
|
|
|
Logged
|
|
|
|
|
Rio Wil
|
|
« Reply #21 on: August 17, 2013, 02:28:58 PM » |
|
That will be interesting to see if the '98 has it.....
|
|
|
|
|
Logged
|
|
|
|
|
Bone
|
|
« Reply #22 on: August 17, 2013, 02:55:43 PM » |
|
Check reply #5 your question will be answered.
|
|
|
|
|
Logged
|
|
|
|
|
Rio Wil
|
|
« Reply #23 on: August 17, 2013, 10:17:18 PM » |
|
Bone.....I remember seeing your post....just looking for further verification.
Thanks,
Wil
|
|
|
|
|
Logged
|
|
|
|
|
Bone
|
|
« Reply #24 on: August 18, 2013, 04:06:43 AM » |
|
Good idea I want to see the axle moved over a bit to be positive.
|
|
|
|
|
Logged
|
|
|
|
|
