Mase
|
 |
« on: March 11, 2014, 11:27:59 AM » |
|
Is there a place that shows an illustration of the needles for a Valkyrie?  |
|
|
|
« Last Edit: March 12, 2014, 12:02:43 PM by Mase »
|
Logged
|
|
|
|
Patrick
Member
Posts: 15433
VRCC 4474
Largo Florida
|
|
« Reply #1 on: March 11, 2014, 01:16:55 PM » |
|
I haven't and I'd like to find/see on also. I've also wanted to measure and compare a '97 with a later one.
|
|
|
|
|
Logged
|
|
|
|
|
98valk
|
|
« Reply #2 on: March 11, 2014, 04:11:22 PM » |
|
cobra, dyna and viking needles are the same and all three are richer than FactoryPro needles which are richer than the OEM. OEM are not adjustable all others are. per FP dyno testing the front 2 carbs needles should be slightly richer than the others. one extra washer does the trick, there is a noticable difference esp if back to back road testing is done.
I have all of them except the cobras, but they are made by dyna. I use the FPs and oem slide springs with viking pipes. might try the I/S springs I have, didn't like them with the oem pipes with glass packs.
|
|
|
|
« Last Edit: March 12, 2014, 05:35:47 AM by CA »
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
9Ball
|
|
« Reply #3 on: March 12, 2014, 07:10:34 AM » |
|
they do have different tapers...I've seen pictures comparing them side by side, but I'll have to look around to see if I can find them again.
|
|
|
|
|
Logged
|
VRCC #6897, Joined May, 2000
1999 Standard
2007 Rocket 3
2005 VTX 1300S
|
|
|
|
9Ball
|
|
« Reply #4 on: March 12, 2014, 01:59:21 PM » |
|

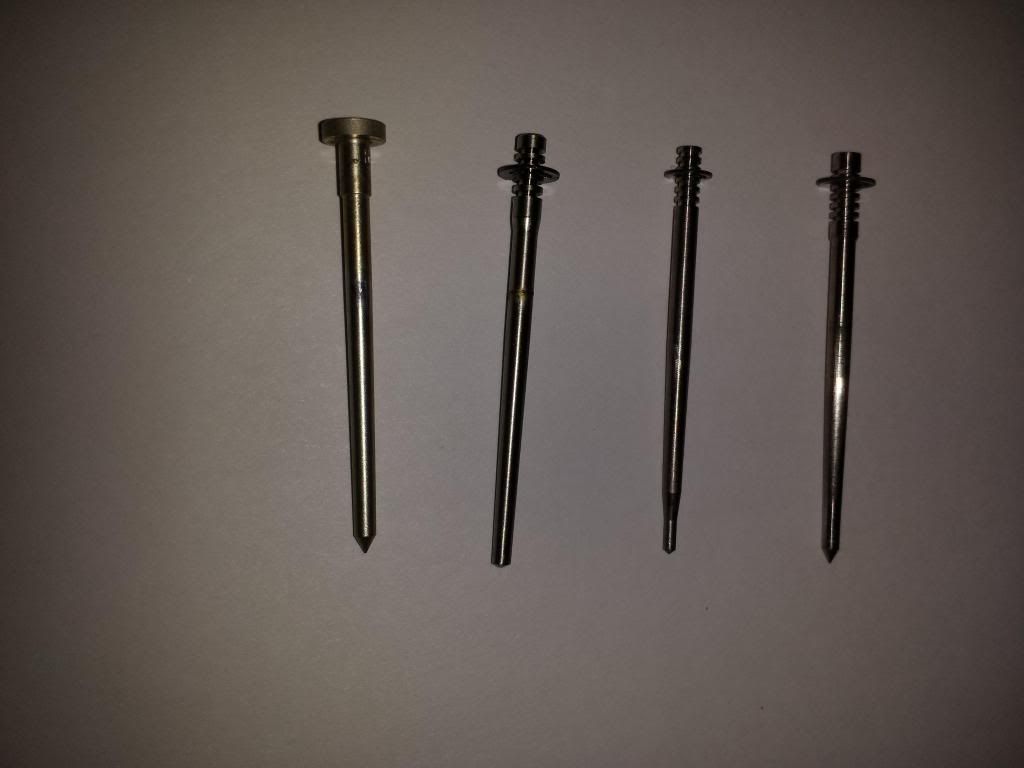

The first one on the left appears to be the OEM (no notches and no "e" clip) and the one next to it matches my Factory Pro needles...that's a start.
|
|
|
|
|
Logged
|
VRCC #6897, Joined May, 2000
1999 Standard
2007 Rocket 3
2005 VTX 1300S
|
|
|
Patrick
Member
Posts: 15433
VRCC 4474
Largo Florida
|
|
« Reply #5 on: March 12, 2014, 02:47:47 PM » |
|
Wow, heck of a difference.
|
|
|
|
|
Logged
|
|
|
|
John Schmidt
Member
Posts: 15223
a/k/a Stuffy. '99 I/S Valk Roadsmith Trike
De Pere, WI (Green Bay)
|
|
« Reply #6 on: March 12, 2014, 02:50:40 PM » |
|
I'd like to see a comparison by name as well, and what different riders have done in the name of performance. Guess I'm never done tinkering!  |
|
|
|
|
Logged
|
|
|
|
|
Paxton
|
|
« Reply #7 on: March 13, 2014, 12:00:01 AM » |
|
|
|
|
|
|
Logged
|
J. Paxton Gomez
1966 First year Bronco... 302 CI V8
1975 First year Chrysler Cordoba... 360 CI V8
1978 Honda 750F / Cafe Racer
2000 GL1500CY Fast-Black Standard Solo Rider
So Cal... 91205
"Four wheels move the body; two wheels move the soul."
|
|
|
|
98valk
|
|
« Reply #8 on: March 13, 2014, 09:01:17 AM » |
|
not a pic of the valkyrie kit, that is cobra's std marketing pic |
|
|
|
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
98valk
|
|
« Reply #9 on: March 13, 2014, 01:46:52 PM » |
|
The first one on the left appears to be the OEM (no notches and no "e" clip) and the one next to it matches my Factory Pro needles...that's a start.
agreed. the next one is a dyna needle which is exactly like the viking needles I have, in addition the viking needle instruction sheet is exactly like the dyna sheet except for vikings logo at the top and the word viking on certain lines and the contact line at bottom of page. do not know what the last to the right is. somebody posted before that the first run of viking pipes had different needles than the later runs. |
|
|
|
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
|
|
Paxton
|
|
« Reply #11 on: March 13, 2014, 10:52:44 PM » |
|
MASE;She came with short Jardines, now covered by Truck Stacks... still not OME. ??? I have no idea if the PO messed w/the Jets.  I am installing COBRA 6 into 6's with their factory baffles.
|
|
|
|
|
Logged
|
J. Paxton Gomez
1966 First year Bronco... 302 CI V8
1975 First year Chrysler Cordoba... 360 CI V8
1978 Honda 750F / Cafe Racer
2000 GL1500CY Fast-Black Standard Solo Rider
So Cal... 91205
"Four wheels move the body; two wheels move the soul."
|
|
|
|
Paxton
|
|
« Reply #12 on: March 14, 2014, 01:27:46 PM » |
|
Mase; The kit's still in transit. Will be here on Monday.  |
|
|
|
|
Logged
|
J. Paxton Gomez
1966 First year Bronco... 302 CI V8
1975 First year Chrysler Cordoba... 360 CI V8
1978 Honda 750F / Cafe Racer
2000 GL1500CY Fast-Black Standard Solo Rider
So Cal... 91205
"Four wheels move the body; two wheels move the soul."
|
|
|
|
Paxton
|
|
« Reply #13 on: March 16, 2014, 10:51:48 PM » |
|
Mase; Big Mac Dave, the fearless leader of our VRCC SoCal Chapter is doing tons of work on my Valk, including pulling the carbs; installing an I/S tank; installing a set of COBRA 6 into 6's and LOTS more.  Yesterday I trailered her 67 miles one way to Dave's house. He said it'll be done and ready to go by Sunday.  It'll be my first ride since my 28 December axident!   SAY NO TO FREAKIN' CAGES!  |
|
|
|
|
