Author Topic: How do I make it stiffer?  (Read 1962 times)
..
Member
*****
Posts: 27796


Maggie Valley, NC
« on: December 10, 2015, 10:38:41 AM »
 Cheesy

I have a set of adjustable brake/clutch levers on my Tourer.

The brake lever has some sloppy play in it up and down. How do I get rid of that?

Does it mean the bushing is worn?
Logged
Dusty
Member
*****
Posts: 380


Mill Bay B.C.
« Reply #1 on: December 10, 2015, 12:35:50 PM »
 Sounds like that's your problem. Here's some info from Jeff K's Generic page to save a couple of bucks    cooldude


Clutch lever bushing

The Honda part Number 2285-MBO-006 is $10

The Suzuki part number 59892-08A00 is $3 and exactly the same part.

Part number two in the drawing



Dusty
Logged
Gryphon Rider
Member
*****
Posts: 5227


2000 Tourer

Calgary, Alberta
« Reply #2 on: December 10, 2015, 12:46:50 PM »
Quote from: Dusty on December 10, 2015, 12:35:50 PM
Sounds like that's your problem. Here's some info from Jeff K's Generic page to save a couple of bucks    cooldude
Clutch lever bushing
The Honda part Number 2285-MBO-006 is $10
The Suzuki part number 59892-08A00 is $3 and exactly the same part.
Part number two in the drawing
Dusty

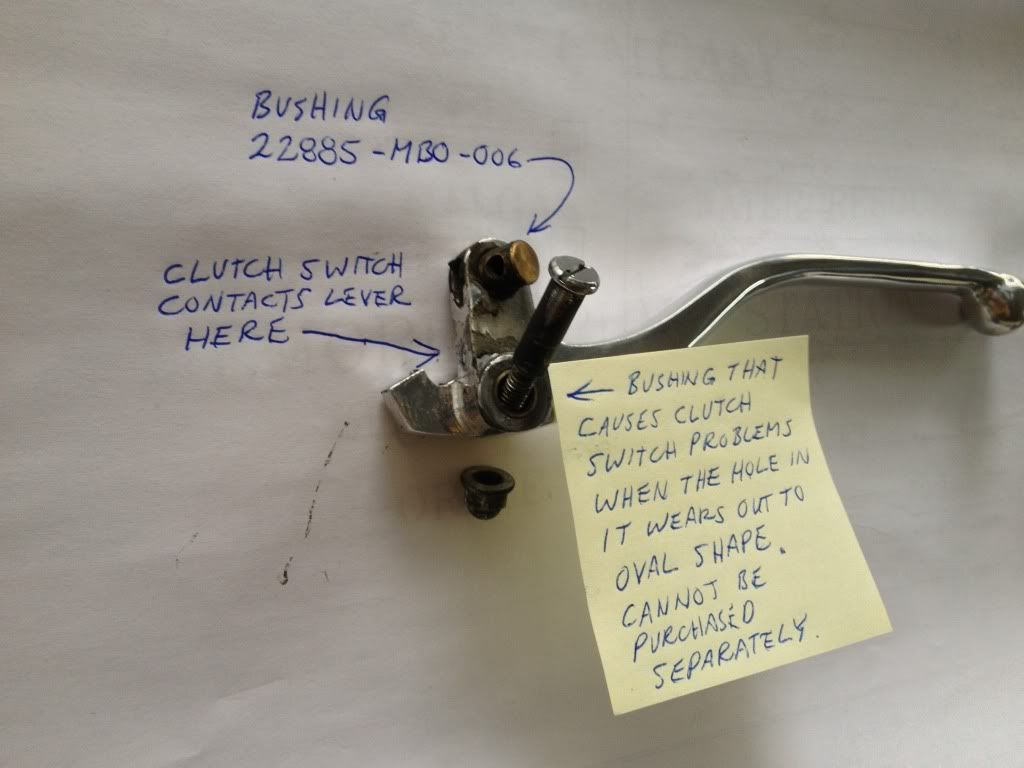

Nope, that's not what that particular bushing does.  See the photo below.

Up and down play is caused by wear in the pivot hole in the lever.  On the OEM levers, that hole is in a bushing that is pressed into the lever, and cannot be bought as a separate part.  Maybe it can be for Britman's aftermarket levers, but I'd be surprised.

Logged
Bighead
Member
*****
Posts: 8654


Madison Alabama
« Reply #3 on: December 10, 2015, 02:47:00 PM »
VIAGRA Smiley.      2funny 2funny 2funny 2funny 2funny
Logged
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
Jess from VA
Member
*****
Posts: 30407


No VA
« Reply #4 on: December 10, 2015, 03:17:32 PM »
Dropping the soap in the shower (together with your sweetie) always did it for me.  angel  Evil
Logged
john
Member
*****
Posts: 3018


tyler texas
« Reply #5 on: December 10, 2015, 09:27:52 PM »
        W H A T ?
Logged
vrcc # 19002
h13man
Member
*****
Posts: 1745


To everything there is an exception.

Indiana NW Central Flatlands
« Reply #6 on: December 11, 2015, 07:03:27 AM »
http://www.bronzebushings.com/sae-841.html?cat=838 AM-812-16 SAE 841 Sleeve 8 mm ID x 12 mm OD x 16 mm OAL

These would work but they are .080/2mm shorter. Stock length is .707/18mm. Could order 2 10mm length and trim to fit. Easily done in a drill press.
« Last Edit: December 11, 2015, 07:09:17 AM by h13man » Logged
