Author Topic: Side stand bolt dimmension  (Read 1008 times)
Relax
Member
*****
Posts: 322


Power & elegance...just like the Valk

Oslo, Norway
« on: May 27, 2018, 07:38:10 AM »

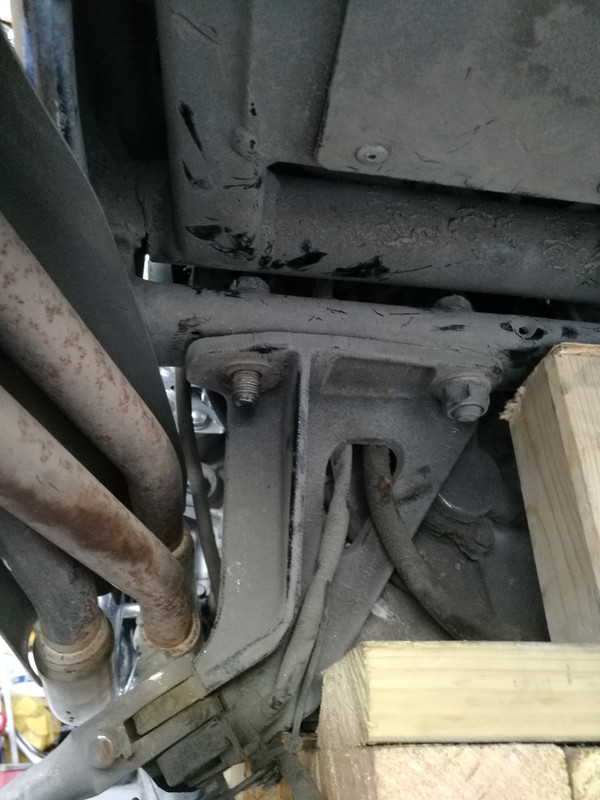

Please see photo.
Somehow I lost one nut on the side stand.
Doesn anybody know what dimmenson is the nut that is missing?
(I could take the other out and measure, but then the whole side stand is loose.)

If I should choose to replace the bolt also, is that easy?
It seems like very tight to get it out?
Logged
sandy
Member
*****
Posts: 5383


Mesa, AZ.
« Reply #1 on: May 27, 2018, 07:57:37 AM »
Go to Partzilla website and find that bolt. Often the size and thread pitch is stated in the bolt description.
Logged
http://i982.photobucket.com/albums/ae310/sandyal55/ManCave.jpg
John Schmidt
Member
*****
Posts: 15210


a/k/a Stuffy. '99 I/S Valk Roadsmith Trike

De Pere, WI (Green Bay)
« Reply #2 on: May 27, 2018, 08:07:11 AM »
The bolt is a 12mm x 50mm long, doesn't give the pitch. If you have a metric tap/die set you can use the thread tool to determine the pitch.
Logged
Avanti
Member
*****
Posts: 1403


Stoughton, Wisconsin
« Reply #3 on: May 27, 2018, 08:51:02 AM »
Pull the other nut off and match the threads at hardware store or lift bolt out the top.
Logged
Relax
Member
*****
Posts: 322


Power & elegance...just like the Valk

Oslo, Norway
« Reply #4 on: May 27, 2018, 10:03:40 AM »
Quote from: Avanti on May 27, 2018, 08:51:02 AM
Pull the other nut off and match the threads at hardware store or lift bolt out the top.

Lifting out on top looks difficult!
Probably not  enough space!?
:)h
Logged
LB
Member
*****
Posts: 84


2003

Upstate South Carolina
« Reply #5 on: May 27, 2018, 10:43:45 AM »
12mm x 1.25 x 50mm long.
Logged
Relax
Member
*****
Posts: 322


Power & elegance...just like the Valk

Oslo, Norway
« Reply #6 on: May 27, 2018, 11:46:09 AM »
Quote from: LB on May 27, 2018, 10:43:45 AM
12mm x 1.25 x 50mm long.

I believe some cars have such threads on bolts for the wheels!
That means a car wheel nut  probably fit!
Smiley
Logged
LB
Member
*****
Posts: 84


2003

Upstate South Carolina
« Reply #7 on: May 27, 2018, 01:56:59 PM »
Quote from: Relax on May 27, 2018, 11:46:09 AM
Quote from: LB on May 27, 2018, 10:43:45 AM
12mm x 1.25 x 50mm long.

I believe some cars have such threads on bolts for the wheels!
That means a car wheel nut  probably fit!
Smiley


 NO... Honda and most metric lug nuts are 1.50 not 1.25
Logged
Relax
Member
*****
Posts: 322


Power & elegance...just like the Valk

Oslo, Norway
« Reply #8 on: May 27, 2018, 07:56:32 PM »
Quote from: LB on May 27, 2018, 01:56:59 PM
Quote from: Relax on May 27, 2018, 11:46:09 AM
Quote from: LB on May 27, 2018, 10:43:45 AM
12mm x 1.25 x 50mm long.

Okay!!
Thanks!

I believe some cars have such threads on bolts for the wheels!
That means a car wheel nut  probably fit!
Smiley


 NO... Honda and most metric lug nuts are 1.50 not 1.25
Logged
Paladin528
Member
*****
Posts: 722


Greater Toronto Area Ontario Canada


WWW
« Reply #9 on: May 28, 2018, 05:04:12 AM »
Go to honda and order this or order it online .


NUT, FLANGE (12MM) (FUSE RASHI)
90306-KF0-003
$2.74
Logged
Relax
Member
*****
Posts: 322


Power & elegance...just like the Valk

Oslo, Norway
« Reply #10 on: May 28, 2018, 10:34:41 AM »

I found a nut today at a car work shop that fitted well.

12 mm - 1,25 treads

(Valk, standard, 2001, european model)
Logged
