Printer Mike
|
 |
« on: November 17, 2009, 08:55:36 PM » |
|
Does anyone have an idea how a simple gear sensor could be rigged for a standard Valk? I have heard of computer speedos that compare speed to rpm to display the gear number.
IMO, it would be helpful just to have a indicator light for top gear.
Thanks for any thoughts...
|
|
|
|
|
Logged
|
Never give up!
|
|
|
X Ring
Member
Posts: 3626
VRCC #27389, VRCCDS #204
The Landmass Between Mobile And New Orleans
|
|
« Reply #1 on: November 17, 2009, 09:21:36 PM » |
|
I check by applying light pressure to the shifter. If it moves easily, it is in 5th.
|
|
|
|
|
Logged
|
People are more passionately opposed to wearing fur than leather because it's safer to harass rich women than bikers.  |
|
|
|
Printer Mike
|
|
« Reply #2 on: November 17, 2009, 10:10:30 PM » |
|
I check by applying light pressure to the shifter. If it moves easily, it is in 5th.
Thanks for the tip. I'll pay more attention!  |
|
|
|
|
Logged
|
Never give up!
|
|
|
Patrick
Member
Posts: 15433
VRCC 4474
Largo Florida
|
|
« Reply #3 on: November 18, 2009, 08:32:01 AM » |
|
After a while you'll know what gear your in.. But like X-ring said, a little flip of the left toe and you'll know..
|
|
|
|
|
Logged
|
|
|
|
|
JimC
|
|
« Reply #4 on: November 18, 2009, 08:59:36 AM » |
|
Mike,
I had the same issues until I started lifting up on the gear shifter with my foot. If it is in high gear there will be an inch or more of slack until it stops. If it is in a lower gear, the lever will only move slightly (maybe a half inch or so) letting you know that there is another gear to go.
Jim
|
|
|
|
|
Logged
|
Jim Callaghan SE Wisconsin
|
|
|
|
Mikey
|
|
« Reply #5 on: November 18, 2009, 09:18:43 AM » |
|
I don't know if it's just my girl... but, depending on the gear, the tranny sounds a little different. 5th really whines, 4th has a different whine, and 3rd... she just goes!
|
|
|
|
|
Logged
|
Remember folks, street lights timed for 35 mph are also timed for 70 mph
VRCC# 30782
|
|
|
|
vanagon40
|
|
« Reply #6 on: November 18, 2009, 10:37:08 AM » |
|
Here is the thread where this was discussed last March: http://www.valkyrieforum.com/bbs/index.php/topic,1476.0.htmlA google or ebay search will locate some generic indicators. For me, I know I am in fifth when my speed is just a little over double the RPMs (ignoring the last two zeros). If the RPMs are 3500 and I'm just over 70 mph, I'm in fifth. |
|
|
|
|
Logged
|
|
|
|
|
Printer Mike
|
|
« Reply #7 on: November 18, 2009, 04:27:47 PM » |
|
Thanks for the replies and the link! I once rode my Suzuki VS800 about 10 miles @ 80-90 mph in 4th gear!  i was making a run from Stockbridge, GA up to the Dragon trying to catch up with a group. Wouldn't want to punish my prized Valk like that! |
|
|
|
|
Logged
|
Never give up!
|
|
|
mikeb
Member
Posts: 311
vrcc-29271
dansville mi by lansing mi
|
|
« Reply #8 on: November 18, 2009, 05:34:45 PM » |
|
the first week my wife had her bike i had to tell her she had one more gear two times it was funny i yelled one more gear she said what deer?where? so i pointed at her foot
|
|
|
|
|
Logged
|
i dont care what you ride just ride mike & kari mivrcc capital city leader s.s.d.d.  |
|
|
|
|
|
Thunderbolt
|
|
« Reply #10 on: November 27, 2009, 03:04:21 PM » |
|
a lot of work involved in just the electronics. Looks like you may have used an old tach for the indicator.
|
|
|
|
|
Logged
|
|
|
|
joop angelier
Member
Posts: 30
Greetings from the Netherlands
Netherlands
|
|
« Reply #11 on: November 28, 2009, 02:15:23 AM » |
|
It's a photo-shoped tach. I'm going to use a standard 52mm voltmeter (brand autostyle) and disigne a front that looks like the meters on the valkyrie It will take some time to finish but i can do this. I made one for my Honda Shadow but it had a digital display. http://members.home.nl/joop.angelier/download/Versnellings%20indicator%20Shadow/printen.jpgBut you cant read a digital display when the sun is shining on it. So its going to be a analog one. The scematic is not compleetly ok at his moment. I will have to do some re-disigning. Joop...  |
|
|
|
|
Logged
|
|
|
|
Colin
Member
Posts: 597
My old job
Orba, Spain
|
|
« Reply #12 on: November 28, 2009, 04:30:52 AM » |
|

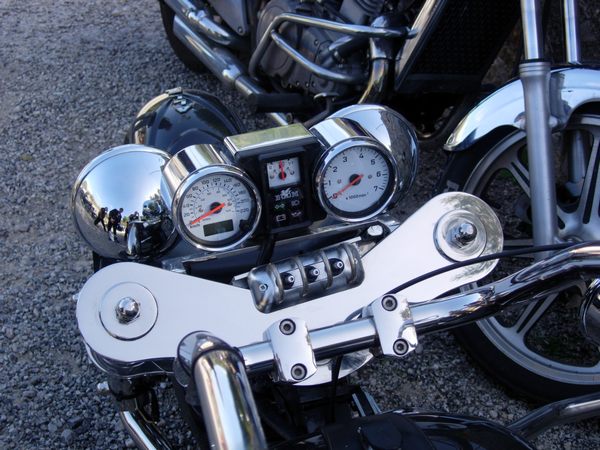

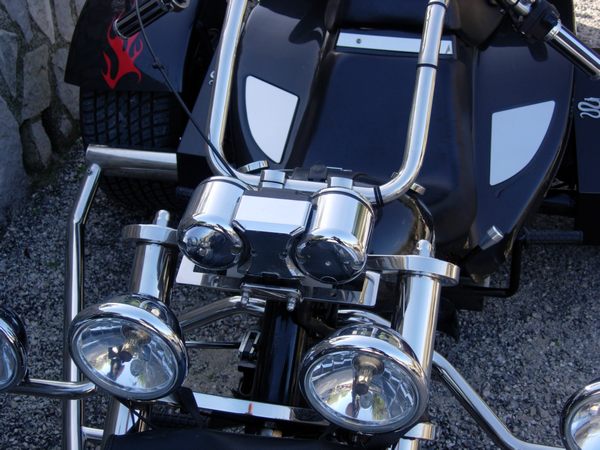

Joop I saw a Boom trike recently with a nice infill between the two clocks that might look nice with some of your electronics in it and still leave room for a fuel gauge for the IS tanked and also various warning lights and possibly your indicator alarm. I have contacted Boom to see if they will just supply a shell and am awaiting a reply. What do you think? Might have room for an LCD display that could do the gear shifter and a clock and if you are reading the speedo input a digital speedo. Lots of ideas but I lack some of the electrical skills.   |
|
|
|
|
Logged
|
|
|
|
joop angelier
Member
Posts: 30
Greetings from the Netherlands
Netherlands
|
|
« Reply #13 on: November 29, 2009, 03:25:47 AM » |
|
Hello Colin I'm going to use a analog voltmeter and a chroom cup and turn the voltmeter into a gear indicator. The voltmeter is mounted to the metal strip on the windshield. The voltmeter and the chroom cup are from autostyle. Look at the pictures here: http://members.home.nl/joop.angelier/download/Versnellings%20indicator%20Valkyrie/Foto%27s/So the electronics will have a analog output (voltage) Its not possible to use a digital display. I think a display is to modern for a valkyrie. Joop |
|
|
|
|
Logged
|
|
|
|
Colin
Member
Posts: 597
My old job
Orba, Spain
|
|
« Reply #14 on: November 29, 2009, 05:50:01 AM » |
|
So the electronics will have a analog output (voltage)
Its not possible to use a digital display.
I think a display is to modern for a valkyrie.
I think that you are probably right with digital being too modern for a Valk, the retro analogue sounds good. Can you supply just the housing? If so can you let me have a price and its size please? |
|
|
|
|
Logged
|
|
|
|
|
RP#62
|
|
« Reply #15 on: November 29, 2009, 07:48:15 AM » |
|
Digital is not bad if you can get small enough displays (5.5 mm digit height). I went digital when I built my volt and temp gages. -RP  |
|
|
|
|
Logged
|
|
|
|
|
|
|
John33 (France VRCC)
|
|
« Reply #17 on: November 30, 2009, 05:15:19 AM » |
|
I can make some more if somebody wants one to.
Greetings Joop
Hi Joop I am very interested by your gear indicator. But my knowledge in elctronics is too poor to help you. If components are not so expensive I'll take one. |
|
|
|
|
Logged
|
Valkyrie ...what else ?
|
|
|
joop angelier
Member
Posts: 30
Greetings from the Netherlands
Netherlands
|
|
« Reply #18 on: November 30, 2009, 06:34:53 AM » |
|
Helo John Im still working on it. The first thing to do is correcting the schematic disign so that it works better. Then making a prototype and testing it. After that i have to disigne the PCB and order them. This will all take some time. I wil try to get it finished at the beginning of next year. I will let you know the progress. Greetings joop  |
|
|
|
|
Logged
|
|
|
|
|
|
|
Rocketman
|
|
« Reply #20 on: May 12, 2010, 11:47:41 AM » |
|
I always seem to need it while I'm at a light. A "you're still in second, idiot!" gauge. An RPM based gauge won't help there, unfortunately.
Has anyone seen something that reads directly off the gear positions?
|
|
|
|
|
Logged
|
|
|
|
joop angelier
Member
Posts: 30
Greetings from the Netherlands
Netherlands
|
|
« Reply #21 on: May 14, 2010, 02:34:18 AM » |
|
If it would be possible i would have done it that way.
That would have been so mutch easyer.
Some bike's do have it , but they have switches inside the gearbox.
It can be done with a switch on the outside but i don't think that it will be reliable.
Greetings Joop
|
|
|
|
|
Logged
|
|
|
|
|
TearlessTom
|
|
« Reply #22 on: May 14, 2010, 07:19:49 AM » |
|
Don't need one but a very sweet looking toy. How much?
|
|
|
|
|
Logged
|
|
|
|
|
|
|
TearlessTom
|
|
« Reply #24 on: May 15, 2010, 07:23:32 AM » |
|
I just read over your how it worked and looked at your production. I think it is worth the cost. Good luck with it. I think you have a winner. I like it much better then the digital ones. Looks very well made.
Tom
|
|
|
|
|
Logged
|
|
|
|
|
John33 (France VRCC)
|
|
« Reply #25 on: May 18, 2010, 02:32:01 AM » |
|
I did a 4 days ride last week. I was very happy with my gear indicator, specially when riding slowly in mountain or listening to the MP3 music system in the helmet...  |
|
|
|
|
Logged
|
