Author Topic: Front and Rear OEM Brake Pads  (Read 1263 times)
Calboy
Member
*****
Posts: 135
« on: April 15, 2020, 11:16:15 PM »
Two different numbers for front:      06455-mv4-405 (X2)     06455-mz0-760 (X2)

Two different numbers for rear:       06435-mz0-006 (X1)     06435-mz0-760 (1)


Does anybody know why?    It doesn't say anywhere that one part# replaces the other one.
Are these brake pads the same or not?
I have a 2003 Valkyrie CD Deluxe (Standard)
Logged
Foozle
Member
*****
Posts: 368


Lexington, KY, USA
« Reply #1 on: April 16, 2020, 06:39:59 AM »
04-16

Cal:

I can't say for certain WHY two OEM part numbers exist for each (for a given year/model), but my experience has been it doesn't matter which one you use - they're virtually identical products.  I've always just ordered the first that's listed as being "in stock."

There may be particular parts where the varying part numbers reflect a substantive difference - but I'm unaware of what these might be.

This is based on my subjective experience only - I could be wrong; others can chime in.

Terry
Logged
h13man
Member
*****
Posts: 1746


To everything there is an exception.

Indiana NW Central Flatlands
« Reply #2 on: April 16, 2020, 07:36:24 AM »
Same part number for all models 98'-03' for the front but the rear can't say as I haven't had to change them out yet. Check EBay for better price. Bought a set (both disc) OEM for $50 with free shipping vs $85 from Partzilla + $8.00 shipping.
« Last Edit: April 16, 2020, 09:40:50 AM by h13man » Logged
vanagon40
Member
*****
Posts: 1461

Greenwood, IN
« Reply #3 on: April 16, 2020, 08:07:20 AM »
06455-MV4-405 is a replacement for 06455-MZ0-760 (and 06435-MZ0-006 replaces 06435-MZ0-760). Also note that the rear pads are the same as the front, with slightly thicker linings on the rear.

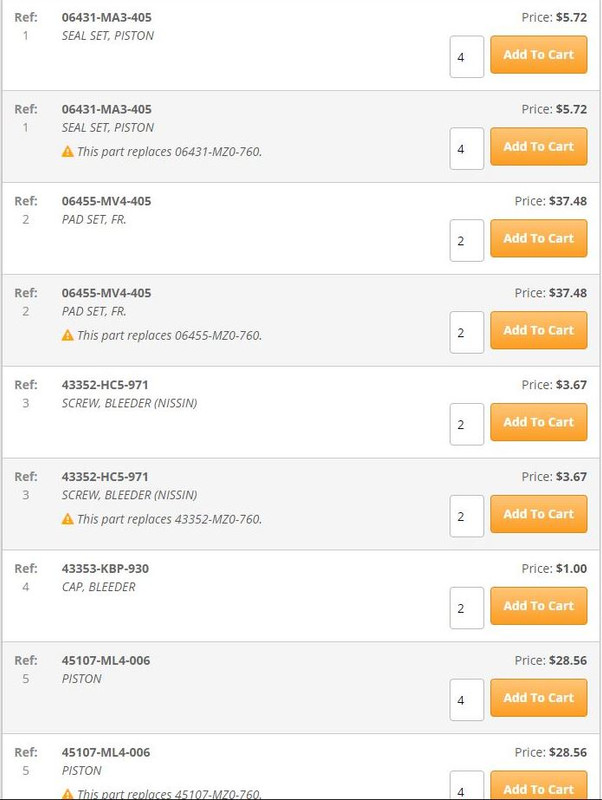

Screenshot from hondadirectline.com:
Logged
Foozle
Member
*****
Posts: 368


Lexington, KY, USA
« Reply #4 on: April 16, 2020, 08:52:15 AM »
04-16

The rear pads also have a stainless steel backing plate to handle the added heat/braking pressure.  The front pads do not have these.  See the following thread:

http://www.valkyrieforum.com/bbs/index.php/topic,109751.msg1099728.html#msg1099728

I don't know if new OEM rear pads come with fresh backing plates or not.  My understanding is that you reuse them when changing out the pads.

Terry
« Last Edit: April 16, 2020, 08:56:20 AM by Foozle » Logged
Calboy
Member
*****
Posts: 135
« Reply #5 on: April 17, 2020, 12:34:31 PM »
Thank you, gentlemen!
Logged
ridingron
Member
*****
Posts: 1178


Orlando
« Reply #6 on: April 18, 2020, 12:55:00 PM »
My experience has been when there are 2 numbers, one is the superseded part number and the other is the original number.
Logged
<a href="https://m.maploco.com/visited-states/mine.php?states=AL-AR-AZ-CA-DE-FL-GA-KS-KY-LA-MD-MO-MS-NC-NM-NV-OK-PA-SC-TN-TX-UT-VA-WV"
Chrisj CMA
Member
*****
Posts: 14764


Crestview (Panhandle) Florida
« Reply #7 on: April 19, 2020, 12:43:57 PM »
Quote from: ridingron on April 18, 2020, 12:55:00 PM
My experience has been when there are 2 numbers, one is the superseded part number and the other is the original number.

Lol!!! If a part has two numbers it’s the original that was superseded by a new number. Just pullin yer chain because I have time sitting here in quarantine
