98valk
|
 |
« on: April 14, 2021, 09:12:43 AM » |
|
from TS-Moly. I have been using their products for yrs, but not this new one. https://www.tsmoly.com/grease-spline-grease-p-367.htmlS-60 SG is designed to lubricate all types of splined shafts, motorcycle drive splines, u-joints, swing arms, starter drive gear, bushings, pins, etc. Formulated with synthetic base oil and 60% molybdenum disulfide, TS-60 SG withstands extreme heat and protects components under heavy load. Uniform and durable boundary lubrication is provided on parts operating in wet and harsh environments. TS-60 SG is highly adhesive and will not fling off or dry out under accelerated conditions. |
|
|
|
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
98valk
|
|
« Reply #1 on: April 14, 2021, 10:29:15 AM » |
|
from TS-Moly. I have been using their products for yrs, but not this new one. https://www.tsmoly.com/grease-spline-grease-p-367.htmlS-60 SG is designed to lubricate all types of splined shafts, motorcycle drive splines, u-joints, swing arms, starter drive gear, bushings, pins, etc. Formulated with synthetic base oil and 60% molybdenum disulfide, TS-60 SG withstands extreme heat and protects components under heavy load. Uniform and durable boundary lubrication is provided on parts operating in wet and harsh environments. TS-60 SG is highly adhesive and will not fling off or dry out under accelerated conditions. It appears ideal for our bikes. The calcium thickener is preferred for water resistance. Molybdenum disulfide is recommended when splined components are continually beating against each other. Thank you for sharing. more info calcium sulfonate thickeners provide good anti-wear, extreme pressure and corrosion resistance. |
|
|
|
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
WintrSol
|
|
« Reply #2 on: April 14, 2021, 10:37:58 AM » |
|
Ordered - thanks for the link. I have some moly grease, but it isn't 60%.
|
|
|
|
|
Logged
|
98 Honda Valkyrie GL1500CT Tourer
Photo of my FIL Jack, in honor of his WWII service
|
|
|
h13man
Member
Posts: 1745
To everything there is an exception.
Indiana NW Central Flatlands
|
|
« Reply #3 on: April 16, 2021, 06:43:41 AM » |
|
Honda M77 can be cheaper ($20 Ebay) and slightly more volume. M77 was the replacement for Honda Moly 60.
|
|
|
|
|
Logged
|
|
|
|
|
|
|
Joe333x
|
|
« Reply #5 on: November 24, 2023, 09:50:15 PM » |
|
Thinking about ordering some of this, anyone have a follow up that has used it?
|
|
|
|
|
Logged
|
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #6 on: November 24, 2023, 10:59:40 PM » |
|
Thinking about ordering some of this, anyone have a follow up that has used it?
Suggest ordering from the BMW parts guy. You get more for less money. It's the very same stuff. And they are motorcycle guys, the ordering setup is better than direct from the tsmoly people. https://www.beemershop.com/product/ts-60-spline-lube.htmlFor Reference https://www.valkyrieforum.com/bbs/index.php/topic,126298.0.html |
|
|
|
« Last Edit: November 25, 2023, 11:23:49 AM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
|
Joe333x
|
|
« Reply #7 on: November 26, 2023, 11:12:55 PM » |
|
Thats exactly what I did. Tires on my bike still look great but no idea what was applied when they were put on so Im going to pull the rear end off and apply the TS-60. I did already do the final drive oil, does that need to be drained when before I pull the rear tire off? |
|
|
|
|
Logged
|
|
|
|
|
The emperor has no clothes
|
|
« Reply #8 on: November 27, 2023, 07:37:33 AM » |
|
Thats exactly what I did. Tires on my bike still look great but no idea what was applied when they were put on so Im going to pull the rear end off and apply the TS-60. I did already do the final drive oil, does that need to be drained when before I pull the rear tire off? no |
|
|
|
|
Logged
|
|
|
|
|
98valk
|
|
« Reply #9 on: November 27, 2023, 07:48:06 AM » |
|
Thats exactly what I did. Tires on my bike still look great but no idea what was applied when they were put on so Im going to pull the rear end off and apply the TS-60. I did already do the final drive oil, does that need to be drained when before I pull the rear tire off? the final drive is a sealed unit, draining not required to change tire. How to select a good gear oil based on VI index. https://www.valkyrieforum.com/bbs/index.php/topic,110541.0.html |
|
|
|
|
Logged
|
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C 10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp
"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
|
|
|
|
Joe333x
|
|
« Reply #10 on: November 27, 2023, 11:37:01 AM » |
|
Thats exactly what I did. Tires on my bike still look great but no idea what was applied when they were put on so Im going to pull the rear end off and apply the TS-60. I did already do the final drive oil, does that need to be drained when before I pull the rear tire off? the final drive is a sealed unit, draining not required to change tire. How to select a good gear oil based on VI index. https://www.valkyrieforum.com/bbs/index.php/topic,110541.0.htmlThanks!! After reading all the posts about gear oil and the splines and the 3 holes I wasn't sure if it would start leaking out but as is my understanding as long as the o-rings are functioning the gear oil shouldn't be entering the splines. |
|
|
|
|
Logged
|
|
|
|
|
The emperor has no clothes
|
|
« Reply #11 on: November 27, 2023, 12:20:53 PM » |
|
After removal, if you set it with the pinion cup or vent pointed down, it will leak out of those.
|
|
|
|
|
Logged
|
|
|
|
|
Joe333x
|
|
« Reply #12 on: November 27, 2023, 02:00:41 PM » |
|
After removal, if you set it with the pinion cup or vent pointed down, it will leak out of those.
Gutcha! Thanks |
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #13 on: November 27, 2023, 02:35:30 PM » |
|

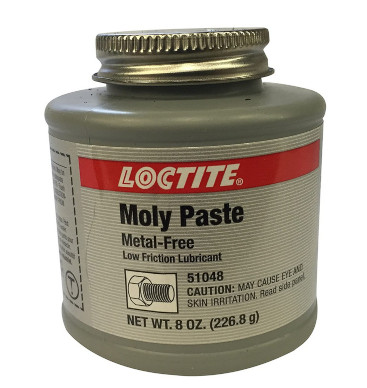

The fellow who runs the tech sessions at InZane depends wholly on the final drive fluid lubricating the pinion cup. Here's what my pinion cup looked like when I pulled my shaft for maintenance during a tire change once...  If the holes aren't plugged and you assemble it like the manual says "pack 2 g (0.08oz) of molybdenum disulfide grease into the pinion joint spline" what I got is what you should expect. I once weighed 0.08oz of grease, it amounts to just a light coating. I've done "the maintenance" numerous different ways that have worked fine. Packing the splines with waterproof blue belray grease seems to work. This stuff, or probably any other moly paste, does fine...  -Mike |
|
|
|
|
