Author Topic: Pictures of carb assembly.  (Read 1045 times)
John Schmidt
Member
*****
Posts: 15199


a/k/a Stuffy. '99 I/S Valk Roadsmith Trike

De Pere, WI (Green Bay)
« on: August 04, 2021, 07:47:32 PM »
Had them last summer when I rebuilt a set but darned if I can find them now. I need a clear detail shot of the top and bottom, helps me to determine where everything goes. I think I have it right on the set I'm doing now for the old bike...they were taken off the trike and what a mess internally. I just need a visual reference, hopefully someone can help out. I know they were posted for me last year but I can't find them, might not have downloaded them. TIA!
Logged
Madmike
Member
*****
Posts: 837


Campbell River BC, Canada
« Reply #1 on: August 04, 2021, 08:23:32 PM »
Got an email address??  I have one form the top side will show the stay bars

Got a gmail addy off your profile and sent a pic there, if you don't get it reply to - mikelawson113 @gmail delete the espace.
« Last Edit: August 04, 2021, 08:28:20 PM by Madmike » Logged
John Schmidt
Member
*****
Posts: 15199


a/k/a Stuffy. '99 I/S Valk Roadsmith Trike

De Pere, WI (Green Bay)
« Reply #2 on: August 04, 2021, 08:32:57 PM »
Thanks Mike, got'em.  cooldude
Logged
Mooskee
Member
*****
Posts: 559


Southport NC


WWW
« Reply #3 on: August 05, 2021, 03:29:56 PM »

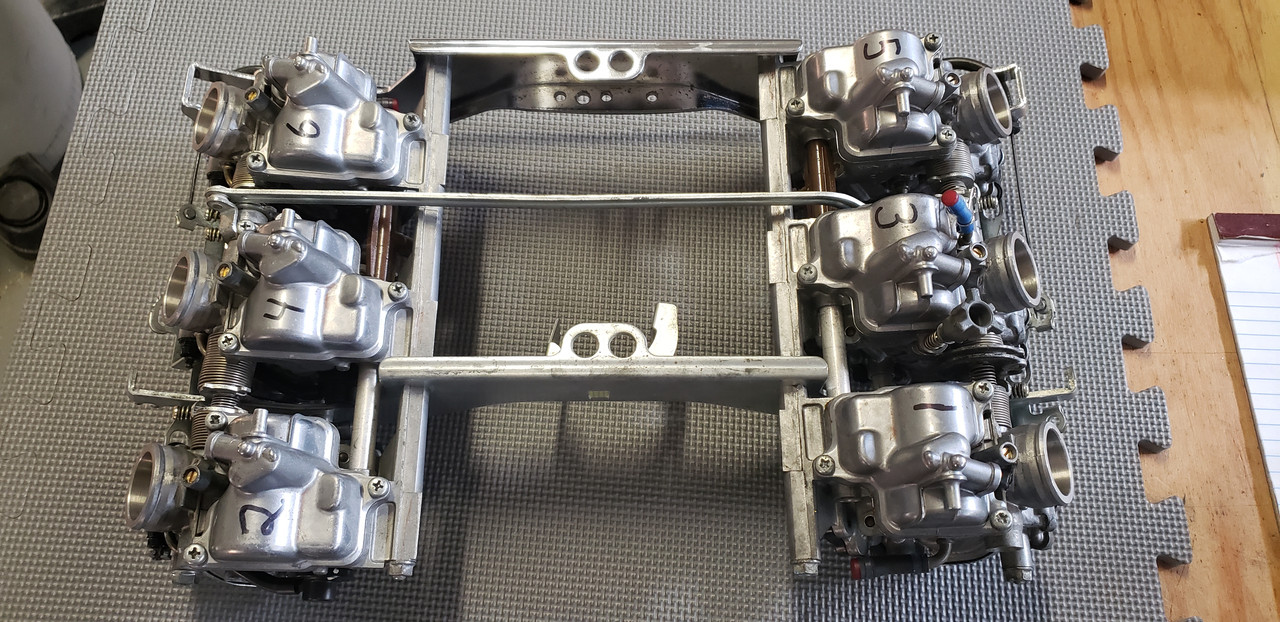

These are from a California set. Just ignore the extra capped connections.
Logged
Valkyrie Carbs and Custom www.valkyriecarbsandcustom.com
John Schmidt
Member
*****
Posts: 15199


a/k/a Stuffy. '99 I/S Valk Roadsmith Trike

De Pere, WI (Green Bay)
« Reply #4 on: August 05, 2021, 06:54:30 PM »
Thanks for the pics, saved them this time.  cooldude
Logged
Mooskee
Member
*****
Posts: 559


Southport NC


WWW
« Reply #5 on: August 05, 2021, 07:15:49 PM »
No worries.
Logged
Valkyrie Carbs and Custom www.valkyriecarbsandcustom.com
