Author Topic: Big BF Quad Horn Problem  (Read 1498 times)
Karen
Member
*****
Posts: 2786


Boston MA
« on: April 24, 2023, 03:49:39 PM »
This has worked flawlessly ever since I installed it, but now I just hear the relay underneath click. Have crawled under the trike to look for issues, none seen, fuse is good, but there were a few loose wires under the right side cover that were questionable. Have tried connecting them but so far, no good. Any suggestions on what I can try to find the problems? Have a continuity tester and a bunch of jumpers with alligator clips... TIA for your thoughts!  smitten
Logged
hubcapsc
Member
*****
Posts: 16769


upstate

South Carolina
« Reply #1 on: April 24, 2023, 05:37:43 PM »

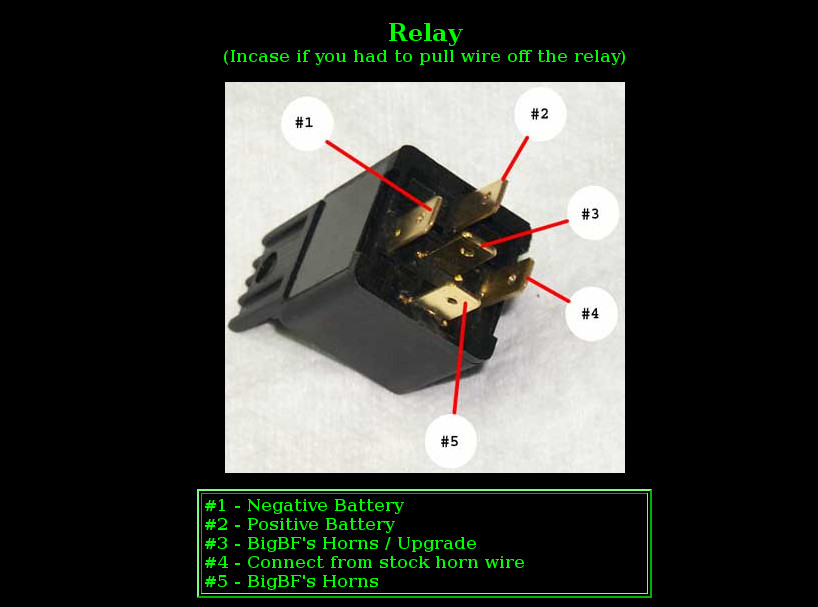

He did something clever that I don't understand with his wiring...



I rewired all my accessories about ten years after I first installed
the quad horns using BigBF's instructions. When I did the rewire,

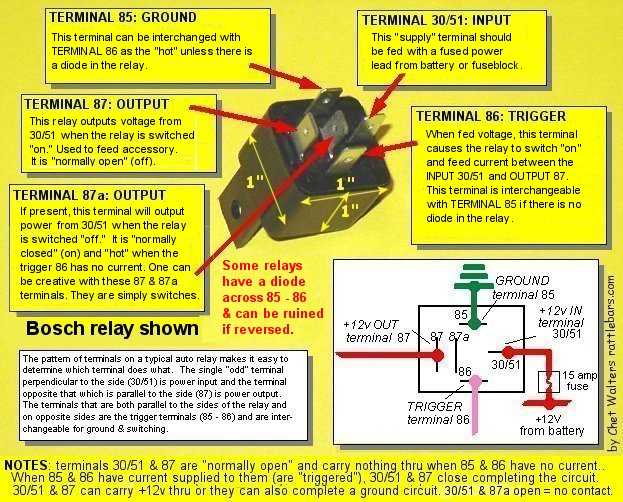

I just used the rattlebars relay diagram as a guide and didn't
touch the 87a blade on the relay.



-Mike
Logged
https://sites.google.com/a/g.clemson.edu/confederate-memorial-day-at-clemson/
bassman
Member
*****
Posts: 2150
« Reply #2 on: April 25, 2023, 03:58:43 AM »
Anything here help?

https://blog.1aauto.com/failed-relay/
Logged
da prez
Member
*****
Posts: 4354

. Rhinelander Wi. Island Lake Il.
« Reply #3 on: April 25, 2023, 07:09:14 AM »
Just put a battery hot to the horn contact  after disconnecting other wire. Just a touch will tell

          da prez
Logged
Karen
Member
*****
Posts: 2786


Boston MA
« Reply #4 on: April 25, 2023, 02:25:33 PM »
Thanks, gentlemen, I'll give these a try on Friday!
Logged
da prez
Member
*****
Posts: 4354

. Rhinelander Wi. Island Lake Il.
« Reply #5 on: April 25, 2023, 02:30:49 PM »
  We help you and you dare call us gentlemen. crazy2 2funny smitten

                              da prez

           Love Ya Karen angel
Logged
Valkorado
Member
*****
Posts: 10491


VRCC DS 0242

Gunnison, Colorado (7,703') Here there be twisties.
« Reply #6 on: April 29, 2023, 02:54:35 PM »
Got mine up and running again, with the help of 3W-lonerider.

http://www.valkyrieforum.com/bbs/index.php/topic,122643.0.html
Logged
Have you ever noticed when you're feeling really good,
there's always a pigeon that'll come sh!t on your hood?
- John Prine

97 Tourer "Silver Bullet"
01 Interstate "Ruby"
