Author Topic: Hidden Antennae  (Read 1266 times)
RLD
Member
*****
Posts: 318


'99 I/S Red/Black

Eden Prairie, MN


« on: October 27, 2010, 07:30:26 AM »

Has anyone taken the stock antennae and just bent it to fit under the (I/S) fairing vs the hidden style? I've tried the hidden, amplified type and they weren't much better than nothing. I live about 30 miles from my favorite station (98.5 www.KTIS.FM (cheap plug)) and could not listen to it with the hidden style. I've got an extra, maybe I'll just give it a try. Any "experts" out there willing to give their thoughts??

Thanks
Logged

Dress for the slide, not the ride. ATGATT
VRCC #2505
Ricky-D
Member
*****
Posts: 5031


South Carolina midlands


« Reply #1 on: October 27, 2010, 08:29:01 AM »

You've got the trunk off I assume.

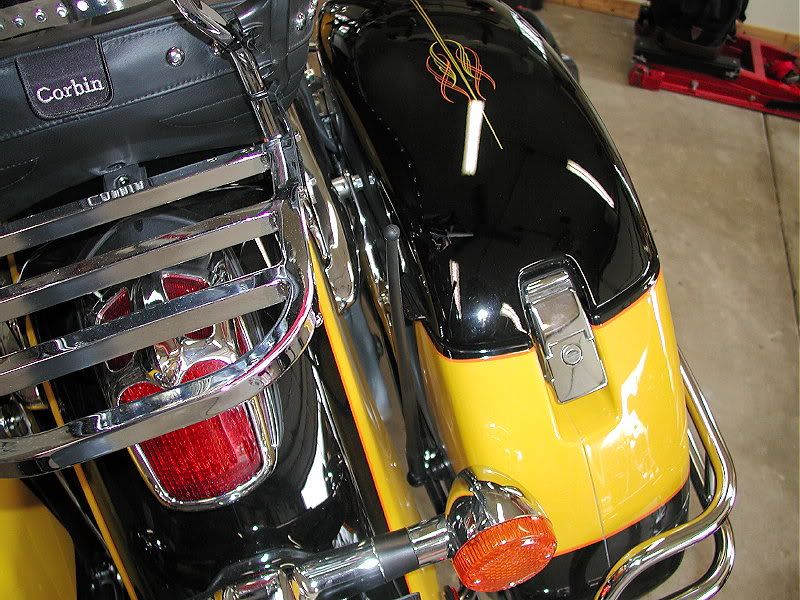

I made a mount base that I can fasten the antenna base to; and have it all mounted down between the saddle bag and the fender. It is mounted to the chrome assembly that runs between the bags to steady up the bags.

Just went to local discount auto parts store and bought a cheapie flex antenna and tapped the antenna base itself and screwed it on!

Tapping the antenna was only slightly effective since I didn't want to destroy it in the process and the threading was at best very bad.

Screwing the antenna on to the stock base was to my mind tentative at best and I figured it would fly off eventually, but it has not and it's still there.

Reception is good, not as good as stock when it was mounted on the trunk frame but still is good.

It gets seemingly directional: Where riding away from the source reception is better compared to riding towards the source. I relate this to mounting it so low and between so much metal.

I do not think bending it and installing it in the fairing will be viable but then again it just might be.
If I were to do what you contemplate, I would simply get a tester first (like a wire) and see the results since I feel it is a difficult job you suggest.

***
Logged

2000_Valkyrie_Interstate
Mr.BubblesVRCCDS0008
Member
*****
Posts: 3025

Huffman, Texas close to Houston


« Reply #2 on: October 27, 2010, 03:17:31 PM »

I too have a rubber attena mounted down low inbetween bags and rear fender just behind turn signal on the left side of bike. It works ok but since I installed the XM I don't use FM much anymore.
Logged
Pete
Member
*****
Posts: 2673


Frasier in Southeast Tennessee


« Reply #3 on: October 27, 2010, 03:48:08 PM »

If you want a concealed antenna, get one of the inexpensive flexible wire/tape antennas (it is clear tape with a wire attached to a coax).

It will be quite long, run it inside the fairing and around the windshield everywhere you can (more length is better).

I have used them on several vehicles and they work well if long and high (as possible).

The best one was when I ran it completely around an auto windshield, worked better than the original antenna.
Logged
Kingbee
Member
*****
Posts: 486


VRCC# 576

Northern Illinois


« Reply #4 on: October 27, 2010, 05:25:24 PM »

Logged

1999 Interstate
2000 Interstate
2004 Rune
2012 Goldwing w/airbag (and I don't mean Queenbee)
http://weathersticker.wunderground.com/weathersticker/bigwx_cond/language/www/US/IL/Glenview.gif
RLD
Member
*****
Posts: 318


'99 I/S Red/Black

Eden Prairie, MN


« Reply #5 on: October 27, 2010, 05:35:40 PM »

I already have mine mounted outside the saddlebags, (trunk removed) but am looking to also remove the bags completely, thus the reasoning to move the antennae somewhere else. A "SuperValk" without bags. Now that I ride solo and wear an Aerostich, my tour pack and bags are mostly empty so why carry the weight when a small trunk bag would suffice. Lighter is better. Thanks for the ideas, I like the wire/tape concept. Will have to do some research.
Logged

Dress for the slide, not the ride. ATGATT
VRCC #2505
chip
Member
*****
Posts: 430


Handcuff and search me PLEASE !

Festus Mo. 40 min. south east of St.Louis


« Reply #6 on: October 28, 2010, 07:42:16 AM »

I now have a rubber antenna in my fairing ,bad reception. I will be trying this one soonhttp://www.valkyrieforum.com/bbs/index.php/topic,21586.0.html

       http://www.ecshylites.com/page/page/761353.htm
Logged

2000 I/S ,03 Standard  ,Yes, I like mine BLACK !
