Big Mike
Member
Posts: 353
I can not remember my last bad day
Taylor MI
|
 |
« on: June 28, 2011, 11:48:59 AM » |
|
I have fork oil leaking on the left fork up through the threads of the fork bottom. Now how do you like that one! The fork bottoms twist off and there is on odd shaped o-ring in there that was broke in half. Honda does not sell the o-ring. They want me to buy the entire fork assembly! I have tried teflon tape, pipe dope, still leaks.
|
|
|
|
|
Logged
|
Big Mike
VRCC 23871
VRCCDS 0200
With GOD and a good attitude, there is no circumstance that I can not overcome.
|
|
|
Dag
Member
Posts: 1779
I have a love affair with a bumblebee
Country Rep. Norway
|
|
« Reply #1 on: June 28, 2011, 12:17:05 PM » |
|
Is it possible??
Do you have a picture and exact measure of the seal?
|
|
|
|
|
Logged
|
The question is not what you look at...but what you see...
|
|
|
hubcapsc
Member
Posts: 16789
upstate
South Carolina
|
|
« Reply #2 on: June 28, 2011, 12:33:16 PM » |
|
An irrigation hose (I know, not a Valkyrie fork) was leaking in Carolyn's garden last week...
I took the connection apart, and there was a Oring, busted in two...
We went over to Lowe's where they have four or five big drawers of Orings in
all kinds of different sizes, metric and std...
Quickly found one that looked just right and now, no more leaks...
-Mike
|
|
|
|
|
Logged
|
|
|
|
|
The Anvil
|
|
« Reply #3 on: June 28, 2011, 12:38:33 PM » |
|
An irrigation hose (I know, not a Valkyrie fork) was leaking in Carolyn's garden last week...
I took the connection apart, and there was a Oring, busted in two...
We went over to Lowe's where they have four or five big drawers of Orings in
all kinds of different sizes, metric and std...
Quickly found one that looked just right and now, no more leaks...
-Mike
It could be a standard packing (o-ring) but might not. If you absolutely can't find the part then you could use a fuel resistant sealant. But it sounds like it might be blowing out under pressure when the fork compresses. I've seen o-rings in landing gear do this before, usually when it was not seated correctly or the valve it was used for was not torqued correctly. |
|
|
|
|
Logged
|
Boxer rebellion, the Holy Child. They all pay their rent.
But none together can testify to the rhythm of a road well bent.
Saddles and zip codes, passports and gates, the Jones' keep.
In August the water is trickling, in April it's furious deep.
1997 Valk Standard, Red and White.
|
|
|
|
RonW
|
|
« Reply #4 on: June 28, 2011, 12:47:00 PM » |
|
What part are you talking about by....I have fork oil leaking on the left fork...."up through the threads of the fork bottom."  |
|
|
|
« Last Edit: June 28, 2011, 12:50:42 PM by RONW »
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
The Anvil
|
|
« Reply #5 on: June 28, 2011, 12:50:56 PM » |
|
I thought he was talking about a seal between the chromed slider and the cast fork bottom that holds the axle.
|
|
|
|
|
Logged
|
Boxer rebellion, the Holy Child. They all pay their rent.
But none together can testify to the rhythm of a road well bent.
Saddles and zip codes, passports and gates, the Jones' keep.
In August the water is trickling, in April it's furious deep.
1997 Valk Standard, Red and White.
|
|
|
|
RonW
|
|
« Reply #6 on: June 28, 2011, 12:51:53 PM » |
|
Okay.
|
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
tank_post142
|
|
« Reply #7 on: June 28, 2011, 01:29:13 PM » |
|

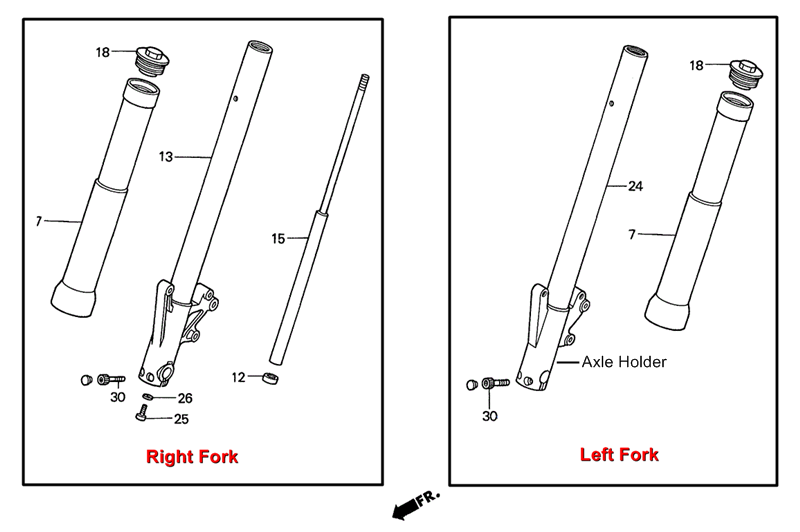

#24 screws into the lower axle holder and there is an o-ring to seal the threads.
|
|
|
|
|
Logged
|
I got a rock  VRCCDS0246  |
|
|
gordonv
Member
Posts: 5763
VRCC # 31419
Richmond BC
|
|
« Reply #8 on: June 28, 2011, 02:32:58 PM » |
|
#24 screws into the lower axle holder and there is an o-ring to seal the threads.
The picture shows one item, you are saying the lower just unscrews from the fork tube? How would you go about unscrewing it them? |
|
|
|
|
Logged
|
1999 Black with custom paint IS   |
|
|
|
RonW
|
|
« Reply #9 on: June 28, 2011, 02:35:41 PM » |
|
I was unawares of that too. I guess that's how they chrome the axle holders.
|
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
The Anvil
|
|
« Reply #10 on: June 28, 2011, 04:05:13 PM » |
|
How would you go about unscrewing it them?
I think there's a hole in the slider towards the to into which you can insert a punch to hold the sliver while you take the fitting off. Or (in the case of my ZX7) you just put the slider in a vise with some rubber jaws and the bottoms come off pretty easily with a little heat. |
|
|
|
|
Logged
|
Boxer rebellion, the Holy Child. They all pay their rent.
But none together can testify to the rhythm of a road well bent.
Saddles and zip codes, passports and gates, the Jones' keep.
In August the water is trickling, in April it's furious deep.
1997 Valk Standard, Red and White.
|
|
|
|
Blackduck
|
|
« Reply #11 on: June 28, 2011, 04:53:34 PM » |
|
Most likely a standard O ring just out of shape. New O ring and something like Permatex No3 Aviation sealant. You could use the lowest grade of Loctite but if it ever needed to come apart again you may have to heat the thread area to break the Loctite.
Cheers Steve
|
|
|
|
|
Logged
|
2001 Standard, 78 Goldwing, VRCC 21411
|
|
|
|
The Anvil
|
|
« Reply #12 on: June 28, 2011, 05:17:46 PM » |
|
Most likely a standard O ring just out of shape. New O ring and something like Permatex No3 Aviation sealant. You could use the lowest grade of Loctite but if it ever needed to come apart again you may have to heat the thread area to break the Loctite.
Cheers Steve
Yeah I wouldn't use loctite either. You mention Permatex which reminded me of something. They make an RTV/gasket compound called "The Right Stuff" and it works exceptionally well. http://www.permatex.com/products/Automotive/automotive_gasketing/gasket_makers/auto_Permatex_the_Right_Stuff_Gasket_Maker.htmI would use something like Desoto P/S870 but it's aviation sealant so it can be hard for regular people to get and it's expensive. I have ready access to it but TRS should work well also. |
|
|
|
|
Logged
|
Boxer rebellion, the Holy Child. They all pay their rent.
But none together can testify to the rhythm of a road well bent.
Saddles and zip codes, passports and gates, the Jones' keep.
In August the water is trickling, in April it's furious deep.
1997 Valk Standard, Red and White.
|
|
|
RTaz
Member
Posts: 1319
Michigan...Home of InZane X -XI
Oscoda, Michigan
|
|
« Reply #13 on: June 28, 2011, 05:56:55 PM » |
|
I have fork oil leaking on the left fork up through the threads of the fork bottom. Now how do you like that one! The fork bottoms twist off and there is on odd shaped o-ring in there that was broke in half. Honda does not sell the o-ring. They want me to buy the entire fork assembly! I have tried teflon tape, pipe dope, still leaks.
Take the broken o-ring to Zatkoff they are the largest o-ring and seal provider around...if they don't have it they will get it. |
|
|
|
|
Logged
|
 RTaz |
|
|
Big Mike
Member
Posts: 353
I can not remember my last bad day
Taylor MI
|
|
« Reply #14 on: June 28, 2011, 06:07:51 PM » |
|
Thank you for the suggestions. It is part #24 that is leaking from the axel holder. I am going to try Zatkoff. Next may be some permatex product. Got to get this done before INZANE. Thanks Again.
|
|
|
|
|
