Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
 |
« on: June 05, 2012, 03:40:14 AM » |
|

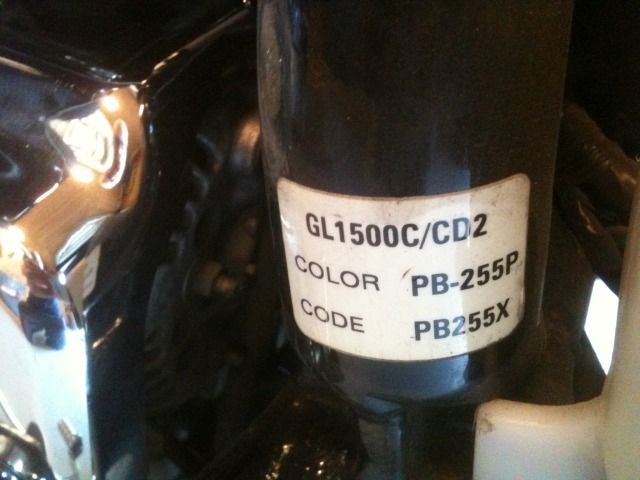

I got the paint codes off the inside of the bike.
PB-255P
PB255X
But I guess those are both codes for the BLUE.
We did a test panel on the pearl white from what the paint scanner thingy said, and it's not even close to a match.
Can anyone offer any advise?
Jabba
|
|
|
|
|
Logged
|
|
|
|
|
tank_post142
|
|
« Reply #1 on: June 05, 2012, 03:45:00 AM » |
|
|
|
|
|
« Last Edit: June 05, 2012, 03:46:36 AM by tank_post142 »
|
Logged
|
I got a rock  VRCCDS0246  |
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #2 on: June 05, 2012, 03:58:32 AM » |
|
Thanks for that.
I don't trust it though. It's got mine wrong. Everything I have found thus far says that my blue is "Pearl Coronado Blue". Which this shows as paint code PB255M. Mine is PB-255P and PB255X.
Which of the MANY whites and silvers is mine?
Shouldn't the paint code be on the bike somewhere? Why does mine only show the main color?
Jabba
|
|
|
|
|
Logged
|
|
|
|
|
tank_post142
|
|
« Reply #3 on: June 05, 2012, 04:18:21 AM » |
|
just went out IN THE RAIN and pulled the left sidecover on my 98 bl/wht standard. tag says: P255P and P255Q
|
|
|
|
|
Logged
|
I got a rock VRCCDS0246 |
|
|
|
9Ball
|
|
« Reply #4 on: June 05, 2012, 04:51:06 AM » |
|
Not an answer to your question, but I've ordered two different touch up pens from Colorite for my 1999 Yellow/Ivory using the factory paint codes and neither of them are anywhere close to matching.
There must be some variation in the colors from the factory as I've seen Valks supposedly the same color combo as mine where the Yellow is much different....mine has more of a golden hue where others I've seen are brighter yellow. The only way I was able to match my aftermarket saddlebags to the bike was to have the auto shop mix the color using their color-match gizmo in the sunlight. They got all three colors exactly the same, right down to the factory pinstripe.
My point is, if you want a perfect match then you might try to have your paint shop mix a batch...this will also account for paint fade if you are not painting the entire bike. They can also make a touch up pen.
|
|
|
|
|
Logged
|
VRCC #6897, Joined May, 2000
1999 Standard
2007 Rocket 3
2005 VTX 1300S
|
|
|
|
chrise2469
|
|
« Reply #5 on: June 05, 2012, 04:57:55 AM » |
|
Just went out and checked my cream and blue 98 and my colour codes were
PB-255P and PB-255Q.
I don't know why the cream isn't on the label.
Did you try the honda cream y173m code? I looked that up at the colorite website.
From sneaky snake on tech board: PPG Paint: 83861 Pearl Ivory Cream
|
|
|
|
« Last Edit: June 05, 2012, 05:17:53 AM by chrise2469 »
|
Logged
|
|
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #6 on: June 05, 2012, 05:14:26 AM » |
|
Just went out and checked my cream and blue 98 and my colour codes were
PB-255P and PB-255Q
The paint codes should be under the left side cover on the downtube of the frame.
Right... But both my codes are for Coronado Blue...  Shouldn't there be a code for white too? Jabba |
|
|
|
|
Logged
|
|
|
|
|
tank_post142
|
|
« Reply #7 on: June 05, 2012, 05:19:55 AM » |
|
the two blue paint codes probably represent one for steel and one for plastic ?
|
|
|
|
|
Logged
|
I got a rock VRCCDS0246 |
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #8 on: June 05, 2012, 05:23:17 AM » |
|
the two blue paint codes probably represent one for steel and one for plastic ?
Maybe... all I know is I can't get a match to the white... and it is pissin' me off. My painter ain't real happy right now either.  Jabba |
|
|
|
|
Logged
|
|
|
|
|
Chillerman
|
|
« Reply #9 on: June 05, 2012, 05:24:55 AM » |
|
Pearl Ivory Cream, Y137P is the factory paint code. It has two colors in it. Check this website halfway down http://www.bike-paint.co.uk/honda%201998.htm. |
|
|
|
|
Logged
|
The problem with Socialists is they eventually run out of other people's money to spend!
Some people are too stupid to realize how ignorant they are.
|
|
|
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #11 on: June 05, 2012, 05:27:00 AM » |
|
Why does everyone think this thing is a 1998 blue and CREAM?
it's a 2002. It's pearl white.
Jabba
|
|
|
|
|
Logged
|
|
|
|
|
Chillerman
|
|
« Reply #12 on: June 05, 2012, 05:29:22 AM » |
|
Why does everyone think this thing is a 1998 blue and CREAM?
it's a 2002. It's pearl white.
Jabba
Whoops, sorry. Pearl Alpine White, NH452P on this page http://www.bike-paint.co.uk/honda%202002.htm. |
|
|
|
|
Logged
|
The problem with Socialists is they eventually run out of other people's money to spend!
Some people are too stupid to realize how ignorant they are.
|
|
|
|
Chillerman
|
|
« Reply #13 on: June 05, 2012, 05:33:04 AM » |
|
I used the paint codes from this site and gave them to my painter for hard bags and it was spot on. Of course mine is the Blue and Cream!!  Hope that helps. |
|
|
|
|
Logged
|
The problem with Socialists is they eventually run out of other people's money to spend!
Some people are too stupid to realize how ignorant they are.
|
|
|
|
tank_post142
|
|
« Reply #14 on: June 05, 2012, 05:38:19 AM » |
|
i mentioned the year of my bike earlier, sorry
|
|
|
|
|
Logged
|
I got a rock VRCCDS0246 |
|
|
|
Bob E.
|
|
« Reply #15 on: June 05, 2012, 05:38:50 AM » |
|
I wonder why the paint scanner didn't work??? Maybe it is malfunctioning or needs calibrated or something?? When I needed paint for my saddlebags, nobody could cross-reference the silver paint code other than ColoRite, but they want an arm and a leg for their paint. NAPA had an optical scanner and scanned the paint and matched it to a factory Lexus silver and it matches up perfectly.
|
|
|
|
|
Logged
|
|
|
|
|
Chillerman
|
|
« Reply #16 on: June 05, 2012, 05:42:21 AM » |
|
I wonder why the paint scanner didn't work??? Maybe it is malfunctioning or needs calibrated or something?? When I needed paint for my saddlebags, nobody could cross-reference the silver paint code other than ColoRite, but they want an arm and a leg for their paint. NAPA had an optical scanner and scanned the paint and matched it to a factory Lexus silver and it matches up perfectly.
I think because it's a two part paint. There is a base coat and a top coat. My painter wasn't real happy with that after his original quote. |
|
|
|
|
Logged
|
The problem with Socialists is they eventually run out of other people's money to spend!
Some people are too stupid to realize how ignorant they are.
|
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #17 on: June 05, 2012, 05:45:41 AM » |
|
I apologize to everyone for being short... I am just aggravated about it, but I think I got her licked now.
We did the paint scanner, and it didn't match at all. The paint people say it doesn't work on PEARL paint very good.
I really do appreciate everyone's help. Your help got me to where I need to be. I hope.
The Blue paint was expensive too. $179 for a QUART from CarQuest. Holy crap Battman!
Jabba
|
|
|
|
|
Logged
|
|
|
|
R J
Member
Posts: 13380
DS-0009 ...... # 173
Des Moines, IA
|
|
« Reply #18 on: June 05, 2012, 06:20:23 AM » |
|
I apologize to everyone for being short... I am just aggravated about it, but I think I got her licked now.
We did the paint scanner, and it didn't match at all. The paint people say it doesn't work on PEARL paint very good.
I really do appreciate everyone's help. Your help got me to where I need to be. I hope.
The Blue paint was expensive too. $179 for a QUART from Car Quest. Holy crap Battman!
Jabba
Hey jarhead, if you think CarQuest is high, go price a Quart for Infiniti Silver Pearl Metallic. That is the color I put on my trailer a couple of years ago. $323 a quart and he gave me his wholesale price. Paint ain't cheap when ya get into the pearls, the silver flake and etc. But it sure do look pretty now. Semper fi Brother. |
|
|
|
|
Logged
|
44 Harley ServiCar   |
|
|
Willow
Administrator
Member
Posts: 16863
Excessive comfort breeds weakness. PttP
Olathe, KS
|
|
« Reply #19 on: June 05, 2012, 08:57:38 AM » |
|
Hey jarhead, ...
Semper fi Brother. Uh, RJ, Jabba is a bubble head, or some such thing. I was no help, Jabba, because when mine were painted we didn't find a satisfactory paint code for the Pearl White. I provided the painter with a fender section and he matched it perfectly (or at least as perfectly as my eyes can discern.). |
|
|
|
|
Logged
|
|
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #20 on: June 05, 2012, 09:17:28 AM » |
|
My painter is a part timer... But seems like he is a perfectionist. We shall see. And you're right... I failed the last test when I tried to join the Marines... The hat would NOT thread onto my head no matter how hard we tried...  I had to join the Navy instead and learn how to run nuclear power plants, and I in fact DID ride a submarine. I know you guys (Marines) love it when anyone points out that you're Dept of the Navy too. I know I know... the Men's Dept.  I appreciate you guys... Jabba |
|
|
|
|
Logged
|
|
|
|
Willow
Administrator
Member
Posts: 16863
Excessive comfort breeds weakness. PttP
Olathe, KS
|
|
« Reply #21 on: June 05, 2012, 09:59:15 AM » |
|
I appreciate you guys... And I appreciate you guys. I toured a docked (Russian) submarine when I was in Long Beach. Even without the thousands of feet of water above me I got an uneasy, claustrophobic feeling. It looks really cool in the movies, but I'm not sure I have in me what it would take to live aboard one of those tubes. Good fortune on the paint. I'm sure it will turn out great. |
|
|
|
|
Logged
|
|
|
|
scoot
Member
Posts: 909
Lifes too short Ride it hard
Grand Rapids Mi.
|
|
« Reply #22 on: June 05, 2012, 06:44:51 PM » |
|
I just looked on HDL, and it looks to me like the stripe is actually a decal. They show it in the picture, but don't list it in the parts list. (numbers 3,4,5,6,7,8,9 and 10). That would at least explain why it doesn't show as a paint code on the bike.
|
|
|
|
|
Logged
|
 Some like to ride Fat boys, I think I'll stay with the fat lady |
|
|
|
gregc
|
|
« Reply #23 on: June 05, 2012, 08:01:34 PM » |
|
Pearl paint is a tough match, you don't want a test panel. You want to spray what they call a let down test panel. Take your test panel prime it, then mask it like you would shingle a roof. Top part of panel shows say 2 inches of primer, then there is masking paper covering the next 2 inches of primer. Do about 3 more sheets of masking 2 inches apart going down the panel. Spray out your color on the top primer section, wait for it to flash off, peel the next piece of masking paper off, exposing the next 2 inches of primer. spray your second coat over the whole exposed section, let it flash off. Remove the next piece of masking paper, repeat the full coat over what is showing. repeat this till you reach the bottom of your test panel. Let it dry, or clear it ,how ever you are going to finish the paint job. Now take the test panel and hold it next to the part of the bike you are trying to match. Starting at the bottom work your way up the panel looking for the best match. When you find the best color match. count up from the bottom of the let down panel how many 2 in stripes you are from the bottom of the test panel. That will be how many coats of your pearl it will take to get the same effect on the new paint job to match. Hope that makes sense to you.
|
|
|
|
« Last Edit: June 05, 2012, 08:03:16 PM by gregc »
|
Logged
|
|
|
|
Jabba
Member
Posts: 3563
VRCCDS0197
Greenwood Indiana
|
|
« Reply #24 on: June 06, 2012, 04:23:35 AM » |
|
The transition of the stripe is a decal... but the body of the stripe itself is paint.
I think we got it licked.
Thanks everyone. I am STOKED to get my bags back and mounted... I have the bag mounts on now, as he wants to MOUNT the bags on the bike to lay out the stripes... and it looks a little weird with the bag mounts and no bags...
Jabba
|
|
|
|
|
Logged
|
|
|
|
|
tank_post142
|
|
« Reply #25 on: June 06, 2012, 04:59:29 AM » |
|
strap a case of beer on each side for now  |
|
|
|
|
Logged
|
I got a rock VRCCDS0246 |
|
|
scoot
Member
Posts: 909
Lifes too short Ride it hard
Grand Rapids Mi.
|
|
« Reply #26 on: June 06, 2012, 05:21:52 PM » |
|
You can tell people it was a President's motorcycle, and that's where the Secret Service would stand on the side when he was riding. Or....... It is a amphibious motorcycle, and those are the skis Or....... |
|
|
|
|
Logged
|
Some like to ride Fat boys, I think I'll stay with the fat lady |
|
|
|
mrider
|
|
« Reply #27 on: June 06, 2012, 05:24:02 PM » |
|
255P
|
|
|
|
|
Logged
|
|
|
|
|
mrider
|
|
« Reply #28 on: June 06, 2012, 05:36:04 PM » |
|
the m matches right up just did my bags perfect
|
|
|
|
|
Logged
|
|
|
|
|
|
|
