1997 GL1500C Valkyrie Headlight - Australian model

[Rumpole]

I have a 1997 GL1500C - the Australian model.

The thin insert rim on my headlight is damaged, but i cannot locate the part number for a replacement. I purchased the large front rim (Part No. 33101-MZ0-671) thinking it might come with it, but it didn't.

I have attached a link to a headlight that includes this part. You may have to scroll through the images. It is referred to as the "dust cover" I think.

Without it, there is a 1/8 - 1/4 inch gap between the light and the rim.

Any ideas?


http://www.valkyrieparts.de/Headlight-unit-clear-with-E-Mark

[97BLKVALK]

Here is another parts link.

What part are you looking for?

http://www.hdlparts.com/fiche_section_detail.asp?section=2552198&category=Motorcycles&make=Honda&year=1997&fveh=132664

Michael

[Rumpole]

Thanks, but the part doesn't appear in that diagram, nor in any other diagrams i can find.

We you able to see the thin ring in the images i provided the link to?

[Michvalk]

I couldn't find any reference anywhere to that dust ring. I wonder if you have a stock headlight, or have an aftermarket one. My guess would be that what you have is aftermarket that comes with an adapter ring. I don't have a standard or tourer so I'm just guessing

[Rumpole]

Cheers MichValk

I definitely have a stock headlight. I ordered the larger rim (part number above) as it was damaged also.

If I knew how to attach an image, i would post a photo.



[GOOSE]

YOUR DIAGRAM SAYS THAT LIGHT FITS ALL VALKYRIES .... THAT KINDA SAYS AFTERMARKET TO ME .... PART #:  33120 - MBY - 671 LOOKS LIKE IT HAS THAT RING ON IT.

[Rumpole]

Goose,

Do you mean part # 33120 - MBH - 671 ?

If you do, i cannot see that ring on there ...

[Anthony]

To post a pic, you first need to upload it to a public accessable webpage, like a photobucket or a dropbox public account,
And then insert te link to that image here in a thread.

I also have an E mark on European F6C, but i dont see any dust cover between the headlight shell and the ring with the lens.

Check out
http://zsf-motorrad.de/content/de/choose.html?type=GL1500C&year=1997&
They show a lot different versions and their parts lists. What is your country code on your bike?

Or you can do a parts search by your VIN nr.
Anthony

[Rumpole]

Hi Anthony

Thanks for your response. There is no Australian model on that site, but it's useful nonetheless.

My VIN is 1HFSC34U

I think it's the "U" that designates Australia.

The manufacture date is 3/97.

Cheers

[Rumpole]

Here is a link to my headlight. You can see the dust ring on the right.

It's the only photo i have. It was damaged, and i have now thrown it ...


https://dl.dropboxusercontent.com/u/3588119/Headlight.jpg

[Blackduck]

Does not look like a stock headlight.
What numbers or name is there cast into the lens? Cannot make it out clearly in the pic.
May know where this another 97 headlight I can check to see what the set up is.
Cheers Steve

[Rumpole]

Thanks Steve.

I think there might be a bit of confusion. The link in the first post is not my light, but it is the only place i could find an image of the dust ring i am looking for. My headlight is definitely a Honda original - i ordered the main ring from Honda Direct, and, of course it fits perfectly. I just cannot seem to find the piece i need - i had one, but it was damaged.

Anyway, if you could have a look at the one you mentioned, i would appreciate it.

Cheers from DownUnder

Paul

[Bone]

I think it's the "U" that designates Australia.

I looked at the HDL site and there wasn't any "U" designations.
Maybe a phone call to them would help.

[Rumpole]

http://www.valkyrienorway.com/Discussion%20of%20Variants.html

It is the 34U that designates Australia.

[Blackduck]

OK, had a look at my 2001, the ring on that is part of the headlight. Will ask after the 97 and see what I can find but suspect it will be the same, you will need to order the headlight itself ( the lens section)

[Rumpole]

Bugga - that's expensive. Thanks for the tip.

[Blackduck]

US$76 plus shipping from the States.
Checked and it is part of the headlight lens assembly, must have been knocked loose when it was damaged.
Pinwall may have a complete assembly for a slightly better price.
Cheers Steve

[Rumpole]

Thanks Steve. It's the postage that kills. I can add another $50 to that,and our dollar sucks at the moment. And all for a thin bit of metal! Thanks for your help.

[Raverez]

Check the salvage yards an Australia. There might be one in good condition. Also some people put the VTX headlight on the Valk.

[Rumpole]

Thanks Raverze.

According to http://www.valkyrienorway.com/SerialNumbersStandard.html only 160 GL1500C models made it to Australia in the four years 97 to 00.

I'm not sure if that's right, because another site says 1500 units came here and to the UK, but there is no further breakdown of numbers. Only 6590 made it out of the USA in 5 years (97-01).

Whatever the number, their ain't many here, and they sure turn heads. I've never seen or been able to find a wreck.

They are rarely on the market, and are generally over-priced because of their rarity.

I think i might try to call Honda Direct and shmooze them. Failing that, i will look at the VTX or perhaps biting the bullet and buying a new lamp.

[R J]

Is it the little rubber piece that fits in the holding plate for the headlight?

Mine deteriorated many moons ago and I added some duct tape and went on my way.

[Rumpole]

You lost me there RJ.

I don't have any rubber piece in the holding plate ?

[R J]

I'll look and see if I can find the parts schematic again.

Be patient, I'm OLD & slow.

[chrise2469]

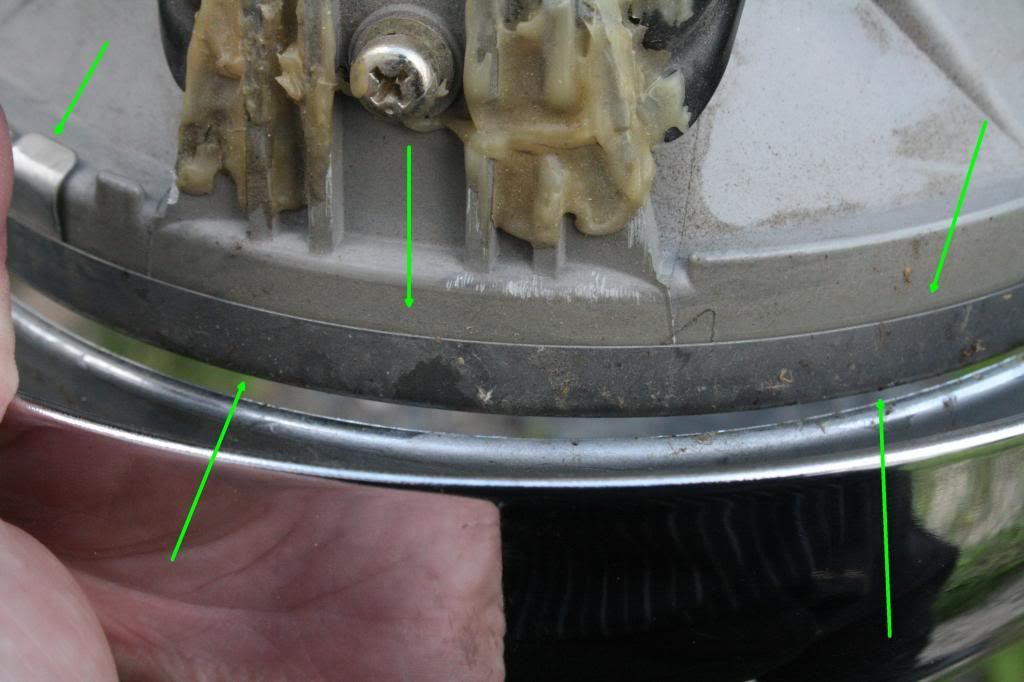

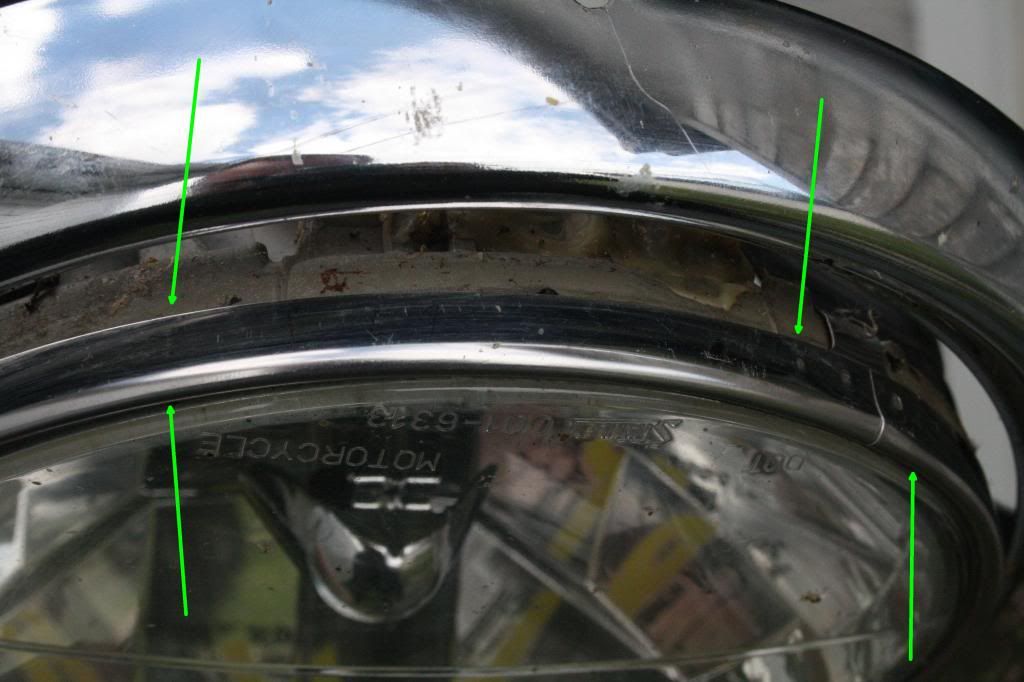

Rumpole,  like others have said the ring is part of the headlight. A google search of the part number 33120-MBH-671 shows the ring attached.

You could also do a search for wrecked  Honda SHADOW AERO - VT1100C3 as it uses the same lens.
http://www.motosport.com/AU/cruiser/oem-parts/HONDA/1999/SHADOW-AERO-_-VT1100C3/HEADLIGHT

The ring is purely decorative and doesn't affect the function of the headlight.  Unless it drives you crazy, I would try and find a busted light to strip the ring off.

If you like I took a couple of photo's you can copy and use in your search.






Try a wanted to buy in the classifieds or a post on the general board.

Good luck and ride safe.

[Rumpole]

Many thanks Chrise2469.

[saddlesore]

OK, I'm kind of cheap and look for alternatives to make certain parts.  Looking at the top picture it looks similar to the chrome edge that you put on auto doors.  Some of the members here have used it on the edge of their gas tanks or fenders.
It's flexible enough to form a circle that you could attach with 3-M tape.
Just a thought and quite a cheap fix.

[Rumpole]

Grand idea. I was thinking of alternatives ... thanks.

[97BLKVALK]

If you can find a part I know of a gentleman that is coming to America in a couple weeks and I can check with his friends if he would be willing to take the part back with him, I believe he lives north of Sydney..maybe Brisbane????  IF you would like me to check into this possibility, Let me know.

Michael

[Rumpole]

That is a very kind offer Michael, and I thank you for it.

I have been contacted by another member of the board who has offered to send me a headlight for the cost of postage. I have taken him up on his very kind offer.

I haven't mentioned his name because he sent me a PM. If he wanted it known I expect he would have put it on this Board.

I am grateful for all the responses, suggestions and offers of help.

Just goes to show that the love of motorcycling, and of the Valk, brings us all together, where ever we may be.

Cheers from DownUnder.

Rumpole ...

[Kye]

That's awesome! What a champion!

[Rumpole]

To all those who helped, and particularly to the people who sent me diagrams and parts (for free!), a good-old Aussie (that's pronounced - Ozzie) thank you.

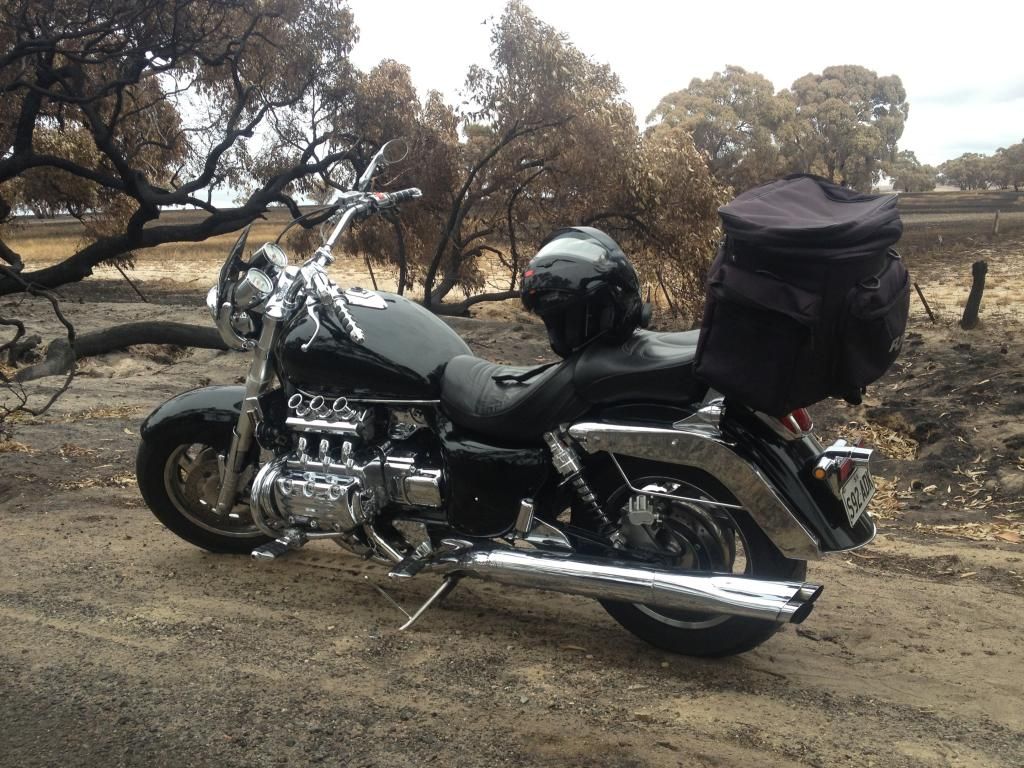

She's complete and rarin' to go. Got a new plate too, just to annoy those F6B riders!

Lovin' it!

[Kymbo]

Very nice Valk Rumpole .Have a bit of a thing for the black ones.

[Rumpole]

Nice. Gotta get me some of those sharp lookin' mirrors.

Mine was yellow and black, but the black (with red speck underneath) looks great in the sun.

[Tx Bohemian]

I have a 1997 GL1500C - the Australian model...

Glad to see you got things going.
The guys on this board are great!!

I have a question:
How is "the Australian model" different from others?

I'd imagine the speedo is in Kilometers but how else?
Are the handlebars on the opposite side??

[Kymbo]

I have a 1997 GL1500C - the Australian model...

Glad to see you got things going.
The guys on this board are great!!

I have a question:
How is "the Australian model" different from others?

I'd imagine the speedo is in Kilometers but how else?
Are the handlebars on the opposite side??

Yep throttle and brake are on the left too. takes a bit of getting used too especially when dodging Drop Bears.

[Dave S. UK]

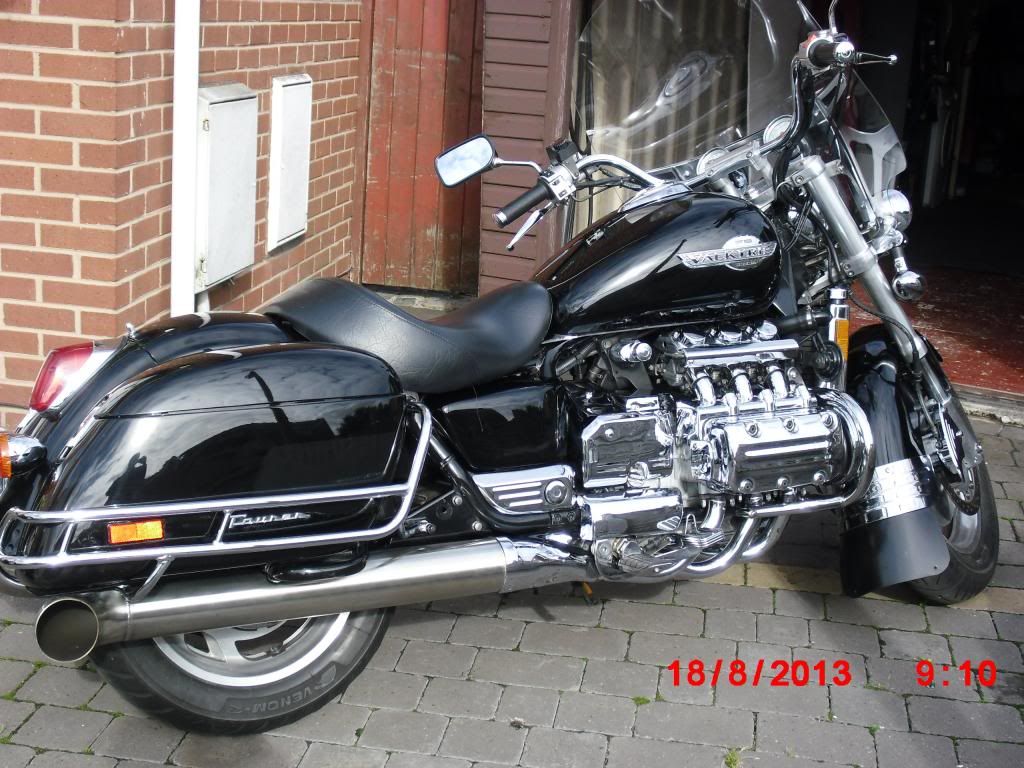

http://s1157.photobucket.com/user/DAVESHER/media/CIMG0649.jpg.html?sort=3&o=0

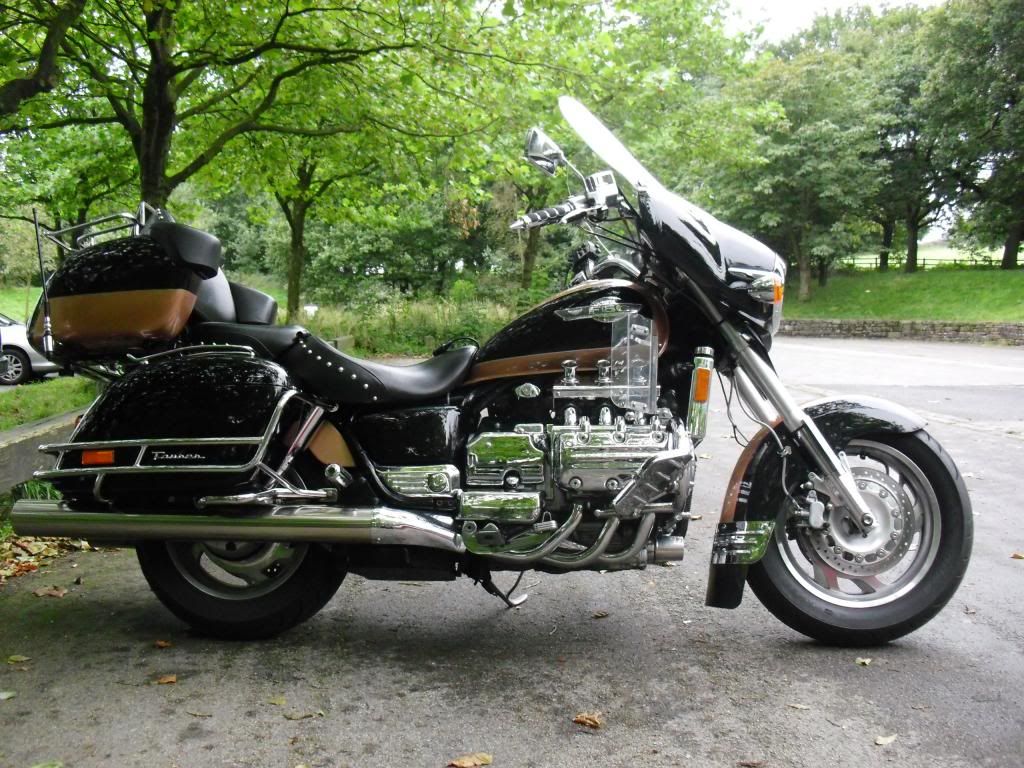

Hi Rumpole.....this is my Valk Dave S. javascript:void(0);

[Dave S. UK]

Well that didn't work very well javascript:void(0);

[R J]

You have a good looking ride there Bro.

Ride safe.

[Dave S. UK]

Try again

[Dave S. UK]

This my main Valkyrie but it's a tough choice when it's time to ride
