alph
|
 |
« on: January 24, 2014, 02:09:48 PM » |
|

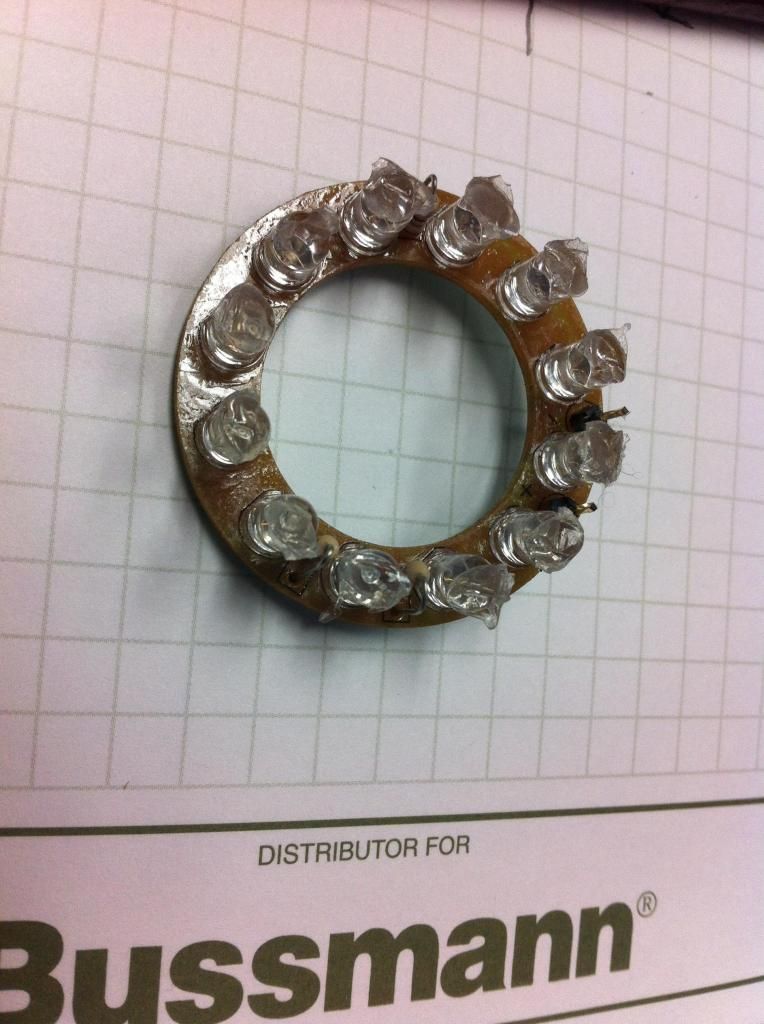

first off, who makes this? I got a set of turn signal lights, and these were in them. they were wired with diodes, and I didn't know why. anyone know? what I'm looking for is a schematic explaining other methods of wiring them up. I'd like to have 'em set up so that when I push my brake and turn on the turn signal, the signal that's on turns off the brake light for that "ring". (make sense?)  |
|
|
|
|
Logged
|
Promote world peace, ban all religion. Ride Safe, Ride Often!!   |
|
|
|
|
|
|
|
98pacecar
|
|
« Reply #3 on: January 24, 2014, 02:37:50 PM » |
|
Didn't like,,, ??? da slash cut pipes,,, I take it?  |
|
|
|
|
Logged
|
|
|
|
|
BF
|
|
« Reply #4 on: January 24, 2014, 02:52:14 PM » |
|
Didn't like,,, ??? da slash cut pipes,,, I take it? I thought I did at one point.  |
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to  |
|
|
|
98pacecar
|
|
« Reply #5 on: January 24, 2014, 03:04:37 PM » |
|
Didn't like,,, ??? da slash cut pipes,,, I take it? I thought I did at one point. I see,,,,  Quite,,,,, da light show,,, by da way... |
|
|
|
|
Logged
|
|
|
|
|
alph
|
|
« Reply #6 on: January 24, 2014, 04:31:15 PM » |
|
I have the install wiring diagram for them....somewhere. Might take me awhile to find it though.  yeah, if you could find that I'd really appreciate it!! thanks. |
|
|
|
|
Logged
|
Promote world peace, ban all religion. Ride Safe, Ride Often!! |
|
|
MarkT
Member
Posts: 5196
VRCC #437 "Form follows Function"
Colorado Front Range - elevation 2.005 km
|
|
« Reply #7 on: January 24, 2014, 05:30:29 PM » |
|
first off, who makes this? I got a set of turn signal lights, and these were in them. they were wired with diodes, and I didn't know why. anyone know? what I'm looking for is a schematic explaining other methods of wiring them up. I'd like to have 'em set up so that when I push my brake and turn on the turn signal, the signal that's on turns off the brake light for that "ring". (make sense?)
That's what this circuit does. Inexpensive & reliable and I've been using it for a dozen years.  Explained in detail here: http://www.horseapple.com/Valkyrie/Tech_Tips/VTX_signals/vtx_signals.html |
|
|
|
|
Logged
|
|
|
|
|
big poppa pump
|
|
« Reply #8 on: January 24, 2014, 05:40:29 PM » |
|
Which model LED cluster did you get for the Valkyrie? Thanks. |
|
|
|
|
Logged
|
VRCC#35870 VRCCDS#0266 1998 Valkyrie Hot Rod  |
|
|
|
bentwrench
|
|
« Reply #9 on: January 24, 2014, 05:56:05 PM » |
|
Hey papa,I took the long expensive way,using the 1157 base w/48 red leds custom dynamics part#GEN-20-R-1157 and frt. t/sig assm.for 2k model year in the rear. along with a run/turn/brake module from an old sportbike,my rear turns have bright red running lamps and really bright stop and turns.along with led board in the center brk lamp you can't miss me from behind.My harley riding friends are quite impressed with this setup,since it is the view they're use to seeing  |
|
|
|
« Last Edit: January 24, 2014, 06:09:36 PM by bentwrench »
|
Logged
|
|
|
|
|
big poppa pump
|
|
« Reply #10 on: January 24, 2014, 06:31:33 PM » |
|
Hey papa,I took the long expensive way,using the 1157 base w/48 red leds custom dynamics part#GEN-20-R-1157 and frt. t/sig assm.for 2k model year in the rear. along with a run/turn/brake module from an old sportbike,my rear turns have bright red running lamps and really bright stop and turns.along with led board in the center brk lamp you can't miss me from behind.My harley riding friends are quite impressed with this setup,since it is the view they're use to seeing Did you get the led board for the brake from custom dynamics as well? Thanks. |
|
|
|
|
Logged
|
VRCC#35870 VRCCDS#0266 1998 Valkyrie Hot Rod |
|
|
|
bentwrench
|
|
« Reply #11 on: January 24, 2014, 07:34:44 PM » |
|
I'm not sure where I got the board from.I'll have check my reciepts.
|
|
|
|
|
