Wiring additional brake lights

[semper5]

I purchased a flexible string of red LEDs the other day from a motorcycle supply shop down here in FL. I asked him about running them powered from the brake-light modulator on the Valkyrie (wherever it is located).

My question is, has anyone tied anything into the modulator for this purpose? Will it handle an additional load like my LEDs? The draw should be minimal, I would think.

If I need to, I could purchase an additional modulator just for this string but am trying to keep it simple.

[JimC]

Not sure if the stock system will work for you or not. If not what about running them through a "Back Off" system?  That way they would use the stock wiring as a feed, and flash on and off.

Jim

[R J]

When I had one of those strings I wired it under the right side cover off the brake light wire.

I took it off of MGM when he got his extra wheel.

Now it is on the Chevy Trike as a brake light.

[MarkT]

The Valkyrie does not have an OEM modulator.  If you have one a previous owner installed it.  Having said that, LED's draw very little power - that is, almost nil - a small fraction of the load of a tungston bulb. Bet ya a beer you can add that LED string to either the modulator output or to the stock brake light circuit and neither one will "know" it's there.

[fordmano]

The Valkyrie does not have an OEM modulator.  If you have one a previous owner installed it.  Having said that, LED's draw very little power - that is, almost nil - a small fraction of the load of a tungston bulb. Bet ya a beer you can add that LED string to either the modulator output or to the stock brake light circuit and neither one will "know" it's there.

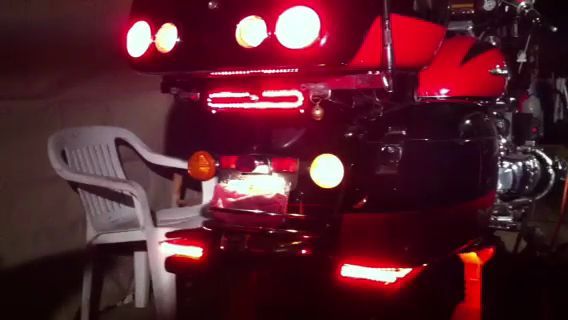

Yep minimal load, I have a large number o LED's attached to the brake light circuit directly and no issues so far other than being WAY overly bright and annoying to anyone behind me. Seems like there are either 18 or 24 LED's under each saddle bag and another 35 or so under the trunk ad probably better than a dozen on the wing mounted on top of the trunk...

	powered by Aeva

If memory serves I split the wires under the right side of the seat and spliced them there between the fender and the side rail that the trunk sits on. Ran the wire along the inside of the saddle bag stays up to the seat area and the light bar under the trunk just ran the wires under the trunk to the side of fender under the seat,,,, easy peasy!


Since then I have also added the wing on the top of the trunk and it also has a set of LED's all the way across the underside of it....

[John Schmidt]

Keep in mind....if this is the first LED's added to the system it might affect your turn signal operation. Depends on how it's wired in for the brake so I'd try it using some jumper wires to test it before making it a permanent installation.
