big poppa pump
|
 |
« Reply #1 on: May 02, 2014, 06:15:55 PM » |
|
Brown wire powering running lights. Remove your right side cover and all wires should be in a bundle.
|
|
|
|
|
Logged
|
VRCC#35870 VRCCDS#0266 1998 Valkyrie Hot Rod  |
|
|
|
Bighead
|
|
« Reply #2 on: May 02, 2014, 09:14:17 PM » |
|
There is a 5amp aux wire that is green with a red stripe under the right hand cover that I used to power my fuse block. It is only hot when switch turned on and power goes off when starter is pressed then back on in a couple of seconds just like the head light.
|
|
|
|
« Last Edit: May 02, 2014, 09:24:49 PM by Bighead »
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
ptgb
|
|
« Reply #3 on: May 02, 2014, 10:51:37 PM » |
|
 The upper marked one. |
|
|
|
|
Logged
|
 Lower Lakes 1000 - 07/07 & 09/10 * Bun Burner GOLD - 09/10 Lake Superior 1000 - 07/11 * Lake Michigan 1000 - 09/11 * Lake Huron 1000 - 09/11 Saddlesore 2000 - 09/11 * Ohio 1000 - 07/13 |
|
|
|
Bighead
|
|
« Reply #4 on: May 02, 2014, 11:13:48 PM » |
|
Yep that's the one.
|
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
Pappy!
|
|
« Reply #5 on: May 03, 2014, 06:45:15 AM » |
|
Standard must have the same wire. If the rain would quit I could move stuff around in the garage and get into it and get it going. Grrrrrrr
|
|
|
|
|
Logged
|
|
|
|
|
Bighead
|
|
« Reply #6 on: May 03, 2014, 08:54:16 AM » |
|
Yes it is on the standard .
|
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
jimmytee
|
|
« Reply #7 on: May 03, 2014, 03:52:39 PM » |
|
Just in case, by the way your question is worded, if you're asking where to get the power to energize a relay from the ignition, then follow the suggestions given. The Standard has this 5 amp green wire mentioned for this purpose. However, as someone who is pretty accustom to electrical wiring and terminology, it sounds also that you might be asking where to get the power for the "switched" circuit. This should probably come from the battery directly. The "switched" power usually is referring to the circuit that will handling the load. It is "switched" on or "switched' off be a relay or switch. Just trying to help, you probably had the answer you were looking for from the previous posts, but just in case , you don't want to run more than a relay on that little green wire for 5 amps.
|
|
|
|
|
Logged
|
"Go sell crazy somewhere else,we're all stocked up"
|
|
|
|
BF
|
|
« Reply #8 on: May 03, 2014, 04:57:12 PM » |
|

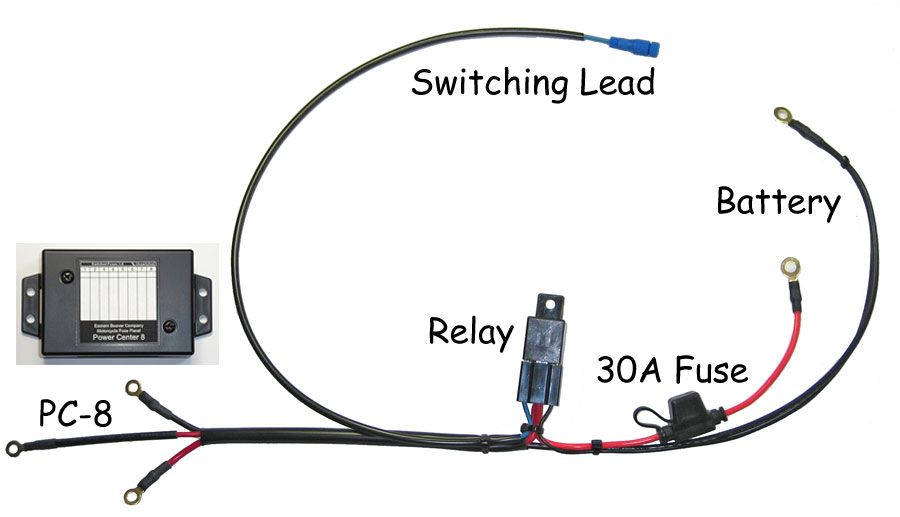

Like the other guys said......here..... That's where I took the switched power for when I installed my Eastern Beaver PC-8 block. You can see the black wire running up into the rubber sleave.  The PC-8....  |
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to  |
|
|
|
Pappy!
|
|
« Reply #9 on: May 03, 2014, 06:01:19 PM » |
|
Thanks guys! I finally found the little bugger.....wasn't exactly sitting out in the open.
To answer your comments on the "Switched" power. The 5a circuit will be latching on a relay in the Denali box.
Inside the box there 6 individual circuits. These circuits can be hooked up through the relay (switched) or fused direct depending on where you install the mini fuse.
Its a pretty cool little box.
|
|
|
|
|
Logged
|
|
|
|
|
BF
|
|
« Reply #10 on: May 03, 2014, 06:47:45 PM » |
|
|
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to |
|
|
|
Pappy!
|
|
« Reply #11 on: May 03, 2014, 08:20:13 PM » |
|
Hell, BF! I cant think of 8 things I need on a bike to run power to!
I don't even run bags on my bike !
|
|
|
|
|
Logged
|
|
|
|
|
Bighead
|
|
« Reply #12 on: May 06, 2014, 09:38:40 PM » |
|
I went with this unit as suggested from BF and used 4 and still have 4 for future lights or something else  |
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
BobB
|
|
« Reply #13 on: May 07, 2014, 10:05:26 AM » |
|
I also ran with the PC-8, but wired it differently so that one of the eight fuses (30 amp) was used to protect the box. That way the separate external fuse was not needed. I have only three circuits for accessories, two switched and one battery.  |
|
|
|
« Last Edit: May 07, 2014, 10:13:24 AM by Plunker »
|
Logged
|
|
|
|
|
BF
|
|
« Reply #14 on: May 07, 2014, 11:18:47 AM » |
|
Wow. The breaker box for my house doesn't look that neat.  |
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to |
|
|
|
pancho
|
|
« Reply #15 on: May 07, 2014, 06:09:32 PM » |
|
Thats what I was thinking!!! good clean job Plunker.
|
|
|
|
|
