Author Topic: vacuum lines  (Read 3269 times)
CMA_Carl
Member
*****
Posts: 42



« on: October 11, 2014, 07:21:02 PM »

Last year I got rid of all the vacuum lines. I had done the smog deal many years ago. But, finally, got rid of all the lines when i put in a manuel fuel petcock and electronic fuel shut off.  At that time i also put on brand new vacuum caps.
NOW, ALL THE CAPS, ALL BUT FELL OFF! No telling how long they been leaking vacuum.
Is it the neat?
What's up with that? Is there a brand of vacuum caps that'll hold up? I put solid rubber ones on and paid just a bit more for them.
Thanks ahead of time for the advice.
Logged
hubcapsc
Member
*****
Posts: 16785


upstate

South Carolina


« Reply #1 on: October 11, 2014, 07:36:32 PM »


I think the OEM ones work well.

People take a short bit of vacuum hose and RTV a suitable
small bolt in the end of it, and use that.

The nipple on the back of the intakes is threaded on,
people replace it with a bolt, that works...

-Mike
Logged

Brewer
Member
*****
Posts: 331

Denver, CO


« Reply #2 on: October 11, 2014, 08:05:41 PM »

Several people here also recommend "Red Eye Tech vacuum caps"

Vacuum Cap Kit (4mm) Viton B: Honda Valkyrie GL1500C GL1500CT GL1500CF GL1500CD

If the link does not work, Search on ebay
http://www.ebay.com/itm/Vacuum-Cap-Kit-4mm-Viton-B-Honda-Valkyrie-GL1500C-GL1500CT-GL1500CF-GL1500CD/231317538466?_trksid=p2047675.c100011.m1850&_trkparms=aid%3D222007%26algo%3DSIC.MBE%26ao%3D1%26asc%3D20140602152332%26meid%3De4aad1c7d3a14c01b27b801848fa49ac%26pid%3D100011%26prg%3D20140602152332%26rk%3D1%26rkt%3D10%26sd%3D331238011967
Logged

Brewer - it is a hobby
Patrick
Member
*****
Posts: 15433


VRCC 4474

Largo Florida


« Reply #3 on: October 12, 2014, 05:06:51 AM »

I do as Mike.

A short length of quality line with a nice cap screw in the end then pushed over the nipples will hold up for years and isn't too noticeable.

On mine I install cap screws and just use the original nipples if I decide to check the sync.
Logged
Otus
Member
*****
Posts: 924


Scott

Taylor Mi.


« Reply #4 on: October 12, 2014, 07:59:00 AM »

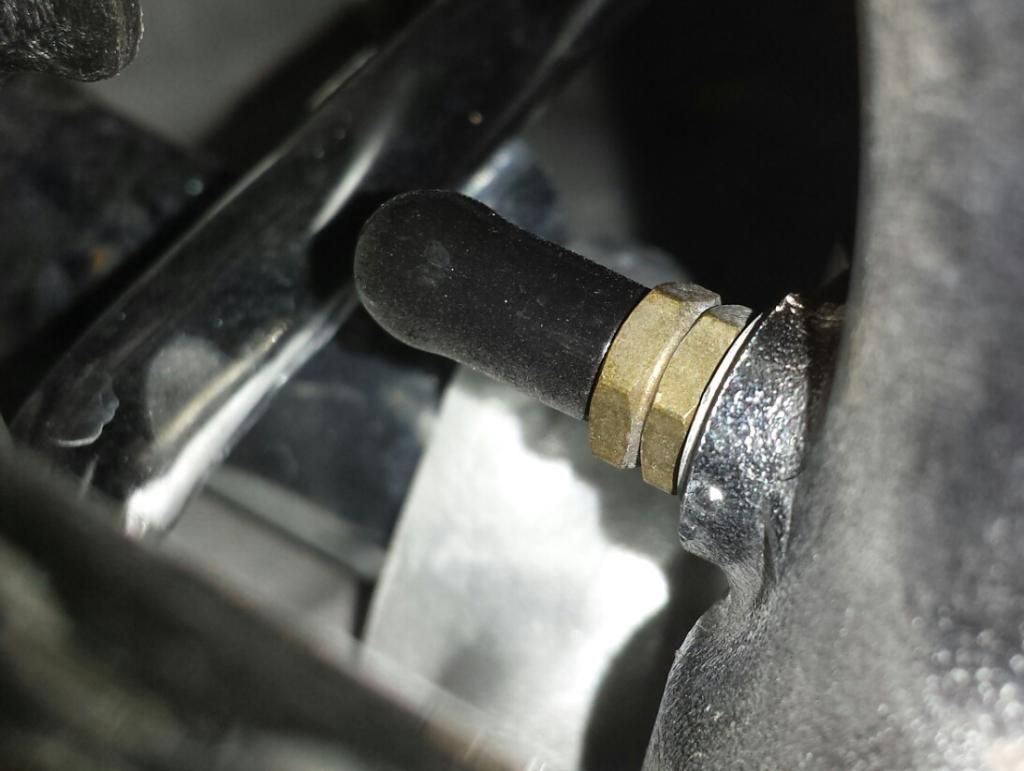

I'm sure this will be poo pood but I was given this idea by another member and i like it. Go to the hardware store and get some vinyl thread protectors, you can get a pocket full for a couple dollars.  They fit real tight don't dry out and crack and its a nice clean look. I don't remember the size, i think it was a #8 or #10.
Logged

Patrick
Member
*****
Posts: 15433


VRCC 4474

Largo Florida


« Reply #5 on: October 12, 2014, 08:23:47 AM »

I'm sure this will be poo pood but I was given this idea by another member and i like it. Go to the hardware store and get some vinyl thread protectors, you can get a pocket full for a couple dollars.  They fit real tight don't dry out and crack and its a nice clean look. I don't remember the size, i think it was a #8 or #10.






Ya know, thats a good idea and it looks good. I'll look into them.
Logged
hubcapsc
Member
*****
Posts: 16785


upstate

South Carolina


« Reply #6 on: October 12, 2014, 08:34:05 AM »


When I first got my bike, I looked around town for vacuum caps... I got these vinyl ones
from Advance...



http://shop.advanceautoparts.com/p/dorman-autograde-vinyl-color-vacuum-cap-assortment-47397/89015274-P?searchTerm=vacuum+cap

They seemed to work, but after a few years they got hard. I couldn't tell that they were
leaking, and they weren't obviously cracked. Last winter, when I replaced them with
OEM caps, and also replaced the vacuum like to #6 which had also gotten hard, my
bike ran noticeably better...

Now I see rubber vacuum caps on the Advance web site... might not be in the store, though...
I wonder if they'd be better than vinyl... ?



http://shop.advanceautoparts.com/p/dorman-help-black-rubber-vacuum-cap-assortment-41050/5012821-P?searchTerm=vacuum+cap

-Mike
Logged

Otus
Member
*****
Posts: 924


Scott

Taylor Mi.


« Reply #7 on: October 12, 2014, 08:40:20 AM »

As cheep as the thread protectors are I just figured would just change them annually as part of my spring start up. Five minutes and a dollar or two and you know they are good for the season.
Logged

hubcapsc
Member
*****
Posts: 16785


upstate

South Carolina


« Reply #8 on: October 12, 2014, 08:48:33 AM »

As cheep as the thread protectors are I just figured would just change them annually as part of my spring start up. Five minutes and a dollar or two and you know they are good for the season.

 cooldude

My plan was to "leave them on until I could tell they were leaking or cracking"... spending $1.59
and 10 minutes to change them out every year is a much better plan.

-Mike
Logged

Attic Rat
Member
*****
Posts: 446


VRCC # 1962

Tulsa, OK


WWW
« Reply #9 on: October 12, 2014, 09:13:58 AM »

I use a stainless steel bolt and sealing washer that ends all of that stuff. I  put the vacuum nipples in a bag and put them in the battery box in case I need to set the carbs.
Logged

The Attic Rat Performance Works
Otus
Member
*****
Posts: 924


Scott

Taylor Mi.


« Reply #10 on: October 12, 2014, 09:17:09 AM »

Yeah, think you told me that.  That is a very permanent solution.
Logged

Patrick
Member
*****
Posts: 15433


VRCC 4474

Largo Florida


« Reply #11 on: October 12, 2014, 10:17:25 AM »

Yeah, think you told me that.  That is a very permanent solution.





Yep, reply #3
Logged
Farther
Member
*****
Posts: 1680


Quimper Peninsula, WA


« Reply #12 on: October 12, 2014, 02:07:42 PM »

What size screw and what material?  I would think brass with a little pipe dope or anti-seize would be best.
Logged

Thanks,
~Farther
Patrick
Member
*****
Posts: 15433


VRCC 4474

Largo Florida


« Reply #13 on: October 12, 2014, 02:26:46 PM »

What size screw and what material?  I would think brass with a little pipe dope or anti-seize would be best.






Its been so long, I can't remember the size. Its easy to remove one to match up. Brass would work, but, I use stainless allen head with a dab of never-seize.
Logged
RONNIEB
Member
*****
Posts: 146


NEWCASTLE, OKLAHOMA


« Reply #14 on: October 17, 2014, 05:29:37 AM »

IS THERE ANY HARM IN REMOVING VACUMN LINES, EXCEPT #6 TO PETCOCK, PLGGING PORTS AND JUST LEAVING REMAINDER OF "SMOG STUFF"?
Logged

1999black standard; 2000 black tourer; 1999 red/black interstate
Ricky-D
Member
*****
Posts: 5031


South Carolina midlands


« Reply #15 on: October 17, 2014, 07:57:35 AM »

No

***
Logged

2000_Valkyrie_Interstate
