hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
 |
« on: November 30, 2014, 04:46:45 PM » |
|
Got the new risers on, the handlebars (original Valkyrie handlebars) feel good.  The machinist has been willing but too busy to help me so far... I found that a certain size of washer was exactly the right size to replace the riser-stud-collar that fits into the rubber mounts of the Valkyrie's riser mounts...  The holes in the washers, though, weren't the right size... I had to drill them out. It is hard to drill out washers... wooden jig to the rescue   Today I rerouted the handlebar hydraulic lines and switchbox electrical wires and throttle cables so they'd fit on the new bars/risers. They don't fit  ... by a whole lot. I'll have to lengthen everything nine inches by my best measurements. These guys say they can make my brake and clutch hydraulic lines. https://www.moto-heaven.comI haven't talked to them, but I'd guess motion pro could handle the throttle cables... http://www.motionpro.com/motorcycle/custom/On the forum recently we talked about "lengthening the wires"... I'll probably go with cutting them and splicing them. Even if I could get the OEM connectors so that I could make a custom plug-and-play in-line lengthener, the extra connectors would probably get in the way, like big lumps along the wires... This would be on the right...  This would be on the left...  It's a fightful mess back in behind the headlight, and now I've rerouted stuff and unclipped Honda zip ties and stuff... y'all might want to lay odds on whether or not this bike will ever roll again  -Mike |
|
|
|
|
Logged
|
|
|
|
|
hal47
|
|
« Reply #1 on: November 30, 2014, 07:15:55 PM » |
|
Hang in there Mike,you will get it done and be happy.
|
|
|
|
|
Logged
|
|
|
|
|
mrtappan
|
|
« Reply #2 on: November 30, 2014, 09:34:00 PM » |
|
Just cut and splice. Doing it one wire at a time is easy.
Either that or put your old bars back on......
Ever measure the spacing riser to riser?
|
|
|
|
|
Logged
|
Profile deleted.
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #3 on: December 01, 2014, 04:02:00 AM » |
|
Ever measure the spacing riser to riser?
4.5 inches.
-Mike
|
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #4 on: December 01, 2014, 04:20:59 AM » |
|
Hang in there Mike,you will get it done and be happy.
Either that, or maybe I'll bring it up to your garage -Mike |
|
|
|
|
Logged
|
|
|
|
|
mrtappan
|
|
« Reply #5 on: December 02, 2014, 02:54:10 PM » |
|
4.5" is a weird spacing. The VTX/M109 series bikes use 130mm or 5 1/8". Yamaha uses 100mm or 4" on the Warrior. Harley uses 3.5" on most and 4" on springer usually.
Well....... there goes that idea of using bars from another bike.
|
|
|
|
|
Logged
|
Profile deleted.
|
|
|
|
|
|
mrtappan
|
|
« Reply #7 on: December 02, 2014, 07:16:12 PM » |
|
I thought about those but I want to do a set of t-bars. I don't think they'd look right with those under them. A set of t-bars are not hard to make but I would love the convenience of just being able to bolt a set on for a few dollars more.
I guess there's only one way to find out but I'm in no rush. I'm still in the middle of building my new shop and making little to no progress by getting side tracked.
|
|
|
|
|
Logged
|
Profile deleted.
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #8 on: December 05, 2014, 11:14:11 AM » |
|
I have spoken to motion pro about the throttle cables and just got email back from spiegler that they can make the hydraulic lines  ... the other hydraulic folks quit answering my emails and phone calls, I guess they decided I was a kook  ... I'm sending both places the OEM stuff to use as templates. I've read a bunch of stuff and watched a bunch of youtube videos about soldering wire splices, I'll go down and get a soldering iron tonight or tomorrow. Wish me luck that I don't burn down my house  -Mike |
|
|
|
|
Logged
|
|
|
|
|
jimmytee
|
|
« Reply #9 on: December 05, 2014, 11:48:00 AM » |
|
I have spoken to motion pro about the throttle cables and just got email back from spiegler that they can make the hydraulic lines ... the other hydraulic folks quit answering my emails and phone calls, I guess they decided I was a kook ... I'm sending both places the OEM stuff to use as templates. I've read a bunch of stuff and watched a bunch of youtube videos about soldering wire splices, I'll go down and get a soldering iron tonight or tomorrow. Wish me luck that I don't burn down my house -Mike If your cutting and splicing, try to stagger your splices if you can. That'll help keep from having a huge pregnant snake look. Also , I solder my connections and inividually heat shrink them before I heat shrink the bundle. It's best to use a heat gun with heat shrink. Lighters can work in a pinch, but a heat gun is better. |
|
|
|
|
Logged
|
"Go sell crazy somewhere else,we're all stocked up"
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #10 on: December 05, 2014, 12:02:53 PM » |
|
If your cutting and splicing, try to stagger your splices if you can. That'll help keep from having a huge pregnant snake look. Someone (you maybe?) already gave me that good hint, I plan on it ... if I can make my splices anywhere near as good as some of the youtube guys, that plus the staggering will prevent any pregnant snakes... Also , I solder my connections and inividually heat shrink them before I heat shrink the bundle. It's best to use a heat gun with heat shrink. Lighters can work in a pinch, but a heat gun is better.
It would be really scary to use a lighter while the wiring was on the bike. I have a heat gun for stripping paint... I'm not sure I'd point that at my bike either... but I've got the control boxes with their dangling wire off the bike and in my house... I'll try the heat gun first... a lot of the youtubers used lighters to good effect... one of the few joys of living in an unfinished house is that I can just flop down a handy 4x6 sheet of concrete backer board in a big open place on the plywood floor of my living room work shop to do the soldering... -Mike "until my house is more finished, I hate fire... maybe even then..."
|
|
|
|
|
Logged
|
|
|
|
|
jimmytee
|
|
« Reply #11 on: December 05, 2014, 01:19:21 PM » |
|
The reason for the heat gun is that you can supply adequate heat to shrink the tubing without over heating and burning the heat shrink tubing in the process. The heat gun is just easier for a better result. It applies heat more evenly.
|
|
|
|
|
Logged
|
"Go sell crazy somewhere else,we're all stocked up"
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #12 on: December 07, 2014, 04:11:54 PM » |
|
Got started on the soldering today... I picked the control box with the most wires... nine...  Here's one about to get soldered...  The ceramic core of the heat gun had become busted... a lighter did a pretty good job on the shrink tubing... -Mike |
|
|
|
|
Logged
|
|
|
|
|
Jess from VA
|
|
« Reply #13 on: December 07, 2014, 06:38:35 PM » |
|
Hey Mike, how are you on hernia repairs?  Good luck with that project. |
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #14 on: December 08, 2014, 12:25:06 AM » |
|
how are you on hernia repairs?
I fear the lengthened section of wires is going to look like a hernia repair...
the soldered connections seem pretty strong so far, though...
-Mike
|
|
|
|
|
Logged
|
|
|
|
KY,Dave (AKA Misunderstood)
Member
Posts: 4146
Specimen #30838 DS #0233
Williamsburg, KY
|
|
« Reply #15 on: December 08, 2014, 08:56:50 AM » |
|
Don't have an 1800 but have been following this project Mike. Nice job researching and following thru. You're almost there. Hope it works for ya |
|
|
|
|
Logged
|
|
|
|
|
Jess from VA
|
|
« Reply #16 on: December 08, 2014, 10:37:20 AM » |
|
Mike, if you end up with a few pregnant spots of splices, it can always be covered up with a few pieces of Black Split Loom Tubing (auto parts). Not a substitute for good waterproof shrink wrap, just for cosmetic cover ups of any ugly spots. Easy to apply to completed wiring with the spit lines. Just get the right width material, and orient the split edge facing down so no water is retained.  |
|
|
|
« Last Edit: December 08, 2014, 10:45:11 AM by Jess from VA »
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #17 on: December 08, 2014, 10:47:33 AM » |
|
Mike, if you end up with a few pregnant spots of splices, it can always be covered up with a few pieces of Black Split Loom Tubing (auto parts). Not a substitute for good waterproof shrink wrap, just for cosmetic cover ups of any unsightly bulges. Easy to use with the spit lines. Just get the right width material, and put the split edge facing down so no water is retained. I've got no bulges (so far) ... I staggered the joints as much as possible. I just wish I had a piece of the same loom that Honda put on there... I don't really like that vacuum cleaner hose ribbed look... I bought a hunk of heavy-duty wire which was a bundle of four big wires and stole the loom off of that, but I have my doubts about how it will look... -Mike "if I finally am comfortable, I won't care, at least at first..." |
|
|
|
« Last Edit: December 08, 2014, 12:55:08 PM by hubcapsc »
|
Logged
|
|
|
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #19 on: December 08, 2014, 01:08:32 PM » |
|

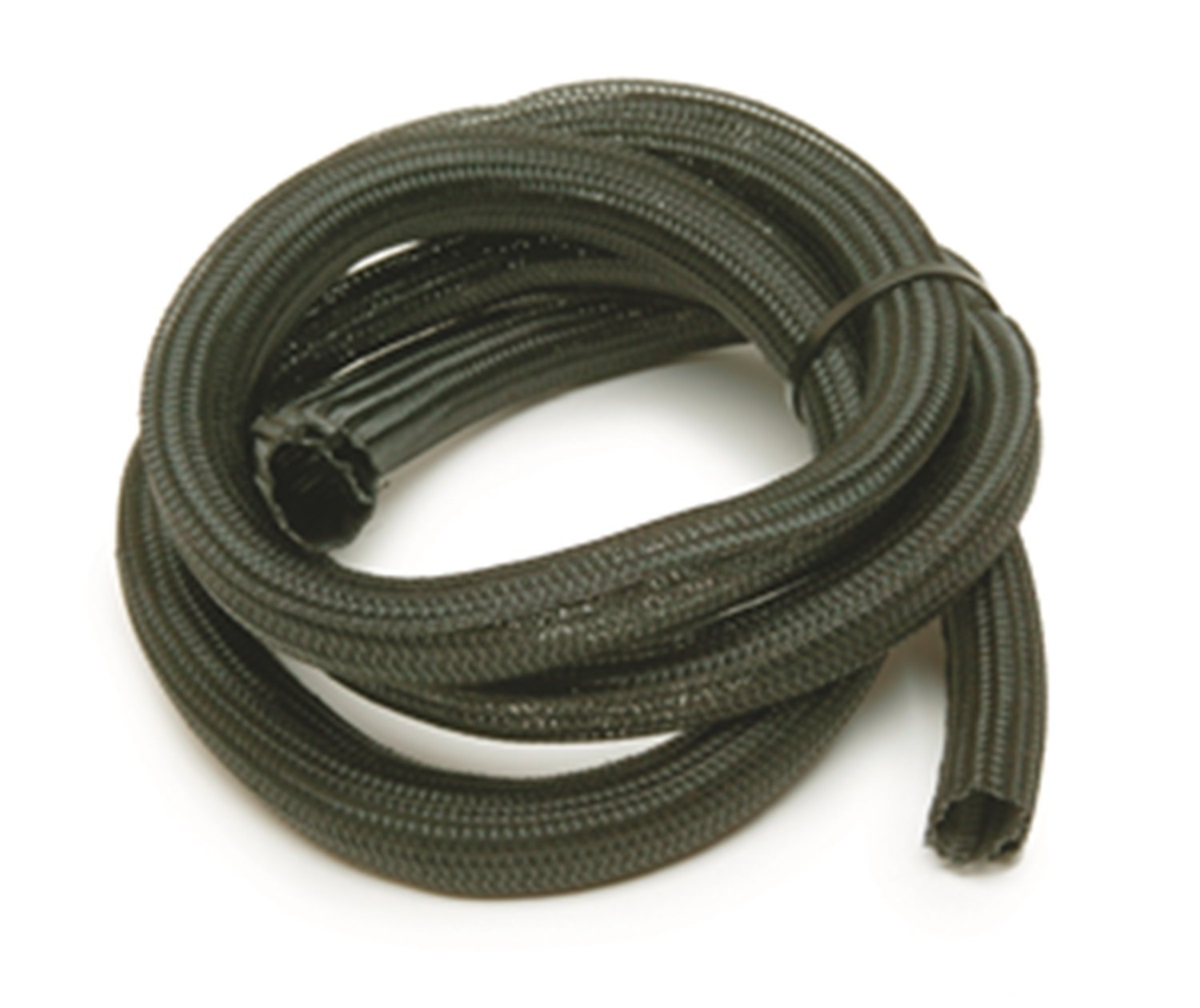

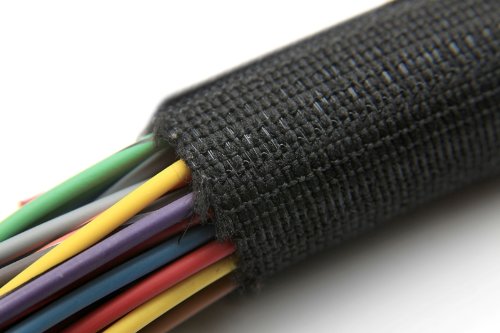

This is a split loom that opens up and fastens to itself. It doesn't have the vacuum cleaner look
I googled around and found that four wheel drive places like that stuff... I just called the Clemson 4 Wheel Center (I can pass them on the way home) and they have it in stock ... I'll check it out... -Mike |
|
|
|
|
Logged
|
|
|
|
|
Jess from VA
|
|
« Reply #20 on: December 08, 2014, 02:45:50 PM » |
|
Definitely better looking stuff.
|
|
|
|
|
Logged
|
|
|
|
|
jimmytee
|
|
« Reply #21 on: December 08, 2014, 03:25:47 PM » |
|
|
|
|
|
|
Logged
|
"Go sell crazy somewhere else,we're all stocked up"
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #22 on: December 08, 2014, 03:49:17 PM » |
|
I stopped by Clemson 4 Wheel Center ( http://www.clemson4wheel.com/ ) and they had the very stuff that Bons posted about, I got 10 feet of it ... Seems like it will be real good to work with... -Mike |
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #23 on: December 11, 2014, 04:55:38 AM » |
|
After soldering the nine wires (18 joints) to one of the control boxes, I was not feeling warm and fuzzy about the durability of this newbies' twisted wires with solder drizzled on them... most of them are 20 gauge, tiny... so I made up a test one and tried to pull it apart. It was really hard, and finally the wire broke. Solder held up fine, and where the wires are twisted together inside the solder was unaffected...  The braided loom looks fine and will probably be awesome...  -Mike |
|
|
|
|
Logged
|
|
|
|
|
jimmytee
|
|
« Reply #24 on: December 24, 2014, 04:06:52 PM » |
|
Any updates?
|
|
|
|
|
Logged
|
"Go sell crazy somewhere else,we're all stocked up"
|
|
|
hubcapsc
Member
Posts: 16768
upstate
South Carolina
|
|
« Reply #25 on: December 24, 2014, 04:15:29 PM » |
|
Any updates?
The throttle cable fabricators called me today and told me they'd have the cables here by 2nd week in Feb. The hydraulic lines are being worked on by the fabricator too, so I hope they come in at least as soon. Christmas has disrupted their schedules, I guess it doesn't usually take this long. This bike doesn't take apart near as easy as our regular Valkyries do. I had to really tear into it to evaluate what would be needed to use the new risers and handlebars. I guess I can put it back together  ... F6gal and Psycho have their bags, and posted pictures. If this bike was comfortable and had those fine bags, it would really be something... -Mike |
|
|
|
|
Logged
|
|
|
|
|
jimmytee
|
|
« Reply #26 on: December 24, 2014, 07:29:54 PM » |
|
It will all come together, and you'll be loving it.
|
|
|
|
|
Logged
|
