Author Topic: Removing Floorboard Lowering Kit  (Read 1353 times)
oldskool
Member
*****
Posts: 17
« on: March 24, 2015, 05:44:04 AM »
Hello everybody,

I will be removing my foot peg lowering brackets and heel-toe shifter this week. I'm going to keep my Cobra floorboards and use with the CBR-1100xx shifter.

My question is: How do I remove the lowering bracket on the right side? (I am assuming there is a lowering bracket there, because it is even with the left side).





* If everything works out with my new set-up. I will probably sell the lowering brackets & hell toe kick shifter.


Thanks!
Logged
dconstruct55
Member
*****
Posts: 126

Phoenix AZ.
« Reply #1 on: March 24, 2015, 09:12:49 AM »
Hey RR
Why are you getting rid of the heel/toe?
Logged
oldskool
Member
*****
Posts: 17
« Reply #2 on: March 24, 2015, 10:01:37 AM »
The heel/toe came with the bike and I just cannot get used to it (after 20+ years of riding). I like the comfort that the floorboards provide, except the current setup scrapes way too easy.

I hope by raising the boards and using the CRF-1100xx shifter (on order from Partzilla), I can continue to use the floorboards without scraping. If not, I will find OEM or Kuryakyn pegs.
Logged
The emperor has no clothes
Member
*****
Posts: 29945
« Reply #3 on: March 24, 2015, 07:54:34 PM »
It's pretty simple. After you remove the chrome cover you will see what's going on.
That reminds me. Make sure your new mounting bolts aren't too long. I bottomed one out and broke it off. Had a hell of a time.
« Last Edit: March 24, 2015, 07:56:46 PM by meathead » Logged
slythern12
Member
*****
Posts: 44


Fayetteville Ar.
« Reply #4 on: March 25, 2015, 01:00:54 AM »
I think I would love a heel/toe shifter if it would work with my cobra boards.
Logged
oldskool
Member
*****
Posts: 17
« Reply #5 on: March 25, 2015, 05:25:29 AM »
Thanks for the tip about the screw length!
Logged
salty1
Member
*****
Posts: 2359


"Flyka"

Spokane, WA or Tucson, AZ
« Reply #6 on: March 25, 2015, 06:16:11 AM »
Quote from: meathead on March 24, 2015, 07:54:34 PM
It's pretty simple. After you remove the chrome cover you will see what's going on.
That reminds me. Make sure your new mounting bolts aren't too long. I bottomed one out and broke it off. Had a hell of a time.

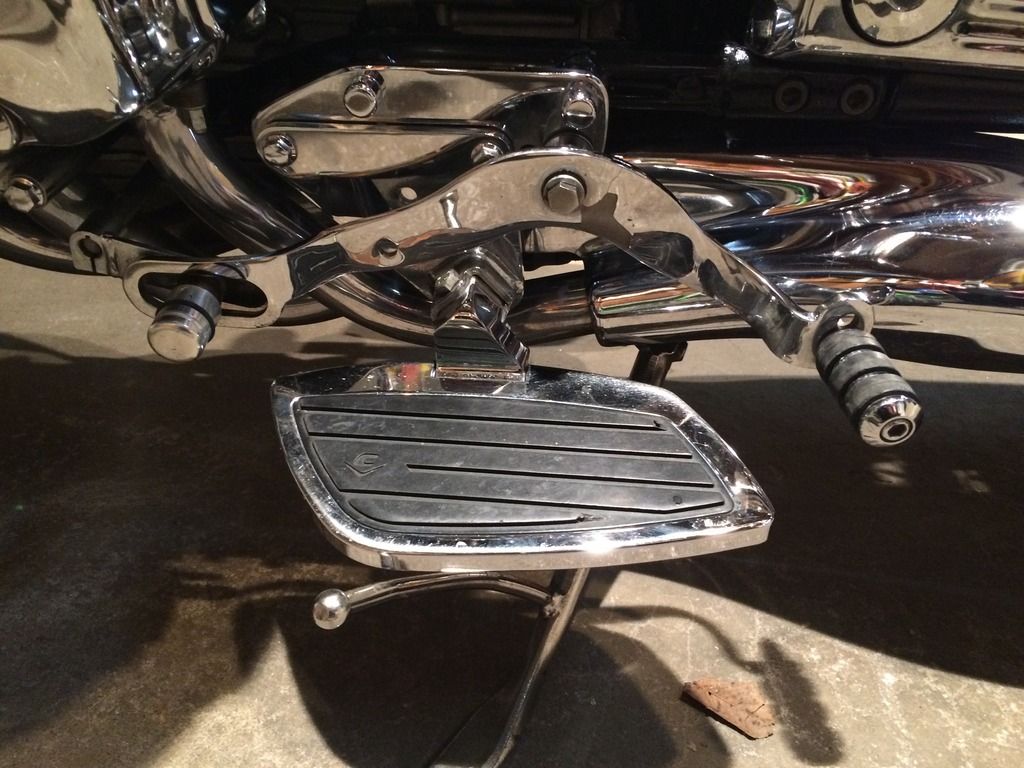

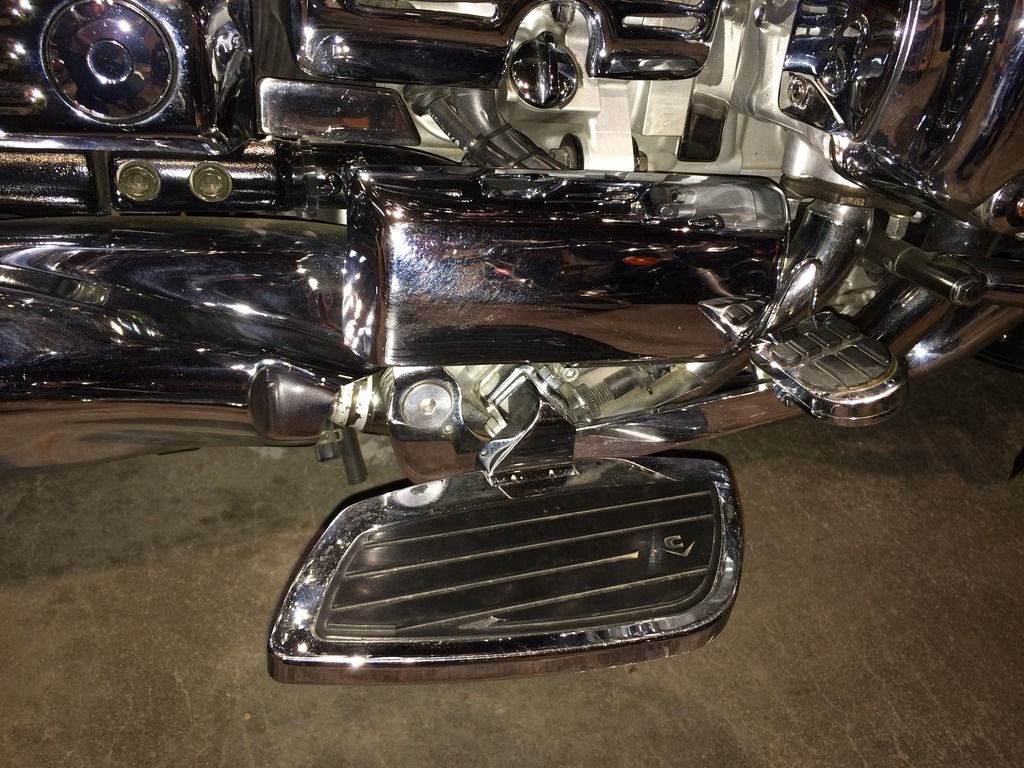

 cooldude If a lowering bracket is there on the right side, it will be apparent with that lower chrome cover removed. You can see the nose of the bracket on mine in the photo.
Logged
My rides:
1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A
oldskool
Member
*****
Posts: 17
« Reply #7 on: March 26, 2015, 05:22:55 AM »

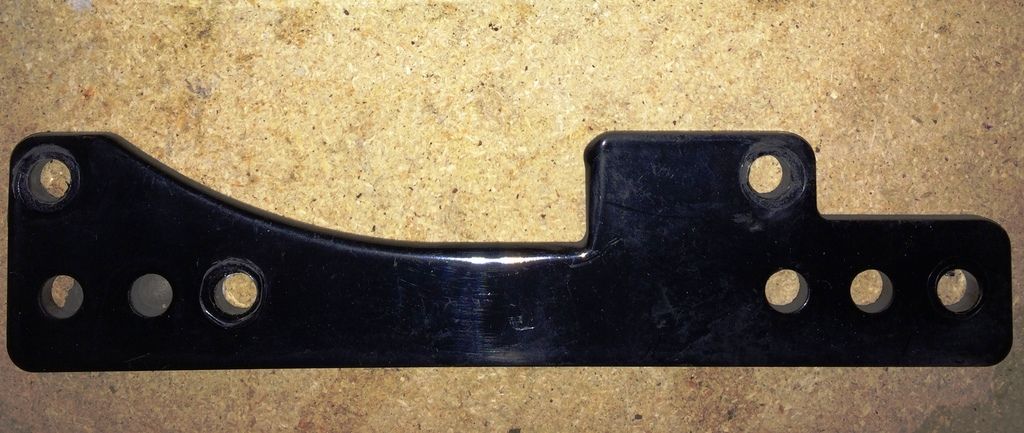

I just removed the right-side foot peg lowering bracket from my Valkyrie. It is completely hidden when mounted.

I couldn't find a photo of this anywhere on the web, so here it is....
Logged
The emperor has no clothes
Member
*****
Posts: 29945
« Reply #8 on: March 26, 2015, 05:25:34 AM »
Yep same one I have cooldude
Logged
