« on: August 17, 2015, 11:44:11 AM » |
|
8/17/15
Riding a 97 Tourer that has 81k miles on it and has been
best bike I have ever owned. On way home from 700 mile
trip yesterday, I exited interstate for gas. When pulling
away from stop sign, I felt a jerk like tranny slipped out of
gear. Then there was this horrible gear grinding sound from I'm
not sure where. My girlfriend told me she heard a metalic
sound a few miles before and her right foot peg seemed to
vibrate a lot. Anyway, bike tries to move but then sounds
like it jumps out of gear and grinds. This happens in all
gears. I don't have a clue! Did a search on site but did not
find answer. Anyone out there have any ideas what I am
facing? Any help would be greatly appreciated. Thanks all.
|
|
|
|
|
Logged
|
Leon
VRCC #1860
1997 Valkyrie Tourer
2005 ST1300
2016 Polaris Slingshot SL LE
|
|
|
Patrick
Member
Posts: 15433
VRCC 4474
Largo Florida
|
|
« Reply #1 on: August 17, 2015, 11:51:05 AM » |
|
Sounds like driveshaft/pinion cup failure.
When you take the driveshaft out you'll also get a good look at the drive splines and U-joint.
Not hard to fix.
|
|
|
|
|
Logged
|
|
|
|
|
trout dude
|
|
« Reply #2 on: August 17, 2015, 11:54:04 AM » |
|
Sounds like you lost the drive shaft and pinion cup. If not that a u-joint. I live in Mandeville and work on a lot of valkyries and also have a lot of parts on hand. I will pm you my phone number and you can call me.
Dennis AKA Trout Dude
|
|
|
|
|
Logged
|
|
|
|
|
Pete
|
|
« Reply #3 on: August 17, 2015, 02:04:05 PM » |
|
Also could be the drive spline on the rear wheel, if they were not greased when the tire was changes.
When you remove the rear wheel it will be apparent what I am talking about. Splines that mate ther rear wheel to the drive unit.
|
|
|
|
|
Logged
|
|
|
|
|
trout dude
|
|
« Reply #4 on: August 17, 2015, 02:05:22 PM » |
|
Also could be the drive spline on the rear wheel, if they were not greased when the tire was changes.
When you remove the rear wheel it will be apparent what I am talking about. Splines that mate ther rear wheel to the drive unit.
If that is the case this means damage to the splines in the rear end also. |
|
|
|
« Last Edit: August 17, 2015, 02:07:18 PM by trout dude »
|
Logged
|
|
|
|
Tfrank59
Member
Posts: 1364
'98 Tourer
Western Washington
|
|
« Reply #5 on: August 17, 2015, 03:39:26 PM » |
|
8/17/15
Riding a 97 Tourer that has 81k miles on it and has been
best bike I have ever owned. On way home from 700 mile
trip yesterday, I exited interstate for gas. When pulling
away from stop sign, I felt a jerk like tranny slipped out of
gear. Then there was this horrible gear grinding sound from I'm
not sure where. My girlfriend told me she heard a metalic
sound a few miles before and her right foot peg seemed to
vibrate a lot. Anyway, bike tries to move but then sounds
like it jumps out of gear and grinds. This happens in all
gears. I don't have a clue! Did a search on site but did not
find answer. Anyone out there have any ideas what I am
facing? Any help would be greatly appreciated. Thanks all.
So it sounds like it's not even rideable? If it is, I wouldn't. That was a pretty catastrophic failure that occurred to your U joint or driveshaft pinion cup or what. You're going to want to get in there right away (That means pulling the rear wheel off and the final drive unit off) before going anywhere and see what happened. Otherwise you could really ruin the whole final drive/rear wheel. Let us know what you find out. |
|
|
|
|
Logged
|
-Tom
Keep the rubber side down. USMC '78-'84
'98 Valkyrie, ‘02 VTX 1800, '96 Royal Star, '06 Drifter, '09 Bonneville, '10 KTM 530, '04 XR 650, '76 Bultaco, '81 CR 450, '78 GS 750...
|
|
|
|
Thunderbolt
|
|
« Reply #6 on: August 17, 2015, 04:03:14 PM » |
|
My advice would be to take Dennis up on his offer. He can help you figure out what is wrong and will probably offer more than advice. It most likely is the u-joint or pinion cup splines. Won't break the bank especially if you only have to buy the parts.
|
|
|
|
|
Logged
|
|
|
|
|
The emperor has no clothes
|
|
« Reply #7 on: August 17, 2015, 04:27:26 PM » |
|
My advice would be to take Dennis up on his offer. He can help you figure out what is wrong and will probably offer more than advice. It most likely is the u-joint or pinion cup splines. Won't break the bank especially if you only have to buy the parts.
I agree, it sure is nice to have someone who has done the job before to lean on for advice. I remember some of the work he did on DDT's bike. He knows what he is doing.  |
|
|
|
|
Logged
|
|
|
|
trantony
Member
Posts: 49
Keep the shinny side up and rubber side down!
Baton Rouge, La.
|
|
« Reply #8 on: August 17, 2015, 04:29:40 PM » |
|
WOW! Thanks for all the fast input from all so far. Didn't expect this much feedback so soon. Think I'll drain rear end and check for metal debris. Not sure what path I'll take after that  |
|
|
|
|
Logged
|
Leon
VRCC #1860
1997 Valkyrie Tourer
2005 ST1300
2016 Polaris Slingshot SL LE
|
|
|
|
The emperor has no clothes
|
|
« Reply #9 on: August 17, 2015, 04:36:33 PM » |
|
WOW! Thanks for all the fast input from all so far. Didn't expect this much feedback so soon. Think I'll drain rear end and check for metal debris. Not sure what path I'll take after that Well there is no harm in that. But the likely problems aren't going to show up with that. It sounds like a pinion cup for sure and secondly possibly u-joint. Have you done maintanence on the rear yourself or had dealer do it ? If you have a bike jack you can take everything apart and at least find the issue. If you are not comfortable fixing it yourself you'll still be money ahead. I would give trout dude a call. He won't steer you wrong. Good luck on your bike  |
|
|
|
|
Logged
|
|
|
|
Patrick
Member
Posts: 15433
VRCC 4474
Largo Florida
|
|
« Reply #10 on: August 17, 2015, 04:38:20 PM » |
|
WOW! Thanks for all the fast input from all so far. Didn't expect this much feedback so soon. Think I'll drain rear end and check for metal debris. Not sure what path I'll take after that Its a good idea to replace the rear drive fluid, but, you shouldn't find anything in the old fluid. |
|
|
|
|
Logged
|
|
|
|
Daniel Meyer
Member
Posts: 5493
Author. Adventurer. Electrician.
The State of confusion.
|
|
« Reply #11 on: August 17, 2015, 05:26:14 PM » |
|
WOW! Thanks for all the fast input from all so far. Didn't expect this much feedback so soon. Think I'll drain rear end and check for metal debris. Not sure what path I'll take after that Pull the wheel, the 4 nuts, and jerk the rear end out of the swing arm...drive shaft will come with it. Pull the drive shaft out of the rear end (pinion cup) Your problem is likely there. If so, replace shaft and pinion cup. Not terribly expensive. |
|
|
|
|
Logged
|
CUAgain, Daniel Meyer  |
|
|
|
Bighead
|
|
« Reply #12 on: August 18, 2015, 06:33:46 AM » |
|
And call Dennis |
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
trantony
Member
Posts: 49
Keep the shinny side up and rubber side down!
Baton Rouge, La.
|
|
« Reply #13 on: August 22, 2015, 09:14:53 PM » |
|
Thanks again for all the input guys. I did contact Trout
Dude as suggested :cooldude:and plan to take bike to
him next weekend. Will post updates on progress.
Leon
|
|
|
|
|
Logged
|
Leon
VRCC #1860
1997 Valkyrie Tourer
2005 ST1300
2016 Polaris Slingshot SL LE
|
|
|
|
Thunderbolt
|
|
« Reply #14 on: August 23, 2015, 04:02:54 AM » |
|
Glad you hooked up with Dennis. Always good to have some experienced help.
|
|
|
|
|
Logged
|
|
|
|
PAVALKER
Member
Posts: 4435
Retired Navy 22YOS, 2014 Valkyrie , VRCC# 27213
Pittsburgh, Pa
|
|
« Reply #15 on: August 24, 2015, 07:04:15 PM » |
|
Check wheel bearings first. Pull the wheel and feel the bearings for smooth operation with your fingers. If all is well with the bearings.....move to check splines and further to the final drive and drive shaft if need be. Reminds me of what my rear bearings did on a long trip, riding 2 up.
|
|
|
|
|
Logged
|
John  |
|
|
trantony
Member
Posts: 49
Keep the shinny side up and rubber side down!
Baton Rouge, La.
|
|
« Reply #16 on: August 28, 2015, 09:03:44 PM » |
|

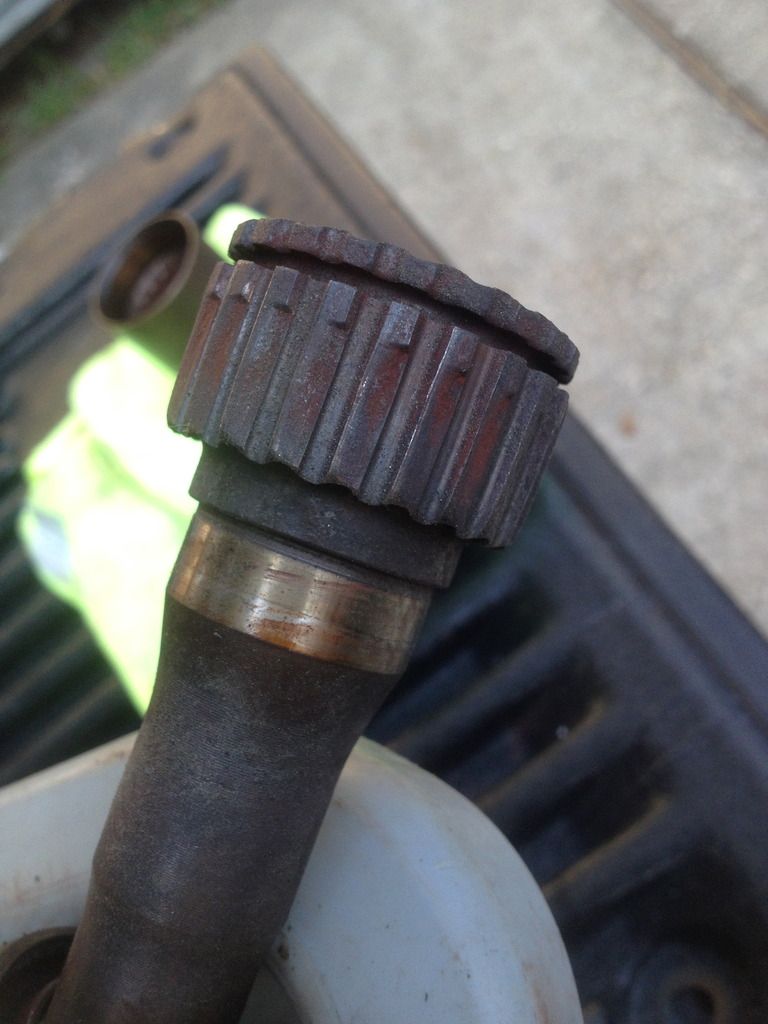

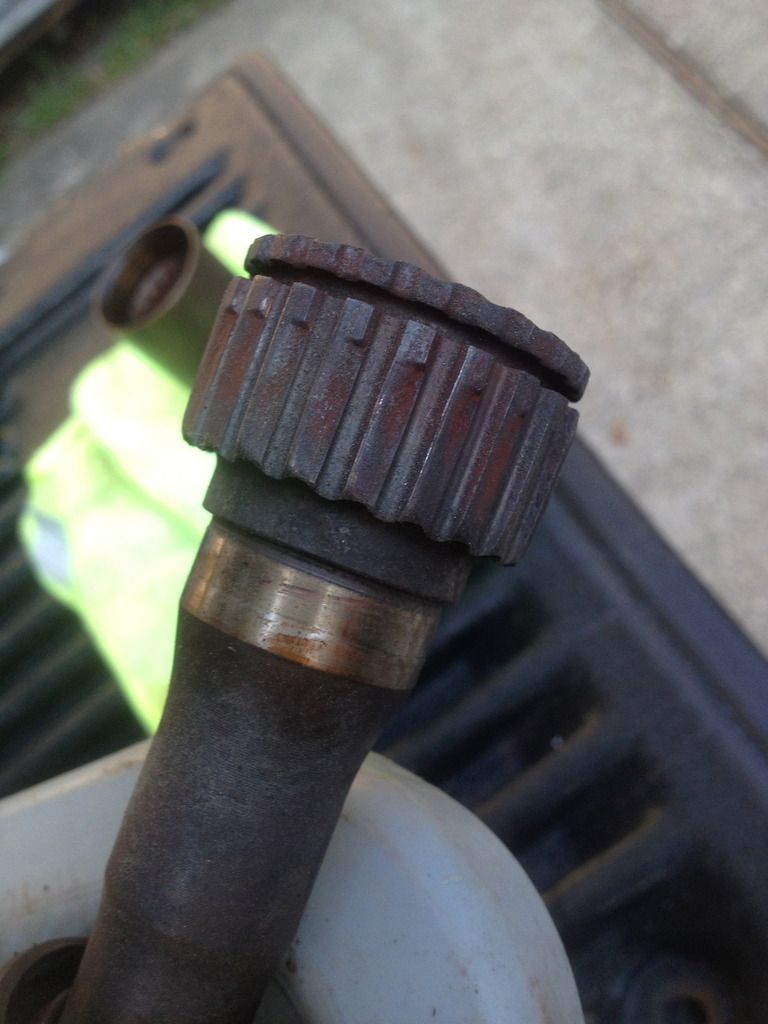

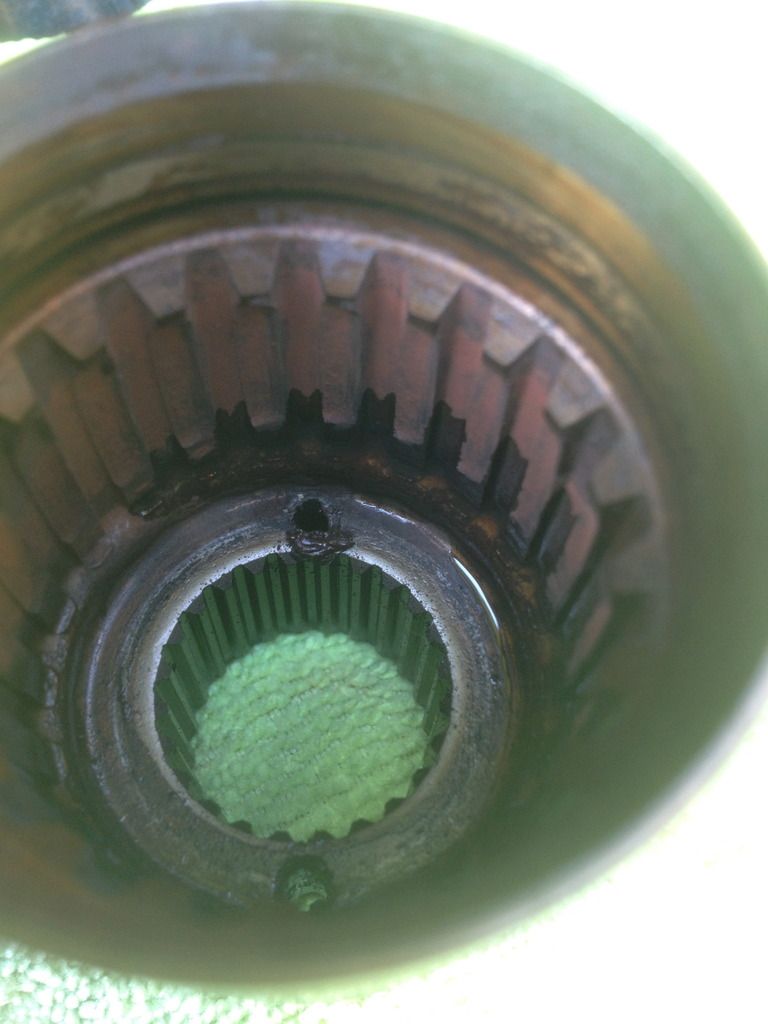

Just dropping an update on grinding gears. Got hooked
Up w/ Dennis today and changed out pinion cup and
driveshaft as several of you had suggested. Everything
went great and I'm back in Baton Rouge and rolling
again. Thank again for all the tips and feedback on
problem. Special thanks to Dennis (Trout Dude) for
his time and grave efforts to get me back on the
road. Hats off to him, he's good people. You were
right about him Thunderbolt. Don't know if you
remember me, but we met at Panama City at Thunder
Beach rally a few years back. My handle is trantony.
|
|
|
|
|
Logged
|
Leon
VRCC #1860
1997 Valkyrie Tourer
2005 ST1300
2016 Polaris Slingshot SL LE
|
|
|
|
Bighead
|
|
« Reply #17 on: August 29, 2015, 06:12:25 AM » |
|
Glad to hear and yes Dennis is good people |
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #18 on: August 29, 2015, 06:55:41 AM » |
|
Just dropping an update on grinding gears. Got hooked
Up w/ Dennis today and changed out pinion cup and
driveshaft as several of you had suggested. Everything
went great and I'm back in Baton Rouge and rolling
again. Thank again for all the tips and feedback on
problem. Special thanks to Dennis (Trout Dude) for
his time and grave efforts to get me back on the
road. Hats off to him, he's good people. You were
right about him Thunderbolt. Don't know if you
remember me, but we met at Panama City at Thunder
Beach rally a few years back. My handle is trantony.
Glad your rolling again. This was almost a perfect thread, but you didn't post any pics of the problem.  |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A   |
|
|
|
Thunderbolt
|
|
« Reply #19 on: August 29, 2015, 03:39:38 PM » |
|
Great news. Yes I remember you now that you've jogged my memory. Been too many years since PCB though, we need to do it again. To my knowledge I have not met Dennis but would love to shake his hand for helping not only you and Bruce but others as well.
|
|
|
|
|
Logged
|
|
|
|
|
|
|
