Author Topic: Suggestions to route Gerbing power supply  (Read 798 times)
..
Member
*****
Posts: 27796


Maggie Valley, NC


« on: October 14, 2015, 12:06:38 PM »

From the battery.

Then which way have y'all run the power cord to be able to plug in a liner.

Logged
Michvalk
Member
*****
Posts: 2002


Remus, Mi


« Reply #1 on: October 14, 2015, 12:13:35 PM »

I added a relay, and fuse, and ran the cord out in front of the seat. My liner plug with the controller is at belt level, and has some slack that I keep under my jacket, so I can step off the bike without stressing the cords. I can tuck the end of the cord under the front of the seat when I'm not using it. Most convenient for me cooldude
Logged
hubcapsc
Member
*****
Posts: 16781


upstate

South Carolina


« Reply #2 on: October 14, 2015, 12:16:34 PM »

I run almost no length of wire, connected to the battery
via a relay and the acc wire (so the clothes wire is only
hot when the key is on)... the clothes wire is just long enough
to either peek handily from behind a side cover, or be
stuffed behind the side cover in the summer...

-Mike
Logged

..
Member
*****
Posts: 27796


Maggie Valley, NC


« Reply #3 on: October 14, 2015, 12:35:00 PM »

I added a relay, and fuse, and ran the cord out in front of the seat. My liner plug with the controller is at belt level, and has some slack that I keep under my jacket, so I can step off the bike without stressing the cords. I can tuck the end of the cord under the front of the seat when I'm not using it. Most convenient for me cooldude


So up out of the battery compartment from under the battery cover and then peeking out from the left frontside of the seat?
Logged
Michvalk
Member
*****
Posts: 2002


Remus, Mi


« Reply #4 on: October 14, 2015, 12:52:07 PM »

 Yep! You could alter that somewhat, by what is most convenient to the plugin on your clothes. I kept it in front of me, because it helped me remember to unplug before I walked away...LOL cooldude
Logged
..
Member
*****
Posts: 27796


Maggie Valley, NC


« Reply #5 on: October 14, 2015, 12:53:35 PM »

Yep! You could alter that somewhat, by what is most convenient to the plugin on your clothes. I kept it in front of me, because it helped me remember to unplug before I walked away...LOL cooldude

So there's room between seat and bike frame etc so the power cord doesn't get crimped?
Logged
Bighead
Member
*****
Posts: 8654


Madison Alabama


« Reply #6 on: October 14, 2015, 12:56:35 PM »

Paul you get another scooter?
Logged

1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
Michvalk
Member
*****
Posts: 2002


Remus, Mi


« Reply #7 on: October 14, 2015, 01:04:19 PM »

There is through the front. You'll want to make sure if you go any other direction
Logged
..
Member
*****
Posts: 27796


Maggie Valley, NC


« Reply #8 on: October 14, 2015, 01:16:26 PM »

Paul you get another scooter?

Shhhhhhh!

It's a surprise   Cheesy

Tryin to get it all ready for Friday.

All I need is a fricking helmet.

Should be at Cycle Gear tomorrow.

Better be   Angry
Logged
Bighead
Member
*****
Posts: 8654


Madison Alabama


« Reply #9 on: October 14, 2015, 03:02:56 PM »

Paul you get another scooter?

Shhhhhhh!

It's a surprise   Cheesy

Tryin to get it all ready for Friday.

All I need is a fricking helmet.

Should be at Cycle Gear tomorrow.

Better be   Angry
Sweet cooldude wish I could be there Yall have fun and be safe Cool
Logged

1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
Gryphon Rider
Member
*****
Posts: 5227


2000 Tourer

Calgary, Alberta


« Reply #10 on: October 14, 2015, 03:04:08 PM »

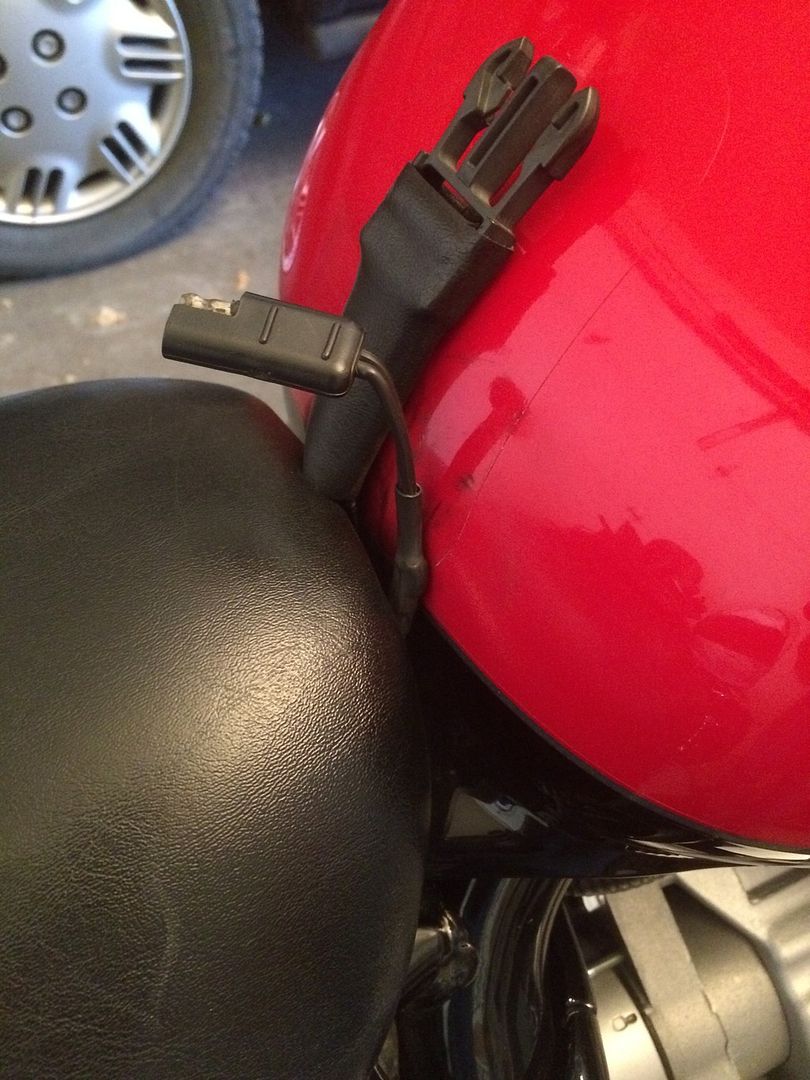

I wired mine from my fuse block to be hot all the time.  When I had the original seat, the connector was barely higher than the seat.

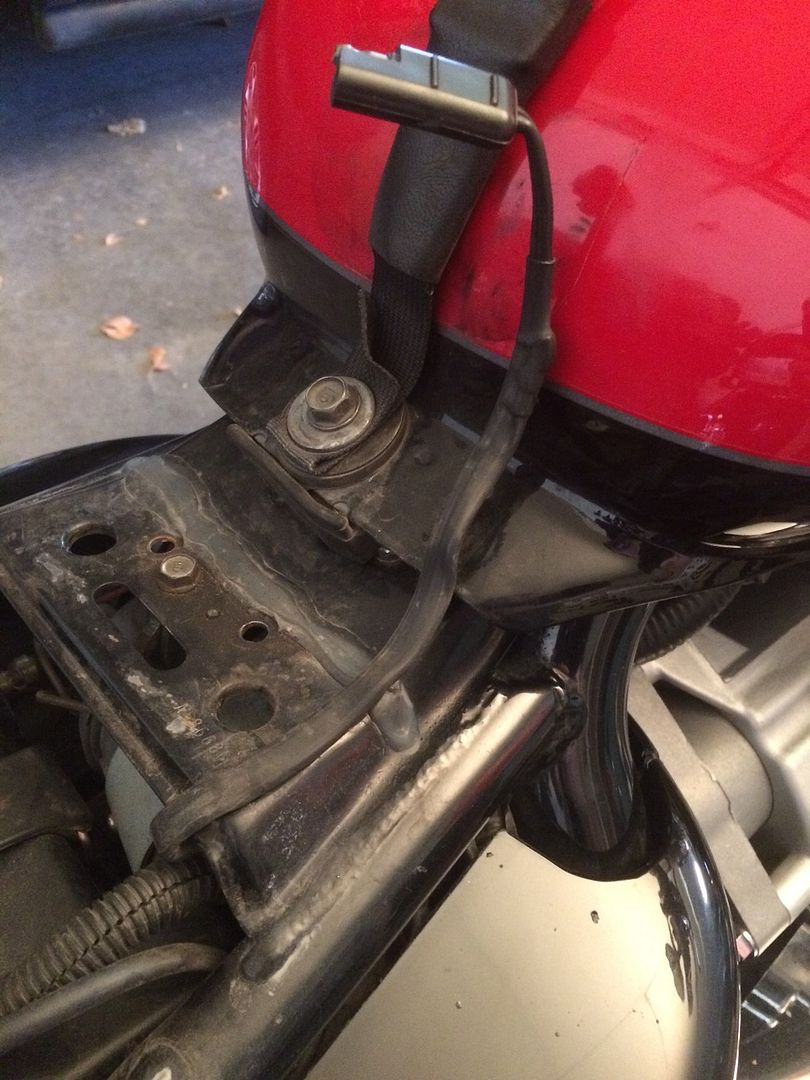

I used heat-shrink tubing to have a piece of solid copper house wire keep the wiring exactly where I want it to be.

Logged
..
Member
*****
Posts: 27796


Maggie Valley, NC


« Reply #11 on: October 14, 2015, 05:10:13 PM »

I wired mine from my fuse block to be hot all the time.  When I had the original seat, the connector was barely higher than the seat.




I used heat-shrink tubing to have a piece of solid copper house wire keep the wiring exactly where I want it to be.




Thanks.

The  new Gerbing liner I bought has a REALLY short cord. It isn't going to hang below the hem of my winter jacket. Bloody stupid design.
Logged
gordonv
Member
*****
Posts: 5762


VRCC # 31419

Richmond BC


« Reply #12 on: October 14, 2015, 05:54:14 PM »

Connected my power cord directly to the battery. Figured it would never be plugged in unless I was wearing a heated item, so no reason to add it to a relay of a ignition only power source.

Tucked it out from under the seat, at the rear, near the trunk, since it's my wife that uses it.

My battery charger lead is at the front of the seat, where I tuck it in between the tank and seat, when not being used.
Logged

1999 Black with custom paint IS
