Gangman036
|
 |
« on: April 26, 2016, 08:53:35 PM » |
|
For an unknown reason....the kick stand bolt broke when putting it back up. Left the spring and sheared bolt on ground under bike. Zip tied it up...limped home. Thanks to Mike Frye he had an extra of both. Many,many thanks to Mike for just giving me his extra set. Parts are on order to replace and to now keep and extra set for me too. Most embarrassing moment was when a fellow (Harley) rider offered to sit on bike so I could tie it up. Bet he is still talking about that !!
Ride Safe !!
|
|
|
|
|
Logged
|
|
|
|
|
Bighead
|
|
« Reply #1 on: April 26, 2016, 08:55:35 PM » |
|
Nah someone somewhere has had to help him  Just be thankful he was willing to lend a Honda rider a hand  |
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
SpidyJ
|
|
« Reply #2 on: April 27, 2016, 03:35:51 AM » |
|
For an unknown reason....the kick stand bolt broke when putting it back up. Left the spring and sheared bolt on ground under bike. Zip tied it up...limped home. Thanks to Mike Frye he had an extra of both. Many,many thanks to Mike for just giving me his extra set. Parts are on order to replace and to now keep and extra set for me too. Most embarrassing moment was when a fellow (Harley) rider offered to sit on bike so I could tie it up. Bet he is still talking about that !!
Ride Safe !!
Not an "unknown" reason...those bolts normally break after years of wear......I think the diameter transition/tightly machined corners make it prone to shear off.........coulda been designed better. |
|
|
|
|
Logged
|
1999 Fast Black Interstate
Peace,
johnnywebb
|
|
|
|
Chrisj CMA
|
|
« Reply #3 on: April 27, 2016, 03:48:45 AM » |
|
For an unknown reason....the kick stand bolt broke when putting it back up. Left the spring and sheared bolt on ground under bike. Zip tied it up...limped home. Thanks to Mike Frye he had an extra of both. Many,many thanks to Mike for just giving me his extra set. Parts are on order to replace and to now keep and extra set for me too. Most embarrassing moment was when a fellow (Harley) rider offered to sit on bike so I could tie it up. Bet he is still talking about that !!
Ride Safe !!
Not an "unknown" reason...those bolts normally break after years of wear......I think the diameter transition/tightly machined corners make it prone to shear off.........coulda been designed better. And if you notice the holder for that kickstand bolt has a hole big enough to allow the bolt to move side to side....keep bending a piece of metal over and over and guess what that causes? When mine broke I made one with a shaft thick enough to fit tight in the holder......I am always looking for it to break again but after so many years, maybe it won't |
|
|
|
|
Logged
|
|
|
|
|
da prez
|
|
« Reply #4 on: April 27, 2016, 05:54:47 AM » |
|
|
|
|
|
|
Logged
|
|
|
|
|
Gideon
|
|
« Reply #5 on: April 27, 2016, 06:26:06 AM » |
|
Many a true word has been said in jest  |
|
|
|
|
Logged
|
But they that wait upon the Lord shall renew their strength; they shall mount up with wings as eagles; they shall run and not be weary; they shall walk, and not faint. Isaiah 40:31
|
|
|
|
SpidyJ
|
|
« Reply #6 on: April 27, 2016, 05:28:32 PM » |
|
What dat mean Mr.Prez? ??? |
|
|
|
|
Logged
|
1999 Fast Black Interstate
Peace,
johnnywebb
|
|
|
|
Bighead
|
|
« Reply #7 on: April 27, 2016, 08:50:09 PM » |
|
What dat mean Mr.Prez? ??? Means he put his ars on a phat Gurl and his life will be changed. She will come to him in dreams until he has to have one |
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
SpidyJ
|
|
« Reply #8 on: April 28, 2016, 03:59:28 AM » |
|
What dat mean Mr.Prez? ??? Means he put his ars on a phat Gurl and his life will be changed. She will come to him in dreams until he has to have one I guess that's what happened to me a few years back.........Haw! |
|
|
|
|
Logged
|
1999 Fast Black Interstate
Peace,
johnnywebb
|
|
|
|
Hook#3287
|
|
« Reply #9 on: April 28, 2016, 04:33:06 AM » |
|
Dang kick stand bolt!
The steep driveway at the cottage I'm staying at has a burm at the top that took out my stand bolt.
Luckily, I found the spring in the road.
My 14 yr old great nephew helped my search his fathers huge pile of assorted bolts and he found a suitable replacement. Perfect!
Well, he does have better sight.
I rewarded him with a 50 mile ride up rt 421 to Shady Valley TN, then over to Damascus VA, and back to Zionville,NC.
Excellent riding here!
|
|
|
|
|
Logged
|
|
|
|
hubcapsc
Member
Posts: 16779
upstate
South Carolina
|
|
« Reply #10 on: April 28, 2016, 05:19:03 AM » |
|
What dat mean Mr.Prez? ??? Means he put his ars on a phat Gurl and his life will be changed. She will come to him in dreams until he has to have one I guess that's what happened to me a few years back.........Haw! When I got off my Springer and sat on a Valkyrie for a test ride, I wondered why I thought I might want one of these boats... the gas tank seemed bigger than most states... -Mike |
|
|
|
|
Logged
|
|
|
|
gordonv
Member
Posts: 5760
VRCC # 31419
Richmond BC
|
|
« Reply #11 on: April 28, 2016, 06:19:46 PM » |
|
Dang kick stand bolt!
The steep driveway at the cottage I'm staying at has a burm at the top that took out my stand bolt.
Luckily, I found the spring in the road.
I've been thinking on this, since I'm playing with the kick stand switch, and was thinking of using SS wire, and run a length throw the spring, and loop it on the bike somewhere (haven't even looked yet), so if the bolt breaks, I won't loose the spring. |
|
|
|
|
Logged
|
1999 Black with custom paint IS   |
|
|
|
Gangman036
|
|
« Reply #12 on: May 03, 2016, 04:58:52 PM » |
|

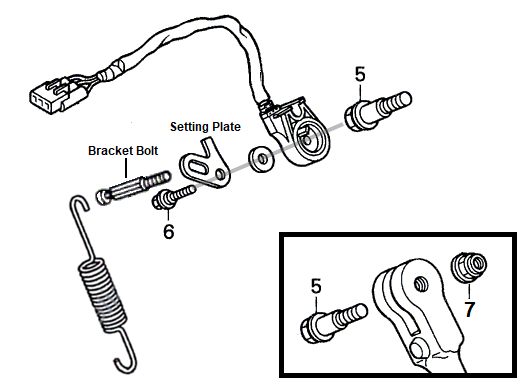

Thanks to all that replied and remember when ordering that replacement bolt.....it's on the the FRAME diagram. Don't ask how I know. Many, many thanks to Mike Frye......went to look at his side stand to get a better idea of how it is suppose to look.....and he handed me the parts to fix it. Turns out he carries a spare spring and bolt. Parts are OTW Mike.....thanks again !!
HOOK, SPRING
50536-MZ0-010 <------bolt
Ride Safe !!
|
|
|
|
|
Logged
|
|
|
|
|
Hook#3287
|
|
« Reply #13 on: May 03, 2016, 05:20:28 PM » |
|
Dang kick stand bolt!
The steep driveway at the cottage I'm staying at has a burm at the top that took out my stand bolt.
Luckily, I found the spring in the road.
I've been thinking on this, since I'm playing with the kick stand switch, and was thinking of using SS wire, and run a length throw the spring, and loop it on the bike somewhere (haven't even looked yet), so if the bolt breaks, I won't loose the spring. You figure this out yet? |
|
|
|
|
Logged
|
|
|
|
|
Gangman036
|
|
« Reply #14 on: May 04, 2016, 02:49:36 PM » |
|
Yes.........it's fixed !!
|
|
|
|
|
Logged
|
|
|
|
|
kfive
|
|
« Reply #15 on: May 26, 2018, 07:35:49 PM » |
|
The spring for the kick stand disappeared today, on a ride! When I look under the bike on the right side it looks like something is missing. The safety switch is still there. Should the 14mm bolt on TOP of the kickstand, have another nut or bolt on the bottom of the stand? Thank you in advance!
|
|
|
|
|
Logged
|
|
|
|
|
RonW
|
|
« Reply #16 on: May 26, 2018, 11:27:32 PM » |
|
|
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
Chrisj CMA
|
|
« Reply #17 on: May 27, 2018, 01:08:20 PM » |
|

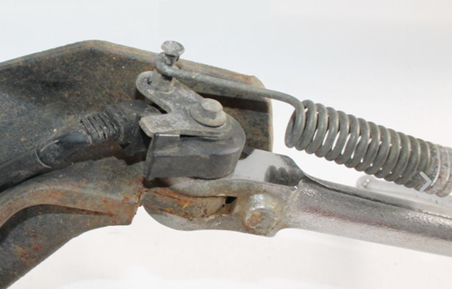

Oh my was that picture taken from a Valkyrie that was found on the bottom of the sea. Dirt and rust, oh my.  |
|
|
|
|
Logged
|
|
|
|
|
RonW
|
|
« Reply #18 on: May 27, 2018, 04:04:12 PM » |
|
maui boy, t'was just a screenshot of an ebay pic. I'm not affiliated with the true owner. Anyways, gangman might have been inquiring about Nut 7, which functions like the nut on the bottom of the clutch pivot bolt, a double capture so on. Oh, and when I took the spring off my sidestand, there was a lot of play on the sidestand. That was a question somebody asked a few months ago, and I stated, nah, there's very little play. Had to remove the spring to work on the clutch slave and found that without the spring tension, the kickstand does flop around more than you'd think.  |
|
|
|
« Last Edit: May 27, 2018, 04:06:06 PM by RonW »
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
falconbrother
|
|
« Reply #19 on: May 31, 2018, 10:27:25 AM » |
|
I always carry an extra bolt in my trunk.
|
|
|
|
|
Logged
|
|
|
|
|
