Author Topic: Guess the Lightbar  (Read 1643 times)
Mikey
Member
*****
Posts: 427


Winona, MN


WWW
« on: October 09, 2009, 08:25:15 AM »
Looking for a lightbar for my ride... I'm particularly fond of this one, any ideas what brand it is?

http://photo.vrccservices.com/displayimage.php?album=21&pos=53

(Can't figure out how to use the picture thingy, there's the link)
Logged
Remember folks, street lights timed for 35 mph are also timed for 70 mph
VRCC# 30782
DFragn
Guest
« Reply #1 on: October 09, 2009, 08:35:14 AM »
Here it is...

http://www.nationalcycle.com/catalogue/LightBars.shtml
Logged
Son of Tarkus
Member
*****
Posts: 4


Omaha, NE
« Reply #2 on: October 09, 2009, 11:13:21 AM »
Yep, it's the National Cycle. Put the same one on my bike.
Logged
hubcapsc
Member
*****
Posts: 16781


upstate

South Carolina
« Reply #3 on: October 09, 2009, 11:50:38 AM »

National cycle light bar might not work with a OEM shield, in case that matters...

-Mike
Logged
https://sites.google.com/a/g.clemson.edu/confederate-memorial-day-at-clemson/
22Dasher
Member
*****
Posts: 152


Shelbyville, TN
« Reply #4 on: October 10, 2009, 08:56:23 AM »
Quote from: hubcapsc on October 09, 2009, 11:50:38 AM

National cycle light bar might not work with a OEM shield, in case that matters...

-Mike

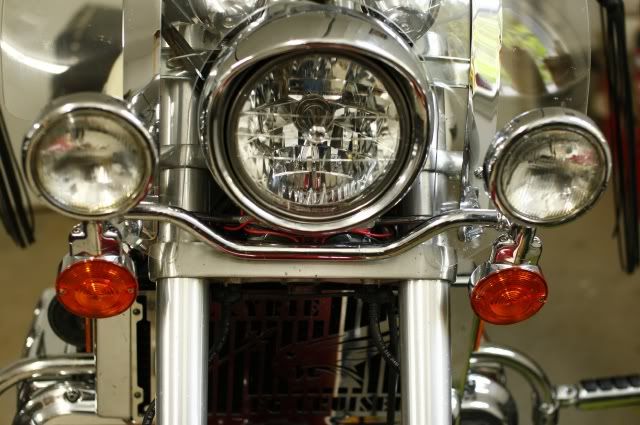

I have one on my Bike with the OEM windshield. You will have to cut the windshield straight down from the headlight cut out and radius the corners. I would change out the red wires to black so don't show up as mine does in the photo. Also I found when I wired mine per there instructions it kept blowing fuses so I wired them in direct with an inline fuse and toggle switch.



Logged
John U.
Member
*****
Posts: 1085


Southern Delaware
« Reply #5 on: October 10, 2009, 09:55:48 PM »
My Standard had a lightbar wired together with the headlight, supposedly installed by the dealer for the original owner. That was a mistake, it fried the starter switch so badly it couldn't be rebuilt.
I installed relays for the lightbar and headlight with a separate fused power supply.
No worries now. The new starter switch only carries the current needed to trigger the relays.
Logged
Gryphon Rider
Member
*****
Posts: 5227


2000 Tourer

Calgary, Alberta
« Reply #6 on: October 11, 2009, 08:42:46 AM »
Quote from: 22Dasher on October 10, 2009, 08:56:23 AM
I have one on my Bike with the OEM windshield. You will have to cut the windshield straight down from the headlight cut out and radius the corners. I would change out the red wires to black so don't show up as mine does in the photo.

Using black heat shrink tubing is easier and neater than changing wires.
Logged
