Author Topic: Need a drive shaft and pinion cup for a '97 Tourer BADLY  (Read 1346 times)
thewoodman
Member
*****
Posts: 346


Bradenton, FL
« on: November 30, 2017, 11:25:52 AM »

Thought it was the u-joint but the splines have gone south. Was 50 miles from the house on a week ride. Got it home am dead in the water until I can find some parts. Unless someone has some spares, it's off to the local dealership. A question comes to mind: is there any real difference between the '97-98 models and the '99-03s?  Thanx in advance
Logged


The first step in getting somewhere is deciding that you are not going to stay where you are.

TheWoodMan
Grumpy
Member
*****
Posts: 3106


Tampa, Fl
« Reply #1 on: November 30, 2017, 11:34:18 AM »
Shaft and spline cup all years are the same.
Logged


Life is like a hot bath. It feels good while you’re in it, but the longer you stay in, the more wrinkled you get.
John Schmidt
Member
*****
Posts: 15304


a/k/a Stuffy. '99 I/S Valk Roadsmith Trike

De Pere, WI (Green Bay)
« Reply #2 on: November 30, 2017, 02:37:56 PM »
Good grief, don't go to a dealer for parts or repairs if you can help it. Order it online, Procaliber.com is my personal selection.

Shaft, propeller  40201-MZ0-A00    $49.07
Joint, pinion       41410-MN5-000      35.87

Usually free shipping over $99.
Logged
Steel cowboy
Member
*****
Posts: 1288


Moving ahead so life won’t pass me by.

Spring Hill, Fl.
« Reply #3 on: November 30, 2017, 05:27:15 PM »
Don't forget the shaft seal and the three Orings.
Logged
2001 black interstate
2003 Jupiter Orange wing
thewoodman
Member
*****
Posts: 346


Bradenton, FL
« Reply #4 on: December 08, 2017, 06:46:06 AM »
SO........I have all the parts and had to wait  since I thought I had the 3 O-rinds in stock but did not. While ordering them, I also thought to re-order the u-joint boot since the bike is 20 years old with 92k on the clock. what I cant find is a torque spec for the pinion joint cup. Anyone know that one?
Logged


The first step in getting somewhere is deciding that you are not going to stay where you are.

TheWoodMan
Avanti
Member
*****
Posts: 1408


Stoughton, Wisconsin
« Reply #5 on: December 08, 2017, 10:38:34 AM »

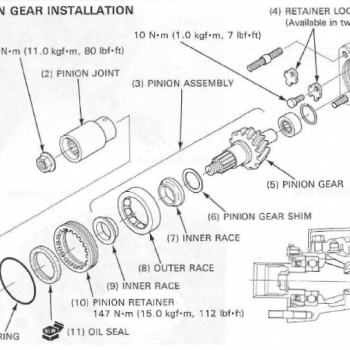

Click on image.

Honda Valkyrie F6C Service Manual
http://valkyrienorway.com/download.html
« Last Edit: December 08, 2017, 12:07:06 PM by Avanti » Logged
