Author Topic: turn signal switch  (Read 1158 times)
CMA_Carl
Member
*****
Posts: 42
« on: March 25, 2018, 01:44:11 PM »
HELP! With 179,000 mile on my standard i've serviced my turn signal switch several times. Well now it's seems to be beyond servicing. The RH signal post has all the copper filed off and will not work. i'd think it should work in contact with silver solder. Is there a replacement?
thanks ahead of time for help as aways!
Logged
Airtrax
Member
*****
Posts: 13


Ozark, Alabama
« Reply #1 on: March 25, 2018, 03:17:46 PM »
Both the left and right switch assemblies can be purchased at Partzilla.com and probably others. That's where I got mine.
Logged
RonW
Member
*****
Posts: 1867

Newport Beach
« Reply #2 on: March 25, 2018, 05:18:46 PM »
Heck, I didn't know there was copper under all that patina. Might require an implant though instead of just a filling, but it's worth a try with the solder idea.
Logged
2000 Valkyrie Tourer
CMA_Carl
Member
*****
Posts: 42
« Reply #3 on: March 26, 2018, 11:04:57 AM »
that's exactly what mine looks like. Why wouldn't it still make contact?
« Last Edit: March 26, 2018, 06:26:32 PM by CMA_Carl » Logged
RonW
Member
*****
Posts: 1867

Newport Beach
« Reply #4 on: March 26, 2018, 09:46:50 PM »

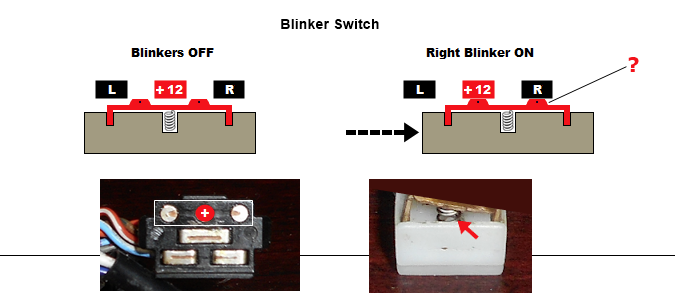

Perhaps, it's the bridge then. If there isn't anything restricting the spring from pushing on the bridge as it should, you might raise the bump on the bridge using a punch etc. from the backside of the bridge (question mark, graphic below). The bump has a mesa, so maybe use a flat punch. Another thing, the bridge might have acquired a dip where it should be flat. Another option is transplanting a bridge from a donor switch. The bridge is probably generic.
« Last Edit: March 27, 2018, 12:43:10 AM by RonW » Logged
2000 Valkyrie Tourer
Hook#3287
Member
*****
Posts: 6433


Brimfield, Ma
« Reply #5 on: March 27, 2018, 01:36:22 PM »
A fix I've used is to stretch the spring.

Might help.
Logged
rockbobmel
Member
*****
Posts: 201


Greenfield MA


WWW
« Reply #6 on: March 27, 2018, 03:23:06 PM »
My 1100 blinker works sometimes.  Had not dug into it yet.  I think they are the same.
Logged
2002 Valkyrie GL1500CD
1996  Shadow 1100 ACE
CMA_Carl
Member
*****
Posts: 42
« Reply #7 on: March 28, 2018, 11:23:38 AM »
I have not fixed the turn signals yet. I have studied and tested and stretched the bridge spring to this conclusion. The right side is flashing and therefor the switch is working. The problem has to be the socket. The running lights work. The left flasher works. The right rear flashes. It has to be the socket.   Angry Embarrassed crazy2

Thanks for all the help!!  cooldude
Logged
CMA_Carl
Member
*****
Posts: 42
« Reply #8 on: March 28, 2018, 12:31:58 PM »
I did break the tab on the center section to my side covers checking the flasher... tickedoff
Logged
Blackduck
Member
*****
Posts: 642


West Australia
« Reply #9 on: March 28, 2018, 04:00:47 PM »
Had mine apart, cleaned real well but still would only work on the Left by holding the switch.
Pulled apart again, found the copper bridge was hanging up in the housing. A bit of careful filing on the edges and now works fine.
Cheers Steve
Logged
2001 Standard, 78 Goldwing, VRCC 21411
