longrider
|
 |
« on: October 12, 2018, 08:23:40 AM » |
|
I searched this one and really did not find the information I need. I need to install a set of warmers on the wifes IS. In searching the web I see show chrome makes a set of grips c/w warmers that look similar to the kuryakin grip set. They are #17-381. 5 1/2 long so almost the same as OEM. Anyone installed them on a valk? Or what will work and have decent heat and controller.
Warren
|
|
|
|
|
Logged
|
|
|
|
|
|
|
..
|
|
« Reply #2 on: October 12, 2018, 08:59:48 AM » |
|

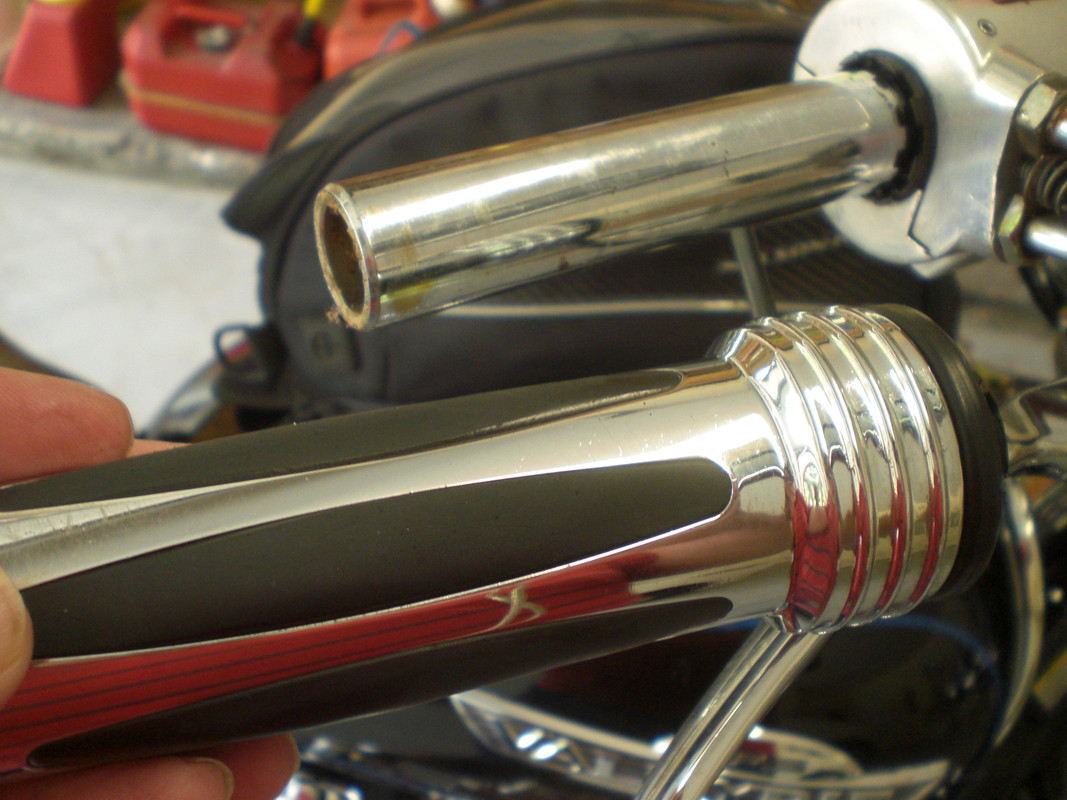

My "temporary" fix until winter stops riding. .jpg) |
|
|
|
|
Logged
|
|
|
|
|
longrider
|
|
« Reply #3 on: October 12, 2018, 09:17:46 AM » |
|
Britman. Did the tube break or does the throttle tube on those engage into the cable side half.
|
|
|
|
|
Logged
|
|
|
|
|
..
|
|
« Reply #4 on: October 12, 2018, 09:28:46 AM » |
|
Britman. Did the tube break or does the throttle tube on those engage into the cable side half.

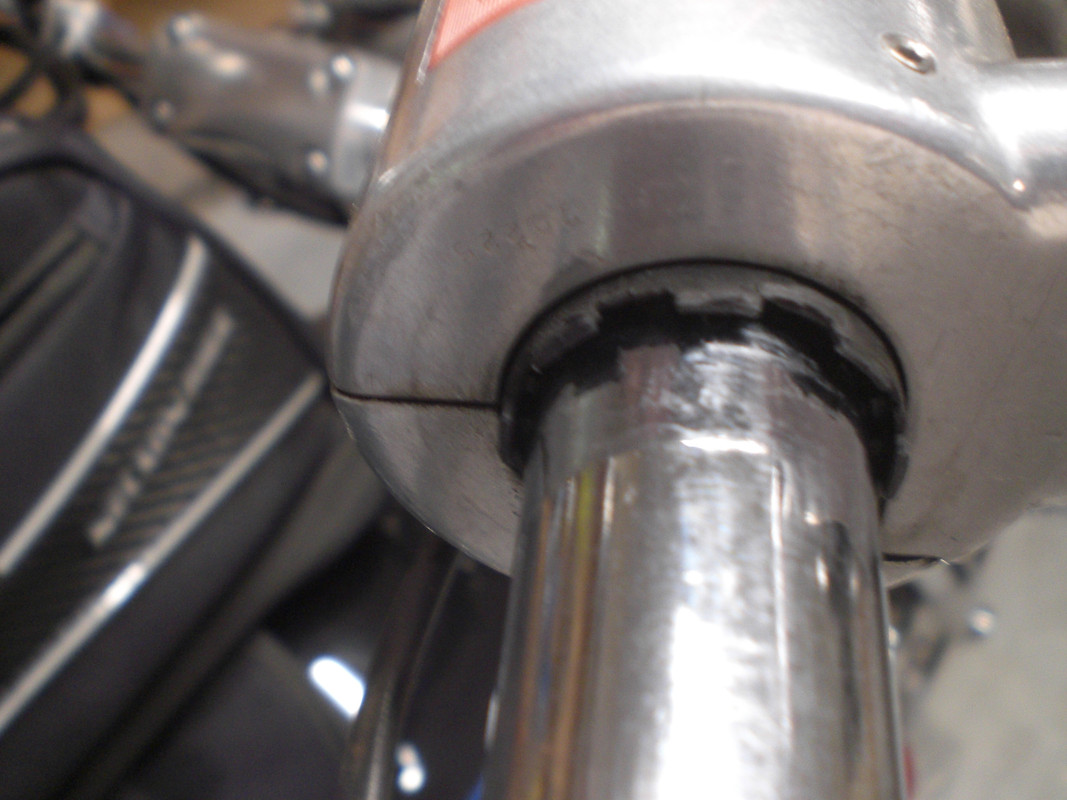

The notched part coming out of the clamp now fits into the notched part on the grip itself. There is no separate tube. What looks like a tube inside the heated part is fixed in place. Can't be replaced. Have to fit a complete grip. The two pieces came apart. Unglued? I would not put on a bike of mine.  |
|
|
|
|
Logged
|
|
|
|
|
..
|
|
« Reply #5 on: October 12, 2018, 01:32:20 PM » |
|
Your post made me inquisitive.
I contacted big bike parts.
They are the distributor for Show Chrome.
They tell me that the grip used to be Sonic welded 4 or 5 years ago.
Not a system they use now.
|
|
|
|
|
Logged
|
|
|
|
|
Lyle Laun
|
|
« Reply #6 on: October 12, 2018, 09:05:39 PM » |
|
Longrider, I sent you a pm
Lyle
|
|
|
|
|
Logged
|
Get out & Ride !!
97 Red/White Standard dressed as Tourer
98 Black "Rat Rod" Standard
99 Green/Silver Interstate
|
|
|
|
Harryc
|
|
« Reply #7 on: October 13, 2018, 05:55:27 PM » |
|
I recommend Oxford Heaterz. I use them on my Tourer and my last bike too. Lots of heat and very well made. The controller is auto shutoff, so no battery drain.
|
|
|
|
|
Logged
|
|
|
|
|
|
|
longrider
|
|
« Reply #9 on: October 14, 2018, 03:04:12 PM » |
|
Thanks guys. I'll be ordering a pair next week
|
|
|
|
|
Logged
|
|
|
|
Houdini
Member
Posts: 1975
VRCC #28458 - VRCCDS#144
Allen, TX
|
|
« Reply #10 on: October 15, 2018, 10:37:13 AM » |
|
I have Heat Demons installed on mine, I like them a lot and the controller looks like it belongs on the bike, not an afterthought. https://heatdemon.com/collections/motorcycle-grip-heaters |
|
|
|
|
Logged
|
"A Camera And A Bike....What More Do I Need?  |
|
|
|
Leathel
|
|
« Reply #11 on: October 15, 2018, 10:47:48 AM » |
|
I had show chrome grips, they look great but are way short of the heat Oxford grips produce, mine also broke on the throttle side but glued back together ok The biggest improvement to hand warmth was keeping the wind of, I never use the oxfords on full now and ride year round with summer weight gloves...... I fitted a bat wing but there are so many options out there to keep the wind off  I did keep the Show chrome switch unit as it looks tidy and works well with the Oxford grips (gave the oxford switch to a friend whos switch failed...the old type switch) |
|
|
|
« Last Edit: October 15, 2018, 10:58:21 AM by Leathel »
|
Logged
|
|
|
|
|
Leathel
|
|
« Reply #12 on: October 15, 2018, 10:56:43 AM » |
|
I recommend Oxford Heaterz. I use them on my Tourer and my last bike too. Lots of heat and very well made. The controller is auto shutoff, so no battery drain.
I still fit mine on a relay as the shut off does fail at times, have had a few friends ended up with flat batteries due to the grips not turning off They do rock for heat though, they will eventually start breaking down and the rubber become soft/sticky but that took around 8-10 years? |
|
|
|
|
Logged
|
|
|
|
|
longrider
|
|
« Reply #13 on: October 25, 2018, 12:08:48 PM » |
|
I ordered and received the show chrome grips. Britman you are correct. Although they look good the throttle sleeve has a couple of issues. The instructions suggest having the wiring out of the throttle grip facing down or forward but when installed with the cables on, it faces toward the rear..I didn't like that so upon investigation at the tube the glue that was used was barely anything more than silicone. One small push with my thumb and it was off. There are two wide indexing notches and quite a few small ones that are all the same. One of the wide ones has an extra tang on it so I cut it off and was able to move the insert 180. I used jb weld on it and held the grip together gently in the vice till it hardened overnight. It now faces forward and is nice and secure, far better than the supposed glue they used. I will finish today with a relay on the circuit. Hope this helps someone in the future.
Warren
EDIT be sure and use a bit of sandpaper on the mating surfaces to etch them. In the small teeth cut outs I scraped a bit with a small exacto knife to mark the surface so the epoxy can bite and hold
|
|
|
|
« Last Edit: October 27, 2018, 12:14:54 PM by longrider »
|
Logged
|
|
|
|
|
..
|
|
« Reply #14 on: October 25, 2018, 01:37:05 PM » |
|
I ordered and received the show chrome grips. Britman you are correct. Although they look good the throttle sleeve has a couple of issues. The instructions suggest having the wiring out of the throttle grip facing down or forward but when installed with the cables on it faces toward the rear..I didn't like that so upon investigation at the tube the glue that was used was barely anything more than silicone. One small push with my thumb and it was off. There are two wide indexing notches and quite a few small ones that are all the same. One of the wide ones has an extra tang on it so I cut it off and was able to move the insert 180. I used jb weld on it and held the grip together gently in the vice till it hardened overnight. It now faces forward and is nice and secure, far better than the supposed glue they used. I will finish today with a relay on the circuit. Hope this helps someone in the future.
Warren
My right grip cable faces down and rotates with the throttle as it's turned moving the cable away from the rider and up. |
|
|
|
|
Logged
|
|
|
|
|
longrider
|
|
« Reply #15 on: October 25, 2018, 04:29:50 PM » |
|
Britman. When I did a bench test I thought I saw the temperature light start as green and as the knob was rotated I thought I saw it turn orange and red. After install it just stays orange although the grips do get nice and warm. How does your control work.
|
|
|
|
|
Logged
|
|
|
|
|
..
|
|
« Reply #16 on: October 25, 2018, 05:15:32 PM » |
|
Britman. When I did a bench test I thought I saw the temperature light start as green and as the knob was rotated I thought I saw it turn orange and red. After install it just stays orange although the grips do get nice and warm. How does your control work.
Green, orange, red. I have very rarely used "red". |
|
|
|
|
Logged
|
|
|
|
|
Leathel
|
|
« Reply #17 on: October 25, 2018, 06:32:07 PM » |
|
your grips must get hotter than the show chrome ones I had... red all the time when on for me and then they were not that hot, the same controller with Oxford grips I don't use red as its to hot...they must have sorted the grips. I did like the look of the show chrome grips, might have to get some more when the Oxfords wear out (been on 3 different bikes now) |
|
|
|
|
Logged
|
|
|
|
|
