Author Topic: bike died - fuse  (Read 597 times)
csj
Member
*****
Posts: 992


I used to be a wolfboy, but I'm alright NOOOOOWWWW

Peterborough Ontario Canada


« on: July 09, 2019, 06:16:25 AM »

I tried to go for a short dark ride last sunday morning before dawn.

I got about five miles from home when I heard a 'tick' and the bike completely died. No headlights, ignition, nuttin. Rolled to a stop. I had to call CAA and be towed home. That membership just paid for itself.

Couldn't get at the problem til last night. Thought it was going to be the 55A fuse, but no, that was intact. Looked at schematic in the manual, and there's another fuse, 30A, in with the starter relay.

Got it apart and found the darndest thing.

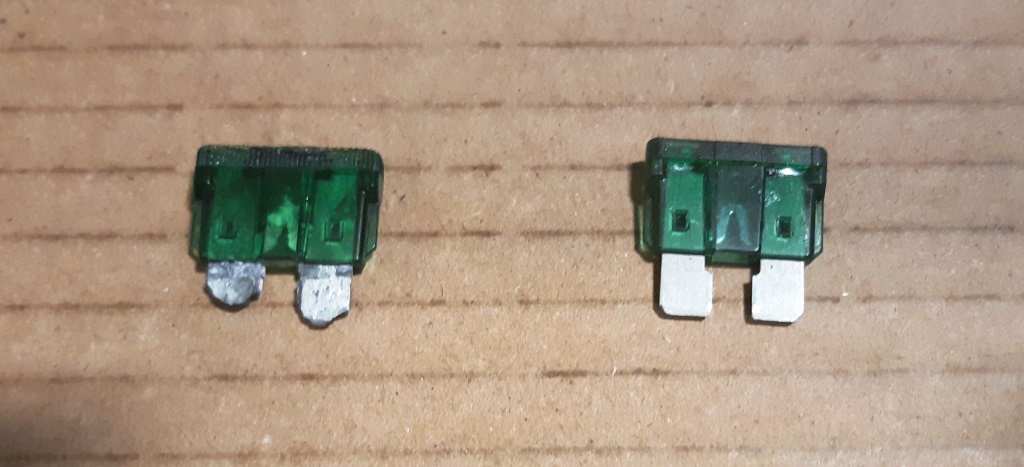

That 30A fuse had somehow been eroded down to a couple of rounded nubs. Eventually, on this dark ride, the contact was lost, an arc was drawn, and the fuse opened. Dead bike.

A quick cage run to Canadian Tire and a new fuse fixed it right up.

I'm posting this to alert you all that if you haven't been in to that fuse location since getting your bike, you might have a similar problem waiting to bite you in the keester. (I'll get the picture to work soon)
« Last Edit: July 09, 2019, 06:24:46 AM by csj » Logged

A guy called me a Ba$tard, I said in my case it's an accident
of birth, in your case you're a self made man.
sandy
Member
*****
Posts: 5396


Mesa, AZ.


« Reply #1 on: July 09, 2019, 07:28:15 AM »

I'd recommend spraying contact cleaner in the socket. Also disassemble the larger plug and do the same. That erosion of metal could be from resistance and arcing.
Logged

9Ball
Member
*****
Posts: 2183


South Jersey


« Reply #2 on: July 09, 2019, 08:28:21 AM »

Research ‘starter relay’ and you’ll find that this is recommended cleaning to prevent melting the relay and wiring.

Should probably be done yearly or after riding through drenching rain.

Hopefully it’s just the fuse for you...check the relay itself and wiring for problems.

Good luck.
Logged

VRCC #6897, Joined May, 2000

1999 Standard
2007 Rocket 3
2005 VTX 1300S
Deerslayer
Member
*****
Posts: 113


Just North of Seattle


« Reply #3 on: July 09, 2019, 03:21:17 PM »

A Long Long time ago..
I melted down a starter relay on a ride.
My buddy Ratdog & I were able to clean it good enough & replace the fuse to continue the ride.

Since that experience. I have always  carried a spare relay in my bag of tricks on the bike.

.. Slayer
Logged
..
Member
*****
Posts: 27796


Maggie Valley, NC


« Reply #4 on: July 09, 2019, 03:57:29 PM »

https://www.amazon.com/Caltric-Starter-Solenoid-Valkyrie-1997-2003/dp/B007473OWI/ref=mp_s_a_1_2
Logged
