« on: September 17, 2020, 06:33:20 PM » |
|
Just got done doing an install on the Daymaker Bracket and the Eagle LED, Gen3 Headlight with Halo. Some notes on the trials and tribulations...... The halo on the headight was the thing that made me go to this as a "gotta have" ... Was not planning on spending for the thing. Also, there is a "beauty ring" that hides tabs on the bracket and the thing as a package was the way to go for now. So some pictures of the Headlight and Bracket...... Bottom view..  Left Side  |
|
|
|
« Last Edit: September 17, 2020, 10:36:20 PM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #1 on: September 17, 2020, 06:35:00 PM » |
|
More views...  Top Clamp  Front view with bracket on ---- see the tabs and sheet metal edge around the light?  A heads up... before you start to put the bracket on the headlight, check the "gotchas" note on assembly below.,....(reply #5) |
|
|
|
« Last Edit: July 03, 2022, 09:45:44 PM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #2 on: September 17, 2020, 06:46:19 PM » |
|
So, one thing that popped up, was that the "Beauty Ring" was no longer available for now. I was very disappointed, even pissed...and was really at screw it, return it, because this whole restomod thing was about style and looks.... Just opinion, I think the bracket exposed is ugly---- But alass... I am a stubborn foole..... Stepping back, and commiserating....... I'm like hey... the OEM headlight has a ring on it... hmmm, wonder if it would fit over the edge on the bracket?  Stocker light.....  So, looking at it, the ring is held on by 3 tabs around the rim and I bent those straight and the ring slides off....   |
|
|
|
« Last Edit: September 18, 2020, 11:02:20 AM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #3 on: September 17, 2020, 06:56:25 PM » |
|
So, with another bolt of lighting.....  Lining it up on the bracket  Snap! --- What??  HEY, Holy Crap! The sucker fits!!!  -- Wow, amazing, crazy, stupid dumb luck! The foole wins!  |
|
|
|
« Last Edit: September 09, 2023, 11:20:01 AM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #4 on: September 17, 2020, 07:03:22 PM » |
|
You do have to push it down good and its kinda springy, but it does fit well... I found the tabs of the ring needed to be bent over the bottom of the bracket edge to hold it down good.  Used a block of wood to bend it over...  The bottom of ring is spot welded together and on the bracket there is no place to bend it, no matter it seats solid after you bend the other 2 tabs. The tabs probably could be rotated 30 degrees or so, then all the tabs could be bent, but I'm anal - the off center would bug me crazy.  |
|
|
|
« Last Edit: September 18, 2020, 10:47:35 AM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #5 on: September 17, 2020, 07:09:45 PM » |
|
Some assembly install notes.... The video says leave the cradle attached to the Chrome Headlight rim, but I found it was just easier to take the whole thing apart.....  Chrome Headlight rim  Cradle  |
|
|
|
« Last Edit: September 17, 2020, 08:34:42 PM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #6 on: September 17, 2020, 07:22:42 PM » |
|
Working to get the "cradle" attached to the new headlight...  Found a "gotcha" on the video on the top and bottom mounts... the vid says to reuse the OEM screw to put it together alone with 2 washers...... First I had to make the holes larger on the bracket so the OEM bushings would fit in the holes.. didnt like to do that, but it was the only way..... the hot tip is to enlarge the holes before you even start putting it together .....(Jeez...the holes should be the correct size..) Next the OEM screws have lock washers on it, the washers make the screw too short..... so... its no go, no way, no how.... so I happen to have a stash of Honda fasteners and those work out.... really any 5mm x 16 would work. If it wasn't 11 o'clock at night, I probably would have run over to Lowe's. ( I live a mile away.) Replacement Honda screw (black) vs the original Valk screw (gold).. the part number is for the replacement.  New screw + washers and now assembled on the bracket... (same on the bottom) I do like the wide flange on the new screw...  |
|
|
|
« Last Edit: September 21, 2020, 12:29:26 PM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #7 on: September 17, 2020, 07:39:58 PM » |
|
So... it does go together..... looks decent...   No battery yet, so no power....  |
|
|
|
« Last Edit: September 17, 2020, 08:19:14 PM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
|
RonW
|
|
« Reply #8 on: September 18, 2020, 07:15:26 AM » |
|
Good idea transferring the bezel. |
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
John Schmidt
Member
Posts: 15192
a/k/a Stuffy. '99 I/S Valk Roadsmith Trike
De Pere, WI (Green Bay)
|
|
« Reply #9 on: September 18, 2020, 07:44:02 AM » |
|
Good idea....transferring that ring. Looks good, I also had an issue with the size of the holes but just reamed them out a tad with my Dremel.
Just curious....what's the significance of the "e" on the end of fool?
|
|
|
|
|
Logged
|
|
|
|
|
Bagger John - #3785
|
|
« Reply #10 on: September 18, 2020, 01:13:47 PM » |
|
Just curious....what's the significance of the "e" on the end of fool?
See John Gallagher - "Occupation - Foole". |
|
|
|
|
Logged
|
|
|
|
|
old2soon
|
|
« Reply #11 on: September 18, 2020, 01:43:45 PM » |
|
Necessity at times Is a mutha! And I'll leave That right There.  On it being better than O E M-whose-H/Ds or Honda?  Curiouis minds and likea dat. RIDE SAFE. |
|
|
|
|
Logged
|
Today is the tommorow you worried about yesterday. If at first you don't succeed screw it-save it for nite check. 1964 1968 U S Navy. Two cruises off Nam.
VRCCDS0240 2012 GL1800 Gold Wing Motor Trike conversion
|
|
|
|
Bighead
|
|
« Reply #12 on: September 18, 2020, 07:12:37 PM » |
|
Long run for a short slide IMHO.
|
|
|
|
|
Logged
|
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
|
|
|
|
Bagger John - #3785
|
|
« Reply #13 on: September 21, 2020, 06:41:43 AM » |
|
What's the consensus on the Eagle Infinity version of the lights?
|
|
|
|
|
Logged
|
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #14 on: September 21, 2020, 07:45:36 AM » |
|
What's the consensus on the Eagle Infinity version of the lights?
$$$$$ If it wasn't so pricey, I would have got that... |
|
|
|
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
|
Bagger John - #3785
|
|
« Reply #15 on: September 21, 2020, 09:46:47 AM » |
|
What's the consensus on the Eagle Infinity version of the lights?
$$$$$ If it wasn't so pricey, I would have got that... I'm going to buy once, cry once. Including the spotlights. This assumes I don't end up with yet another Valkyrie to set up.  |
|
|
|
|
Logged
|
|
|
|
mello dude
Member
Posts: 944
Half genius, half dumazz whackjob foole
Dayton Ohio
|
|
« Reply #16 on: September 08, 2023, 06:40:20 PM » |
|
Updating for the halibut, since a new Headlight post came up... The halo ring really jumps out even in day time and makes it a great visibility safety item.  |
|
|
|
« Last Edit: September 09, 2023, 11:11:46 AM by mello dude »
|
Logged
|
* There's someone in my head, but it's not me.......
* Mr. Murphy was an optimist....
* There's a very fine line between Insanity and Genius.....
* My get up and go, must have got up and went.....
|
|
|
hubcapsc
Member
Posts: 16769
upstate
South Carolina
|
|
« Reply #17 on: September 08, 2023, 06:58:19 PM » |
|

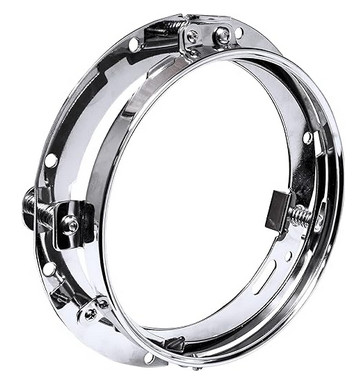

This is a great write up, I remember using it when I installed my led headlight... I bought a cheap "Chrome 7 Inch Round Headlight Ring Mounting Bracket Compatible with Harley Davidson" thing from someplace... Summit Racing maybe... and robbed the beauty ring from it.  -Mike |
|
|
|
|
Logged
|
|
|
|
|
Fazer
|
|
« Reply #18 on: September 12, 2023, 12:25:30 PM » |
|
Does Josh Chambers still make the brackets? I have one and my LED light has a green halo. Not something I planned, but when I hooked it up, that's what I have. Kind of like it. Easy to spot.
|
|
|
|
|
