« on: August 31, 2022, 08:24:02 AM » |
|
After taking the air box off to change a damaged fuel line I've noticed that the clear pipe "A" , coming from the bottom of the airbox, has nowhere to go. Surely, it doesn't fit on "B" as there's a rubber cap on the top.  |
|
|
|
|
Logged
|
Stay between the hedges!
'98 Honda Valkyrie Tourer⁸
'96 Honda C90
'83 Honda C90C
|
|
|
|
Jess from VA
|
|
« Reply #1 on: August 31, 2022, 08:30:39 AM » |
|
I'm pretty sure that connects the air box to the drool tube under the bike (right side, capped, to drain goop). It may go to a T fitting, with one open side with nothing connected, and the other to the drool tube. I believe the rubber caped thing is the clutch slave cylinder (it does not connect to A).
|
|
|
|
|
Logged
|
|
|
|
|
luftkoph
|
|
« Reply #2 on: August 31, 2022, 09:51:45 AM » |
|
 Cap must be in place or you’ll be sucking dirty air |
|
|
|
|
Logged
|
Some day never comes
|
|
|
|
luftkoph
|
|
« Reply #3 on: August 31, 2022, 09:53:27 AM » |
|
 Under side |
|
|
|
|
Logged
|
Some day never comes
|
|
|
|
luftkoph
|
|
« Reply #4 on: August 31, 2022, 09:55:55 AM » |
|
 Top side |
|
|
|
|
Logged
|
Some day never comes
|
|
|
|
luftkoph
|
|
« Reply #5 on: August 31, 2022, 09:57:55 AM » |
|
No T on the air box drain, there is a T on the carburetors vent line
|
|
|
|
|
Logged
|
Some day never comes
|
|
|
Gondul
Member
Posts: 258
VRCC #408
Central Florida
|
|
« Reply #6 on: August 31, 2022, 10:50:58 AM » |
|
Cap must be in place or you’ll be sucking dirty air Not one of those images came though... gotta love hosting sites. |
|
|
|
|
Logged
|
As the Government of the United States of America is not, in any sense, founded on the Christian religion....
John Adams - 1797
Because Thou lovest the Burning-ground,
I have made a Burning-ground of my heart
That Thou, Dark One, hunter of the Burning-ground,
Mayest dance Thy eternal dance.
|
|
|
|
SCain
|
|
« Reply #7 on: August 31, 2022, 10:56:20 AM » |
|

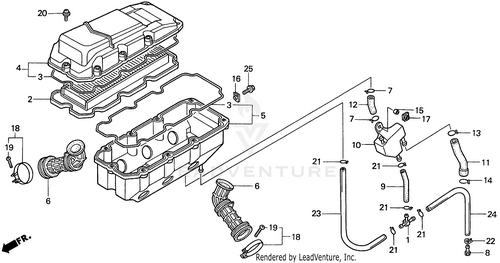

#19 is the small black line in your pic, should go to a "T" that connects 21 and 22  https://postimg.cc/bZxhsgD4 |
|
|
|
|
Logged
|
Steve  |
|
|
|
Knapdog
|
|
« Reply #8 on: August 31, 2022, 11:04:17 AM » |
|
OK. Ta. So I need to look for the "T" piece somewhere.  |
|
|
|
|
Logged
|
Stay between the hedges!
'98 Honda Valkyrie Tourer⁸
'96 Honda C90
'83 Honda C90C
|
|
|
|
Knapdog
|
|
« Reply #9 on: August 31, 2022, 12:34:36 PM » |
|
It's sorted. Thank you. Found the "T" piece behind the alternator cover...  |
|
|
|
|
Logged
|
Stay between the hedges!
'98 Honda Valkyrie Tourer⁸
'96 Honda C90
'83 Honda C90C
|
|
|
|
Jess from VA
|
|
« Reply #10 on: August 31, 2022, 03:21:19 PM » |
|

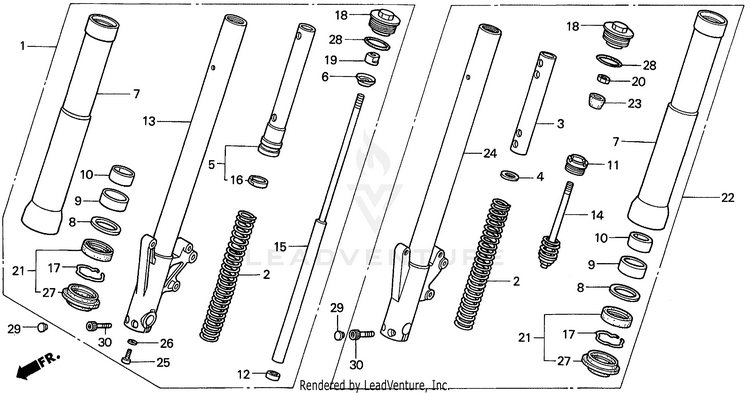

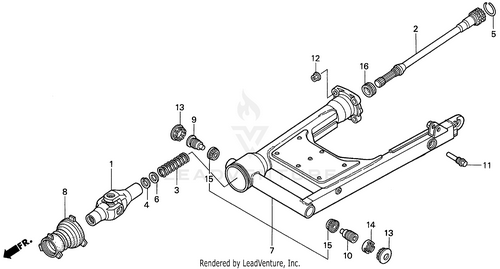

When working on the bike, going to a Honda part seller's microfish of the various (and many) parts assemblies can be very helpful. Except sometimes the part you are looking for may not be in the assembly you think it belongs in. And, sometimes, in a effort to visually show all the various parts in each assembly, they sometimes don't show the assembly how it's actually laid out in the bike, so they can show all the parts in the picture. I use ProCaliber: https://www.procaliber.com/oem-parts?aribrand=HOM&arian=MOTORCYCLE#   You can save these pictures, blow them up, print them, add them to your manual, so you have them with you out at the bike when working on it. |
|
|
|
« Last Edit: August 31, 2022, 03:23:33 PM by Jess from VA »
|
Logged
|
|
|
|
|
RonW
|
|
« Reply #11 on: August 31, 2022, 08:25:07 PM » |
|
I guess that line should be disconnected from the airbox's bottom before pulling the airbox off. Or is it easier to reinstall back the way you've done it?
|
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
Willow
Administrator
Member
Posts: 16590
Excessive comfort breeds weakness. PttP
Olathe, KS
|
|
« Reply #12 on: September 01, 2022, 08:28:17 AM » |
|
It's sorted. Thank you. Found the "T" piece behind the alternator cover... Is there something wrong in that picture? Shouldn't one of the ports of that "T" be open? |
|
|
|
|
Logged
|
|
|
|
|
turtle254
|
|
« Reply #13 on: September 01, 2022, 09:33:02 AM » |
|
This is air box, not tank vent.
|
|
|
|
|
Logged
|
|
|
|
|
RonW
|
|
« Reply #14 on: September 01, 2022, 09:46:21 AM » |
|
ditto  |
|
|
|
|
Logged
|
2000 Valkyrie Tourer
|
|
|
|
