HayHauler
|
 |
« on: May 23, 2010, 10:01:28 AM » |
|

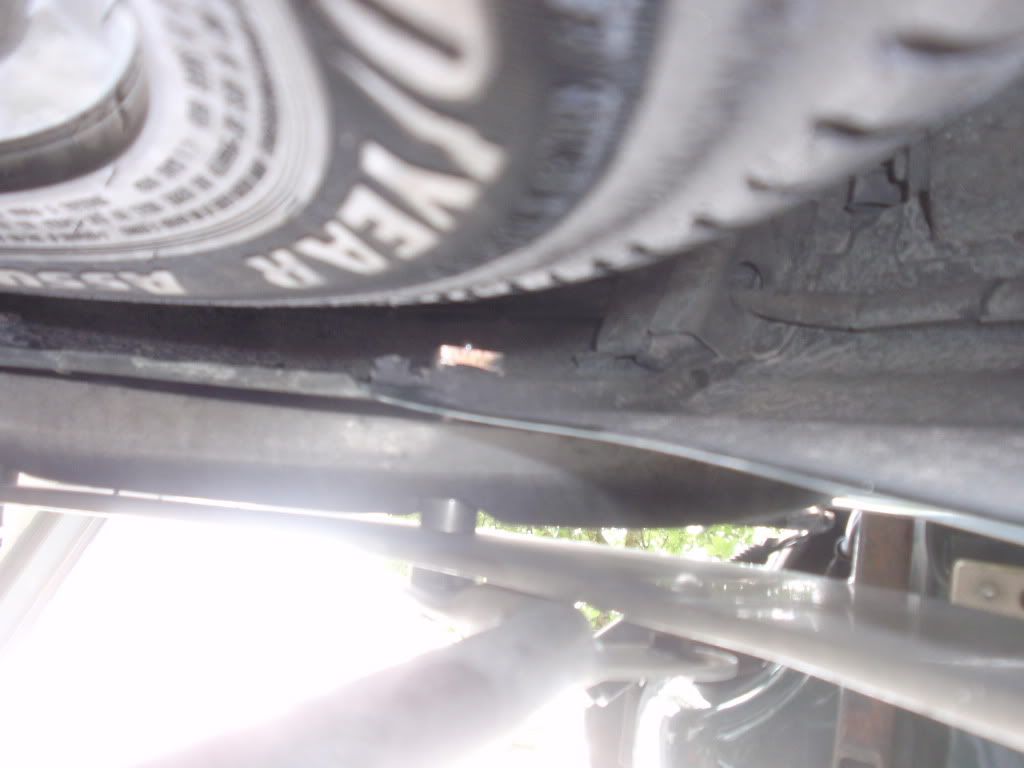

As stated in the other Texas DS thread, my tire rubs when me and BJ ride 2 up. i didn't notice it by myself, but didn't hit any good bumps on the way home. Here is the culprit. It's the huge nut on the inside of the fender that was added when the HitchDoc trailer hitch was added many years ago. Any of you other IS riders with a trailer hitch have this same NUT?  Notice the nice groove it has added to the sidewall of the tire.  I have adjusted the shocks to the other end of the spectrum, but won't know until a test ride if that will help. It just seems that this nut is much larger than any others that we dealt with yesterday. Any thoughts? Do I take that nut off and replace it with a normal size nut and shorten the length of the bolt? I dunno, grasping at straws.... Hay  Jimmyt |
|
|
|
|
Logged
|
|
|
|
Disco
Member
Posts: 4896
Armed Man=Citizen; Unarmed Man=Subject
Republic of Texas
|
|
« Reply #1 on: May 23, 2010, 10:08:38 AM » |
|
How 'bout a carriage bolt with the nice, smooth, round head inside the fender. I don' t think I've ever seen one in metric, but depending on your hitch installation your existing bolt/nut might already be "HD-style".
|
|
|
|
|
Logged
|
2000 Bumblebee "Tourer", 98 Yellow & Cream Tourer, 97 Rescue blower bike 22 CRF450RL, 19 BMW R1250RT 78 CB550K 71 Suzuki MT50 Trailhopper .jpg) VRCC 27,916 IBA 44,783 |
|
|
|
roboto65
|
|
« Reply #2 on: May 23, 2010, 10:34:05 AM » |
|
That nut is what came with your bike Jimmy mine is rubbing a little too maybe not as bad as yours but it is I smelled rubber coming home yesterday and yep rubbing do not have a plan yet !!! Got thye GPS wire run this morning though..
|
|
|
|
|
Logged
|
Allen Rugg VRCC #30806 1999 Illusion Blue Valkyrie Interstate 1978 Kawasaki KZ 650 project  |
|
|
MP
Member
Posts: 5532
1997 Std Valkyrie and 2001 red/blk I/S w/sidecar
North Dakota
|
|
« Reply #3 on: May 23, 2010, 02:58:16 PM » |
|
I took a 3/8, maybe 5/16, carraige bolt, and ran it thru from the inside. Nut on the outside. Works great. Same problem as you. With 2 up, it hit. Carraige bolt fixed it.
Cost, about .50
MP
|
|
|
|
|
Logged
|
 "Ridin' with Cycho" |
|
|
laserpat
Member
Posts: 1043
Let the wind carry your troubles away!
Cedar Park, Texas
|
|
« Reply #4 on: May 23, 2010, 04:21:23 PM » |
|
|
|
|
|
|
Logged
|
|
|
|
|
HayHauler
|
|
« Reply #5 on: May 23, 2010, 06:45:58 PM » |
|
Thanks MP and Pat! I guess I will have to take that *^$#$(&*^ rail and bolts off! Man, all I hear is that is a PITA. OH well, if I want to ride 2 up, I will have to get 'er done... Hay Jimmyt |
|
|
|
|
Logged
|
|
|
|
RainMaker
Member
Posts: 6626
VRCC#24130 - VRCCDS#0117 - IBA#48473
Arlington, TX
|
|
« Reply #6 on: May 23, 2010, 06:50:30 PM » |
|
I've had that rubbing when 2-up and it's the front fender fastener. It's just really built up. But I'm just now putting the rear end of the bike back together after servicing the splines (look like new, thank goodness) and am going to do the washer mod.
RainMaker
|
|
|
|
|
Logged
|
 2005 BMW R1200 GS 2000 Valkyrie Interstate 1998 Valkyrie Tourer 1981 GL1100I GoldWing 1972 CB500K1 |
|
|
MP
Member
Posts: 5532
1997 Std Valkyrie and 2001 red/blk I/S w/sidecar
North Dakota
|
|
« Reply #7 on: May 23, 2010, 08:24:16 PM » |
|
Should be able to just remove the one bolt. That is all I did. Take that one out, and stick the carraige bolt in from the inside. Do not even have to remove the tire. Easy to do. Have to get the right length of bolt though. If you have bags, be careful about the length of the bolt. I had to use one that was a little too long, and cut it off, or it would hit the lid on the hard bag.
MP
|
|
|
|
|
Logged
|
"Ridin' with Cycho" |
|
|
|
HayHauler
|
|
« Reply #8 on: May 23, 2010, 08:31:22 PM » |
|
So you're sayin if I'm REAL careful, I can just take the one bolt out, insert the carrige bolt in from the inside, insert the spacers back in the correct order, and tighten it up... Well, heck, it's worth a try! Thanks again. Hay Jimmyt |
|
|
|
|
Logged
|
|
|
|
MP
Member
Posts: 5532
1997 Std Valkyrie and 2001 red/blk I/S w/sidecar
North Dakota
|
|
« Reply #9 on: May 24, 2010, 06:57:51 AM » |
|
Yep! That is exactly what I did last year at Inzane in CO. I had been riding my 97 with CT by myself, with no problem.
That was the first time we went two up, with my wife, and it started rubbing. Got a couple bolts, and just removed the one bolt, and replaced it just like you said.
Problem solved! Good luck.
MP
|
|
|
|
|
Logged
|
"Ridin' with Cycho" |
|
|
|
