redflash
|
 |
« on: April 01, 2009, 11:13:26 AM » |
|
Howdy folks, nice new board!
Last fall I noticed a light buzzing sound when winding the ol' gorilla up. I never could find what caused it, till this year as I gave her the once-over for the spring opener, out of the shed. I see on the left side there is a missing nut that holds the lower radiator mount on. The rubber bushing and metal sleeve through it are still there. Anyone know the part number or size/thread for this? Honder parts dept seems to have no clue. You can answer here or email me if you wish.
Thanks in advance,
Tim
|
|
|
|
|
Logged
|
|
|
|
bigvalkriefan
Member
Posts: 407
On the green monster
South Florida
|
 |
« Reply #1 on: April 01, 2009, 12:11:04 PM » |
|
Here, go to this original parts site and see if you can find it.  http://216.37.204.203/Honda_OEM/HondaMC.asp?Type=12&A=254 |
|
|
|
|
Logged
|
.....say to those with fearful hearts, "Be strong, do not fear; your God will come, he will come with vengeance; with divine retribution he will come to save you."
Isaiah 35:4
I know who wins in the end.
|
|
|
|
DFragn
Guest
|
|
« Reply #2 on: April 01, 2009, 01:50:33 PM » |
|
If I recall. There is no actual nut furnished at the 2 lower pivot points, although the shaft is threaded. The only threaded radiator fastener is the one at the top just off center. Nothing to worry about. That's just the way it is. It won't go anywhere!
|
|
|
|
|
Logged
|
|
|
|
|
redflash
|
|
« Reply #3 on: April 01, 2009, 02:00:14 PM » |
|
Thanks Dfragn! Good info.. Thanks bigvalkfan, same picture as the Honder shop? That'd be what looks like is missing. Any concurers?  |
|
|
|
|
Logged
|
|
|
|
|
Master Blaster
|
|
« Reply #4 on: April 01, 2009, 02:10:25 PM » |
|
Radiator only secures at top. Bottom just slides off when top boltand hoses are removed. The through bolt that goes all the way across the frame in front is known as the buzz bolt. It can cause the symptoms you describe.
|
|
|
|
|
Logged
|
"Nothing screams bad craftsmanship like wrinkles in your duct tape."
Gun controll is not about guns, its about CONTROLL.
|
|
|
|
redflash
|
|
« Reply #5 on: April 01, 2009, 02:21:34 PM » |
|
Ahh yes, I rememebr now, the ol' buzzbolt! I'll have to crank 'er up! Read that a few years ago....
|
|
|
|
|
Logged
|
|
|
|
Gryphon Rider
Member
Posts: 5227
2000 Tourer
Calgary, Alberta
|
|
« Reply #6 on: April 01, 2009, 04:03:12 PM » |
|
If I recall. There is no actual nut furnished at the 2 lower pivot points, although the shaft is threaded. The only threaded radiator fastener is the one at the top just off center. Nothing to worry about. That's just the way it is. It won't go anywhere!
I agree, it looks like it needs a small nut, but there was never one there from the factory. |
|
|
|
|
Logged
|
|
|
|
|
HayHauler
|
|
« Reply #7 on: April 28, 2009, 06:23:15 PM » |
|
Ok, I think I have the BuzzBolt problem. I can't seem to find it. I looked at the 'coolant' parts list and can't find a bolt that goes all the way across...... http://216.37.204.203/Honda_OEM/HondaMC.asp?Type=13&A=257&B=62Does anyone have a picture of where this ominus bolt is? Or some way to describe it? I have a 1999 IS. Hay  |
|
|
|
|
Logged
|
|
|
|
|
HayHauler
|
|
« Reply #8 on: April 28, 2009, 06:42:26 PM » |
|

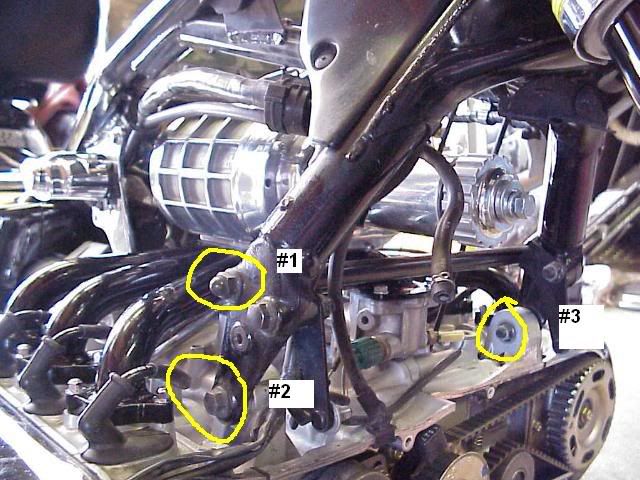

Is it one of these? Or am I even close? I got this from the Valkyrie Shop Talk page...  Hay |
|
|
|
« Last Edit: April 28, 2009, 06:44:47 PM by HayHauler »
|
Logged
|
|
|
|
R J
Member
Posts: 13380
DS-0009 ...... # 173
Des Moines, IA
|
|
« Reply #9 on: April 28, 2009, 07:51:13 PM » |
|
It is # 1............... Hit it with a good strong impact wrench and no more problems....
|
|
|
|
|
Logged
|
44 Harley ServiCar   |
|
|
|
Chrisj CMA
|
|
« Reply #10 on: April 28, 2009, 07:52:06 PM » |
|
#1 in that picture is the culprit
|
|
|
|
|
Logged
|
|
|
|
|
|
|
HayHauler
|
|
« Reply #12 on: April 29, 2009, 04:54:23 PM » |
|
Thanks for the replies!!! I'm gonna go out and quiet that B...B....B... thing down now. It is driving me NUTS!!! And for me, that's only a short walk.. .  Hay |
|
|
|
|
