John Schmidt
Member
Posts: 15240
a/k/a Stuffy. '99 I/S Valk Roadsmith Trike
De Pere, WI (Green Bay)
|
 |
« on: January 30, 2011, 02:33:47 PM » |
|
Obviously the tank and airbox have to come off, along with the exhaust. What I'm wondering is....does the rear wheel and driveshaft have to come out as well? Or is there enough wiggle room to move the engine forward to disengage the u-joint? I've never pulled a Valk engine, done just about everything else though, so this will be a first for me. I'm open to any suggestions or advice anyone has re. starter gear repair. Thankfully, it's not my bike but I like to be prepared if the deal goes through.
|
|
|
|
|
Logged
|
|
|
|
|
junior
|
|
« Reply #1 on: January 30, 2011, 02:48:58 PM » |
|
did you get the manuel? from my understanding the frame unbolts and the engine comes out sidways there should be enuff room to slip the ujoint off but i think you need to let the swingarm hang down.(thats how they change the rubber boots.
now i have seen the starter gear and clutch replacement done without pulling the engine.
|
|
|
|
« Last Edit: January 30, 2011, 02:50:53 PM by junior »
|
Logged
|
|
|
|
Tundra
Member
Posts: 3882
2014 Valkyrie 1800
Seminole, Florida
|
|
« Reply #2 on: January 30, 2011, 03:10:53 PM » |
|
John, didn't TJ just do one last month?
|
|
|
|
|
Logged
|
If you can't be a good example: be a WARNING!!
|
|
|
|
ricoman
|
|
« Reply #3 on: January 30, 2011, 03:14:08 PM » |
|
I saw a starter and rear case repair (hydrolock) on an Interstate at the local dealer the other day. The engine did not come out!
Wish I had paid closer attention.
Good luck-no clue for adveice.
|
|
|
|
|
Logged
|
take personal responsibility and keep your word
98 Tourer, black and chrome, added 8/11/10
98 Std, yellow/cream, totaled 8/3/10
|
|
|
John Schmidt
Member
Posts: 15240
a/k/a Stuffy. '99 I/S Valk Roadsmith Trike
De Pere, WI (Green Bay)
|
|
« Reply #4 on: January 30, 2011, 05:13:28 PM » |
|
John, didn't TJ just do one last month?
Yes Doug, in fact he called me about an hour ago and we had a good chat about it. In fact I knew right off it was TJ....because when I answered the phone he said "OK you old fart......." Nice to know you're loved, ain't it?  |
|
|
|
|
Logged
|
|
|
|
Gunslinger
Member
Posts: 404
Brian Huntzinger, EMT-P
Wamego, KS
|
|
« Reply #5 on: January 30, 2011, 07:50:09 PM » |
|
Dropping the motor really isn't as difficult as it seems. No you do not have to drop the rear wheel or drive shaft.
You will want to add pulling the radiator to the list of things that need to come off though.
|
|
|
|
|
Logged
|
VRCC# 26468 VRCCDS# 0228  "Some learn by listening, Others learn by watching... The rest of us have to pee on the electric fence ourselves" |
|
|
|
Jeff K
|
|
« Reply #6 on: January 31, 2011, 05:01:33 AM » |
|
You don't have to pull the air box off either.
I did a set of OD gears on a std Valk.
I left the carbs and airbox in place, I just tied them up to the frame. Dropped the motor down and out the side. I think I had the motor on the bench in about 1 1/2 hours.
No need to pull the drive the swingarm stays put.
|
|
|
|
« Last Edit: January 31, 2011, 06:17:14 AM by Jeff K »
|
Logged
|
|
|
|
|
Ricky-D
|
|
« Reply #7 on: January 31, 2011, 09:54:00 AM » |
|
You don't have to pull the air box off either.
I did a set of OD gears on a std Valk.
I left the carbs and airbox in place, I just tied them up to the frame. Dropped the motor down and out the side. I think I had the motor on the bench in about 1 1/2 hours.
No need to pull the drive the swingarm stays put.
That is the best way. No messing with the hoses, cables, adjustments! Be sure to plug the intakes! *** |
|
|
|
|
Logged
|
2000_Valkyrie_Interstate
|
|
|
gordonv
Member
Posts: 5763
VRCC # 31419
Richmond BC
|
|
« Reply #8 on: January 31, 2011, 02:22:40 PM » |
|
I recently read the manual to see how much needs to be done to prep for pulling.
After the engine is loose, it pulls forward to clear the u-joint, then you can remove it from the frame.
Can't remember details, but it seems fairly simple.
|
|
|
|
|
Logged
|
1999 Black with custom paint IS   |
|
|
Garland
Member
Posts: 451
#618
Hendersonville NC
|
|
« Reply #9 on: January 31, 2011, 02:58:23 PM » |
|
I saw a starter and rear case repair (hydrolock) on an Interstate at the local dealer the other day. The engine did not come out!
Wish I had paid closer attention.
Good luck-no clue for adveice.
I don't know how they could have removed the rear case without pulling the engine... |
|
|
|
|
Logged
|
|
|
|
|
RoadKill
|
|
« Reply #10 on: February 01, 2011, 04:46:42 PM » |
|
|
|
|
|
|
Logged
|
|
|
|
fudgie
Member
Posts: 10613
Better to be judged by 12, then carried by 6.
Huntington Indiana
|
|
« Reply #11 on: February 01, 2011, 04:53:07 PM » |
|
Not bad Roadkill, just about a whole bottle.  |
|
|
|
|
Logged
|
 Now you're in the world of the wolves... And we welcome all you sheep... VRCC-#7196 VRCCDS-#0175 DTR PGR |
|
|
|
RoadKill
|
|
« Reply #12 on: February 01, 2011, 04:55:06 PM » |
|

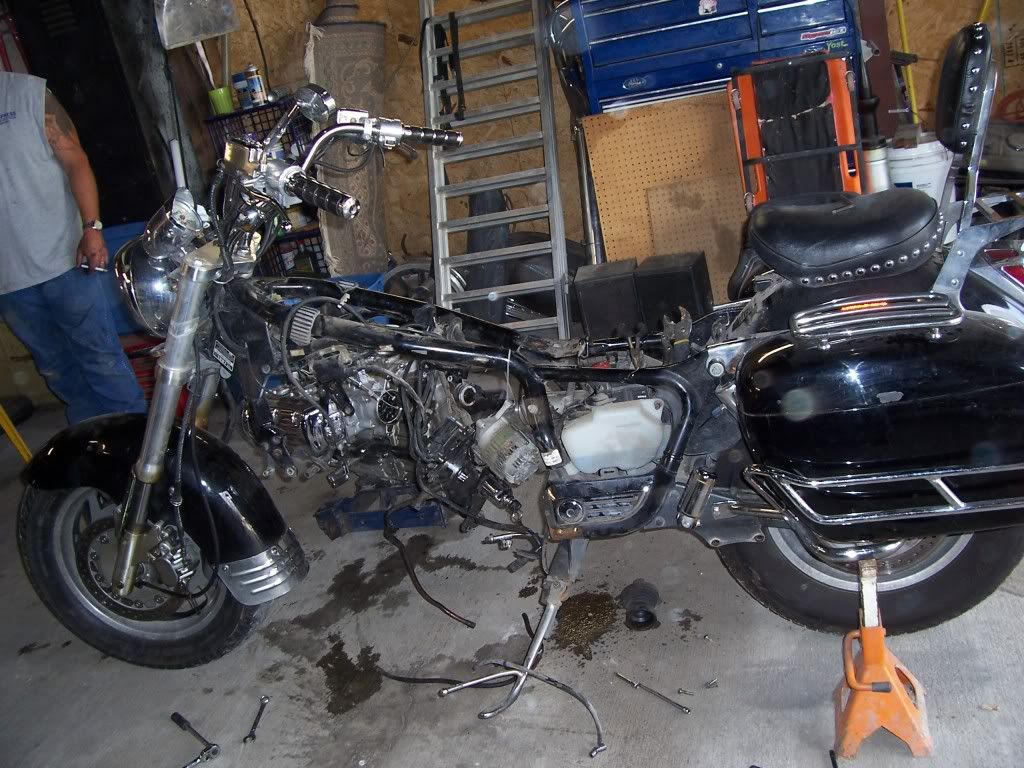

Gunslinger and I go this far in an afternoon with Jim (beam) assisting. why would you fight doing this in the bike?
|
|
|
|
|
Logged
|
|
|
|
Gunslinger
Member
Posts: 404
Brian Huntzinger, EMT-P
Wamego, KS
|
|
« Reply #13 on: February 01, 2011, 04:58:22 PM » |
|
Not bad Roadkill, just about a whole bottle. Exactly my point... This isn't even a one bottle project! Why replace the gears in the bike when you can drop the motor in a few hours? |
|
|
|
|
Logged
|
VRCC# 26468 VRCCDS# 0228 "Some learn by listening, Others learn by watching... The rest of us have to pee on the electric fence ourselves" |
|
|
|
Ricky-D
|
|
« Reply #14 on: February 02, 2011, 06:40:46 AM » |
|
I don't know how they could have removed the rear case without pulling the engine...
I think that is referring to the clutch cover and those parts rather than the motor cases which split along a line delineated by the crankshaft. *** |
|
|
|
|
Logged
|
2000_Valkyrie_Interstate
|
|
|
|
