Running electric lines

[SgtBunny]

ok, two dumb questions:

1) When installing the Zumo where is the best place to get juice.

2) When installing BigBF quads...is it necessary to remove the tank to run the lines.

If I have to take the tank off I might as well run the Zumo lines back as well.

thanks,
Chad

[Bagger John - #3785]

I would remove the tank, install a Power Plate and a well-constructed (sleeved) wiring harness to carry power to your accessories, horn and whatnot. Arm the Power Plate's relay by connecting it to the "ACC" lead underneath the right side cover. Key ON = juice. Key OFF = no juice...and no dead battery as a result of forgetting to turn things off after a ride.

[SgtBunny]

Where can I find a good quality power plate?

[Bagger John - #3785]

Where can I find a good quality power plate?

Here ya go:

http://www.directlineparts.com/product.asp?pid=8183&str=2



Or you can contact Lewis at the 'Connection directly...

[hubcapsc]

I wired up this thing, made a bracket for it and put it in front of the battery.

It was more expensive than some (you can get them from http://www.aerostich.com/aerosearch.php?restrict=Static&q=centech )

It is made pretty well, and I've never had any problems with it. It runs my quad horns,
moto-lights, tire pump and electric clothes. I took advice from here and
put a relay in front of it, it is only hot when the key is on.







-Mike

[SgtBunny]

Very nice install

[Andy]

Where can I find a good quality power plate?

Here ya go:

http://www.directlineparts.com/product.asp?pid=8183&str=2



Or you can contact Lewis at the 'Connection directly...

Ok, I'll ask the stupid question. I understand most of the parts/function. What is the extra wiring harness for?

[shortleg]

  The extra parts are for the relay.
That way you can use the Aux leads
under the right side panel to turn the
fuse panel on.That way when key is off
so are all of you things.
     Shortleg[Dave]

[Trynt]

  Those will fit in the side cover too.

[Novavalker]

  The extra parts are for the relay.
That way you can use the Aux leads
under the right side panel to turn the
fuse panel on.That way when key is off
so are all of you things.
     Shortleg[Dave]

Where are the Aux leads under the right side panel???? I see the ones for the rear speakers and push to talk switch for the passanger CB.

[vanagon40]

Where are the Aux leads under the right side panel?

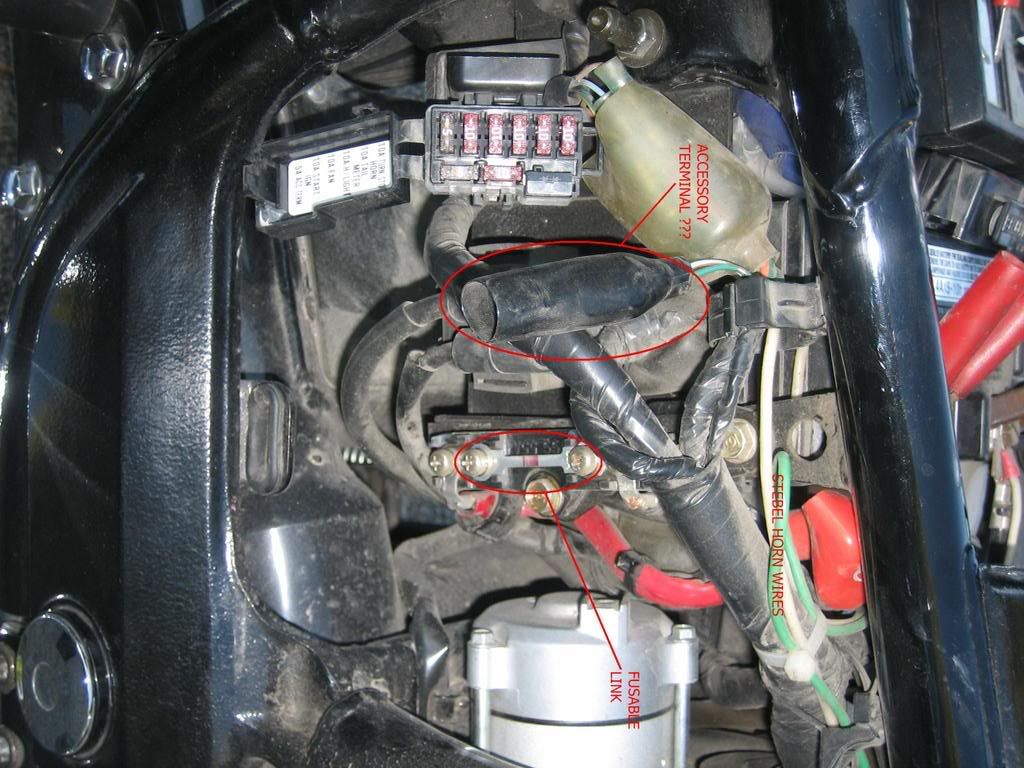

Ignore the question marks.  Accessory lead where circled.
