Jeff K
|
 |
« on: January 01, 2013, 04:19:41 PM » |
|

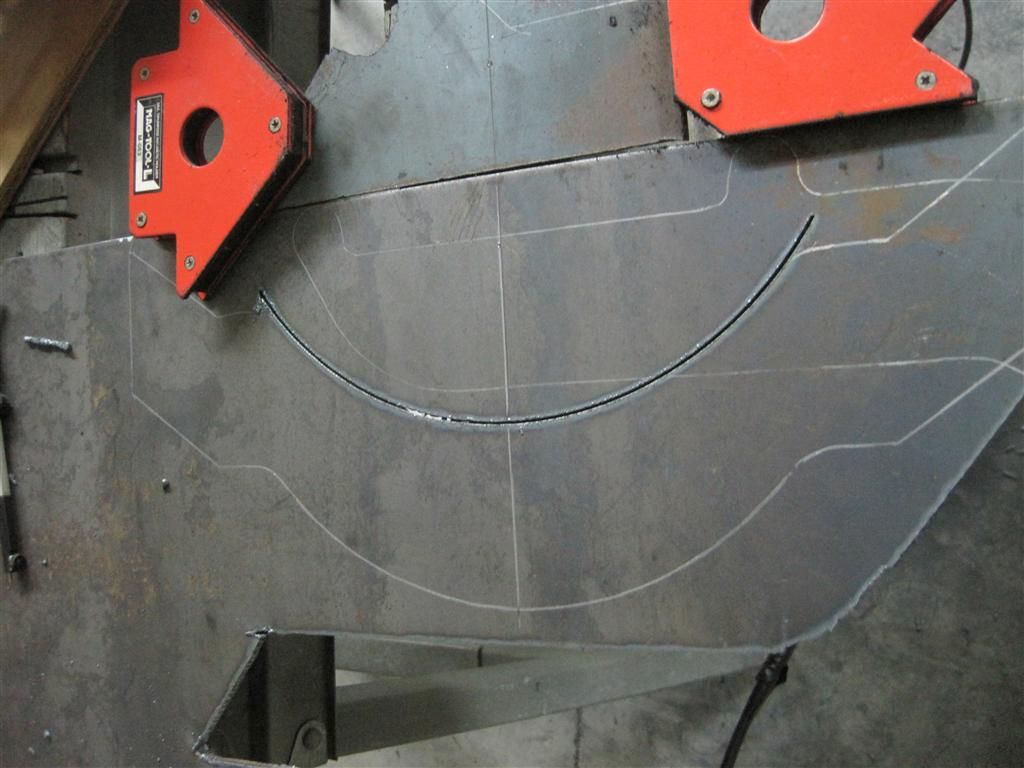

I spent the day reverse engineering my hitch on my Black bike. I need one for my new red/black (half fast) and just can't bring myself to spend hundreds of dollars on a hitch. So I set out to measure and draw the hitch in cad to have someone water cut the parts out. After spending hours measuring and drawing I decided to whack one out with the plasma torch. I think it will be fine Rough cut...  |
|
|
|
|
Logged
|
|
|
|
|
Red Dog
|
|
« Reply #1 on: January 01, 2013, 05:04:26 PM » |
|
Nice job Jeff. Wish I hade the talent and the tools.
Looks like you have the three piece bolt together syle.
Have you had any bolt loosening issues?
Again, nice job.
|
|
|
|
|
Logged
|
|
|
|
|
Michvalk
|
|
« Reply #2 on: January 01, 2013, 05:06:08 PM » |
|
Looks like a great way to spend crappy weather. Lookin good so far  |
|
|
|
|
Logged
|
|
|
|
|
Jeff K
|
|
« Reply #3 on: January 01, 2013, 05:33:37 PM » |
|
Nice job Jeff. Wish I hade the talent and the tools.
Looks like you have the three piece bolt together syle.
Have you had any bolt loosening issues?
Again, nice job.
No, I have not had any bolt issues. But I have had the bottom plate bend/twist. It twists after time. I may have to up the thickness of the bottom plate. |
|
|
|
|
Logged
|
|
|
|
|
Jeff K
|
|
« Reply #4 on: January 01, 2013, 05:35:19 PM » |
|
Looks like a great way to spend crappy weather. Lookin good so far Crappy Weather? It was 75 and sunny all day. If Joanne didn't have so much work to do, we would have been on the road. |
|
|
|
|
Logged
|
|
|
|
|
olddog1946
|
|
« Reply #5 on: January 01, 2013, 06:17:58 PM » |
|
I have the same hitch. Before I even put it on the bike I made the posterboard cutouts. But after I mounted the hitch I just don't like the way it fits, seems the side pieces bow out quite abit, and I just never went any further than that. It works as it is and sits centered but I think it could be better. All I need to do is get off my butt and pull the bottom piece off and make one that will keep the bow out of the side.......However, if it's nice enough to be outside working it's nice enough to be riding, so riding it is.
|
|
|
|
|
Logged
|
VRCC # 32473
US AIR FORCE E7, Retired 1965-1988
01 Valk Std.
02 BMW k1200LTE
65 Chevelle coupe, 1986 Mazda RX-7 with 350/5spd, 1983 Mazda RX-7 with FOMOCO 302/AOD project, 95 Mustang GT Convertible 5.0, 5 spd
Moses Lake, Wa. 509-760-6382 if you need help
|
|
|
|
Bugslayer
|
|
« Reply #6 on: January 01, 2013, 06:33:17 PM » |
|
Nice job Jeff. Wish I hade the talent and the tools.
Looks like you have the three piece bolt together syle.
Have you had any bolt loosening issues?
Again, nice job.
No, I have not had any bolt issues. But I have had the bottom plate bend/twist. It twists after time. I may have to up the thickness of the bottom plate. I have the same hitch. Since I pull a single wheel trailer, I didn't want any flex or movement from the hitch. My welder friend added some suports to the bottom plate. I also used much larger bolts. Works great.  |
|
|
|
|
Logged
|
|
|
|
|
Jeff K
|
|
« Reply #7 on: January 01, 2013, 06:38:18 PM » |
|
I have the same hitch. Before I even put it on the bike I made the posterboard cutouts. But after I mounted the hitch I just don't like the way it fits, seems the side pieces bow out quite abit, and I just never went any further than that. It works as it is and sits centered but I think it could be better. All I need to do is get off my butt and pull the bottom piece off and make one that will keep the bow out of the side.......However, if it's nice enough to be outside working it's nice enough to be riding, so riding it is.
Bow out of the sides? The sides are bent in toward the fender. Anyway, I've been happy with mine for 100,000 miles. On a black bike with bags it's not very noticeable. |
|
|
|
|
Logged
|
|
|
|
jammer
Member
Posts: 135
#5407 3 valks 97-98-99
Illinois
|
|
« Reply #8 on: January 03, 2013, 09:51:38 AM » |
|
I like the bolt on bottom plate where the ball mounts. I have that on my 99 I/S. This setup makes for easy removal of the rear fender section when changeing the tire. I welded a receiver to the bottom so I have a dual type hitch, i.e. ball or receiver. Nice work Jeff as usual  |
|
|
|
|
Logged
|
G
|
|
|
|
Jeff K
|
|
« Reply #9 on: January 19, 2013, 05:06:33 PM » |
|
|
|
|
|
« Last Edit: January 19, 2013, 05:09:51 PM by Jeff K »
|
Logged
|
|
|
|
|
Joevalk
|
|
« Reply #10 on: January 19, 2013, 05:27:26 PM » |
|
powder coat that black and send it to me and I'll scrap it for you  |
|
|
|
|
Logged
|
|
|
|
|
Michvalk
|
|
« Reply #11 on: January 19, 2013, 06:52:42 PM » |
|
Lookin good so far! Very pretty welds. The boy knows what he's doin |
|
|
|
|
Logged
|
|
|
|
|
olddog1946
|
|
« Reply #12 on: January 19, 2013, 11:00:28 PM » |
|
That is a fine job you've done with that hitch. Might be an opprortunity for ya to make a few bucks building them.
|
|
|
|
|
Logged
|
VRCC # 32473
US AIR FORCE E7, Retired 1965-1988
01 Valk Std.
02 BMW k1200LTE
65 Chevelle coupe, 1986 Mazda RX-7 with 350/5spd, 1983 Mazda RX-7 with FOMOCO 302/AOD project, 95 Mustang GT Convertible 5.0, 5 spd
Moses Lake, Wa. 509-760-6382 if you need help
|
|
|
|
PhredValk
|
|
« Reply #13 on: January 20, 2013, 12:15:23 AM » |
|
Nice work.
Fred.
|
|
|
|
|
Logged
|
Growing old is mandatory, growing up is optional.
VRCCDS0237
|
|
|
|
old2soon
|
|
« Reply #14 on: January 20, 2013, 07:23:17 AM » |
|
I might have missed it somewhere. My question-is that 3/8 plate the receiver is welded to?? And B T W-good looking job there. RIDE SAFE. |
|
|
|
|
Logged
|
Today is the tommorow you worried about yesterday. If at first you don't succeed screw it-save it for nite check. 1964 1968 U S Navy. Two cruises off Nam.
VRCCDS0240 2012 GL1800 Gold Wing Motor Trike conversion
|
|
|
|
Jeff K
|
|
« Reply #15 on: January 20, 2013, 09:10:15 AM » |
|
The receiver tube sits on a 3/4 solid block. The rest of the hitch is 1/4" plate steel.
|
|
|
|
|
Logged
|
|
|
|
|
YoungPUP
|
|
« Reply #16 on: January 20, 2013, 09:13:10 AM » |
|
I know the hitch plans are over in shoptalk, but how about the plans for your homemade press/brake. Would be nice to have for the small projects.
|
|
|
|
|
Logged
|
Yea though I ride through the valley of the Shadow of Death I shall fear no evil. For I ride the Baddest Mother F$#^er In that valley!
99 STD (Under construction)
|
|
|
|
Farther
|
|
« Reply #17 on: January 20, 2013, 12:27:01 PM » |
|
I would assume that the original commercial hitch was made as three piece for shipping purposes. Did you think of making the hitch one piece with the sides and base plate one piece? That might reduce the weight somewhat.
|
|
|
|
|
Logged
|
Thanks,
~Farther
|
|
|
|
|
|
Jeff K
|
|
« Reply #19 on: January 20, 2013, 02:30:24 PM » |
|
I like the three piece design. I never had a problem with it at all.
|
|
|
|
|
Logged
|
|
|
|
|
tank_post142
|
|
« Reply #20 on: January 21, 2013, 08:04:56 AM » |
|
Farther: being 3 piece you can just drop the center piece for tire changes, rather than pulling the whole hitch.
|
|
|
|
|
Logged
|
I got a rock  VRCCDS0246  |
|
|
|
Farther
|
|
« Reply #21 on: January 21, 2013, 10:03:48 AM » |
|
Pulling the whole hitch for a tire change would be a real POS.
|
|
|
|
|
Logged
|
Thanks,
~Farther
|
|
|
|
Jeff K
|
|
« Reply #22 on: January 21, 2013, 10:37:43 AM » |
|
My rear fender is welded one piece on my Fast I/S, my half Fast I/S still has the two piece fender.
I've been dropping the tire out the bottom for a long time. It would be a problem in a parking lot though.
|
|
|
|
|
Logged
|
|
|
|
|
Chrisj CMA
|
|
« Reply #23 on: January 21, 2013, 12:14:13 PM » |
|
Farther: being 3 piece you can just drop the center piece for tire changes, rather than pulling the whole hitch.
I have the Hitchdoc, essentially what Jeff built but all one piece. I dont have to remove it to change a back wheel. BTW....very nice work Jeff, yours looks better than the ones you buy that you used as a pattern  |
|
|
|
|
