Author Topic: Interstate instrument panel lighting  (Read 8232 times)
Grumpy
Member
*****
Posts: 3106


Tampa, Fl


« on: January 10, 2013, 07:36:01 PM »

Has any one swapped out the instrument panel  bulbs for led's . The stock lighting is mediocre to say the least. I have been looking at these, should be brighter, just not sure of the fit. Supposed to be a replacement for the #74 that is the stock bulb.

http://www.superbrightleds.com/moreinfo/instrument-cluster-gauge/74-led-bulb-3-smd-led-wide-angle-wedge-base/228/
Logged



Life is like a hot bath. It feels good while you’re in it, but the longer you stay in, the more wrinkled you get.
Jess from VA
Member
*****
Posts: 30447


No VA


« Reply #1 on: January 10, 2013, 07:38:56 PM »

Someone did a very detailed post on this a while back.  Pics of different bulbs, installed.

Anyone here good at site research?
Logged
chrise2469
Member
*****
Posts: 295

Winnipeg Manitoba Canada


« Reply #2 on: January 10, 2013, 09:22:28 PM »

I did one for the std/tourer not the IS.
http://www.valkyrieforum.com/bbs/index.php/topic,34551.0.html

I've never seen inside the instrument panel on the IS, but if it's standard honda thinking, I would try the other 74xHp.  You Might loose some of the light from the side LEDS only one way to find out.
Buy all 3, take lots of photo's and post them up.  It's the shipping that's expensive.

Ride safe.
Logged
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #3 on: January 10, 2013, 11:07:42 PM »

I swapped my dash lights out with LED's don't have easy access to my pictures working from my phone tonight. I will scrounge the pictures up tomorrow and post them up.

No real details other than what bulbs I ended up with and the color change.
I stayed with White for the gauges and found a green that worked well to my likings for the main display plenty bright and easy on the eyes at night.

I think I have a couple pictures of the finished install showing the green main panel and white for the gauges.
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
scoot
Member
*****
Posts: 909


Lifes too short Ride it hard

Grand Rapids Mi.


« Reply #4 on: January 11, 2013, 03:58:06 AM »

I did this on my standard, as well. What a didfference. It didn't make them brighter, just seems much more clear. For me it made a big difference at dusk when it was hard to see the numbers. One of the best bang for the buck things.
Logged


Some like to ride Fat boys, I think I'll stay with the fat lady
Grumpy
Member
*****
Posts: 3106


Tampa, Fl


« Reply #5 on: January 11, 2013, 12:03:18 PM »

Thanks for the link, knew it was posted, just could not locate it. Got enough ordered to do the dash and my external gauges.  Tired of not being able to read them at night.
Logged



Life is like a hot bath. It feels good while you’re in it, but the longer you stay in, the more wrinkled you get.
alph
Member
*****
Posts: 5513


Eau Claire, WI.


« Reply #6 on: January 12, 2013, 01:17:27 PM »

i bought my off of ebay, pennies on the dollar from other sites, sure i hate buying junk from china (wal-mart) but buying 'em off of ebay is basicly bypasing the middle man since they're all made in china anyway....  i've replaced mine with LED's as well, didn't ever want to change out a burnt out light bulb again, they look nice too.

http://www.ebay.com/itm/4x-T5-74-3-1210-SMD-DASHBOARD-LED-CAR-CLUSTER-LIGHT-BULB-LAMP-White-3528-1-chip-/290842359398?pt=Motors_Car_Truck_Parts_Accessories&hash=item43b78e3666&vxp=mtr
Logged

Promote world peace, ban all religion.

Ride Safe, Ride Often!!  cooldude
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #7 on: January 16, 2013, 02:44:51 AM »

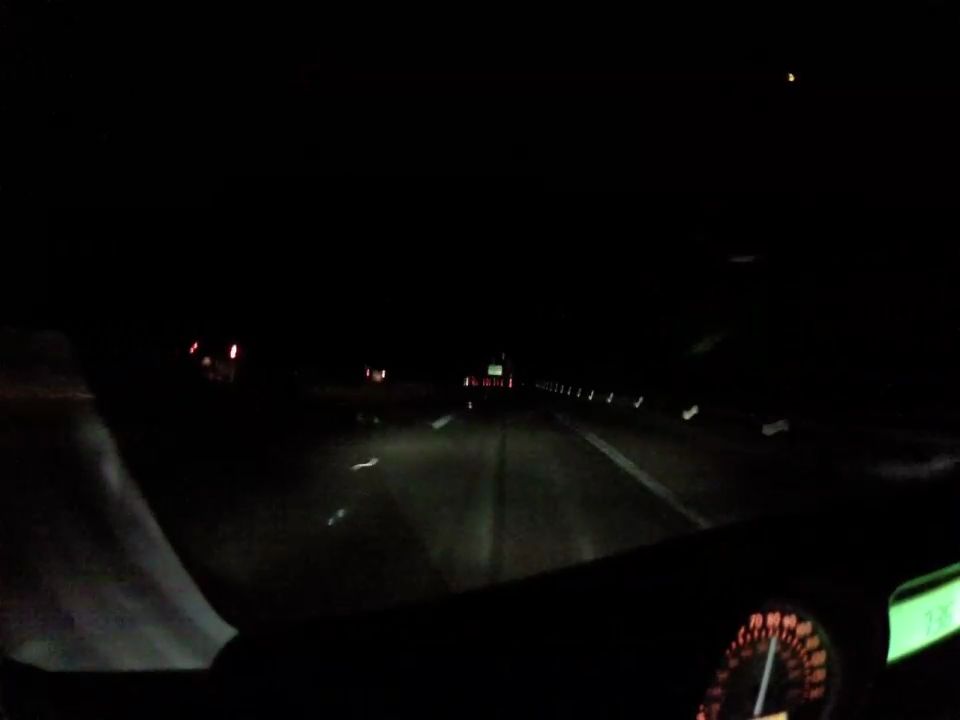

Sorry this took so long I can't seem to find a picture but I do have a video clip that you can see the Speedo and the center display panel.

powered by Aeva



Sorry that's the best I have right now. I can take a photo if you would like to see it straight on with both gauges and the display panel shown...
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #8 on: January 16, 2013, 09:20:10 PM »

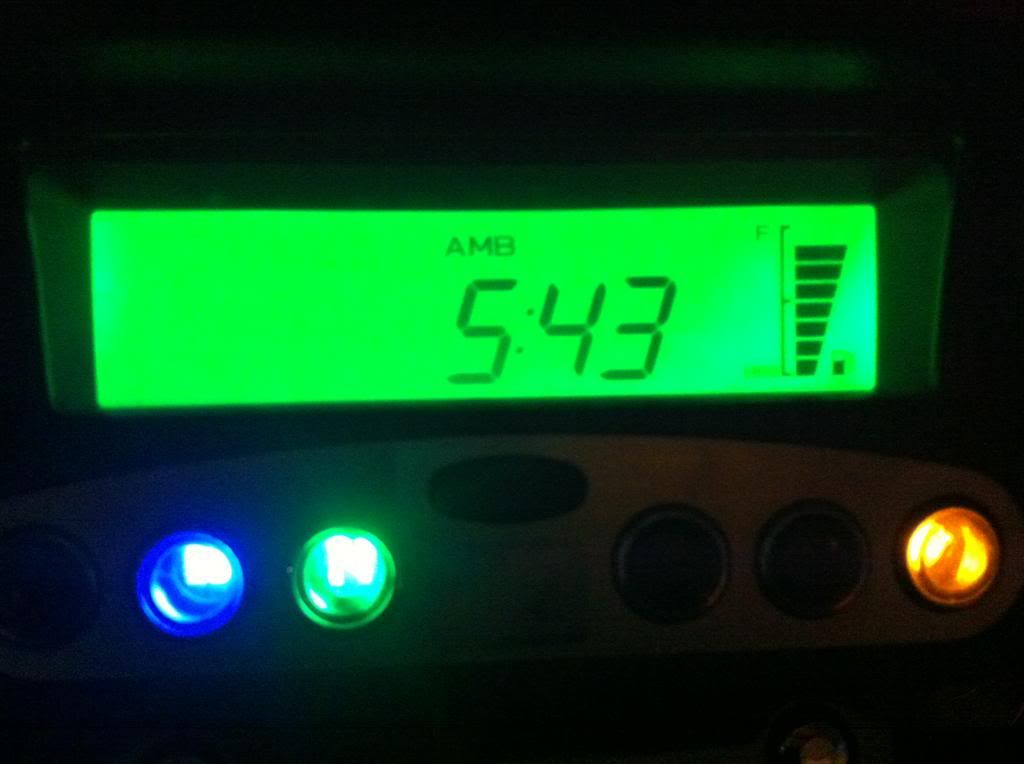

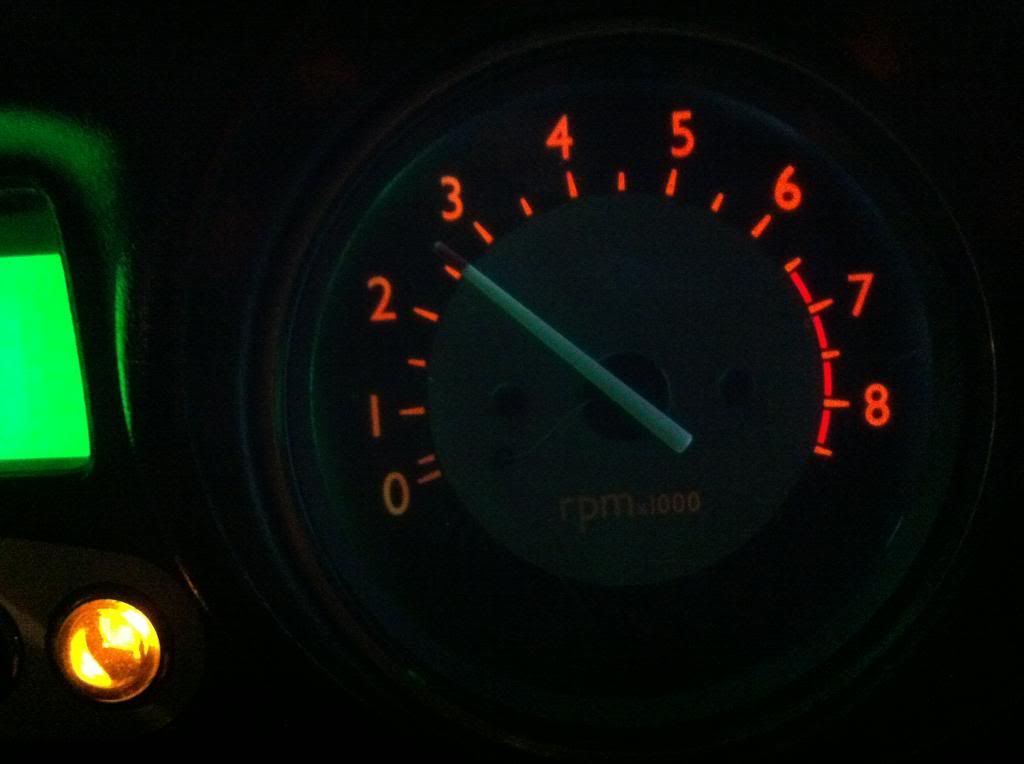

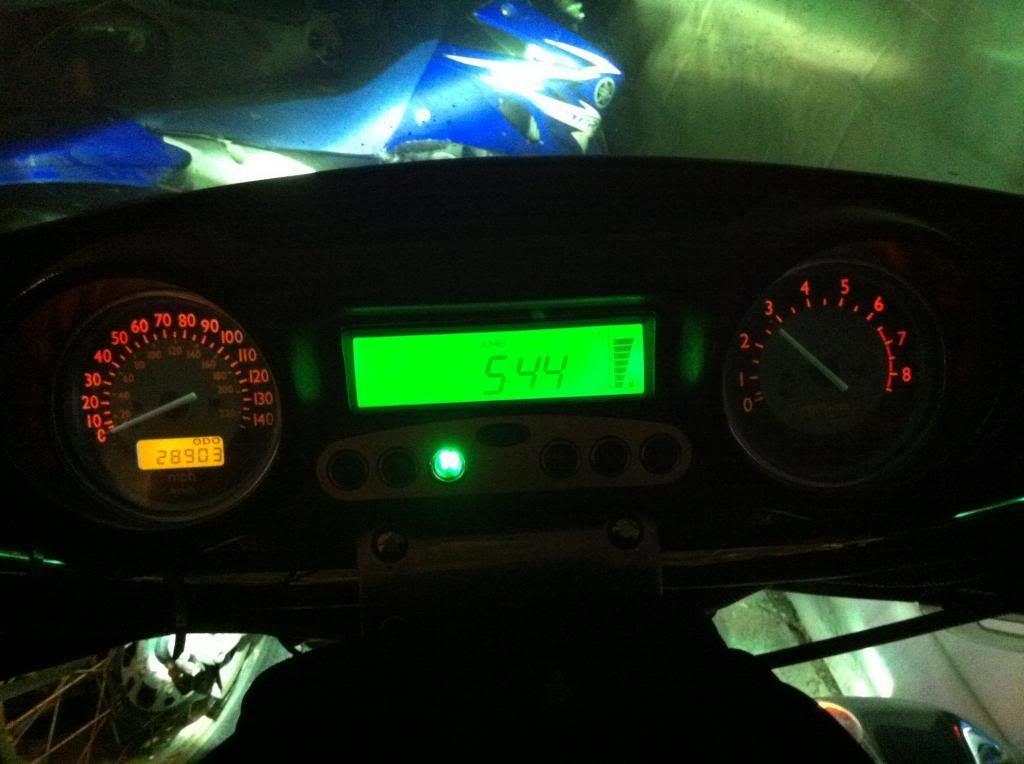

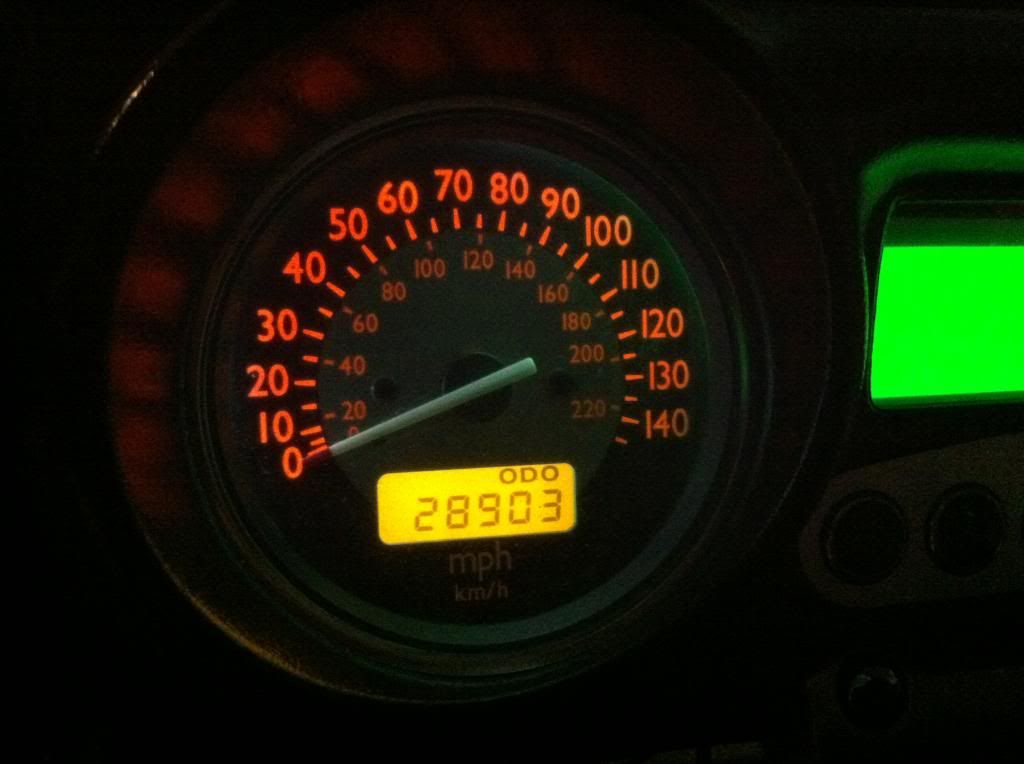

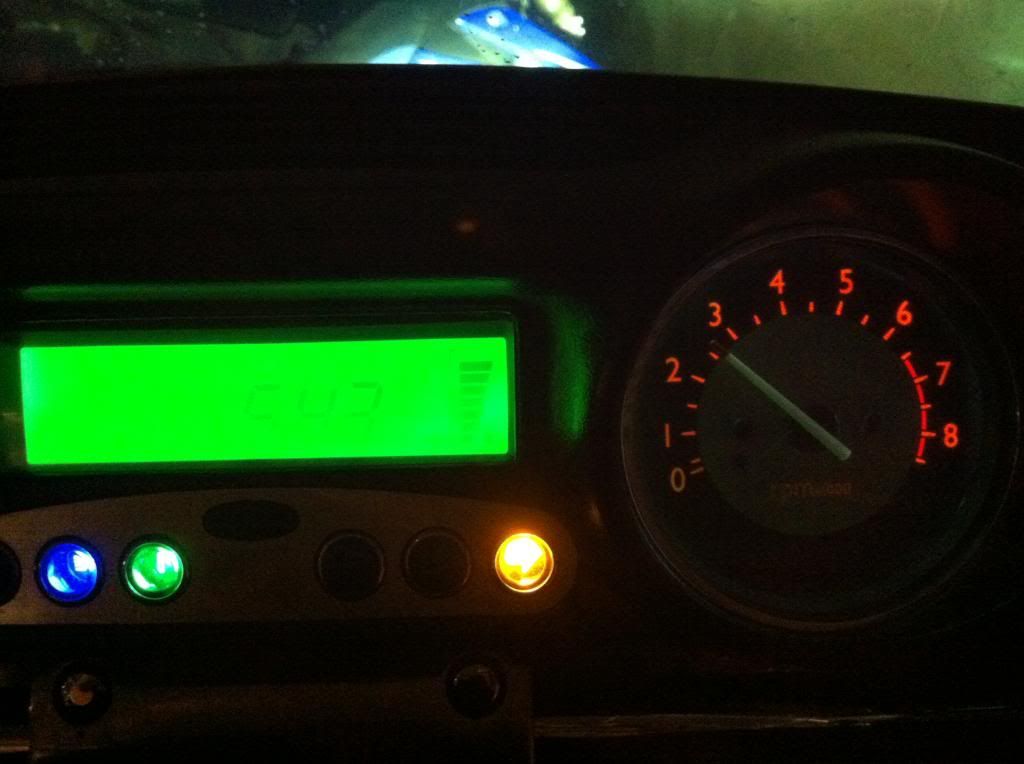

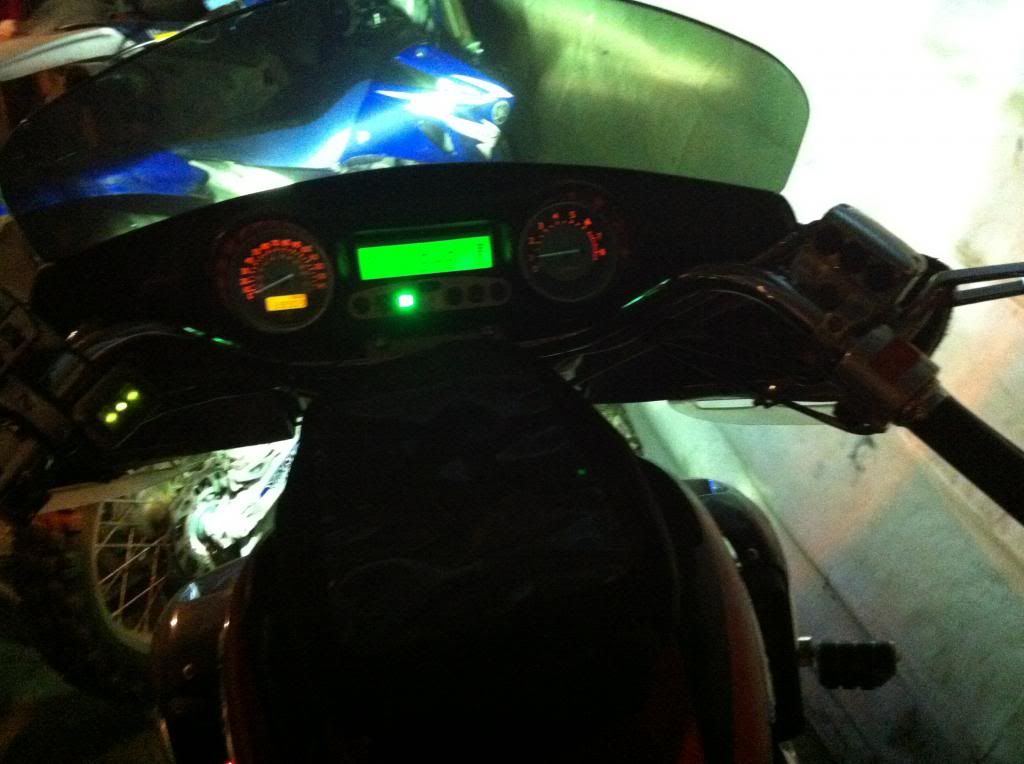

So I took a few pictures this evening these are with the super white 5 chips LED for the guages and the same family Green 5 chip LED for the display panel.















The green is actually easier on the eyes after dark and has a very retro American dashboard kinda glow that I like so much.

If any one wants the exact LED information post up and I will do my best to retrieve it from my stash of spares.
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
joefromperry
Member
*****
Posts: 136


Perry, OH


« Reply #9 on: January 17, 2013, 08:01:14 AM »

Did you change the indicator lights (high beam, neutral, etc.), too? Do you remember exactly which bulbs you used for each area (speedo/lcd/indicators)? Easy to get to? Thanks.
Logged

2000 Honda Valkyrie Interstate Silver/Blue
2002 Honda Shadow ACE Deluxe
1972 Honda CL350K4 Scrambler
2008 Ural Patrol
1987 Honda Rebel 450
Flrider
Member
*****
Posts: 2622


Jack

Kissimmee FL


« Reply #10 on: January 17, 2013, 12:10:50 PM »

man, it will be nice if there was a write up on how to do this  Wink
Logged
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #11 on: January 17, 2013, 04:50:12 PM »

I took a few minutes to look around the web for the online store I purchsed mine from and low and behold I found it.... I will appologize I was wrong they are only 3 chip LED but they put out a little more lite than the stock bulbs I believe. Stock size is #74 wedge base.

http://www.superbrightleds.com/moreinfo/led-vehicle-replacement-bulbs/74-led-bulb-3-smd-led-wide-angle-wedge-base/228/

Looks like these are the exact LED's the "OP" was looking at, so yes these will work fine you may have to give the sockets a little squeeze to make sure the contacts are tight. And in my opinion the darker colored LED's (blue, red) are too dark/dim for the amount of space the light has to fill. I did try the Blue ones NOT enough useable light in my opinion, you mileage may vary.
The bugger is you have to pull the entire fairing face off to get to them and it can get even worse if you have things like amps or horns or CC installed in your fairing but your situation will most likely be different than mine.

Working from my phone currently, I will edit and update this the best I can when I get to the office tonight.  The top of my message was just a copy and paste that I sent to another Valk brother in a message early this morning I did not edit it sorry.
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
Motorider
Member
*****
Posts: 162


Pennsylvania


« Reply #12 on: January 17, 2013, 06:45:36 PM »

fordmano, Thanks for the link! I would like to order the LED`s before I take the fairing apart. How many bulbs, of what colors, do I need to duplicate what you did?
Logged
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #13 on: January 17, 2013, 09:08:43 PM »

It looks like I used 2 White and 2 Green there are only 4 bulbs accessible from the back side that I can see or remember removing. I put the green in the more center positions and the that leaves the white ones for the far outer positions,,,, If I remember the bulbs are safe to install in any direction but they only light up when installed the proper way so I would install all of them without the rubber plugs being put back in place and turn the key to see if they all light up then reverese the polarity on the ones that don't light up cant remember seeing any markings on the bike or the LED's to indicate which direction is correct.

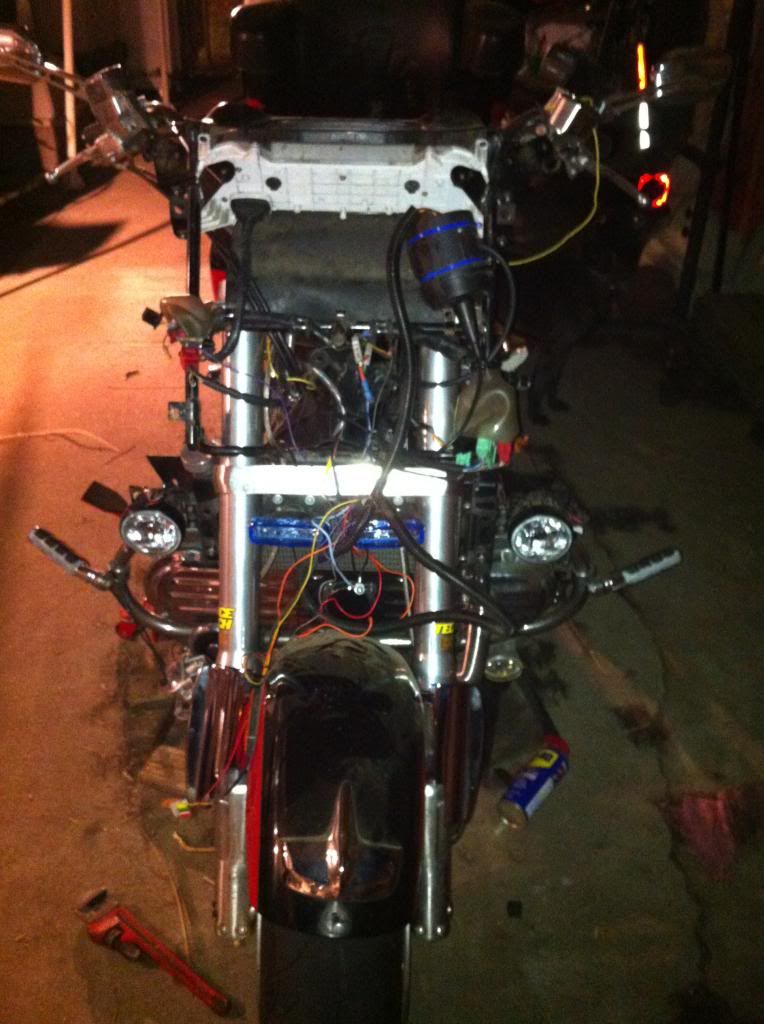

You can sort of see the 2 center black rubber plugs (there are 4 of these plugs 2 inner positioned and 2outer positioned) that you will have to remove to access the bulb socket /holder, they simply just unscrew a little and pop out. I had to use a pair of needle nose pliers since my fingers are fat and cramp up easy.

Sorry about poor picture quality, it was dark out and the picture was taken with a cell phone.
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #14 on: January 17, 2013, 09:11:19 PM »

man, it will be nice if there was a write up on how to do this  Wink

Sorry that will be on someone else, I hate to write and I am not very eloquent,,,, I also have POOR grammar skills I am a good dooo'er and a bad leader.
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
fordmano
Member
*****
Posts: 1457


San Jose, CA. 1999 I/S 232 miles when bought 11/05

San Jose, CA.


« Reply #15 on: January 17, 2013, 09:14:32 PM »

Did you change the indicator lights (high beam, neutral, etc.), too? Do you remember exactly which bulbs you used for each area (speedo/lcd/indicators)? Easy to get to? Thanks.

Easy to get to, after you pull the fairing shell off. I only replaced the 4 bulbs that light up the speedo & tach the other indicator bulbs are all stock never even considered trying to dig that deep. The stock bulb size is listed as a #74 wedge base. I do not know if you can put a longer/taller bulb in place I did not measure just shot from the hip. Sorry about that.
Logged



What Exactly is Normal? crazy2 crazy2

83GS550
93XR650L TARD!
97WR250
99ValkyrieI/S Tri-tone
01YZ125(x2)
05DRZ-125
Flrider
Member
*****
Posts: 2622


Jack

Kissimmee FL


« Reply #16 on: January 17, 2013, 10:44:25 PM »

man, it will be nice if there was a write up on how to do this  Wink

Sorry that will be on someone else, I hate to write and I am not very eloquent,,,, I also have POOR grammar skills I am a good dooo'er and a bad leader.

I taught that it would be a little more involved, some soldering involved, etc.
Looks like it is just a matter of replacing the bulbs, once you have the fairing off.


Thanks for the info and the link.
« Last Edit: January 17, 2013, 10:51:35 PM by Flrider » Logged
