Raverez
Member
Posts: 699
No good deed goes unpunished
Central New York State
|
 |
« Reply #1 on: June 12, 2013, 01:32:25 PM » |
|

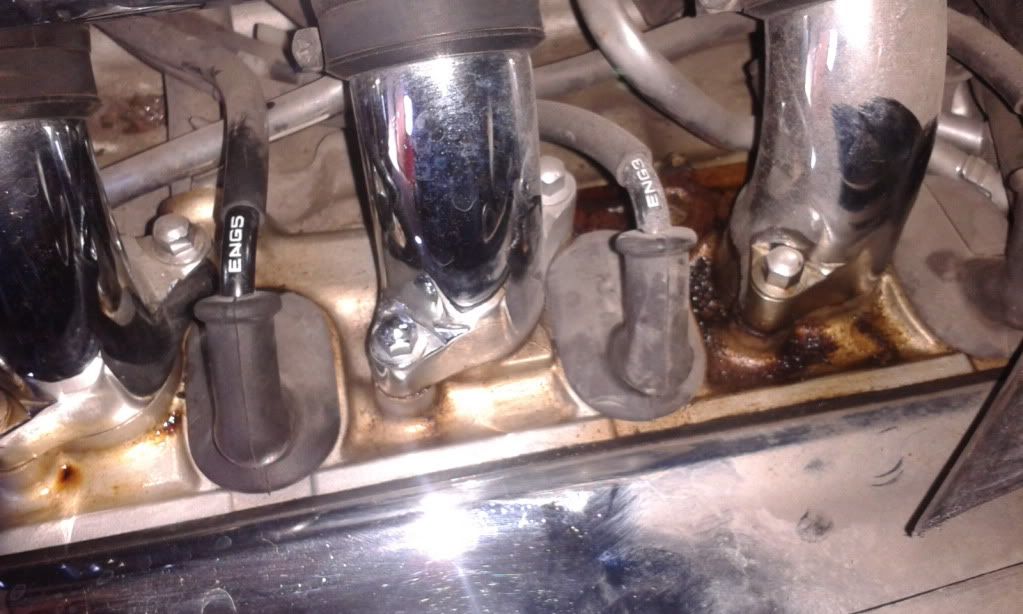

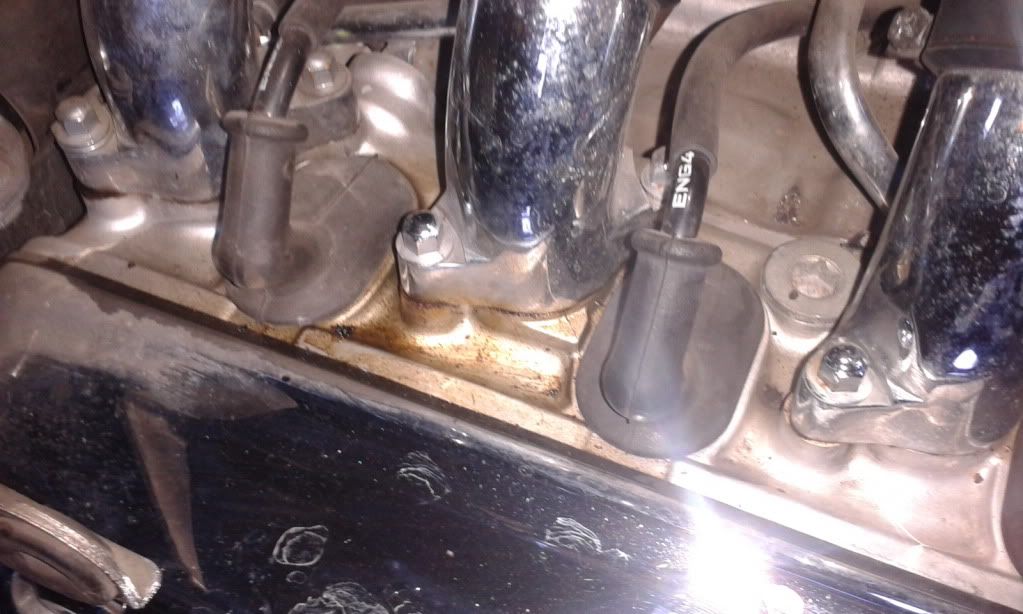

It was hiding behind the pods. Right side is worse than the left. Not sure where its coming from. One of the gaskets maybe?
|
|
|
|
|
Logged
|
|
|
|
|
jmann
|
|
« Reply #2 on: June 12, 2013, 01:35:00 PM » |
|
Intake O'rings perhaps?  |
|
|
|
|
Logged
|
|
|
|
Valker
Member
Posts: 3018
Wahoo!!!!
Texas Panhandle
|
|
« Reply #3 on: June 12, 2013, 01:40:09 PM » |
|
Yep. Intake O-rings. That is fuel deposits, not oil. Easy, cheap, almost fun fix.
|
|
|
|
|
Logged
|
I ride a motorcycle because nothing transports me as quickly from where I am to who I am.
|
|
|
|
AZdougness
|
|
« Reply #4 on: June 12, 2013, 01:44:00 PM » |
|
Intake O'rings perhaps? I had similar looking smudge on my intake manifolds surround the outer side of the o-rings where they contact the head. It was the o-rings causing it. I am not sure why it looks like that, gas + water + dirt = who knows what ya get, but the Viton O-rings that red-eye sells are very well priced and are a very easy starting point mechanically. |
|
|
|
|
Logged
|
|
|
|
Raverez
Member
Posts: 699
No good deed goes unpunished
Central New York State
|
|
« Reply #5 on: June 12, 2013, 01:57:27 PM » |
|
OK, so I'm guessing remove the two bolts on each then pull intake off replace o-ring then reassemble?
|
|
|
|
|
Logged
|
|
|
|
GJS
Member
Posts: 424
Today is the tomorrow you worried about yesterday.
Vancouver Island, BC, Canada
|
|
« Reply #6 on: June 12, 2013, 01:57:33 PM » |
|
Yep. Intake O-rings. That is fuel deposits, not oil. Easy, cheap, almost fun fix.
 +1 Been there, done that, looked exactly the same. Real easy to do. Good luck GJS |
|
|
|
|
Logged
|
The tragedy of life is not that it ends so soon, but that we wait so long to begin it.
- W. M. Lewis
|
|
|
GJS
Member
Posts: 424
Today is the tomorrow you worried about yesterday.
Vancouver Island, BC, Canada
|
|
« Reply #7 on: June 12, 2013, 01:58:05 PM » |
|
OK, so I'm guessing remove the two bolts on each then pull intake off replace o-ring then reassemble?
Yep. |
|
|
|
|
Logged
|
The tragedy of life is not that it ends so soon, but that we wait so long to begin it.
- W. M. Lewis
|
|
|
|
chrise2469
|
|
« Reply #8 on: June 12, 2013, 02:00:39 PM » |
|
Just to add, loosen clamp on rubber manifold piece, no idea what its called. If doing more than one at a time, stuff shop rag in intake to avoid dropping a part into the cylinder.
|
|
|
|
|
Logged
|
|
|
|
Raverez
Member
Posts: 699
No good deed goes unpunished
Central New York State
|
|
« Reply #9 on: June 12, 2013, 02:04:07 PM » |
|
Thanks for the help everybody.
|
|
|
|
|
Logged
|
|
|
|
GJS
Member
Posts: 424
Today is the tomorrow you worried about yesterday.
Vancouver Island, BC, Canada
|
|
« Reply #10 on: June 12, 2013, 02:10:17 PM » |
|
I just checked the manual.
After you replace the rings, torque the bolts to 6.5 lbs (not much).
GJS
|
|
|
|
|
Logged
|
The tragedy of life is not that it ends so soon, but that we wait so long to begin it.
- W. M. Lewis
|
|
|
Raverez
Member
Posts: 699
No good deed goes unpunished
Central New York State
|
|
« Reply #11 on: June 12, 2013, 02:14:43 PM » |
|
That's almost finger tight! Get to try out my new torque wrench.
|
|
|
|
|
Logged
|
|
|
|
|
AZdougness
|
|
« Reply #12 on: June 12, 2013, 02:28:25 PM » |
|
Just to add, loosen clamp on rubber manifold piece, no idea what its called. If doing more than one at a time, stuff shop rag in intake to avoid dropping a part into the cylinder.
+1 to both recommendations. I believe they are called manifold or carb insulators, and you will want to remove the carb link cover (3 phillips head screws) to get better access to loosen them up. edit - if you want to remove them with the manifolds, not needed. just loosen the bottom band clamp. |
|
|
|
« Last Edit: June 12, 2013, 02:30:36 PM by AZdougness »
|
Logged
|
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #13 on: June 12, 2013, 03:30:56 PM » |
|
Rich at redeye will take good care of you for supplying intake o-rings http://redeye.ecrater.com/ |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A   |
|
|
Denny47
Member
Posts: 307
#34898
Grove, Ok.
|
|
« Reply #14 on: June 12, 2013, 08:19:59 PM » |
|
Very easy to change the intake O-rings. Just loosen the three clamps on the rubber, remove two bolts on each intake and pull out while lifting slightly. Nothing else needs to be removed from what I see in the pic you posted. Do all three on each side while the clamps are all loose, this gives you just enough slack to make it easy to remove and replace the intake tubes without screwing up the new O-rings. I put a lite coating of dielectric lube on mine to make them slippery or use a dab of grease. Get the dielectric lube from Radio Shack or auto parts store.
|
|
|
|
|
Logged
|
1997 Green/Cream Tourer w/ Cobra 6/6 exhaust, 2012 Pearl White Goldwing
USAF 66-70, F-105 AWCS
|
|
|
|
