« on: May 11, 2015, 01:20:28 PM » |
|
I read somewhere that someone couldn't find the accessory socket on the Interstate. Well I need it now and I cant find it. Ive looked everywhere behind the RHS panel. There is a red wire with an insulator on it there is a green wire next to it with a bare male terminal on it. There is also a small block connector with three wires on it. No idea what that's for. The manual says the accessory live/hot is white and black. I cant find it HELP  |
|
|
|
|
Logged
|
|
|
|
|
shortleg
|
|
« Reply #1 on: May 11, 2015, 02:44:52 PM » |
|
You will have to dig for it, but it is there. if I remember right and the first owner
did not move it. It should be in it,s own little boot under the right side cover.
shortleg
|
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #2 on: May 11, 2015, 11:02:52 PM » |
|
Thanks, I'll have another look. Do you know the other wires I'm seeing are ?
|
|
|
|
|
Logged
|
|
|
|
|
vanagon40
|
|
« Reply #3 on: May 12, 2015, 08:12:15 AM » |
|
Here is a Standard (ignore the question marks). Not sure if the Interstate is the same.  |
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #4 on: May 12, 2015, 11:00:23 AM » |
|
Here is a Standard (ignore the question marks). Not sure if the Interstate is the same. Thanks for taking the time to post the photo. That's a great help. That looks obviously enough but I still cant find it. Why would anyone get rid ??? |
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #5 on: May 12, 2015, 11:32:33 AM » |
|
Just been and had another look and just cant find it. Mine is an Interstate so a lot more going on under the panel. Could anyone post a photo of the interstate just to confirm Otherwise ill just tap on to the wire that comes from the fuse.
Thanks
|
|
|
|
|
Logged
|
|
|
|
|
WoodyFL
|
|
« Reply #6 on: May 12, 2015, 12:24:13 PM » |
|
If nobody posts before I get home from work I'll post a photo for you.
Woody
|
|
|
|
|
Logged
|
2000 Blue/Silver I/S
Ocoee, FL
|
|
|
|
knockdolian
|
|
« Reply #7 on: May 12, 2015, 12:49:19 PM » |
|
If nobody posts before I get home from work I'll post a photo for you.
Woody
 |
|
|
|
|
Logged
|
|
|
|
|
WoodyFL
|
|
« Reply #8 on: May 12, 2015, 02:50:17 PM » |
|
 I'm assuming you are meaning the Aux Port?? Woody |
|
|
|
|
Logged
|
2000 Blue/Silver I/S
Ocoee, FL
|
|
|
|
knockdolian
|
|
« Reply #9 on: May 12, 2015, 10:55:25 PM » |
|
I'm assuming you are meaning the Aux Port?? Woody No mate, not the AUX. I have that. I think there should be an ACC power supply. The manual says there is and there is an ACC fuse ???? |
|
|
|
|
Logged
|
|
|
|
|
|
|
knockdolian
|
|
« Reply #11 on: May 13, 2015, 01:19:54 PM » |
|
Well I read the link, went and looked. Read it again and looked. Still cant find them. I got on the floor and looked up. OMG found them. They said short and they said tucked away. Why would Honda do that ?? Anyway sorted now. Thanks |
|
|
|
|
Logged
|
|
|
|
|
Savago
|
|
« Reply #12 on: May 13, 2015, 04:53:14 PM » |
|
knokdolian
While you are at it, why don't you snap a photo and post it at the forum? It is always a good idea to contribute back to VRCC.
:-)
Savago
|
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #13 on: May 13, 2015, 10:57:22 PM » |
|
knokdolian
While you are at it, why don't you snap a photo and post it at the forum? It is always a good idea to contribute back to VRCC.
:-)
Savago
And deny people the fun I've had. How selfish would that be  Haven't yet got the hang of posting photos but I'll give it a go at the weekend |
|
|
|
|
Logged
|
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #14 on: May 14, 2015, 08:49:26 AM » |
|
Just been and had another look and just cant find it. Mine is an Interstate so a lot more going on under the panel. Could anyone post a photo of the interstate just to confirm Otherwise ill just tap on to the wire that comes from the fuse.
Thanks
Never could find mine either. So I tapped the line out of the fuse box.  |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A   |
|
|
|
knockdolian
|
|
« Reply #15 on: May 14, 2015, 09:05:27 AM » |
|
Just been and had another look and just cant find it. Mine is an Interstate so a lot more going on under the panel. Could anyone post a photo of the interstate just to confirm Otherwise ill just tap on to the wire that comes from the fuse.
Thanks
Never could find mine either. So I tapped the line out of the fuse box. It really was a pig to find. I had to get right under the bike then only just spotted it. Ill See if I can post a picture over the weekend |
|
|
|
|
Logged
|
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #16 on: May 14, 2015, 02:20:10 PM » |
|
Just been and had another look and just cant find it. Mine is an Interstate so a lot more going on under the panel. Could anyone post a photo of the interstate just to confirm Otherwise ill just tap on to the wire that comes from the fuse.
Thanks
Never could find mine either. So I tapped the line out of the fuse box. It really was a pig to find. I had to get right under the bike then only just spotted it. Ill See if I can post a picture over the weekend Looking forward to the pic(s). |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A |
|
|
|
knockdolian
|
|
« Reply #17 on: May 17, 2015, 11:03:54 AM » |
|
ok, Ive taken photos but still cant work out how to post them. Ive put them on photo bucket then
what ?
|
|
|
|
|
Logged
|
|
|
|
|
davit
|
|
« Reply #18 on: May 17, 2015, 11:36:42 AM » |
|
Go to "copy link to clipboard", click "IMG", go back to your reply and in place of message text right click and paste. Sounds more complicated than it is.
|
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #19 on: May 17, 2015, 11:50:06 AM » |
|

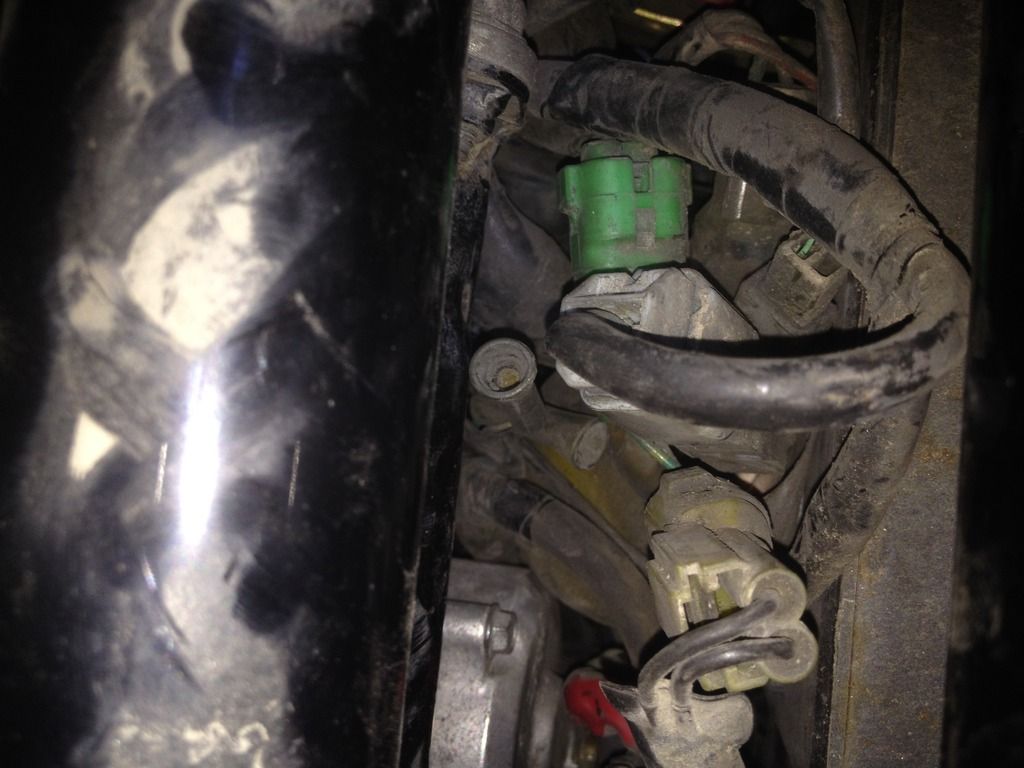

 Here they are when looking down with the side cover off |
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #20 on: May 17, 2015, 11:51:52 AM » |
|

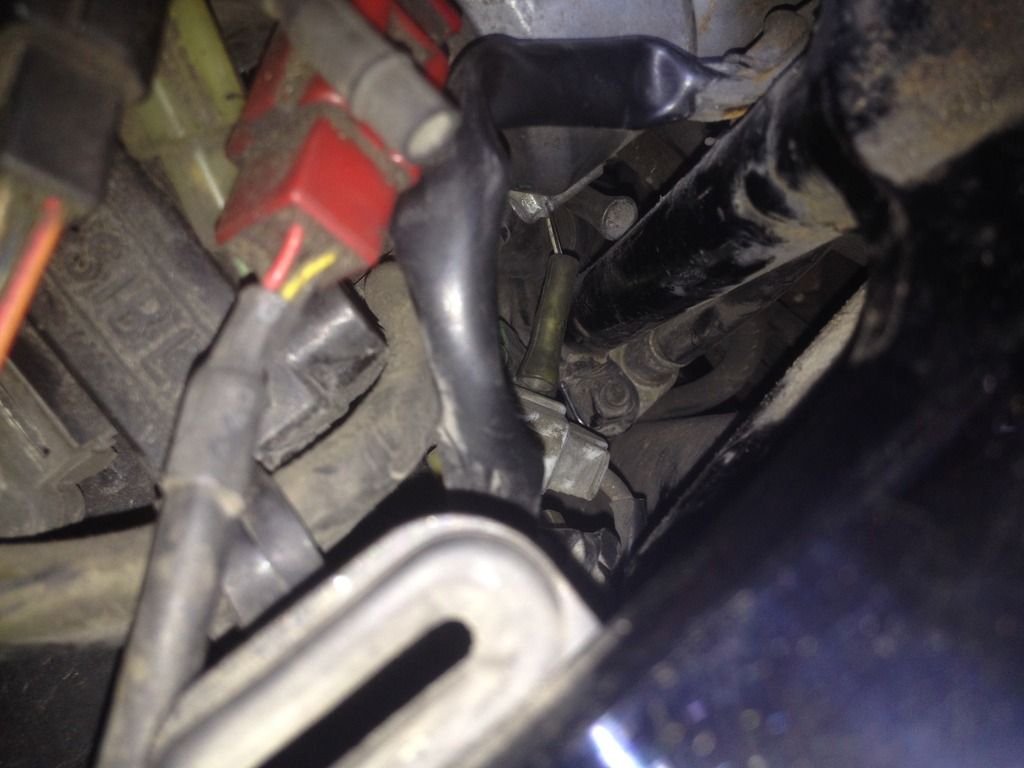

And this is sighted from under the bike  |
|
|
|
|
Logged
|
|
|
|
|
knockdolian
|
|
« Reply #21 on: May 17, 2015, 11:55:37 AM » |
|

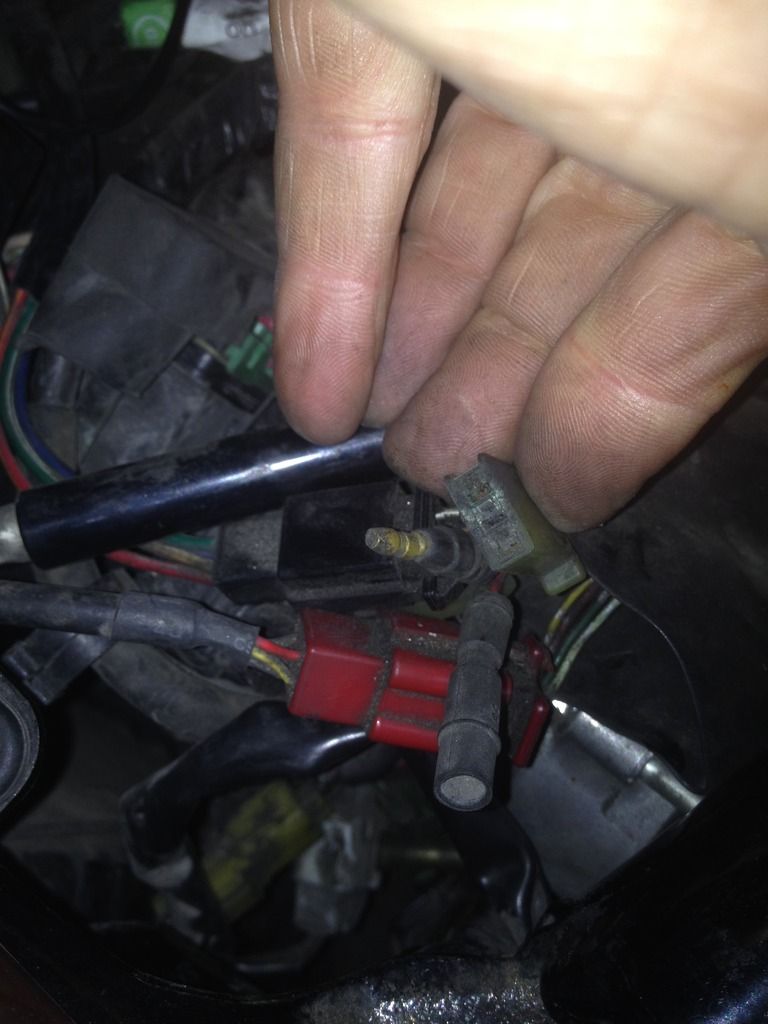

So while Im at it enjoying my new found skill !! What are these terminals also under the right side cover. There is a male, a female and a block with three wires  |
|
|
|
|
Logged
|
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #22 on: May 17, 2015, 12:39:34 PM » |
|
So while Im at it enjoying my new found skill !! What are these terminals also under the right side cover. There is a male, a female and a block with three wires I believe they are part of the CB wiring. |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A |
|
|
|
|
gordonv
Member
Posts: 5762
VRCC # 31419
Richmond BC
|
|
« Reply #24 on: May 17, 2015, 04:20:56 PM » |
|
How about a Volt meter? They can be had for $10 or even less.
|
|
|
|
|
Logged
|
1999 Black with custom paint IS   |
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #25 on: May 17, 2015, 05:54:30 PM » |
|
I dont think those wires are the accessory wires. If there the wires I think they are one is hot and other is a ground. But, the voltage output is about 5 to 6 volts, at least in my case. One wire is red and the other green. As I said above they are needed for the CB. The accessory wire is blue and white striped (as I recall) out of the fuse box and then gets lost in the overall wiring loom going toward the front of the bike. Apparently, it surfaces again but I've never found it on my bike as others have.
|
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A |
|
|
|
davit
|
|
« Reply #26 on: May 17, 2015, 07:00:48 PM » |
|
I dont think those wires are the accessory wires. If there the wires I think they are one is hot and other is a ground. But, the voltage output is about 5 to 6 volts, at least in my case. One wire is red and the other green. As I said above they are needed for the CB. The accessory wire is blue and white striped (as I recall) out of the fuse box and then gets lost in the overall wiring loom going toward the front of the bike. Apparently, it surfaces again but I've never found it on my bike as others have.
Hmm looks like I need to work on my reading skills.  |
|
|
|
|
Logged
|
|
|
|
|
davit
|
|
« Reply #27 on: May 17, 2015, 07:19:40 PM » |
|

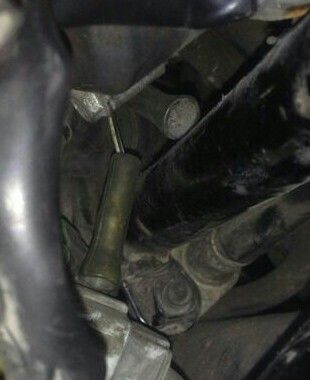

I cropped this from knockedolian's photo . I must be a little slow today so bear with me.... Is this what I'm looking for?  |
|
|
|
|
Logged
|
|
|
|
|
pancho
|
|
« Reply #28 on: May 17, 2015, 08:05:23 PM » |
|
The way I found the accessory wires on my standard was to undo the cable clamps on the frame, and pull the main wiring harness out of them. The accessory connector was wrapped up back there in a way that it could not be seen without pulling the harness out of the clamps.  I was doing some other wiring work at the time I found it as I had been convinced for awhile that my bike did not have the accessory connector. I had looked for it many times and never found it. It's back there Salty1. |
|
|
|
« Last Edit: May 17, 2015, 08:11:23 PM by pancho »
|
Logged
|
The most expensive things you will purchase, are those things you would not have needed if you had listened and obeyed.
|
|
|
|
knockdolian
|
|
« Reply #29 on: May 19, 2015, 11:51:17 AM » |
|
I cropped this from knockedolian's photo . I must be a little slow today so bear with me.... Is this what I'm looking for? Yep that's the ones. I fount that they are only hot with ignition on and not ACC ? don't know why but the are. As stated the other ones have a high volt drop. Get right under the bike and have a good look with a torch. As stated they are there  |
|
|
|
|
Logged
|
|
|
|
mustang071965
Member
Posts: 165
those that dare, Succeed.
monticello Ar
|
|
« Reply #30 on: May 20, 2015, 12:24:15 PM » |
|
those are the Acc wires. one is + one- you will have to use a test light to find the + one. the 3 wire plug. is for a CB. its the power plug.
|
|
|
|
|
Logged
|
|
|
|
|
