Author Topic: Power distribution panel  (Read 1059 times)
Ramie
Member
*****
Posts: 1318


2001 I/S St. Michael MN
« on: August 17, 2015, 05:06:23 PM »
I don't like having to run an additional power line to the battery every time I add something to my ride and was thinking of going with something like a 4 or 6 fuse power distribution panel.  Not sure where I would put it but there must be somewhere.  Just wondering what everyone else does and would appreciate any pic's or links.
Logged
“I am not a courageous person by nature. I have simply discovered that, at certain key moments in this life, you must find courage in yourself, in order to move forward and live. It is like a muscle and it must be exercised, first a little, and then more and more.  A deep breath and a leap.”
The emperor has no clothes
Member
*****
Posts: 29945
« Reply #1 on: August 17, 2015, 05:22:36 PM »
Mine is in the tool spot behind the battery.
Logged
BF
Member
*****
Posts: 9932


Fort Walton Beach, Florida I'm a simple man, I like pretty, dark haired woman and breakfast food.
« Reply #2 on: August 17, 2015, 06:14:31 PM »
I have the Eastern Beaver PC-8.

http://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html

I put it behind the battery in that area where the tool kit was.
Logged
I can't help about the shape I'm in
I can't sing, I ain't pretty and my legs are thin
But don't ask me what I think of you
I might not give the answer that you want me to

Bighead
Member
*****
Posts: 8654


Madison Alabama
« Reply #3 on: August 17, 2015, 07:08:47 PM »
Quote from: BF on August 17, 2015, 06:14:31 PM
I have the Eastern Beaver PC-8.

http://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html

I put it behind the battery in that area where the tool kit was.

+1  cooldude I dd the same.
Logged
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
BigBad1
Member
*****
Posts: 112


1999 Interstate

Garner NC
« Reply #4 on: August 17, 2015, 07:58:58 PM »
Quote from: BF on August 17, 2015, 06:14:31 PM
I have the Eastern Beaver PC-8.

http://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html

I put it behind the battery in that area where the tool kit was.


Plus one more. I have the same fuse box - same location cooldude
Logged
Valkpilot
Member
*****
Posts: 2151


What does the data say?

Corinth, Texas
« Reply #5 on: August 17, 2015, 08:29:09 PM »
Good advice so far.

I did this: http://www.valkyrieforum.com/bbs/index.php/topic,63796.0.html
Logged
VRCC #19757
IBA #44686
1998 Black Standard
2007 Goldwing


hubcapsc
Member
*****
Posts: 16781


upstate

South Carolina
« Reply #6 on: August 17, 2015, 08:51:36 PM »

I got a programmable 60-amp-rated circuit breaker...



http://www.valkyrieforum.com/bbs/index.php/topic,63259.0.html

-Mike
Logged
https://sites.google.com/a/g.clemson.edu/confederate-memorial-day-at-clemson/
pago cruiser
Member
*****
Posts: 534


Tucson - Its a dry heat
« Reply #7 on: August 17, 2015, 10:21:12 PM »

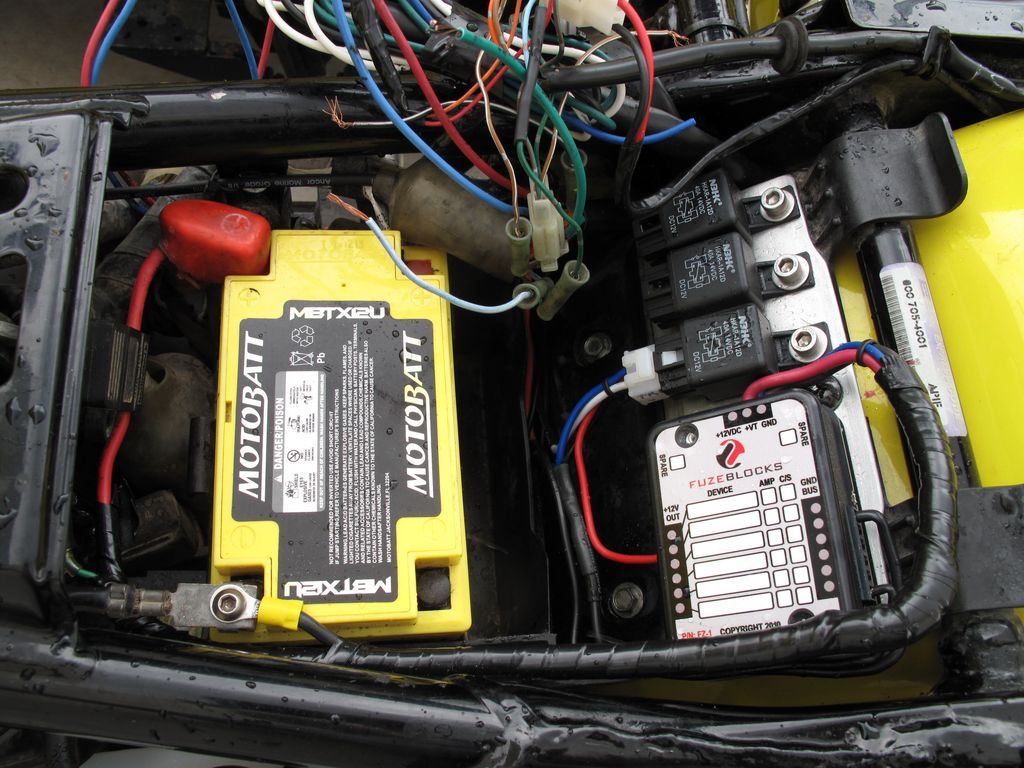

Not completed yet in this pic, but you get the idea.
One main connection to the battery, trigger fed from the stock "switched" connection under the right side cover.
Each connection to the Fuzeblock can be always live or switched.
(3) relays.  1 for driving lights, 1 for the air horn, and 1 for our electric heated vests/gloves. And (1) wrapped in a sock in the tool tray as a spare... Grin



I'll try to post a completed pic later.
Logged
Just because you are not paranoid doesn't mean they're not out to get you
BobB
Member
*****
Posts: 1568


One dragon on the tail of another.
« Reply #8 on: August 18, 2015, 05:35:12 AM »
Here is another location alternative, again using an Eastern Beaver PC-8.  Perhaps a little more work, but on a Tourer, I consider the tool box area too valuable to be used for electrical stuff...
« Last Edit: August 18, 2015, 05:57:19 AM by BobB » Logged
salty1
Member
*****
Posts: 2359


"Flyka"

Spokane, WA or Tucson, AZ
« Reply #9 on: August 18, 2015, 05:49:04 AM »
Quote from: meathead on August 17, 2015, 05:22:36 PM
Mine is in the tool spot behind the battery.

Works out quite well.  cooldude
Logged
My rides:
1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A
