Author Topic: Electric connections  (Read 1399 times)
idaida98
Member
*****
Posts: 244
« on: January 24, 2021, 07:00:47 AM »
Has anyone used the Danali PowerPoint Hub 2 to connect accesories? What are your views good or bad?
Logged
Bighead
Member
*****
Posts: 8654


Madison Alabama
« Reply #1 on: January 24, 2021, 08:03:28 AM »
No help here I used an eastern beaver pc-8
http://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html
« Last Edit: January 24, 2021, 08:11:54 AM by Bighead » Logged
1997 Bumble Bee
1999 Interstate (sold)
2016 Wing
Jersey
Member
*****
Posts: 545


VRCC #37540

Southern Maryland
« Reply #2 on: January 24, 2021, 08:07:04 AM »
Quote from: idaida98 on January 24, 2021, 07:00:47 AM
Has anyone used the Danali PowerPoint Hub 2 to connect accesories? What are your views good or bad?

The reviews seem to review two things: 1. lack of water/moisture resiliency and 2. weak solder joints.

The $135 seems a little high for only six circuits.
Logged
Jersey
f-Stop
Member
*****
Posts: 1810


'98 Standard named Hildr

Driftwood, Texas
« Reply #3 on: January 24, 2021, 08:22:59 AM »
This guy also makes some good electric terminals and stuff...

http://www.cycleterminal.com/index.html
Logged

Had my blinker on across three states!
Jersey
Member
*****
Posts: 545


VRCC #37540

Southern Maryland
« Reply #4 on: January 24, 2021, 09:47:02 AM »

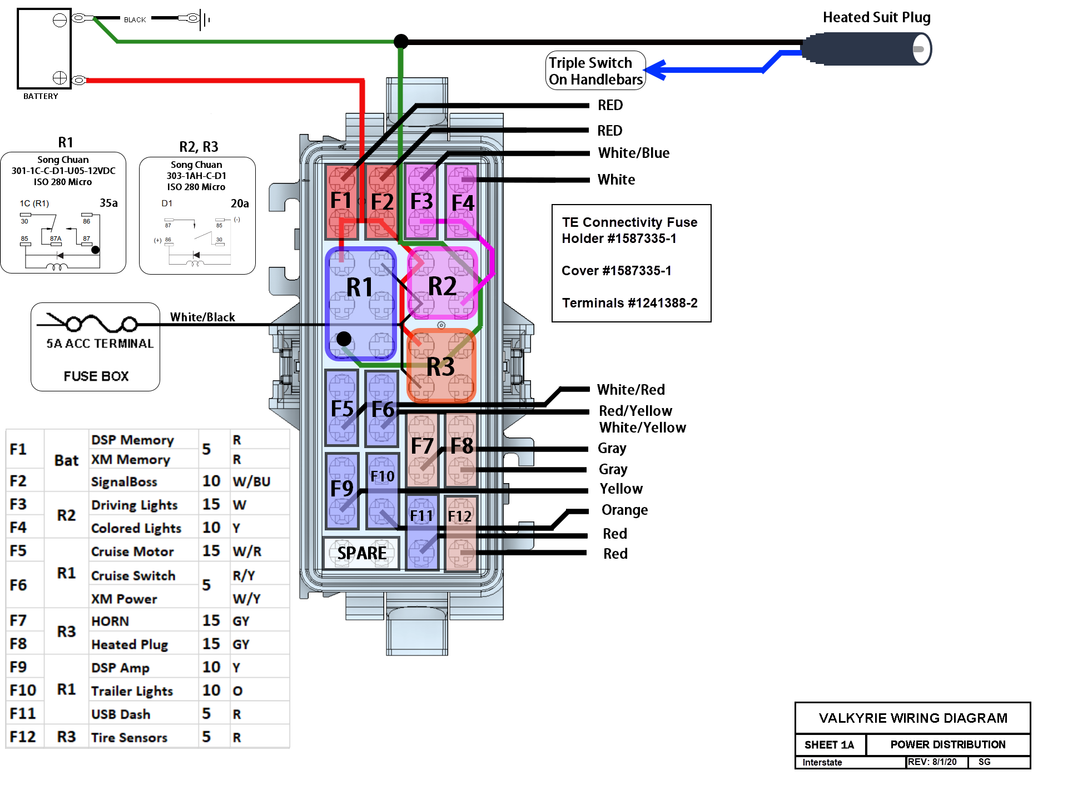

I created my own Power Block using the TE Connectivity to make a 12 circuit setup:

Here are the parts I used:
  • TE Connectivity Fuse Holder #1587335-1
  • Cover #1587335-1
  • Terminals #1241388-2

Uses Mini ATM fuses and relays (see diagram for part numbers)
This can be tucked in the compartment behind the battery if there is nothing else there.  I tucked this in the space in front of the battery and above the OEM relays.
Total cost was about $70 for parts and new wiring where needed.
Logged
Jersey
idaida98
Member
*****
Posts: 244
« Reply #5 on: January 26, 2021, 07:23:47 AM »
I wish I could look at that schematic and see out of my crossed eyes.
Logged
Gondul
Member
*****
Posts: 260


VRCC #408

Central Florida
« Reply #6 on: January 26, 2021, 08:40:58 AM »
Quote from: Bighead on January 24, 2021, 08:03:28 AM
No help here I used an eastern beaver pc-8
http://www.easternbeaver.com/Main/Wiring_Kits/Fuseboxes/PC-8/pc-8.html


Eastern Beaver as well...
Logged
As the Government of the United States of America is not, in any sense, founded on the Christian religion....
John Adams - 1797

Because Thou lovest the Burning-ground,
I have made a Burning-ground of my heart
That Thou, Dark One, hunter of the Burning-ground,
Mayest dance Thy eternal dance.
Fazer
Member
*****
Posts: 947


West Chester (Cincinnati), Ohio
« Reply #7 on: February 01, 2021, 08:53:25 AM »
Easter Beaver PC-8 for me too.  Also have one of son's valk.  I had a cheap fuse block before and it left me stranded.  Learned once again that you get what you pay for.  The EB unit is well made.  Get the connector system for it and you have everything you need for all your accessories.
Logged
Nothing in moderation...
Avanti
Member
*****
Posts: 1403


Stoughton, Wisconsin
« Reply #8 on: February 01, 2021, 11:22:04 AM »
Jersey,
Very nice design with integrated mini relays.

« Last Edit: February 01, 2021, 11:25:26 AM by Avanti » Logged
9Ball
Member
*****
Posts: 2183


South Jersey
« Reply #9 on: February 02, 2021, 08:39:39 AM »
I used an automotive weather-resistant auxiliary fuse box made by Painless.  It has 3 ignition hot circuits switched by an integral 40A relay.  I use waterproof relays on my individual loads including Stebel horn, driving lights, and GPS/XM radio.

They make bigger auxiliary fuse boxes should you have more loads.  Mine is mounted on a plexiglas plate under the right side cover.

Just another option.
Logged
VRCC #6897, Joined May, 2000

1999 Standard
2007 Rocket 3
2005 VTX 1300S
