How does it c ome off. I changed the gear oil about 5 yrs ago and cannot remember how the filler cap comes off.
Thanks for any help
|
|
|
|
|
Logged
|
|
|
|
|
Chrisj CMA
|
|
« Reply #1 on: March 17, 2010, 12:46:52 PM » |
|
It unscrews...........15 or 17mm I think.........NOW......you wouldnt be talking about the little chrome vent cap that you dont do nothin with wud ya?
|
|
|
|
« Last Edit: March 17, 2010, 12:50:50 PM by Chrisj CMA CR3M »
|
Logged
|
|
|
|
|
Mikey
|
|
« Reply #2 on: March 17, 2010, 12:59:40 PM » |
|
+1... from experience, it makes a real mess of your rear rim if you try to fill thru the vent, then drive on a gravel road.
|
|
|
|
|
Logged
|
Remember folks, street lights timed for 35 mph are also timed for 70 mph
VRCC# 30782
|
|
|
Disco
Member
Posts: 4898
Armed Man=Citizen; Unarmed Man=Subject
Republic of Texas
|
|
« Reply #3 on: March 17, 2010, 01:02:45 PM » |
|
On the expanded drawing at the link below, Part 22 is the drain plug, Part 2 is the fill plug, and Part 5 is the breather cap that you don't need to bother with. 2000 Interstate Final Drive Parts Fiche |
|
|
|
|
Logged
|
2000 Bumblebee "Tourer", 98 Yellow & Cream Tourer, 97 Rescue blower bike 22 CRF450RL, 19 BMW R1250RT 78 CB550K 71 Suzuki MT50 Trailhopper .jpg) VRCC 27,916 IBA 44,783 |
|
|
|
Chrisj CMA
|
|
« Reply #4 on: March 17, 2010, 01:05:17 PM » |
|
+1... from experience, it makes a real mess of your rear rim if you try to fill thru the vent, then drive on a gravel road.
Lemme hazzard a scarry guess.........you filled it through the vent until it started overflowing through the vent so the whole pumkin was slam full.......the thing only takes 150cc and if you use a hose and funnel to pour the 150 cc in on the side stand none will overflow at all. However it is much eaiser to fill it while its off as in a tire change |
|
|
|
|
Logged
|
|
|
|
|
CTNV
|
|
« Reply #5 on: March 17, 2010, 01:20:32 PM » |
|
I understand the unit takes only 5.1 oz of fluid and have not put any back b/c I cannot get the "filler cap" off. The drain plug is back in place with washer torqued to 14 ftlbs but I still need to get the filler cap off to replace the gear oil. Does anyone know how it comes off?
|
|
|
|
|
Logged
|
|
|
|
KY,Dave (AKA Misunderstood)
Member
Posts: 4146
Specimen #30838 DS #0233
Williamsburg, KY
|
|
« Reply #6 on: March 17, 2010, 01:33:45 PM » |
|
I understand the unit takes only 5.1 oz of fluid and have not put any back b/c I cannot get the "filler cap" off. The drain plug is back in place with washer torqued to 14 ftlbs but I still need to get the filler cap off to replace the gear oil. Does anyone know how it comes off?
As stated 2 posts above the filler bolt is number 2 in the schematic. Click on the link. You may be trying to remove the vemnt cap which is #5, not what you want. |
|
|
|
|
Logged
|
|
|
|
|
tlanz
|
|
« Reply #7 on: March 17, 2010, 01:39:20 PM » |
|
Apply a 17mm box or open end wrench (like the one from the on-board toolkit) and turn counter-clockwise. It can be a  to get at since it sits directly behind the muffler. |
|
|
|
|
Logged
|
|
|
|
|
CTNV
|
|
« Reply #8 on: March 17, 2010, 01:49:13 PM » |
|
I must not be explaining myself correctly. I need to fill the unit with fresh oil and it has already been drained. The drain plug as been replaced along with the washer. I cannot get the filler cap off b/c I cannot remeber how it comes off, screws off, pulls off, etc. I do not touch the breather cap and understand there are three options. Drain plug, filler cap and breather cap. Does anyone get it? The filler cap I have turned with an 8mm allen wrench and it does not come off but turns and turns and turns. No, it is not stripped. What is the secret?
|
|
|
|
|
Logged
|
|
|
|
|
Chrisj CMA
|
|
« Reply #9 on: March 17, 2010, 01:54:48 PM » |
|
I must not be explaining myself correctly. I need to fill the unit with fresh oil and it has already been drained. The drain plug as been replaced along with the washer. I cannot get the filler cap off b/c I cannot remeber how it comes off, screws off, pulls off, etc. I do not touch the breather cap and understand there are three options. Drain plug, filler cap and breather cap. Does anyone get it? The filler cap I have turned with an 8mm allen wrench and it does not come off but turns and turns and turns. No, it is not stripped. What is the secret?
Is this a joke? The axle has a hex head on it.........are you cranking on the end of the axle? If so it shouldnt be turning unless the axle nut is off or very loose.........Im confused by what you are trying to do here |
|
|
|
« Last Edit: March 17, 2010, 01:56:38 PM by Chrisj CMA CR3M »
|
Logged
|
|
|
|
Valker
Member
Posts: 3001
Wahoo!!!!
Texas Panhandle
|
|
« Reply #10 on: March 17, 2010, 02:03:50 PM » |
|
The filler cap is about 1 1/2 inches across with a 17 or 19mm hexagonal bolt head molded into it. If you are spinning something, using a hex key on something, or see chrome on it-you are NOT looking at the filler cap. Look at the pictures other folks posted above. It sounds like you are messing with the breather cap to me.
|
|
|
|
|
Logged
|
I ride a motorcycle because nothing transports me as quickly from where I am to who I am.
|
|
|
|
Chrisj CMA
|
|
« Reply #11 on: March 17, 2010, 02:11:38 PM » |
|
The filler cap is about 1 1/2 inches across with a 17 or 19mm hexagonal bolt head molded into it. If you are spinning something, using a hex key on something, or see chrome on it-you are NOT looking at the filler cap. Look at the pictures other folks posted above. It sounds like you are messing with the breather cap to me.
Valker the vent has no hex head on it.....the only thing on the whole pumpkin with a hex head is the end of the axle.......but as I said.......that shouldnt turn unless the nut on the brake side has been loosened or removed.....If the wheel is off the axle and its hex head wouldnt be there to confuse him..........I dont know.......sometimes you wish there was a video |
|
|
|
|
Logged
|
|
|
|
Gryphon Rider
Member
Posts: 5227
2000 Tourer
Calgary, Alberta
|
|
« Reply #12 on: March 17, 2010, 02:20:22 PM » |
|
I must not be explaining myself correctly. I need to fill the unit with fresh oil and it has already been drained. The drain plug as been replaced along with the washer. I cannot get the filler cap off b/c I cannot remeber how it comes off, screws off, pulls off, etc. I do not touch the breather cap and understand there are three options. Drain plug, filler cap and breather cap. Does anyone get it? The filler cap I have turned with an 8mm allen wrench and it does not come off but turns and turns and turns. No, it is not stripped. What is the secret?

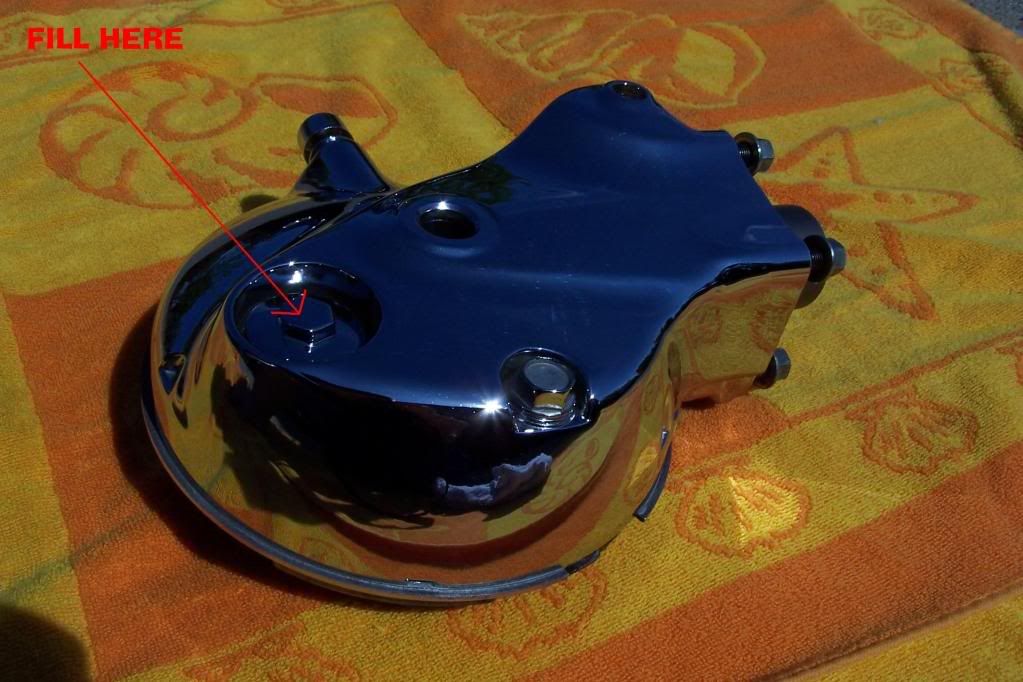

As said by others, the filler cap is removed with a 17mm or 19mm wrench, not an Allen wrench. By the way, #25 in the first picture and #3 in the second picture are shown installed incorrectly. The axle (#3) goes in from the right and the nut (#25) is on the left. It was the axle that you were trying to turn, but the filler plug is #2 (first picture).   From top to bottom in photo below: Vent, Axle Hole, Filler Plug, Drain Plug  |
|
|
|
|
Logged
|
|
|
|
|
Chrisj CMA
|
|
« Reply #13 on: March 17, 2010, 02:23:06 PM » |
|
[/quote] Thats Purdy! WOW |
|
|
|
« Last Edit: March 17, 2010, 02:31:00 PM by Chrisj CMA CR3M »
|
Logged
|
|
|
|
fudgie
Member
Posts: 10613
Better to be judged by 12, then carried by 6.
Huntington Indiana
|
|
« Reply #14 on: March 17, 2010, 02:29:55 PM » |
|
Dang nice chrome!!! I'm with chrisj, I think hes trying the axle, since its the only allen headed bolt. The filler cap is the recessed rearward bolt.
|
|
|
|
|
Logged
|
 Now you're in the world of the wolves... And we welcome all you sheep... VRCC-#7196 VRCCDS-#0175 DTR PGR |
|
|
|
CTNV
|
|
« Reply #15 on: March 17, 2010, 02:36:12 PM » |
|
Now u can see in the chrome housing picture the empty hole is the filler cap and I cannot figure out how it comes out.
|
|
|
|
|
Logged
|
|
|
|
|
vanagon40
|
|
« Reply #16 on: March 17, 2010, 02:50:28 PM » |
|
|
|
|
|
|
Logged
|
|
|
|
fudgie
Member
Posts: 10613
Better to be judged by 12, then carried by 6.
Huntington Indiana
|
|
« Reply #17 on: March 17, 2010, 02:51:22 PM » |
|
|
|
|
|
|
Logged
|
Now you're in the world of the wolves... And we welcome all you sheep... VRCC-#7196 VRCCDS-#0175 DTR PGR |
|
|
Smokinjoe-VRCCDS#0005
Member
Posts: 13833
American by Birth, Southern by the Grace of God.
Beautiful east Tennessee ( GOD'S Country )
|
|
« Reply #18 on: March 17, 2010, 02:52:17 PM » |
|
[/quote] That's nice ...Mind if I ask what the cost was to get that done ?
|
|
|
|
|
Logged
|
 I've seen alot of people that thought they were cool , but then again Lord I've seen alot of fools. |
|
|
Disco
Member
Posts: 4898
Armed Man=Citizen; Unarmed Man=Subject
Republic of Texas
|
|
« Reply #19 on: March 17, 2010, 03:00:11 PM » |
|
Hey Gryphon Rider, That's the prettiest pumpkin I've ever seen!  And, GREAT catch on the error in the expanded drawings! DFG |
|
|
|
|
Logged
|
2000 Bumblebee "Tourer", 98 Yellow & Cream Tourer, 97 Rescue blower bike 22 CRF450RL, 19 BMW R1250RT 78 CB550K 71 Suzuki MT50 Trailhopper VRCC 27,916 IBA 44,783 |
|
|
|
Chrisj CMA
|
|
« Reply #20 on: March 17, 2010, 03:14:58 PM » |
|
Now u can see in the chrome housing picture the empty hole is the filler cap and I cannot figure out how it comes out.
Ok, so you have been cranking on the axle.........my question is ... Why does it turn.....if the thing was torqued to 81ftlbs theres no way your gonna turn it with an allen key???? |
|
|
|
« Last Edit: March 17, 2010, 03:18:04 PM by Chrisj CMA CR3M »
|
Logged
|
|
|
|
|
CTNV
|
|
« Reply #21 on: March 17, 2010, 03:27:50 PM » |
|
Thanks. I was messing with the axle nut.
|
|
|
|
|
Logged
|
|
|
|
6jugzz
Member
Posts: 307
LUV2RIDE...buy safety chrome
Rock hill,SC
|
|
« Reply #22 on: March 17, 2010, 03:37:21 PM » |
|
Now u can see in the chrome housing picture the empty hole is the filler cap and I cannot figure out how it comes out.
 All I can say is.............You need Fu*king HELP!!  |
|
|
|
|
Logged
|
Valkyrie...ride the best, love the rest!  |
|
|
valkyriemc
Member
Posts: 392
2000 blu/slvr Interstate, 2018 Ultra Limited
NE Florida
|
|
« Reply #23 on: March 17, 2010, 04:24:53 PM » |
|
Geeze the guys got 5 posts cut him some slack! I remember asking abt the choke in 2002. It all seems fairly easy when you have done this maintenance for years...
|
|
|
|
|
Logged
|
Veteran USN '70-'76
|
|
|
|
Oyeaa
|
|
« Reply #24 on: March 17, 2010, 05:50:51 PM » |
|
That Pumpkin was Chromed for me by HARD 6 and he does great work. Super nice guy. Seems like it was around $450 back in the day.   That's nice ...Mind if I ask what the cost was to get that done ? [/quote] |
|
|
|
|
Logged
|
|
|
|
Valker
Member
Posts: 3001
Wahoo!!!!
Texas Panhandle
|
|
« Reply #25 on: March 17, 2010, 06:09:38 PM » |
|
The filler cap is about 1 1/2 inches across with a 17 or 19mm hexagonal bolt head molded into it. If you are spinning something, using a hex key on something, or see chrome on it-you are NOT looking at the filler cap. Look at the pictures other folks posted above. It sounds like you are messing with the breather cap to me.
Valker the vent has no hex head on it.....the only thing on the whole pumpkin with a hex head is the end of the axle.......but as I said.......that shouldnt turn unless the nut on the brake side has been loosened or removed.....If the wheel is off the axle and its hex head wouldnt be there to confuse him..........I dont know.......sometimes you wish there was a video Chris, notice I said the filler cap, not the vent. A hex head is a six sided bolt head, a recessed hex hole is usually referred to as Allen head and uses a 'key' to open. |
|
|
|
|
Logged
|
I ride a motorcycle because nothing transports me as quickly from where I am to who I am.
|
|
|
|
Chrisj CMA
|
|
« Reply #26 on: March 17, 2010, 07:24:11 PM » |
|
The filler cap is about 1 1/2 inches across with a 17 or 19mm hexagonal bolt head molded into it. If you are spinning something, using a hex key on something, or see chrome on it-you are NOT looking at the filler cap. Look at the pictures other folks posted above. It sounds like you are messing with the breather cap to me.
Valker the vent has no hex head on it.....the only thing on the whole pumpkin with a hex head is the end of the axle.......but as I said.......that shouldnt turn unless the nut on the brake side has been loosened or removed.....If the wheel is off the axle and its hex head wouldnt be there to confuse him..........I dont know.......sometimes you wish there was a video Chris, notice I said the filler cap, not the vent. A hex head is a six sided bolt head, a recessed hex hole is usually referred to as Allen head and uses a 'key' to open. I know Valker......I was referring to the fact he said he used an 8mm allen on something so it couldnt be the vent cap......thats all. He has us all going cause he was calling the axle the fill cap........jus tone of them things |
|
|
|
|
Logged
|
|
|
|
Gryphon Rider
Member
Posts: 5227
2000 Tourer
Calgary, Alberta
|
|
« Reply #27 on: March 17, 2010, 11:26:12 PM » |
|
Hey Gryphon Rider, That's the prettiest pumpkin I've ever seen! And, GREAT catch on the error in the expanded drawings! DFG All I can claim with the part pictured is fantastically amazing internet search skills! I searched "valkyrie final drive" in google images and this (with similar photos) appeared amongst the clutter. Also, I seem to remember someone else pointing out the part drawing error awhile ago, so I wasn't surprised to see it. |
|
|
|
|
Logged
|
|
|
|
|
sugerbear
|
|
« Reply #28 on: March 18, 2010, 08:25:06 PM » |
|
now..............about that loose axle...............
|
|
|
|
|
Logged
|
|
|
|
Hoser
Member
Posts: 5844
child of the sixties VRCC 17899
Auburn, Kansas
|
|
« Reply #29 on: March 19, 2010, 05:14:42 AM » |
|
I hope he tightens it......? ??? hoser
|
|
|
|
|
Logged
|
I don't want a pickle, just wanna ride my motor sickle  [img width=300 height=233]http://i617.photobucket.com/albums/ |
|
|
|
Mikey
|
|
« Reply #30 on: March 19, 2010, 06:27:08 AM » |
|
+1... from experience, it makes a real mess of your rear rim if you try to fill thru the vent, then drive on a gravel road.
Lemme hazzard a scarry guess.........you filled it through the vent until it started overflowing through the vent so the whole pumkin was slam full.......the thing only takes 150cc and if you use a hose and funnel to pour the 150 cc in on the side stand none will overflow at all. However it is much eaiser to fill it while its off as in a tire change I'm not sure how full I filled it... but it emptied about as fast as I had filled it, once I started riding  After that, I got back on here, learned of my error, and drained and properly refilled the rear end. SH** happens... live and learn, and hope like hell you don't break anything while you're learning ! |
|
|
|
|
Logged
|
Remember folks, street lights timed for 35 mph are also timed for 70 mph
VRCC# 30782
|
|
|
|
RALANDRY51
|
|
« Reply #31 on: April 03, 2010, 01:24:03 PM » |
|
Ok i should have read here first as the manual confused me. I did drain it and fill it through the breather cap apparently. And I did have a bit of a mess afterword. I did not fill it to overflowing and did only put 5.1oz in. Bent the cap up pretty good also trying to figure how that came off (ordered a new one today). Anyway I just added some more gear oil as I don't know how much I lost or why it apparently dripped out of the breather cap. Not sure if I should drain and refill the proper way now before taking a 1800 mile trip from Escondido through Death Valley to Northern CA coast. Did the oil I put into the breather cap get to the right place? Need a GOOD opinion ASAP leaving on Monday and need to figure if i need to do something today as I will be busy looking for Easter Eggs tomorrow all day!
Thanks,
Rich
|
|
|
|
|
Logged
|
|
|
|
|
Chrisj CMA
|
|
« Reply #32 on: April 03, 2010, 02:03:27 PM » |
|
Ok i should have read here first as the manual confused me. I did drain it and fill it through the breather cap apparently. And I did have a bit of a mess afterword. I did not fill it to overflowing and did only put 5.1oz in. Bent the cap up pretty good also trying to figure how that came off (ordered a new one today). Anyway I just added some more gear oil as I don't know how much I lost or why it apparently dripped out of the breather cap. Not sure if I should drain and refill the proper way now before taking a 1800 mile trip from Escondido through Death Valley to Northern CA coast. Did the oil I put into the breather cap get to the right place? Need a GOOD opinion ASAP leaving on Monday and need to figure if i need to do something today as I will be busy looking for Easter Eggs tomorrow all day!
Thanks,
Rich
The oil got to the right place......but Id drain it all out and put 150cc of synthetic hypoid gear oil in befre such a trip |
|
|
|
|
