cef2lion
|
 |
« on: March 25, 2010, 07:39:05 AM » |
|
I have a '98 standard that the past owner added what looks like Champion bags. I really like them and the lining inside. I'm in the process of adding an IS trunk and I'm facing bag lid issues. Not sure if I can mod the hinge on my bags or I'm going to have to buy IS bags and sell my Champions. Any thoughts?
|
|
|
|
|
Logged
|
|
|
|
|
Hef
|
|
« Reply #1 on: March 25, 2010, 08:01:05 AM » |
|
I encountered the same problem with my Tsukayu bags. What I did was take the hinges off, took them apart. Reinstalled the pin in the one part and on the orher half of the hinge had the bottom loops machine cut to make it a hook. Reinstalled the altered hinges. Works great. This way you can raise the lid and remove it for access. When it is latched on the bag you cannot tell it has been cut and without undoing the latch it is impossible to remove the lid.
|
|
|
|
|
Logged
|
|
|
|
Black Dog
Member
Posts: 2606
VRCC # 7111
Merton Wisconsin 53029
|
|
« Reply #2 on: March 25, 2010, 08:18:38 AM » |
|
The only parts that are different, are the front hooks/hinges (and the cables for hanging the lids on the side, if you want that).
I have Champion bags, and traded the guy I got my trunk from, for his I/S front hooks. I gave him my front hinges (he was making a Super Valk), and everything was interchangeable (yes, the Champion hinges fit his I/S bags, and his I/S hooks, fit my Champion bags). Now, when I open my bags, I just put the lid on my seat, or in my trunk.
You should be able to order the front I/S hooks, from any Honda store.
Black Dog
|
|
|
|
|
Logged
|
Just when the highway straightened out for a mile And I was thinkin' I'd just cruise for a while A fork in the road brought a new episode Don't you know... Conform, go crazy, or ride a motorcycle...  |
|
|
|
cef2lion
|
|
« Reply #3 on: March 25, 2010, 10:31:04 AM » |
|
Black Dog
Thanks for that info. It is well received.
By the way. The champions look so close to the Honda ones I wonder. Mine have the guard around the bags as well as the rack on top the lids. Could they be the HondaLine accessories and fit the champion bags.
Craig
|
|
|
|
« Last Edit: March 25, 2010, 10:36:45 AM by cef2lion »
|
Logged
|
|
|
|
Black Dog
Member
Posts: 2606
VRCC # 7111
Merton Wisconsin 53029
|
|
« Reply #4 on: March 25, 2010, 11:42:05 AM » |
|
I'm pretty sure the 'lids' to my Champion bags are 'double wall'... Never thought of drilling through the lids, for the racks, so I'm not sure. As far as the Honda bag rails (around the bags) I would think that they might fit, with some 'fitting'  Here is an older picture of my bags with the Champion crash bars...  Black Dog |
|
|
|
|
Logged
|
Just when the highway straightened out for a mile And I was thinkin' I'd just cruise for a while A fork in the road brought a new episode Don't you know... Conform, go crazy, or ride a motorcycle... |
|
|
|
BF
|
|
« Reply #5 on: March 25, 2010, 04:28:20 PM » |
|

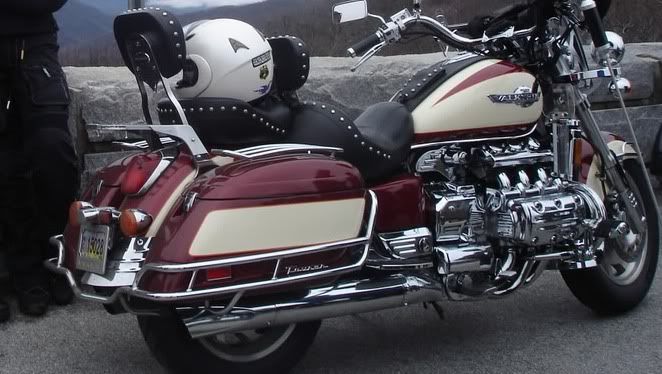

I asked that question about the Honda bag rails here a couple weeks ago. Smokin' Joe says they fit the Champion bags and provided this picture as proof.......  I assumed they'll fit, but in the pic, the bags rails don't look level and look as though they're slightly angled down towards the rear. Maybe it's just me or the angle the photo was taken.....don't know. But then again, there was an ad in the VRCC classifieds a week or two back. In it, someone had a set of Honda bag rails that they were selling. They said that the reason they were selling them was that they had the Champion hard bags on their bike and the Honda rails wouldn't fit. So, the debate continues I suppose. |
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to  |
|
|
|
Warlock
|
|
« Reply #6 on: March 25, 2010, 04:49:11 PM » |
|
I asked that question about the Honda bag rails here a couple weeks ago. Smokin' Joe says they fit the Champion bags and provided this picture as proof....... I assumed they'll fit, but in the pic, the bags rails don't look level and look as though they're slightly angled down towards the rear. Maybe it's just me or the angle the photo was taken.....don't know. But then again, there was an ad in the VRCC classifieds a week or two back. In it, someone had a set of Honda bag rails that they were selling. They said that the reason they were selling them was that they had the Champion hard bags on their bike and the Honda rails wouldn't fit. So, the debate continues I suppose. They will fit. That is a picture of my buddy bike. He lives around Hattiesburg and still rides the bike. He is coming over next weekend and we are rebuilding his forks and installing steering bearing. If you need any info let me know and I can see how they are mounted. David |
|
|
|
|
Logged
|
 I don't want to hear the labor pains, I just want to see the baby |
|
|
|
BF
|
|
« Reply #7 on: March 25, 2010, 04:53:20 PM » |
|
A tutorial including pics on installing the Honda bag rails with the Champion Patriot hardbags would really be awesome......hint, hint. |
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to |
|
|
|
Warlock
|
|
« Reply #8 on: March 25, 2010, 06:05:30 PM » |
|
A tutorial including pics on installing the Honda bag rails with the Champion Patriot hardbags would really be awesome......hint, hint. I'll see what I can do. David |
|
|
|
|
Logged
|
I don't want to hear the labor pains, I just want to see the baby |
|
|
X Ring
Member
Posts: 3626
VRCC #27389, VRCCDS #204
The Landmass Between Mobile And New Orleans
|
|
« Reply #9 on: March 25, 2010, 06:40:34 PM » |
|
BF, you obviously didn't look at the pics I posted showing the bottom and back of those bags and the Hondaline bag rails. Here's the link http://www.valkyrieforum.com/bbs/index.php/topic,13809.0.html. Got look at the last post. Marty |
|
|
|
|
Logged
|
People are more passionately opposed to wearing fur than leather because it's safer to harass rich women than bikers.  |
|
|
|
BF
|
|
« Reply #10 on: March 25, 2010, 07:36:53 PM » |
|
No, I guess I didn't. Don't remember seeing those. Thanks. From those pics, it looks like they'll bolt right up.
However, to clarify, are they a direct bolt-on/fit? Or, is there some degree of massaging to do get 'em to fit/work?
|
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to |
|
|
X Ring
Member
Posts: 3626
VRCC #27389, VRCCDS #204
The Landmass Between Mobile And New Orleans
|
|
« Reply #11 on: March 25, 2010, 08:38:02 PM » |
|
From my understanding you'll be doing some fab. You'll have to drill the bottom of the bag to attach the bottom mount of the rails.
Marty
|
|
|
|
|
Logged
|
People are more passionately opposed to wearing fur than leather because it's safer to harass rich women than bikers. |
|
|
|
JimL
|
|
« Reply #12 on: March 26, 2010, 05:09:01 AM » |
|
Here is an older picture of my bags with the Champion crash bars... Black Dog Black Dog...that's the first picture I have seen of you bike where the rear wheel was visible. Is that a custom wheel, or is that some sort of "bling" that has been added to the stock wheel? |
|
|
|
|
Logged
|
|
|
|
Black Dog
Member
Posts: 2606
VRCC # 7111
Merton Wisconsin 53029
|
|
« Reply #13 on: March 26, 2010, 05:28:16 AM » |
|
Black Dog...that's the first picture I have seen of you bike where the rear wheel was visible. Is that a custom wheel, or is that some sort of "bling" that has been added to the stock wheel?
Jim,
Yep, both front and rear, are RC Component 'Smoothies' (solid disc wheels)... Like so many other things on my bike, they are no longer available. I powder coated the center of the brake rotors and the rear drive hub when I put the wheels on.
Black Dog
|
|
|
|
|
Logged
|
Just when the highway straightened out for a mile And I was thinkin' I'd just cruise for a while A fork in the road brought a new episode Don't you know... Conform, go crazy, or ride a motorcycle... |
|
|
|
cef2lion
|
|
« Reply #14 on: May 03, 2010, 06:32:33 AM » |
|
I ordered the Honda IS hinges. The hinge for the bag came in first all all looked promising. I just got the back ordered hinge that goes on the lid. Just doesn't look like it will attach to the lid in a way that will work with the hinge on the bag. What I ordered from HDL was:
81317-MBY-000 HOOK, SADDLEBAG LID
81318-MBY-000 CATCH, SADDLEBAG LID
Going to take another look at it. Wonder if anyone with Champion bags could post a pix of the hinge area with the IS hinges installed. I think I have Champion bags. With the lid installed. My upper hinge on the Champion is bolted on horizontal. The IS upper hinge appears to want to bolt on vertical.
|
|
|
|
|
Logged
|
|
|
|
Black Dog
Member
Posts: 2606
VRCC # 7111
Merton Wisconsin 53029
|
|
« Reply #15 on: May 03, 2010, 07:47:27 AM » |
|
cef2lion, Like I posted earlier, I've got the Champions, and traded front hinges for the I/S 'hooks', from the guy I got my I/S trunk from... Here's a pic of the underside of my lid, showing the 'hook' and how it mounts...  Here is a pic, taken of the 'loop' where the 'hook' grabs on...  And one more pic, showing the nuts that hold the 'loop' on the front of the bag (picture taken from inside the bag, looking to the front)...  Hope this helps ya out... Black Dog |
|
|
|
|
Logged
|
Just when the highway straightened out for a mile And I was thinkin' I'd just cruise for a while A fork in the road brought a new episode Don't you know... Conform, go crazy, or ride a motorcycle... |
|
|
|
cef2lion
|
|
« Reply #16 on: May 03, 2010, 07:59:45 AM » |
|
THose pixs answered the question. I'm missing the plate that bolts to the upper lid. First of your series of pictures. The upper hinge then attaches to that. Wouldn't know without your pictures.
81228-MBY-000 NUT, PLATE
Relief. I was a bit worried standing there with the hinges in hand.
|
|
|
|
