RonHolly
Member
Posts: 277
USAF Ret. '68-'92
Tampa, Florida
|
 |
« on: December 21, 2013, 07:20:20 PM » |
|
Does anyone know "what or where" to look for an electronic isolation module to use for the trailer lights. I don't want to chance overload and electrical fire of the moto. Looking to use the moto's battery source to power the trailer lights rather than just tapping into the wiring.
Put the trailer hitch on today and will put the trailer together tomorrow.
|
|
|
|
|
Logged
|
'98 Valkyrie, '05 Triumph Speedmaster
'77 Gold Wing, '81 Gold Wing,
|
|
|
|
BF
|
|
« Reply #1 on: December 21, 2013, 08:32:54 PM » |
|
|
|
|
|
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to  |
|
|
FloridaValkRyder
Member
Posts: 1677
If your offended , you need a history lesson!!
Apopka, Florida
|
|
« Reply #2 on: December 22, 2013, 03:57:25 AM » |
|
I'm not sure how Bill (Grumpy) has his hooked up Ron but he is close to you and may be able to give some advice as well.
Speaking of that..where are you Bill? Haven't seen you on the board lately!
|
|
|
|
|
Logged
|
I still miss her.
|
|
|
RonHolly
Member
Posts: 277
USAF Ret. '68-'92
Tampa, Florida
|
|
« Reply #3 on: December 22, 2013, 05:42:43 AM » |
|
I just bought a new Hopkins 46365, for conventional bulbs, off eBay for $24 shipped. Thanks guys for your help.
|
|
|
|
|
Logged
|
'98 Valkyrie, '05 Triumph Speedmaster
'77 Gold Wing, '81 Gold Wing,
|
|
|
|
Grumpy
|
|
« Reply #4 on: December 22, 2013, 02:00:13 PM » |
|
That is the same one I run, short proof and self powered.
|
|
|
|
|
Logged
|
 Life is like a hot bath. It feels good while you’re in it, but the longer you stay in, the more wrinkled you get. |
|
|
|
Grumpy
|
|
« Reply #5 on: December 22, 2013, 02:00:48 PM » |
|
I'm not sure how Bill (Grumpy) has his hooked up Ron but he is close to you and may be able to give some advice as well.
Speaking of that..where are you Bill? Haven't seen you on the board lately!
Just been real busy, carb repairs etc. |
|
|
|
|
Logged
|
Life is like a hot bath. It feels good while you’re in it, but the longer you stay in, the more wrinkled you get. |
|
|
|
billyboy
|
|
« Reply #6 on: December 22, 2013, 02:11:21 PM » |
|
I just bought a new Hopkins 46365, for conventional bulbs, off eBay for $24 shipped. Thanks guys for your help.
Will this work for LED boat trailer lights? |
|
|
|
|
Logged
|
|
|
|
FloridaValkRyder
Member
Posts: 1677
If your offended , you need a history lesson!!
Apopka, Florida
|
|
« Reply #7 on: December 22, 2013, 03:01:49 PM » |
|
I'm not sure how Bill (Grumpy) has his hooked up Ron but he is close to you and may be able to give some advice as well.
Speaking of that..where are you Bill? Haven't seen you on the board lately!
Just been real busy, carb repairs etc. Just checking on you!! |
|
|
|
|
Logged
|
I still miss her.
|
|
|
|
|
|
Grumpy
|
|
« Reply #9 on: December 23, 2013, 05:15:48 PM » |
|
I use the same converter, have had multiple led lights on it, also towed trailers with incandescent lights. Works fine with either type.
|
|
|
|
|
Logged
|
Life is like a hot bath. It feels good while you’re in it, but the longer you stay in, the more wrinkled you get. |
|
|
RonHolly
Member
Posts: 277
USAF Ret. '68-'92
Tampa, Florida
|
|
« Reply #10 on: December 23, 2013, 05:25:26 PM » |
|
Just checked Hopkins site and it is the one for conventional bulbs. |
|
|
|
|
Logged
|
'98 Valkyrie, '05 Triumph Speedmaster
'77 Gold Wing, '81 Gold Wing,
|
|
|
RonHolly
Member
Posts: 277
USAF Ret. '68-'92
Tampa, Florida
|
|
« Reply #11 on: December 28, 2013, 03:28:03 PM » |
|
I'm really having one heck of a time finding out what's going on with the license plate lite. I traced both the tail/brake lite and the plate/turn signal wiring color coded wires to the center junction, next to battery, and are correct "but" got some problems. If I hook same color coded wires at that junction I get nothing. If I switch the Grn/Yel wires to the Brn/Wht wires I get brake/running lite and turn signals but not license light. The license plate light will work when brake is applied. This tells me something is screwed up from juction to forward of bike. I also have a Grn/Spot wire and a Wht/Red wire that were cut and left hanging to forward of the junction. Any electrical "Guru's" here to lend a hand? Thanks
I could take a picture tomorrow if anyone wants to see the actual wires I'm describing?
|
|
|
|
« Last Edit: December 28, 2013, 03:31:22 PM by RonHolly »
|
Logged
|
'98 Valkyrie, '05 Triumph Speedmaster
'77 Gold Wing, '81 Gold Wing,
|
|
|
|
Thunderbolt
|
|
« Reply #12 on: December 28, 2013, 03:38:38 PM » |
|
Ron, check out these schematics that RP Brown has on the Rattlebars page. They are easier to read than looking at the paper documents or any of the other published sites. The left column is for Standard and Tourer and the right column is for Interstate. RP put a lot of effort into these schematics. He is also a very good source for Valkyrie electrical information. Be a good idea to bookmark this link. http://www.rattlebars.com/valkfaq/schematics/index.html |
|
|
|
|
Logged
|
|
|
|
RonHolly
Member
Posts: 277
USAF Ret. '68-'92
Tampa, Florida
|
|
« Reply #13 on: December 28, 2013, 03:53:42 PM » |
|
Thanks Thunderbolt! I looked at the various diagrams and did find a rear fender split which I did not see before up above the rear tire area. Guess I'll have a look tomorrow. Don't think that will be the problem though. It's probably a plug to plug with not mods to it. The two dangling wires are probably a switched accessory connection.
|
|
|
|
|
Logged
|
'98 Valkyrie, '05 Triumph Speedmaster
'77 Gold Wing, '81 Gold Wing,
|
|
|
|
BF
|
|
« Reply #14 on: December 28, 2013, 03:57:51 PM » |
|

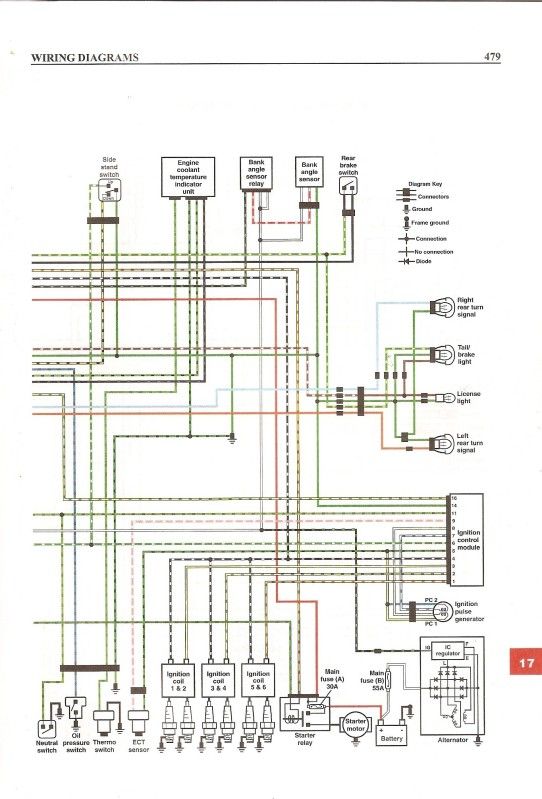

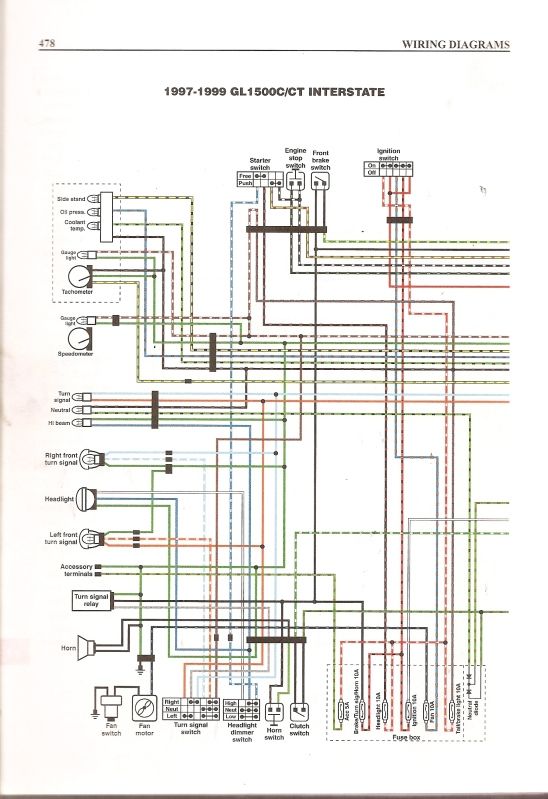

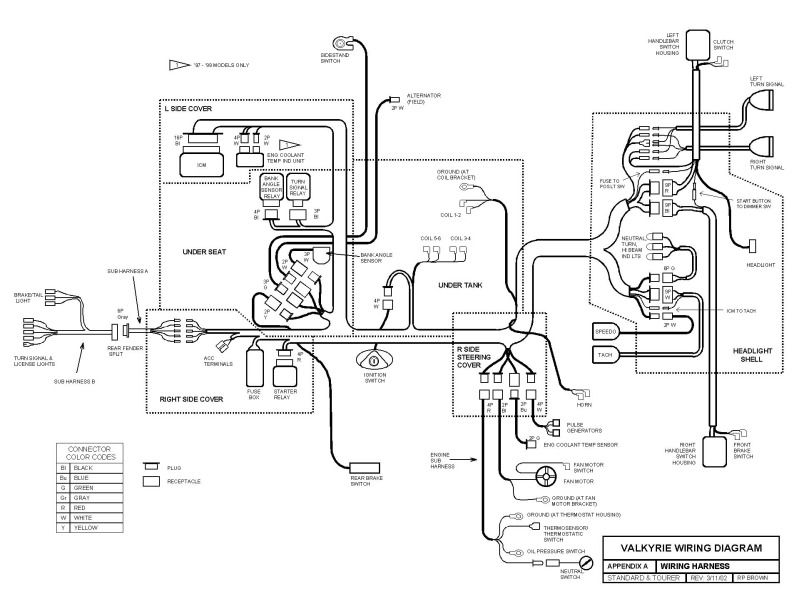

When I was remodeling my Valk, and wiring in new components and re-wiring the hornets nest at the rear fender, these 3 wiring schematics saved my butt several times.    The color diagrams are in the back of the Clymers manual. The Honda manual has black and white diagrams......totally useless to me. I need color. The wiring diagrams in the back of the Clymers manual are IMHO, priceless. Get yerself a Clymers manual. |
|
|
|
« Last Edit: December 28, 2013, 04:01:07 PM by BF »
|
Logged
|
I can't help about the shape I'm in I can't sing, I ain't pretty and my legs are thin But don't ask me what I think of you I might not give the answer that you want me to |
|
|
RonHolly
Member
Posts: 277
USAF Ret. '68-'92
Tampa, Florida
|
|
« Reply #15 on: December 28, 2013, 04:17:22 PM » |
|
Yes I already have two Clymer's and have been looking at the schematics. My problem is from junction, under right cover, to a forward wiring problem. As I've said, matching color coded wires at juction, nothing works. Crossing produces results but not license plate light except when brake is applied.
I'm thinking of disconnecting the Brn wire, at the license plate, and running a new wire up to the brake light assembly, and connecting it to the running light side of the brake light.
|
|
|
|
« Last Edit: December 28, 2013, 04:23:23 PM by RonHolly »
|
