Author Topic: Front turn signal  (Read 697 times)
cogsman
Member
*****
Posts: 260


Newmarket, Ontario, Canada
« on: July 24, 2016, 04:51:29 PM »
I broke a bolt mounting my turn signal back on the forks. For $20 I got a replacement on eBay, and it came with three wires terminating in spades.

Can I just cut my existing wire and splice these three in, cover with electrical tape, and I'm good to go?

Are there any considerations, or best practices?
Logged
98valk
Member
*****
Posts: 13477


South Jersey
« Reply #1 on: July 24, 2016, 05:23:07 PM »
best most common long term is usually solder and heat shrink.

crimp tool and end connections.

I've seen wires wrapped around a bolt and held together with the nut, then heat shrink.
Logged
1998 Std/Tourer, 2007 DR200SE, 1981 CB900C  10speed
1973 Duster 340 4-speed rare A/C, 2001 F250 4x4 7.3L, 6sp

"Our Constitution was made only for a Moral and Religious people. It is wholly inadequate to the goverment of any other."
John Adams 10/11/1798
RonW
Member
*****
Posts: 1867

Newport Beach
« Reply #2 on: July 24, 2016, 09:52:44 PM »

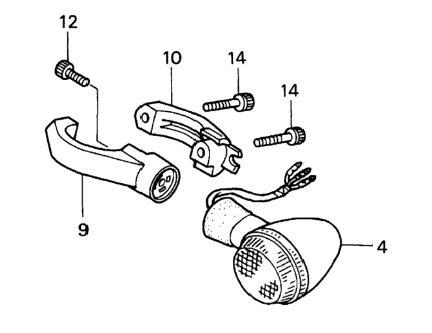

Did you buy a Valk signal? The oem front signal stay has two parts. The threaded half (No.9) costs only about $15 brand new. Plus, the left and right signal stays, complete units, are interchangeable. Just flip them horizontally. That is, you don't have to shop for a specific *right* or *left* unit if you buy them used. What bolt did you break?

Logged
2000 Valkyrie Tourer
Patrick
Member
*****
Posts: 15433


VRCC 4474

Largo Florida
« Reply #3 on: July 25, 2016, 03:33:05 AM »
If not using the connectors, then, I prefer solder and heat shrink tube.
Logged
cogsman
Member
*****
Posts: 260


Newmarket, Ontario, Canada
« Reply #4 on: July 25, 2016, 11:37:03 AM »
I broke the bolt going into the thinner part of #9. When I took the assembly apart I couldn't for the life of me figure out how the light piece was connected to and through #9. I figured I could disassemble but I couldn't find any connection points for the wires until I got to the bulb. There they were soldered and I didn't want to mess with those yet.
Logged
Harryc
Member
*****
Posts: 765


Sebastian, Fl
« Reply #5 on: July 25, 2016, 04:32:24 PM »
Why not just replace part #9?
Logged
http://s724.photobucket.com/user/Harryc56/slideshow/Valkyrie
