Is there supposed to be a hose plugged in here?

Started by pokrovsky, Mon 10, Feb 2020, 11:29:23

Previous topic - Next topic

pokrovsky

Hi valkyrie brothers,

For the life of me I can't figure it out looking at the shop manual and without taking the fuel tank off.
Is this nipple supposed to be without a hose attached to it?
Bike is a 2003 CD and is not not desmogged

Savage

#1
That's the bleed nipple connected to the clutch slave.
https://imgur.com/a/rme4ODl
Columbia, South Carolina

pokrovsky

thank you! no wonder I couldn't find it on the vacuum diagram  :uglystupid2:

Avanti

Should have a cap put on it to keep it clean.

RonW

#4
I guess it's a rubber 'cap' instead of a 'plug.' The same type of rubber cap that's on the bleeder nipple on the brake caliper with a molded tether. As already stated.

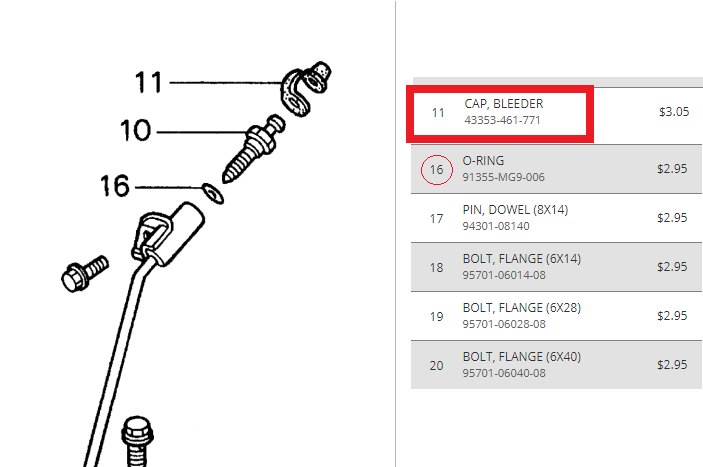

I did check the oem parts page and that part (11) is still available. It's looks identical to the rubber cap on the brake bleeder nipple but the clutch nipple is longer. The p/n is also different. Guess it's not safe to have the longer nipple on the exposed brake bleeder. Whereas the clutch nipple is tucked underneath the seat. I noticed on the oem parts page, that there's also a tiny o-ring (16) that seats below the clutch nipple. The brake caliper bleeders don't have the o-ring. I don't think it's possible to lose the o-ring, but it might wear out etc.

2000 Valkyrie Tourer

Skinhead

You can get those caps at any auto parts store.

Friendsville, TN - Troy, MI
