Author Topic: So you need a new frame?  (Read 627 times)
pago cruiser
Member
*****
Posts: 534


Tucson - Its a dry heat
« on: October 15, 2015, 09:42:32 PM »

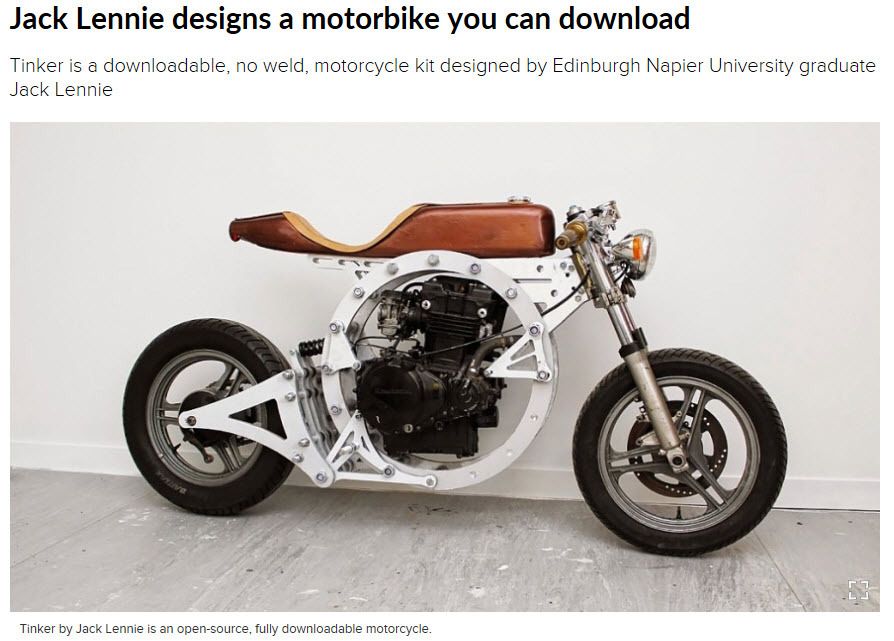

From a rather creative gentleman.

http://www.designindaba.com/articles/creative-work/jack-lennie-designs-motorbike-you-can-download



From a functional standpoint, its novel;  Adjustable steering head, swingarm, engine placemenrt; but for a vertical twin, triple or 4, it would be a tall seat.  Now for a low profile Valk engine... Roll Eyes
Butt ugly though - like something should have been in the latest Mad Max movie...
Logged
Just because you are not paranoid doesn't mean they're not out to get you
The emperor has no clothes
Member
*****
Posts: 29945
« Reply #1 on: October 15, 2015, 10:15:41 PM »
I don't think it's all that butt ugly. But it sure does look butt hurting though. It's very interesting, but it looks like it would be pretty hard to pull off a shaft drive though. The thought of chain drive just doesn't appeal to me anymore.
Logged
MarkT
Member
*****
Posts: 5196


VRCC #437 "Form follows Function"

Colorado Front Range - elevation 2.005 km


WWW
« Reply #2 on: October 15, 2015, 10:29:24 PM »
I see at least one flaw in the design.  The pivot point from the swingarm is WAY below the chain drive.  Any movement of the swingarm will tighten / loosen the chain tension.  A LOT.  Never mind it looks uncomfortable as hell.  Sitting on the boys.  Might work for a eunich or a girl.  Not for me.
« Last Edit: October 15, 2015, 10:31:23 PM by MarkT » Logged

Vietnam-474 TFW Takhli 9-12/72 Linebckr II;307 SBW U-Tapao 05/73-4
old2soon
Member
*****
Posts: 23512

Willow Springs mo
« Reply #3 on: October 16, 2015, 08:40:07 AM »
I am NOT an engineer but I'm thinkin the C G is up there. And agree wholeheartedly with Mark-Ts observation. MAYBE IF I wuz 40-50 years younger!  Lips Sealed RIDE SAFE.
Logged
Today is the tommorow you worried about yesterday. If at first you don't succeed screw it-save it for nite check.  1964  1968 U S Navy. Two cruises off Nam.
VRCCDS0240  2012 GL1800 Gold Wing Motor Trike conversion
Wizzard
Member
*****
Posts: 4043


Bald River Falls

Valparaiso IN
« Reply #4 on: October 16, 2015, 10:18:00 AM »
I am with MarkT,, I do not see how that would even function.
Logged

VRCC # 24157
czuch
Member
*****
Posts: 4140


vail az
« Reply #5 on: October 16, 2015, 12:47:36 PM »
I hope that was privately funded.
Logged
Aot of guys with burn marks,gnarly scars and funny twitches ask why I spend so much on safety gear
