Author Topic: Electronics experts - help with my speaker?  (Read 418 times)
Gryphon Rider
Member
*****
Posts: 5232


2000 Tourer

Calgary, Alberta
« on: November 23, 2016, 11:32:21 AM »

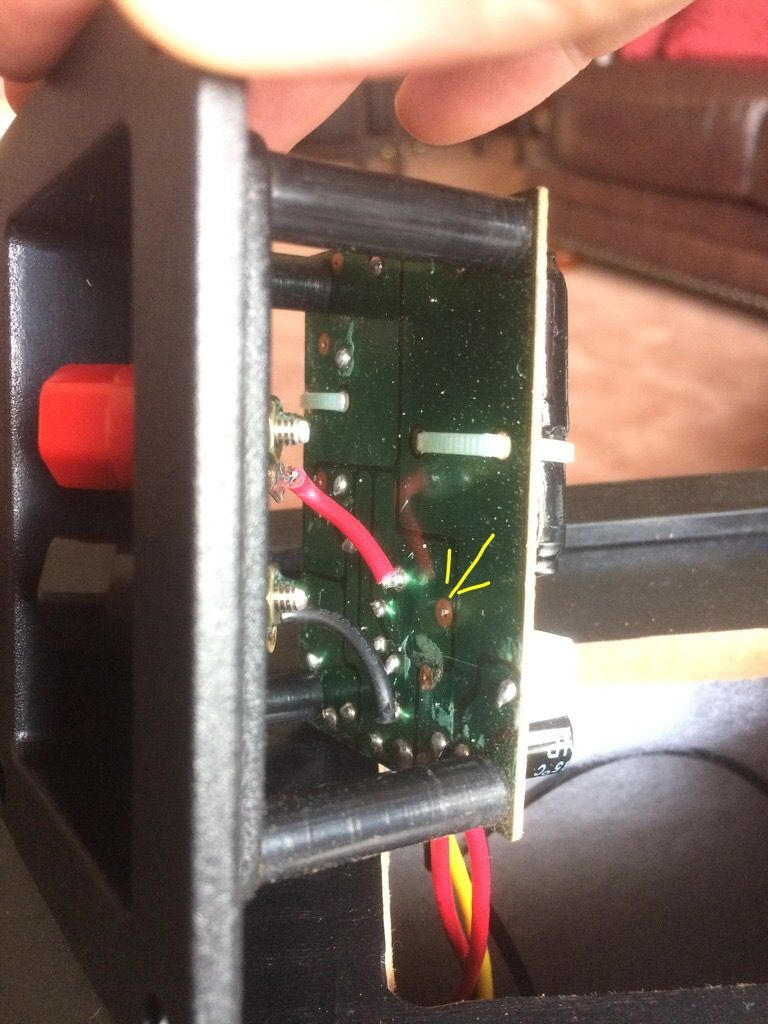

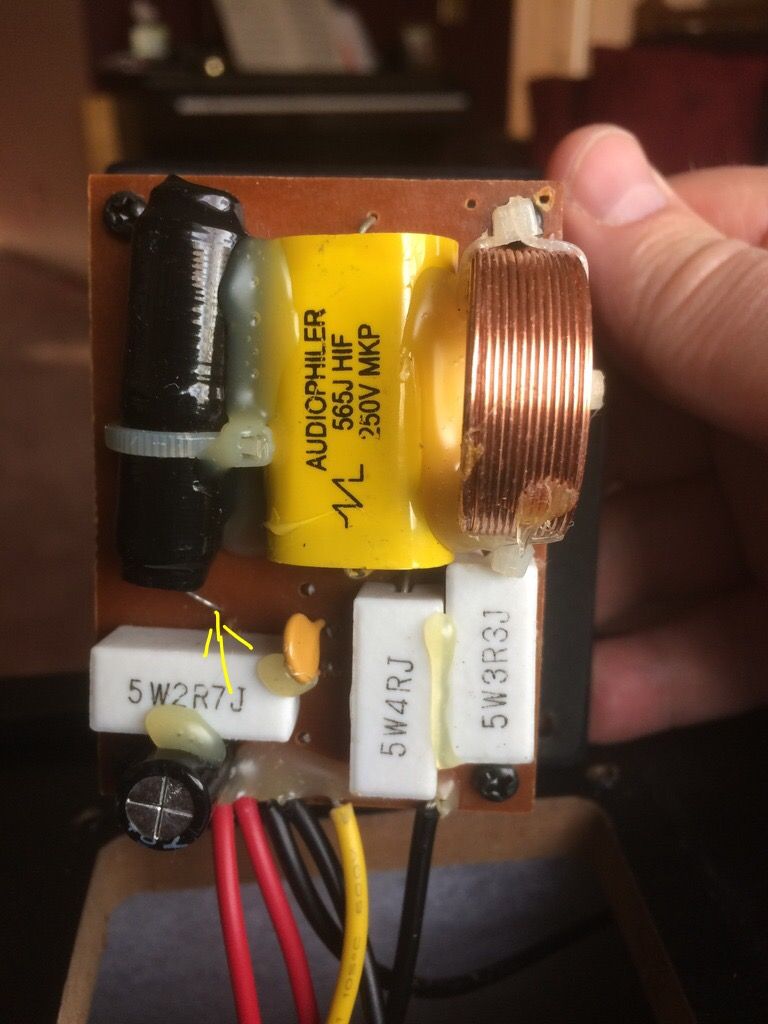

A few years ago my off-warranty centre channel speaker failed. It still produced high tones, but no mid to low tones. I put it away and used my stereo without a centre speaker. I've finally decided to have a look, and I've found what looks to be an unsoldered component. It's the bottom of the long black thing, below. The second photo is the view around to the left of the first. The two shaky yellow arrows point to the connection. Will soldering this fix my speaker? What is the long black thing?
Logged
Wizzard
Member
*****
Posts: 4043


Bald River Falls

Valparaiso IN
« Reply #1 on: November 23, 2016, 12:54:53 PM »
Looks to be an inductor and yes this will affect the sound big time
Logged

VRCC # 24157
Gryphon Rider
Member
*****
Posts: 5232


2000 Tourer

Calgary, Alberta
« Reply #2 on: November 23, 2016, 02:33:20 PM »
I soldered that connection, and now
It works. Thanks, Wiz!
Logged
Robert
Member
*****
Posts: 17398


S Florida
« Reply #3 on: November 23, 2016, 02:38:56 PM »
Its a crossover and yes that wire does need to be connected. It more than likely is a choke because the big yellow thing is a capacitor.
Logged
“Some people see things that are and ask, Why? Some people dream of things that never were and ask, Why not? Some people have to go to work and don’t have time for all that.”
Thunderbolt
Member
*****
Posts: 3731


Worthington Springs FL.
« Reply #4 on: November 23, 2016, 05:48:11 PM »
Now you qualify as the expert.  Congrats on getting it fixed.
Logged
The emperor has no clothes
Member
*****
Posts: 29945
« Reply #5 on: November 23, 2016, 06:15:15 PM »
You have a pretty elaborate stereo system on your bike.  2funny
