Thespian
|
 |
« on: October 13, 2013, 10:31:00 PM » |
|
Sunshine today and forecast for the rest of the week.  So of course on my way home tonight from work the Valk makes the caluchunk sound in third gear as I leave work. ??? I thought I had run over a truckers ratchet strap at first, but it did it again when I decelerated further up the road. babied it home and though it is not as severe, it does clunk every time I decelerate and to a lesser extent when accelerating. Either way I will no doubt miss this fine stretch of weather.  Anyone had something like this happen? What ja find? |
|
|
|
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
|
ptgb
|
|
« Reply #1 on: October 13, 2013, 10:40:41 PM » |
|
Most likely, the u-joint.
Work the problem from the rear forward; have to, to get the u-joint free anyway.
Pull the rear wheel, check all the splines there, drive shaft and then the u-joint.
Doubt it is the transmission.
|
|
|
|
|
Logged
|
 Lower Lakes 1000 - 07/07 & 09/10 * Bun Burner GOLD - 09/10 Lake Superior 1000 - 07/11 * Lake Michigan 1000 - 09/11 * Lake Huron 1000 - 09/11 Saddlesore 2000 - 09/11 * Ohio 1000 - 07/13 |
|
|
|
Thespian
|
|
« Reply #2 on: October 13, 2013, 11:36:13 PM » |
|
Yea I know what it is most likely. I went through the splines last tire change, and they looked great. Replaced all O rings and dust cover. More of a vent than anything. Kills me not to be able to ride this week.  Found a U joint on Ebay for under a hundred. Will see If my son can trailer it to his shop tomorrow. |
|
|
|
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #3 on: October 14, 2013, 07:20:15 AM » |
|
Most likely, the u-joint.
Work the problem from the rear forward; have to, to get the u-joint free anyway.
Pull the rear wheel, check all the splines there, drive shaft and then the u-joint.
Doubt it is the transmission.
+1 I also doubt it's your transmission. Sorry to hear of your misfortune. |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A   |
|
|
Hoser
Member
Posts: 5844
child of the sixties VRCC 17899
Auburn, Kansas
|
|
« Reply #4 on: October 14, 2013, 08:08:40 AM » |
|
Check the pinion cup and drive shaft when you install the u joint. Both were bad on mine. Hoser  |
|
|
|
|
Logged
|
I don't want a pickle, just wanna ride my motor sickle  [img width=300 height=233]http://i617.photobucket.com/albums/ |
|
|
Denny47
Member
Posts: 307
#34898
Grove, Ok.
|
|
« Reply #5 on: October 14, 2013, 04:27:19 PM » |
|
I just recently bought a new u-joint for mine, $137.71. www.hondapartshouse.com Rather pay a little more and know that I have a good one. |
|
|
|
|
Logged
|
1997 Green/Cream Tourer w/ Cobra 6/6 exhaust, 2012 Pearl White Goldwing
USAF 66-70, F-105 AWCS
|
|
|
|
Thespian
|
|
« Reply #6 on: October 14, 2013, 11:01:43 PM » |
|
Thanks for the link. I am definitely going new. The only one I found on Ebay was $80 and I didn't like the look of it. My day off is tomorrow, so I will start taking thing apart and we will see what has really happened.
|
|
|
|
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
|
N0tac0p
|
|
« Reply #7 on: October 15, 2013, 03:05:14 AM » |
|
well shortly i'll be pulling the rear and do my exam, relube, etc. the drive shaft and pinion, did we ever get anywhere with that? concerned if i put too much moly, it will plug something or not enuf moly and it will wear the spline?
I have typically used the honda moly on everything in the rear gear cluster, but i have read of various witches brews there that folks put together. is that used everywhere, even in the pinion? ujoint, etc?
best concoction?
|
|
|
|
|
Logged
|
|
|
|
RainMaker
Member
Posts: 6626
VRCC#24130 - VRCCDS#0117 - IBA#48473
Arlington, TX
|
|
« Reply #8 on: October 16, 2013, 09:27:29 AM » |
|
Thanks for the link. I am definitely going new. The only one I found on Ebay was $80 and I didn't like the look of it. My day off is tomorrow, so I will start taking thing apart and we will see what has really happened.
Never buy a used one. I have one of the rebuildable ones from Free Pass in California. Here's the info on it http://www.valkyrieforum.com/bbs/index.php/topic,30570.0.html |
|
|
|
|
Logged
|
 2005 BMW R1200 GS 2000 Valkyrie Interstate 1998 Valkyrie Tourer 1981 GL1100I GoldWing 1972 CB500K1 |
|
|
|
Thespian
|
|
« Reply #9 on: October 16, 2013, 07:11:21 PM » |
|
Well the good news is my u joint looks new, like it was replaced shortly before I got the bike. The pinion cup and drive shaft on the other hand are toast! The seal on the cup had a 1/2 inch torn back letting in the elements, and the grease out. There was so little left of the splines i'm surprised the bike would move. I'm wondering if it was damaged by whoever changed out the U joint. wish I had gone further than just O rings and rear spline lube when I changed my first set of tires. Oh well live and learn, time to start shopping.
BTY, There are lots of variants of the GL1500 on the parts page. What is the match for my 1999 standard? Or are all the parts the same for that area of the bike?
|
|
|
|
« Last Edit: October 16, 2013, 07:34:07 PM by Thespian »
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
|
Bone
|
|
« Reply #10 on: October 17, 2013, 03:29:03 AM » |
|
My Tourer is GL1500CT I believe the Standard is GL1500C and the Interstate is the GL1500SE.
|
|
|
|
|
Logged
|
|
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #11 on: October 17, 2013, 04:32:26 AM » |
|
My Tourer is GL1500CT I believe the Standard is GL1500C and the Interstate is the GL1500SE.
+1 The std is a GL1500C. Glad you identified the problem. Keep us posted with pics on the repair. |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A |
|
|
|
Thespian
|
|
« Reply #12 on: October 17, 2013, 09:30:58 AM » |
|
Ok parts on order. $127.92 with UPS ground. Spent the extra money and got a new spring and clip, just to be on the safe side. should have everything by the 28th. Pics to come.
|
|
|
|
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
|
Thespian
|
|
« Reply #13 on: November 02, 2013, 11:24:15 AM » |
|

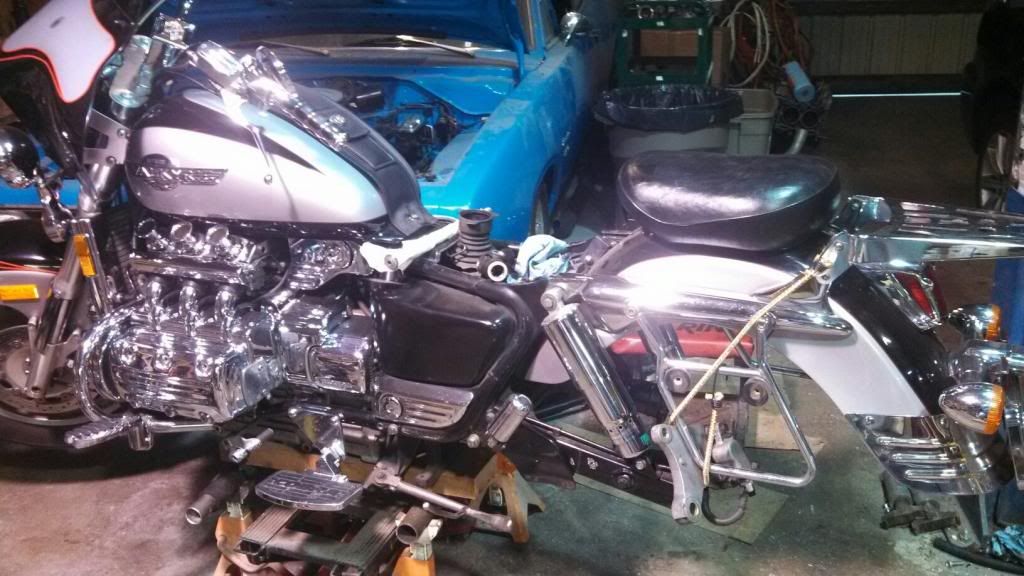

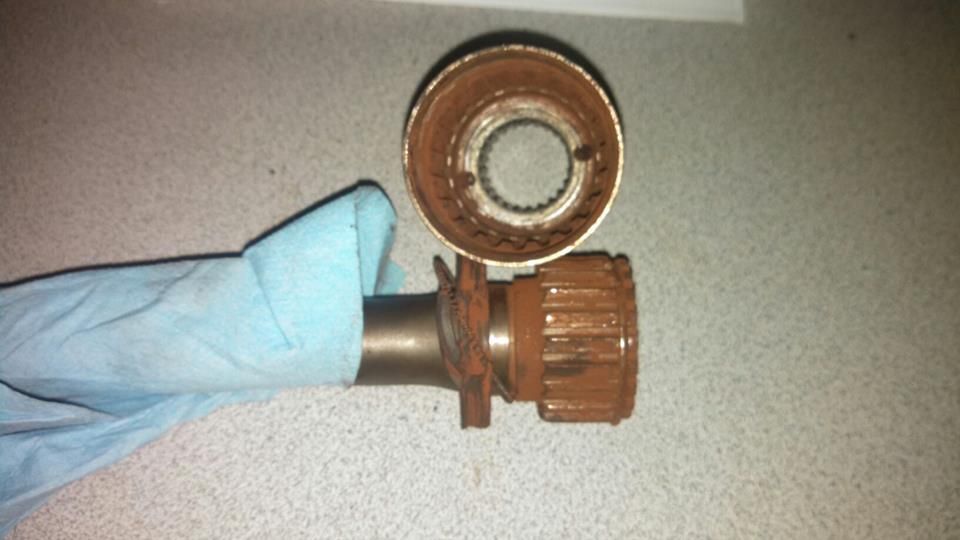

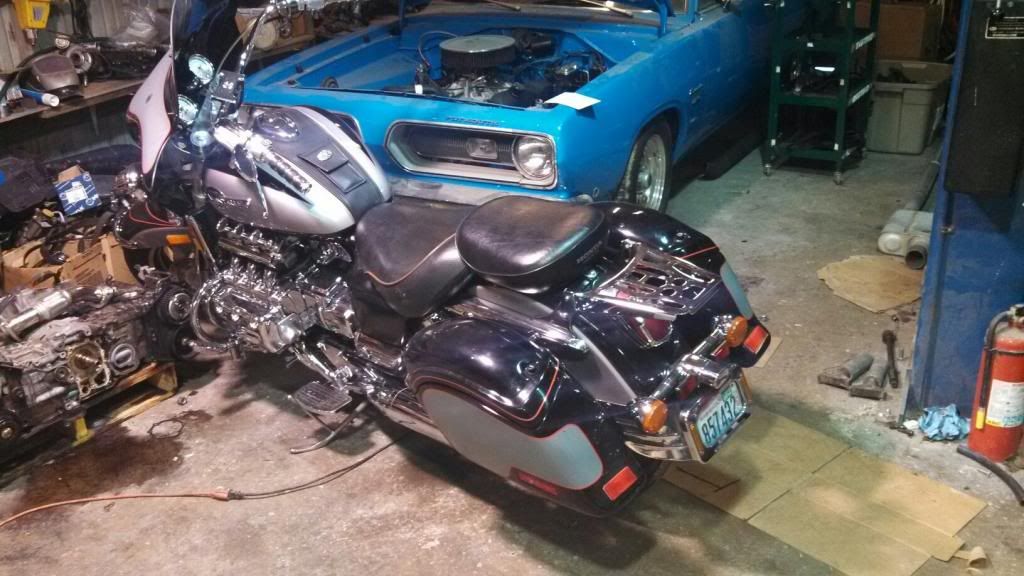

Finally got my bike back together last weekend. Before the breakdown I had noticed a drop in fuel economy, and with the new cup and shaft I should see that improve. Acceleration feels smooth and near effortless.  This is a shot you have all seen too often.  Looks like someone dropped the shaft when replacing U joint to me. Don't see how the chunk could have been torn back in normal use. Tearing her down went quick. It is the EZ part.   All the new stuff lubed up and ready to slip in. My son's roommate is rebuilding an engine right now and the shop is a mess as you can see.  Back together ( and needing a bath) with new to me original unmolested exhaust. Cant see it in this shot. The only thing I can say is a negative is I do hear more engine nose now.  Took this on on the way home to show off the new exhaust.  So, down about two and a half weeks, and now I'm back to flying @ ground level.  Would never have attempted any of the maintenance or this repair without the support of this community! Thanks again! See ya on the road!  |
|
|
|
« Last Edit: November 02, 2013, 11:39:22 AM by Thespian »
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
|
SpidyJ
|
|
« Reply #14 on: November 02, 2013, 01:25:43 PM » |
|
Wow, I can see why you don't want to miss any riding time. Beautiful spot to ride!
|
|
|
|
|
Logged
|
1999 Fast Black Interstate
Peace,
johnnywebb
|
|
|
gordonv
Member
Posts: 5763
VRCC # 31419
Richmond BC
|
|
« Reply #15 on: November 02, 2013, 02:04:38 PM » |
|
I also can't help but ask. Hi neighbor, where is that place in the picture?
I'm looking at riding the Okanagan valley from one end to the other sometime in the next couple of years. Next years ride is a 5 day loop ride of the lower half of BC, up the Ice Parkway from Banff to Jasper.
|
|
|
|
|
Logged
|
1999 Black with custom paint IS   |
|
|
salty1
Member
Posts: 2359
"Flyka"
Spokane, WA or Tucson, AZ
|
|
« Reply #16 on: November 02, 2013, 04:34:40 PM » |
|
I also can't help but ask. Hi neighbor, where is that place in the picture?
I'm looking at riding the Okanagan valley from one end to the other sometime in the next couple of years. Next years ride is a 5 day loop ride of the lower half of BC, up the Ice Parkway from Banff to Jasper.
Not to steal your thread but any recommendations on riding these parts of BC would be most welcome. I love Canada, particularly Alberta and British Columbia. |
|
|
|
|
Logged
|
My rides: 1998 GL1500C, 2000 GL 1500CF,2006 GL 1800 3A |
|
|
|
Thespian
|
|
« Reply #17 on: November 02, 2013, 07:43:23 PM » |
|
This was day three on the last ride I took on my old shadow. The one that finally pushed me over the edge and got me to move up to my Valk.  Day one was HWY 410 east from Bonney Lake to Yakima then State route 12 to Lewiston idaho.   Then Day two was lolo pass and the 93 south to Salmon Idaho. http://i1157.photobucket.com/albums/p585/FreightTrainFloyd/P6250182.jpg The shot I posted was HWY 75 coming into Stanley Idaho, at the foot of the Sawtooth MT,   This is what was left of the salmon river in the first shot. It completely disappears into a valley at the base of the Sawtooth.  Hope to make the ride on the Valk this next summer. |
|
|
|
|
Logged
|
Smooth is where it's at. (o_0)
|
|
|
Skinhead
Member
Posts: 8727
J. A. B. O. A.
Troy, MI
|
|
« Reply #18 on: November 03, 2013, 06:05:32 AM » |
|
Congrats on getting the bike back to 100%. Beautiful country out there. I hope to see it in person some day.
|
|
|
|
|
Logged
|
 Troy, MI |
|
|
gordonv
Member
Posts: 5763
VRCC # 31419
Richmond BC
|
|
« Reply #19 on: November 03, 2013, 05:31:57 PM » |
|
I also can't help but ask. Hi neighbor, where is that place in the picture?
I'm looking at riding the Okanagan valley from one end to the other sometime in the next couple of years. Next years ride is a 5 day loop ride of the lower half of BC, up the Ice Parkway from Banff to Jasper.
Not to steal your thread but any recommendations on riding these parts of BC would be most welcome. I love Canada, particularly Alberta and British Columbia. I usually don't post or read the general section, but will post a threat there for you and Thespian, since this isn't Tech related. http://www.valkyrieforum.com/bbs/index.php/topic,61604.0.html |
|
|
|
« Last Edit: November 04, 2013, 08:43:37 PM by gordonv »
|
Logged
|
1999 Black with custom paint IS |
|
|
|
.
|
|
« Reply #20 on: November 04, 2013, 12:43:01 PM » |
|
As much as I love riding through the Ozarks those photos take my breath away. I'll have to have that on my bucket list for sure.
Hey Skinhead, I'm not sure what part of the country you are in but maybe we should plan sometime to head out from our respective hometowns and meet up for a ride through that scenery. It would definitely be a great first ride together, I think.
|
|
|
|
|
Logged
|
|
|
|
|
